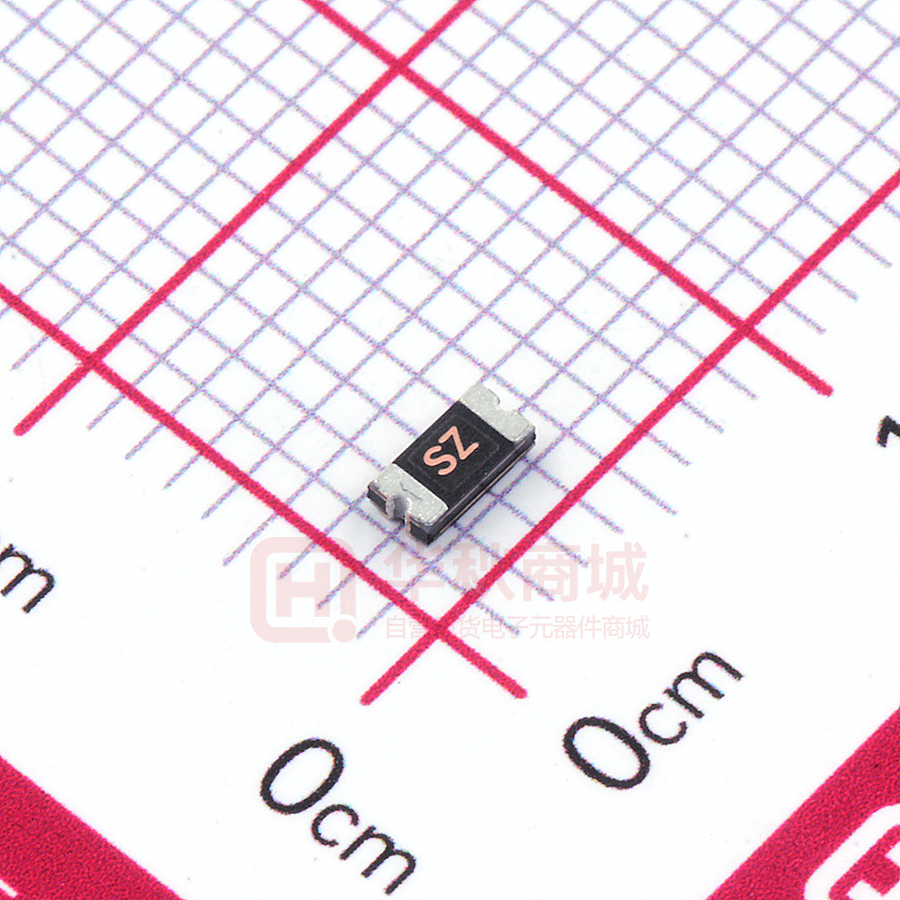

SCF005-1206RB

Surface Mount Resettable PTCs SCF1206RB Series Features      RoHS Compliant & Halogen Free Faster tripping, 1206 Dimension, Surface mountable, Solid state Operation Current: 0.05A ~ 2.00A Maximum Voltage: 6V ~ 60Vdc Operating Temperature: -40℃ ~ + 85℃ Electrical Parameters Hold Current Trip Current Rated Voltage V max (Vdc) Max Current I max (A) Typical Power P dtyp. (W) I hold (A) I trip (A) SCF005-1206RB 0.05 0.15 60.0 100 0.4 0.25 SCF010-1206RB 0.10 0.25 60.0 100 0.4 SCF012-1206RB 0.12 0.29 30.0 100 SCF016-1206RB 0.16 0.37 30.0 SCF020-1206RB 0.20 0.46 SCF020-30-1206RB 0.20 SCF025-24-1206RB Part Number Maximum Time To Trip Current Time (A) (Sec.) Resistance R min (Ω) R 1max (Ω) 1.50 3.600 50.00 0.50 1.00 1.600 15.00 0.4 1.00 0.20 1.350 12.00 100 0.4 1.00 0.30 1.000 6.000 24.0 100 0.6 8.00 0.08 0.350 3.500 0.46 30.0 100 0.6 8.00 0.08 0.350 3.500 0.25 0.50 24.0 100 0.6 8.00 0.08 0.350 2.700 SCF025-1206RB 0.25 0.50 16.0 100 0.6 8.00 0.08 0.350 2.700 SCF030-1206RB 0.30 0.65 16.0 100 0.6 8.00 0.10 0.250 2.000 SCF035-1206RB 0.35 0.75 16.0 100 0.6 8.00 0.10 0.250 1.300 SCF035-24-1206RB 0.35 0.75 24.0 100 0.6 8.00 0.10 0.250 1.400 SCF035-30-1206RB 0.35 0.75 30.0 100 0.6 8.00 0.10 0.250 1.400 SCF050-1206RB 0.50 1.00 6.0 100 0.6 8.00 0.10 0.150 0.700 SCF050-13.2-1206RB 0.50 1.00 13.2 100 0.6 8.00 0.10 0.150 0.700 SCF050-16-1206RB 0.50 1.00 16.0 100 0.6 8.00 0.10 0.150 1.000 SCF050-24-1206RB 0.50 1.00 24.0 100 0.6 8.00 0.10 0.150 0.750 SCF075-1206RB 0.75 1.50 6.0 100 0.6 8.00 0.20 0.090 0.500 SCF075-13.2-1206RB 0.75 1.50 13.2 100 0.6 8.00 0.20 0.090 0.500 SCF075-16-1206RB 0.75 1.50 16.0 100 0.6 8.00 0.20 0.090 0.500 SCF100-1206RB 1.00 1.80 6.0 100 0.6 8.00 0.30 0.055 0.270 SCF100-13.2-1206RB 1.00 1.80 13.2 100 0.6 8.00 0.30 0.055 0.270 SCF110-1206RB 1.10 1.80 8.0 100 0.6 8.00 0.30 0.050 0.230 SCF110-16-1206RB 1.10 1.80 16 100 0.6 8.00 0.30 0.050 0.260 SOCAY Electronics Corp., Ltd. Revision August 11, 2021 www.socay.com 1/7 @ SOCAY Electronics Corp., Ltd. 2021 Specifications are subject to change without notice. Please refer to www.socay.com for current information. Surface Mount Resettable PTCs SCF1206RB Series Hold Current Trip Current Rated Voltage Max Current Typical Power I hold (A) I trip (A) V max (Vdc) I max (A) P dtyp. (W) Current (A) Time (Sec.) R min (Ω) R 1max (Ω) SCF150-1206RB 1.50 3.00 6.0 100 0.8 8.00 1.00 0.040 0.130 SCF150-12-1206RB 1.50 3.00 12.0 40 0.6 8.00 1.00 0.040 0.130 SCF200-1206RB 2.00 3.50 6.0 100 0.8 8.00 1.00 0.018 0.080 Part Number Maximum Time To Trip Resistance I hold = Hold Current. Maximum current device will not trip in 25℃ still air. I trip = Trip Current. Minimum current at which the device will always trip in 25℃ still air. V max = Maximum operating voltage device can withstand without damage at rated current (Imax). I max = Maximum fault current device can withstand without damage at rated voltage (Vmax). P dtyp =Maximum power dissipation when device is in the tripped state in 25℃ still air environment at rated voltage. R min = Minimum device resistance prior to tripping at 25℃. R 1max = Maximum device resistance is measured one hour post reflow. Test Procedures and Requirements Test Item Test Conditions Accept / Reject Criteria Resistance In still air @ 25℃ Rmin≤R≤R1max Time to Trip Specified current, Vmax, 25℃ T≤Maximum Time to Trip Holding Current 30min, at IH No trip Trip Cycle Life Vmax, Imax, 100cycles No arcing or burning Trip Endurance Vmax, 1 hour No arcing or burning Physical Characteristics Terminal Materials Soldering Zone Tin-Plated Nickle-copper Meets EIA specification RS 186-9E and ANSI/J-STD-002 Category 3. Environmental Specifications Test Item Test Conditions Resistance Change Passive Aging 85℃,1000 hours ±10% Humidity Aging 85℃/85%RH.100 hours ±5% Thermal Shock MIL-STD-202, Method 107G +85℃/-40℃, 20 times ±33% typical resistance change Solvent Resistance MIL-STD-202, Method 215 No change Vibration ML-STD-883C, Test Condition A No change SOCAY Electronics Corp., Ltd. Revision August 11, 2021 www.socay.com 2/7 @ SOCAY Electronics Corp., Ltd. 2021 Specifications are subject to change without notice. Please refer to www.socay.com for current information. Surface Mount Resettable PTCs SCF1206RB Series Thermal Derating Chart - IH (A) Model Maximum ambient operating temperature (℃) -40 -20 0 25 40 50 60 70 85 SCF005-1206RB 0.09 0.08 0.06 0.05 0.04 0.036 0.033 0.029 0.02 SCF010-1206RB 0.18 0.16 0.12 0.10 0.08 0.072 0.066 0.058 0.04 SCF012-1206RB 0.216 0.192 0.144 0.120 0.096 0.086 0.079 0.070 0.048 SCF016-1206RB 0.288 0.256 0.192 0.160 0.128 0.115 0.106 0.093 0.064 SCF020-1206RB 0.31 0.26 0.22 0.20 0.18 0.16 0.15 0.13 0.07 SCF020-30-1206RB 0.31 0.26 0.22 0.20 0.18 0.16 0.15 0.13 0.07 SCF025-24-1206RB 0.37 0.33 0.29 0.25 0.22 0.20 0.17 0.15 0.12 SCF025-1206RB 0.37 0.33 0.29 0.25 0.22 0.20 0.17 0.15 0.12 SCF030-1206RB 0.444 0.396 0.348 0.30 0.264 0.24 0.204 0.18 0.144 SCF035-1206RB 0.50 0.45 0.40 0.35 0.30 0.27 0.24 0.21 0.15 SCF035-24-1206RB 0.50 0.45 0.40 0.35 0.30 0.27 0.24 0.21 0.15 SCF035-30-1206RB 0.50 0.45 0.40 0.35 0.30 0.27 0.24 0.21 0.15 SCF050-1206RB 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 SCF050-13.2-1206RB 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 SCF050-16-1206RB 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 SCF050-24-1206RB 0.639 0.576 0.513 0.50 0.378 0.351 0.315 0.279 0.225 SCF075-1206RB 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 SCF075-13.2-1206RB 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 SCF075-16-1206RB 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 SCF100-1206RB 1.45 1.31 1.15 1.00 0.84 0.77 0.69 0.61 0.48 SCF100-13.2-1206RB 1.305 1.179 1.035 1.00 0.756 0.693 0.621 0.549 0.432 SCF110-1206RB 1.595 1.441 1.265 1.10 0.924 0.847 0.759 0.671 0.528 SCF110-16-1206RB 1.595 1.441 1.265 1.10 0.924 0.847 0.759 0.671 0.528 SCF150-1206RB 2.18 1.94 1.72 1.50 1.28 1.17 1.06 0.96 0.77 SCF150-12-1206RB 2.18 1.94 1.72 1.50 1.28 1.17 1.06 0.96 0.77 SCF200-1206RB 2.60 2.44 2.35 2.00 1.78 1.67 1.50 1.45 1.10 SOCAY Electronics Corp., Ltd. Revision August 11, 2021 www.socay.com 3/7 @ SOCAY Electronics Corp., Ltd. 2021 Specifications are subject to change without notice. Please refer to www.socay.com for current information. Surface Mount Resettable PTCs SCF1206RB Series Soldering Parameters Profile Feature Pb-Free Assembly Average Ramp-Up Rate (TS max to TP) 3℃/second max. Preheat : Temperature Min (TSmin) Temperature Max (TSmax) Time (TSmin to TSmax) Time maintained above: Temperature(TL) Time (TL) 150℃ 200℃ 60-120 seconds 217℃ 60-150 seconds Peak/Classification Temperature(TP) 260℃ Time within 5 ℃ of actual peak temperature: Time (TP) 30 seconds max. Ramp-down Rate 3℃/ second max. Time 25℃ to Peak Temperature 8 minutes max. Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead-free.   Devices are not designed to be wave soldered to the bottom side of the board.  Recommended maximum paste thickness is 0.25mm (0.010inch). Devices can be cleaned using standard industry methods and solvents.   Soldering temperature profile meets RoHS leadfree process. Note 1: All temperature refer to topside of the package,measured on the package body surface. Note 2: If reflow temperature exceed the recommended profile,devices may not meet the performance requirements. Part Numbering SCF XXX – XX – 1206 RB SZ Internal Code Device Size Code Example Rated Voltage SZ= SCF005-1206RB SN= SCF010-1206RB SN=SCF012-1206RB SF= SCF016-1206RB SF= SCF020-1206RB SF= SCF020-30-1206RB SF= SCF025-1206RB SF= SCF025-24-1206RB SB= SCF030-1206RB SB= SCF035-1206RB SB= SCF035-24-1206RB SB= SCF035-30-1206RB SG= SCF050-1206RB Hold Current Socay Product Code SOCAY Electronics Corp., Ltd. Revision August 11, 2021 SG= SCF050-13.2-1206RB SG= SCF050-16-1206RB SG= SCF050-24-1206RB SA= SCF075-1206RB SA= SCF075-13.2-1206RB SA= SCF075-16-1206RB SH= SCF100-1206RB SH= SCF100-13.2-1206RB SH= SCF110-1206RB SH= SCF110-16-1206RB SI= SCF150-1206RB SI= SCF150-12-1206RB SK= SCF200-1206RB www.socay.com 4/7 @ SOCAY Electronics Corp., Ltd. 2021 Specifications are subject to change without notice. Please refer to www.socay.com for current information. Surface Mount Resettable PTCs SCF1206RB Series Recommended Solder Pad Layout Dimensions (Unit: mm) The dimension in the table below provide the recommended pad layout for each SCF1206RB Series device Device A B C 1206 Series 2.0±0.1 1.0±0.1 1.9±0.1 Product Dimensions (Unit: mm) Part Number A B C D E Min. Max. Min. Max. Min. Max. Min. Min. SCF005-1206RB 3.00 3.50 1.50 1.80 0.60 1.10 0.15 0.10 SCF010-1206RB 3.00 3.50 1.50 1.80 0.60 1.10 0.15 0.10 SCF012-1206RB 3.00 3.50 1.50 1.80 0.60 1.10 0.15 0.10 SCF016-1206RB 3.00 3.50 1.50 1.80 0.40 0.90 0.15 0.10 SCF020-1206RB 3.00 3.50 1.50 1.80 0.40 0.90 0.15 0.10 SCF020-30-1206RB 3.00 3.50 1.50 1.80 0.40 0.90 0.15 0.10 SCF025-24-1206RB 3.00 3.50 1.50 1.80 0.40 0.90 0.15 0.10 SCF025-1206RB 3.00 3.50 1.50 1.80 0.40 0.90 0.15 0.10 SCF030-1206RB 3.00 3.50 1.50 1.80 0.40 0.90 0.15 0.10 SCF035-1206RB 3.00 3.50 1.50 1.80 0.40 0.90 0.15 0.10 SCF035-24-1206RB 3.00 3.50 1.50 1.80 0.40 0.90 0.15 0.10 SCF035-30-1206RB 3.00 3.50 1.50 1.80 0.50 1.20 0.15 0.10 SCF050-1206RB 3.00 3.50 1.50 1.80 0.35 0.85 0.15 0.10 SCF050-13.2-1206RB 3.00 3.50 1.50 1.80 0.35 0.85 0.15 0.10 SCF050-16-1206RB 3.00 3.50 1.50 1.80 0.35 0.85 0.15 0.10 SCF050-24-1206RB 3.00 3.50 1.50 1.80 0.35 0.85 0.15 0.10 SCF075-1206RB 3.00 3.50 1.50 1.80 0.35 0.85 0.15 0.10 SCF075-13.2-1206RB 3.00 3.50 1.50 1.80 0.35 0.85 0.15 0.10 SOCAY Electronics Corp., Ltd. Revision August 11, 2021 www.socay.com 5/7 @ SOCAY Electronics Corp., Ltd. 2021 Specifications are subject to change without notice. Please refer to www.socay.com for current information. Surface Mount Resettable PTCs SCF1206RB Series Product Dimensions (Unit: mm) (Continue) Part Number A B C D E Min. Max. Min. Max. Min. Max. Min. Min. SCF075-16-1206RB 3.00 3.50 1.50 1.80 0.60 1.30 0.15 0.10 SCF100-1206RB 3.00 3.50 1.50 1.80 0.40 0.80 0.15 0.10 SCF100-13.2-1206RB 3.00 3.50 1.50 1.80 0.40 1.30 0.15 0.10 SCF110-1206RB 3.00 3.50 1.50 1.80 0.40 0.80 0.15 0.10 SCF110-16-1206RB 3.00 3.50 1.50 1.80 0.60 1.30 0.15 0.10 SCF150-1206RB 3.00 3.50 1.50 1.80 0.60 1.50 0.15 0.10 SCF150-12-1206RB 3.00 3.50 1.50 1.80 0.80 1.80 0.15 0.10 SCF200-1206RB 3.00 3.50 1.50 1.80 0.70 1.50 0.15 0.10 Packaging Quantity Part Number Quantity Part Number Quantity SCF005-1206RB 3500 PCS SCF050-24-1206RB 3500 PCS SCF010-1206RB 3500 PCS SCF075-1206RB 5000 PCS SCF012-1206RB 3500 PCS SCF075-13.2-1206RB 5000 PCS SCF016-1206RB 5000 PCS SCF075-16-1206RB 3500 PCS SCF020-1206RB 5000 PCS SCF100-1206RB 5000 PCS SCF020-30-1206RB 5000 PCS SCF100-13.2-1206RB 3500 PCS SCF025-1206RB 5000 PCS SCF110-1206RB 5000 PCS SCF025-24-1206RB 5000 PCS SCF110-16-1206RB 5000 PCS SCF030-1206RB 5000 PCS SCF150-1206RB 3500 PCS SCF035-1206RB 5000 PCS SCF150-12-1206RB 3500 PCS SCF035-24-1206RB 5000 PCS SCF200-1206RB 3500 PCS SCF035-30-1206RB 3500 PCS -- -- SCF050-1206RB 5000 PCS -- -- SCF050-13.2-1206RB 5000 PCS -- -- SCF050-16-1206RB 5000 PCS -- -- SOCAY Electronics Corp., Ltd. Revision August 11, 2021 www.socay.com 6/7 @ SOCAY Electronics Corp., Ltd. 2021 Specifications are subject to change without notice. Please refer to www.socay.com for current information. Surface Mount Resettable PTCs SCF1206RB Series Tape Specifications (Unit: mm) EIA Tape Component Dimensions Symbol Dimensions W 8.15+0.15/-0.30 P0 4.00±0.10 P1 4.00±0.10 P2 2.00±0.05 A0 1.95±0.10 B0 3.56±0.10 D0 1.55±0.05 F 3.50±0.05 E1 1.75±0.10 T 0.20±0.10 Leader min. 390 Trailer min. 160 Symbol Dimensions A 178±1.0 N 59±1.0 W1 8.5+1.0/-0.2 W2 12.0±1.0 Reel Specifications (Unit: mm) Reel Dimensions Warning  Operation beyond the specified maximum ratings or improper use may result in damage and possible electrical arcing and/or flame.  PPTC device are intended for occasional over-current protection. Application for repeated over-current condition and/or prolonged trip are not anticipated.  Avoid contact of PPTC device with chemical solvent. Prolonged contact will damage the device performance. SOCAY Electronics Corp., Ltd. Revision August 11, 2021 www.socay.com 7/7 @ SOCAY Electronics Corp., Ltd. 2021 Specifications are subject to change without notice. Please refer to www.socay.com for current information.
