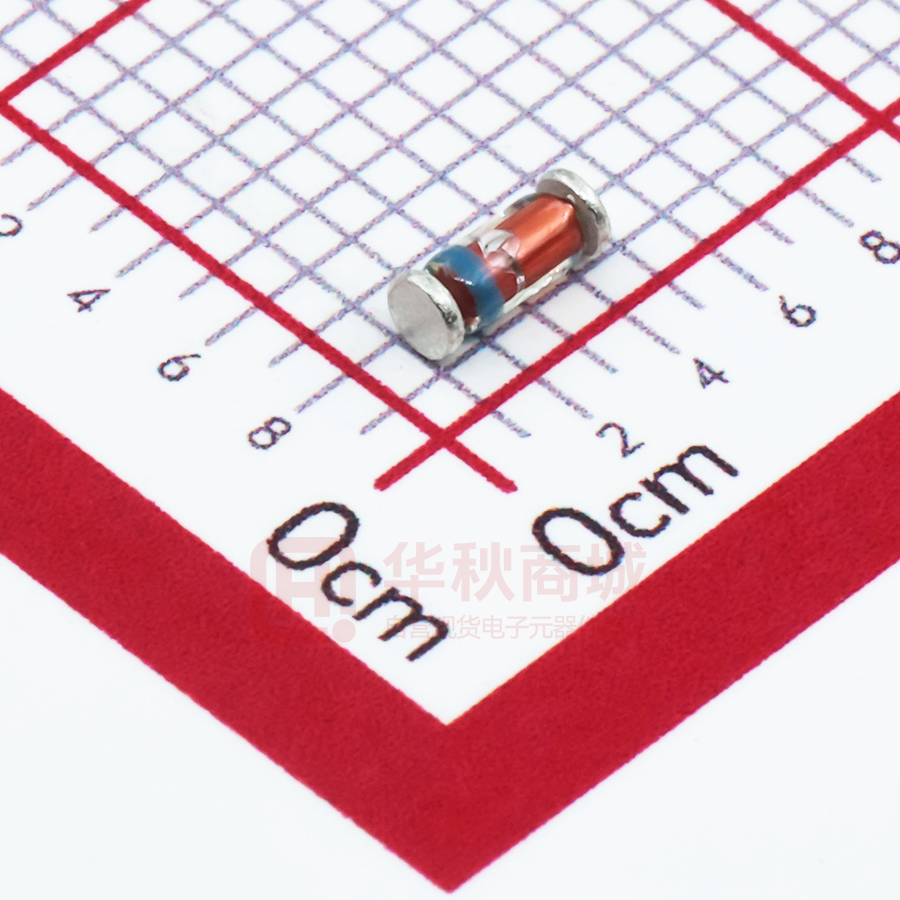

ZMM1PF...ZMM75PF Silicon Epitaxial Planar Zener Diodes MiniMELF case especially for automatic insertion. The Zener voltages are graded according to the international E24 standard. Smaller voltage tolerances and higher Zener voltages are upon request. LL-34 These diodes are also available in DO-35 case with the type designation BZX55C... Features • Lead Free Absolute Maximum Ratings (Ta = 25℃) Parameter Power Dissipation 1) Junction Temperature Storage Temperature Range Thermal Characteristics Parameter Thermal Resistance Junction to Ambient 1) 1) Symbol Value Unit Ptot 500 mW Tj 175 ℃ Tstg - 55 to + 175 ℃ Symbol Max. Unit RθJA 300 ℃/W Valid provided that electrodes are kept at ambient temperature. 1/3 ® Dated :25/08/2021 Rev：02 ZMM1PF...ZMM75PF Characteristics at Ta = 25℃ (VF max : 1 V at IF = 100 mA) Zener Voltage Range Type VZnom 2) ZMM1PF 1) Dynamic Resistance Reverse Leakage Current Temp. Coefficient of Zener Voltage VZT at lZT ZZT at IZT ZZK at IZK Ta = 25℃ Ta = 125℃ at VR (V) (V) (mA) Max. (Ω) Max. (Ω) (mA) Max. (µA) Max. (µA) (V) TKvz (%/K) 0.75 0.7...0.8 5 8 50 1 - - - -0.26...-0.23 ZMM2V0PF 2 1.8...2.15 5 85 600 1 100 200 1 -0.09...-0.06 ZMM2V2PF 2.2 2.08...2.33 5 85 600 1 75 160 1 -0.09...-0.06 ZMM2V4PF 2.4 2.28...2.56 5 85 600 1 50 100 1 -0.09...-0.06 ZMM2V7PF 2.7 2.5...2.9 5 85 600 1 10 50 1 -0.09...-0.06 ZMM3V0PF 3 2.8...3.2 5 85 600 1 4 40 1 -0.08...-0.05 ZMM3V3PF 3.3 3.1...3.5 5 85 600 1 2 40 1 -0.08...-0.05 ZMM3V6PF 3.6 3.4...3.8 5 85 600 1 2 40 1 -0.08...-0.05 ZMM3V9PF 3.9 3.7...4.1 5 85 600 1 2 40 1 -0.08...-0.05 ZMM4V3PF 4.3 4...4.6 5 75 600 1 1 20 1 -0.06...-0.03 ZMM4V7PF 4.7 4.4...5 5 60 600 1 0.5 10 1 -0.05...+0.02 ZMM5V1PF 5.1 4.8...5.4 5 35 550 1 0.1 2 1 -0.02...+0.02 ZMM5V6PF 5.6 5.2...6 5 25 450 1 0.1 2 1 -0.05...+0.05 ZMM6V2PF 6.2 5.8...6.6 5 10 200 1 0.1 2 2 0.03...0.06 ZMM6V8PF 6.8 6.4...7.2 5 8 150 1 0.1 2 3 0.03...0.07 ZMM7V5PF 7.5 7...7.9 5 7 50 1 0.1 2 5 0.03...0.07 ZMM8V2PF 8.2 7.7...8.7 5 7 50 1 0.1 2 6.2 0.03...0.08 ZMM9V1PF 9.1 8.5...9.6 5 10 50 1 0.1 2 6.8 0.03...0.09 ZMM10PF 10 9.4...10.6 5 15 70 1 0.1 2 7.5 0.03...0.1 ZMM11PF 11 10.4...11.6 5 20 70 1 0.1 2 8.2 0.03...0.11 ZMM12PF 12 11.4...12.7 5 20 90 1 0.1 2 9.1 0.03...0.11 ZMM13PF 13 12.4...14.1 5 26 110 1 0.1 2 10 0.03...0.11 ZMM15PF 15 13.8...15.6 5 30 110 1 0.1 2 11 0.03...0.11 ZMM16PF 16 15.3...17.1 5 40 170 1 0.1 2 12 0.03...0.11 ZMM18PF 18 16.8...19.1 5 50 170 1 0.1 2 13 0.03...0.11 ZMM20PF 20 18.8...21.2 5 55 220 1 0.1 2 15 0.03...0.11 ZMM22PF 22 20.8...23.3 5 55 220 1 0.1 2 16 0.04...0.12 ZMM24PF 24 22.8...25.6 5 80 220 1 0.1 2 18 0.04...0.12 ZMM27PF 27 25.1...28.9 5 80 220 1 0.1 2 20 0.04...0.12 ZMM30PF 30 28...32 5 80 220 1 0.1 2 22 0.04...0.12 ZMM33PF 33 31...35 5 80 220 1 0.1 2 24 0.04...0.12 ZMM36PF 36 34...38 5 80 220 1 0.1 2 27 0.04...0.12 ZMM39PF 39 37...41 2.5 90 500 0.5 0.1 5 30 0.04...0.12 ZMM43PF 43 40...46 2.5 90 500 0.5 0.1 5 33 0.04...0.12 ZMM47PF 47 44...50 2.5 110 600 0.5 0.1 5 36 0.04...0.12 ZMM51PF 51 48...54 2.5 125 700 0.5 0.1 10 39 0.04...0.12 ZMM56PF 56 52...60 2.5 135 700 0.5 0.1 10 43 0.04...0.12 ZMM62PF 62 58...66 2.5 150 1000 0.5 0.1 10 47 0.04...0.12 ZMM68PF 68 64...72 2.5 200 1000 0.5 0.1 10 51 0.04...0.12 ZMM75PF 75 70...79 2.5 250 1000 0.5 0.1 10 56 0.04...0.12 1) 2) Tested with pulses tp = 20 ms. The ZMM1 is a silicon diode with operation in forward direction. Hence, the index of all parameters should be "F" instead of "Z". Connect the cathode electrode to the negative pole. 2/3 ® Dated :25/08/2021 Rev：02 ZMM1PF...ZMM75PF Electrical Characteristics Curves Fig 2. Zener Characteristics Curve Zener Current (mA) Zener Current (mA) Fig 1. Zener Characteristics Curve Zener Voltage (V) Zener Voltage (V) Fig 3. Zener Characteristics Curve Zener Current (mA) Forward Current (mA) Fig 4. Forward Characteristics Curve Zener Voltage (V) Forward Voltage (V) Fig 5. Power Derating Curve Power Dissipation (mW) 500 400 300 200 100 0 0 25 100 150 200 Ambient Temperature (℃) 3/3 ® Dated :25/08/2021 Rev：02
