PESDNC2FD3V3BS

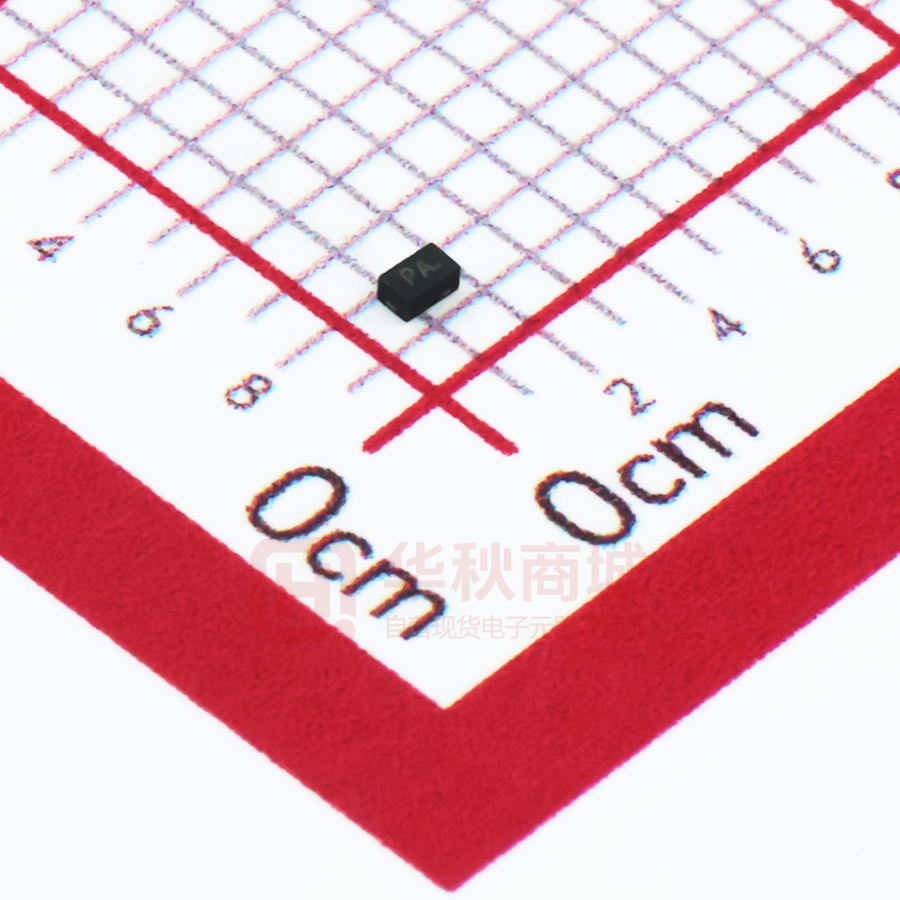

PESDNC2FD3V3BS Bi-directional 3.3V Normal Capacitance ESD Protector Description The PESDNC2FD3V3BS protects sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events. They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level protection, such as fast response time, low operating voltage. It gives designer the flexibility to protect one bi-directional line in applications where arrays are not practical. DFN1006-2L(Bottom View) Feature ➢ DFN1006-2L package ➢ Replacement for MLV(0402) ➢ Bidirectional configurations ➢ Response time is typically < 1ns ➢ Low clamping voltage ➢ RoHS compliant ➢ Transient protection for data lines to IEC61000-4-2(ESD) Pin 1 Pin 2 Circuit Diagram ±25kV(air), ±25kV(contact); IEC61000-4-4 (EFT) 40A (5/50ns) Applications ➢ Cellular phones ➢ Portable devices ➢ Digital cameras ➢ Power supplies PA Marking (Top View) Mechanical Characteristics ➢ Mounting position: Any ➢ Qualified max reflow temperature:260℃ ➢ Device meets MSL 1 requirements ➢ DFN1006-2L without plating Rev.06.7 1 www.prisemi.com ESD Protector PESDNC2FD3V3BS Electronics Parameter Symbol Parameter VRWM Peak Reverse Working Voltage IR Reverse Leakage Current @ VRWM VBR I IPP Breakdown Voltage @ IT IT Test Current IPP Maximum Reverse Peak Pulse Current VC VBR VRWM VC Clamping Voltage @ IPP PPP Peak Pulse Power CJ Junction Capacitance IF Forward Current VF Forward Voltage @ IF IT I R V I VRWM VBR VC R IT IPP Electrical characteristics per line@25℃ (unless otherwise specified) Parameter Reverse Stand-off Voltage Symbol Conditions Min. It = 1mA IR VRWM = 3.3V T=25℃ Clamping Voltage VCL IPP=16A tp=100ns Clamping Voltage VC IPP=5A tP = 8/20μs Junction Capacitance Cj Reverse Leakage Current Max. Units 3.3 V 6.5 V 1.0 μA VRWM VBR Reverse Breakdown Voltage Typ. VR=0V 4.5 10 V 10.5 f = 1MHz 9.5 V pF Absolute maximum rating@25℃ Rating Symbol Value Units Unidirectional Peak Pulse Power Ppp 60 W Operating Temperature TJ -55 to 150 ℃ TSTG -55 to 150 ℃ Storage Temperature Rev.06.7 2 www.prisemi.com ESD Protector PESDNC2FD3V3BS Typical Characteristics 100 100 % Of Rated Power IPP – Peak Pulse Current - % of IPP tf=8μs 80 60 tP =20μ s(IPP /2) 40 20 80 60 40 20 0 0 0 5 10 15 20 25 30 0 25 t - Time -μs Fig 1.Pulse Waveform 50 75 100 TL – Lead Temperature - ℃ 125 150 Fig 2.Power Derating Curve 1000 40 30 TLP Current(A) Peak Pulse Power (W) 20 100 10 0 -10 10 -20 -30 -40 1 1 10 100 Pulse Duration(us) 1000 Fig 3. Non Repetitive Peak Pulse Power vs. Pulse time Rev.06.7 3 -18 -12 -6 0 6 TLP Voltage(V) 12 Fig 4.TLP Measurement www.prisemi.com 18 ESD Protector PESDNC2FD3V3BS Solder Reflow Recommendation Peak Temp=257℃, Ramp Rate=0.802deg. ℃/sec 280 240 200 160 120 80 40 0 0 30 60 90 120 150 180 210 240 270 300 330 360 390 420 450 480 Time (sec) PCB Design For TVS diodes a low-ohmic and low-inductive path to chassis earth is absolutely mandatory in order to achieve good ESD protection. Novices in the area of ESD protection should take following suggestions to heart: ➢ Do not use stubs, but place the cathode of the TVS diode directly on the signal trace. ➢ Do not make false economies and save copper for the ground connection. ➢ Place via holes to ground as close as possible to the anode of the TVS diode. ➢ Use as many via holes as possible for the ground connection. ➢ Keep the length of via holes in mind! The longer the more inductance they will have. Rev.06.7 4 www.prisemi.com ESD Protector PESDNC2FD3V3BS Product dimension (DFN1006-2L) A Inches Millimeters Dim B C R D E MIN MAX MIN MAX A 0.013 0.020 0.34 0.498 B 0.000 0.002 0.00 0.05 C 0.037 0.043 0.95 1.080 D 0.022 0.027 0.55 0.680 E 0.016 0.024 0.40 0.60 F 0.008 0.012 0.20 0.30 H R F 0.015Typ. 0.001 0.40Typ. 0.005 0.05 0.15 H Suggested PCB Layout Ordering information Device Package Reel Shipping PESDNC2FD3V3BS DFN1006-2L (Pb-Free) 13" 40000 / Tape & Reel Rev.06.7 5 www.prisemi.com ESD Protector PESDNC2FD3V3BS Load with information USER DIRECTION OF FEED Φ1.50 ± 0.10 2.00 ± 0.05 2.00 ± 0.05 4.00 ± 0.10 1.75 ± 0.10 3.50 ± 0.05 8.00 ± 0.10 Φ0.50 ± 0.05 Unit：mm Rev.06.7 6 www.prisemi.com ESD Protector PESDNC2FD3V3BS IMPORTANT NOTICE and are registered trademarks of Prisemi Electronics Co., Ltd (Prisemi) ,Prisemi reserves the right to make changes without further notice to any products herein. Prisemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Prisemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in Prisemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Prisemi does not convey any license under its patent rights nor the rights of others. The products listed in this document are designed to be used with ordinary electronic equipment or devices, Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. Website: http://www.prisemi.com For additional information, please contact your local Sales Representative. ©Copyright 2009, Prisemi Electronics is a registered trademark of Prisemi Electronics. All rights are reserved. Rev.06.7 7 www.prisemi.com
