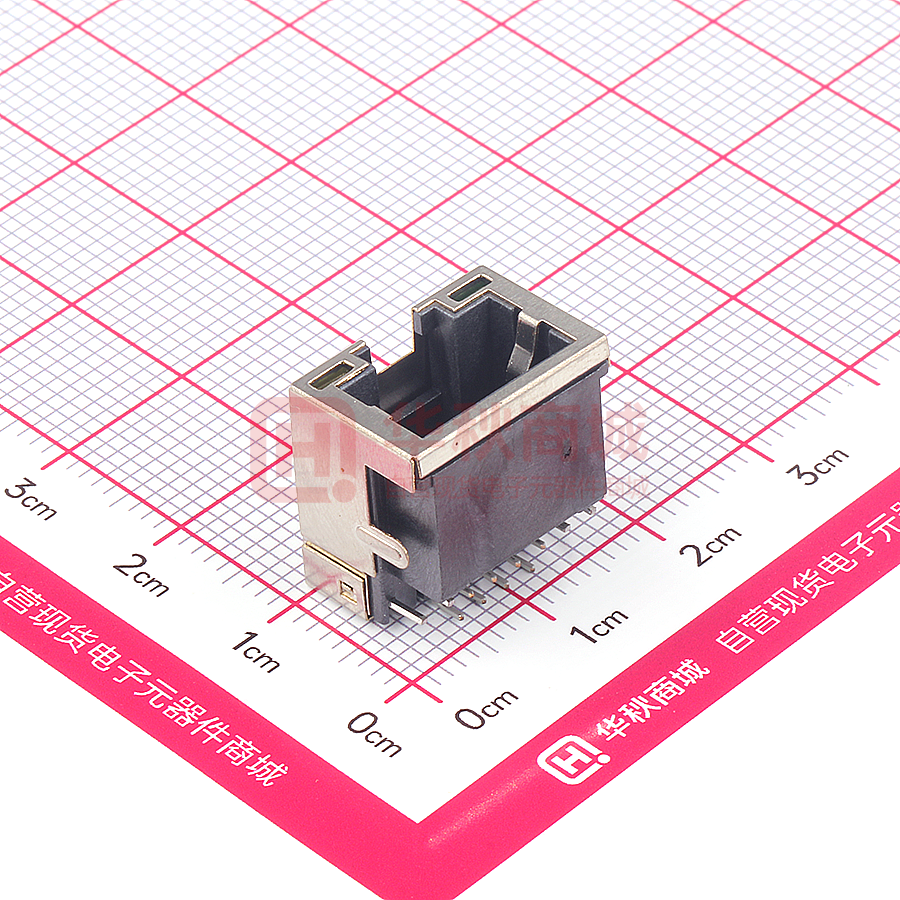

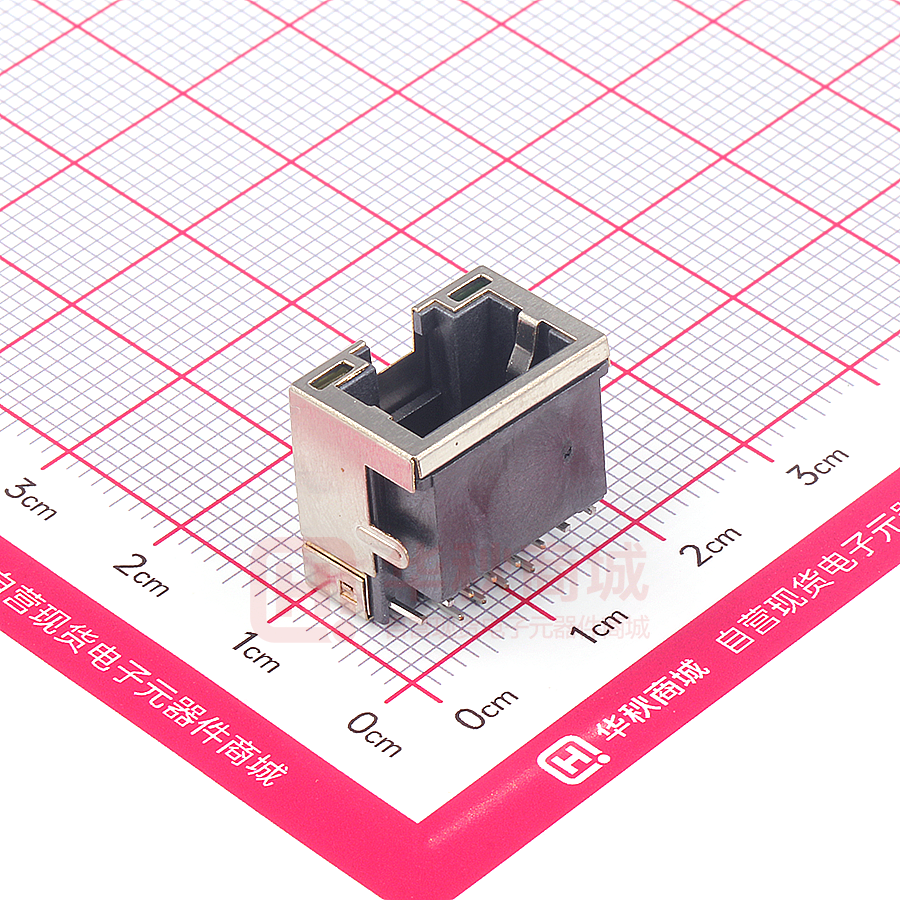

RC01835

温州瑞川电子有限公司 RJ45/RJ11插座系列产品技术参数 ModelType: 类型型号： NETWORK CONNECTOR 版本 AO 1. Scope/适用范围 This specification is applied to NETWORK CONNECTOR which is used for electri cproducts. 本规格书适用于电子产品上的网格插座连接器。 2. 要求 Requirements 2.1 一般规格 General Specification 2.1.1 额定电流 Current Rating:1.5A DC / Contact, 20mA DC for LED signals 2.1.2 额定电压 Voltage Rating:125V AC / Contact, 2.0 volts DC for LED signals 2.1.3 工作环境 Operating Environment 标准温度 Standard Temperature： -20℃～+70℃ 工业温度 Industrial Temperature：-40℃～+85℃ (根据客户要求 According to customer request) 湿度 Humidity：20～70% 2.1.4 储存环境 Storage Environment 温度 Temperature：-40to+85℃ 湿度 Humidity：20%～70% 2.1.5 测试环境 TestEnvironment 温度 Temperature： +20℃～+30℃ 湿度 Humidity：25%～65% 大气压 Atmospheric Pressure：86-106KPA 3.Construction/说明 3-1.Outline And Dimension/外观和尺寸 Outline and dimension of the jack shown be as attached assembled drawing. 插座的外观和尺寸应与附件图纸相符。 3-2.Part And Material 部件和材料 The parts and materials shown be in material identification sheet and certification of material. 部件和材料应与材料清单规格一致。 4.Electrical efficiency/电气特性 Item 项目 Property 特性 Test condition 测试条件 Performance 判定 Withstand voltage 耐电压 The Jack shall be withstanded 500V(AC 50/60Hz RMS)between mutually insulated pin contacts for one minute，Leakage current 0.5mA MAX. 在相互绝缘的接触脚之间，插座能承受500V电压 (AC 50/60Hz RMS)并持续1分钟，漏电流 0.5mA MAX。 No dielectric breakdown shall occur. 无击穿现象发生 Insulation resistance 4-2 绝缘阻抗 Using a 500 volts DC insulation resistance meter between mutually insulated terminals ormetalic parts 在相互绝缘的端子、端子与外壳之间，插麻应能承 受施加的500V直流电压。 100 MΩ　MIN. 最小１００兆欧 Contact resistance 4-3 接触电阻 measurement across a pair of mated contacts(20mV, 100mA max),for AC the frequency below 2KHz. 取一对匹配好的端子，测量各端子的尾端点，电 压最大20mV，电流量在100mA。对于交流测量， 此频率不超过2KHz。 30 MΩ　MIN. 最大30毫欧 4-1 温州瑞川电子有限公司 RJ45/RJ11插座系列产品技术参数 Model Type: 类型型号： NETWORK CONNECTOR 版本 AO 5.Mechanical efficiency 机械特性 Item 项目 Property 特性 Performance 判定 Test condition 测试条件 Insertion and the matching plug shall be inserted into Insertion force is below 20N, extraction force the jack and extracted from the jack extraction force is below 20N. 插入和拔出力 with the rate of 20-30 times/1 minute 入插力小于20N， averagely （remove lock part）. 拔出力小于20N. 5-1 用相匹配的插头以每分钟20-30次的 频率均速插头进行插拔（去除锁定装置）。 Terminal Every terminal shall be capable of Without loosing and breakdown,but strength withstand a force of 5N （About 0.5kgf） deformation of terminal is accepted. for 10 seconds. 无松脱、破损等现象，但是端子变形 每个端子都应能承受5N（大约0.5kgf)的 可以接受。 5-2 端子强度 力，并持续10秒。 6.Durability / 耐久性能 Item 项目 Property 特性 6-1 Lifetest 寿命测试 Performance 判定 Test condition 测试条件 The life test shall consist of 750 cycles of The jack will not be destroyed insertion and extraction with mated plug, Contact resistance:30m Ω　MIN. at a rate of 20 to 30 cycles per minutes. 产品没有被破环， 以每分钟20-30次的频率，均速，用相匹 接触电阻：小于30毫欧。 配的插头进行插拔750次。 7.Solderability / 焊锡试验 Item Property 特性 Resistance to 7-1 Performance 判定 Test condition 测试条件 The jack terminal shall be dipped in solder Thejack's appearance:housing shall not soldering heat test under the condition as specified below: be transmutation,contact shall not bepull 耐焊性试验 Temperature of solder:260±3℃. out from housing. Diptime: 5±1 1seconds. The jack shall be comply with paragraphs 端子浸入锡炉里，按以下条件测试： Electrical efficiency and Mechanical 焊锡温度：260±3℃. efficiency. 浸入时间：5±1 秒 试验后塑胶基座不应变形，端子无脱落。 能满足机械特性的电气特性。 温州瑞川电子有限公司 RJ45/RJ11插座系列产品技术参数 Model Type:  7-2 NETWORK Soldering test ;18U (A CONNECTOR Temperature of solder: 245 ± 3N. Time of dip: 3± 0.5 seconds. Length of dip: 2.0 mm( from end of terminal). 1+O3 : 245± 3N. )*2a : 3± 0.5 3 )*3 : 2.0 mm(F ). Areas of soldering shall be capable of 95 % or more of dip terminal area. F+ 9 %/I. 8. Environment test / `U Item Property 78 Test condition  Performance  8-1 Cold test O  The jack shall be subjected to temperature of -25± 2N for a period of 96 hours ,then shall be allowed to remain in room ambient conditions for 30 minutes. aSZ -25±2NO0fg 96 &2YVZO0S 30 8-2 Heat test OU The jack shall be subjected to temperature of 70 ± 2N for a period of 96 hours ,then shall be allowed to remain in room ambient conditions for 30 minutes. aSZ 70± 2NO0fg96 &2YVZO0S 30 8-3 8-4 Humidity test 2U Temperature cycling test O3 `U A0 The jack shall be subjected to temperature of 40± 2N and relative humidity of 90 % to 95% for a period of 96 hours.Upon completion of the exposure, dew drops shall be blown out and removed from the jack, after which the jack shall conditioned at room ambient conditions for 30 minutes. aSZO3 40± 2NY23 90~95%`0fg 96&2/ I VYPOIY VZ O0S 30 The jack shall be subjected to conditions as shown in below, and then shall returned and allowed to remain in ambient condition for 30 minutes . aSE 00DEU, VZO0S30  (5)  Appearance shall not be changed obviously  Contact resistance:50m  max  Withstand voltage:AC 500V  !@* L^/&E 50#$ /0: AC 500V 温州瑞川电子有限公司　 ＲＪ４５／ＲＪ１１插座系列产品技术参数 Model Type:  Item 8-5 NETWORK Property 78 Salt mist test :;U (A CONNECTOR Test condition  A0 Performance  Testing bath: Appearance shall not be extremely rust  The temperature shall be 35 N± 2N in the ]^@'(-. ambient of the jack during the test. Spray apparatus: The apparatus shall be capable of producing fine dense mist uniformly. Salt water: The concentration of the salt water shall be adjusted at 5± 1% weight ratio at 35 N± 2NTesting time: 8 hours. U ZO3 35± 2N0DE   =>bcdA=?3:; :?3 ZO3 35± 2N0Y:?3 5± 1% 2a8&2 9. Test condition /  The test and measurement,unless otherwise specified,shall be carry out at a temperature of 5 ° C 35° CY ,relative humidity of 45 % 85%Yand atmospheric pressure of 86kPa 106kPa. However,when any doubt arises on the judgment value under it.the test and measurement shall be carry out a temperature of 20 ± 2° C,relative humidity of 60 % 70%Yand atmospheric pressure of 86kPa 106kPa. P23^4Y56  O3Z 5° C~35° CY23Z 45%~85%Y60Z 86kPa~106kPa 0DE !Z7L0J-892Y  Z 20± 2° CY23 60%~70%Y60Z 86kPa~106kPa 0DE 10. Amendment / *#$% When the amendment of this specification comes into necessity, it shall made by the mutual consultation and agreement between manufacture and customer. !^";
