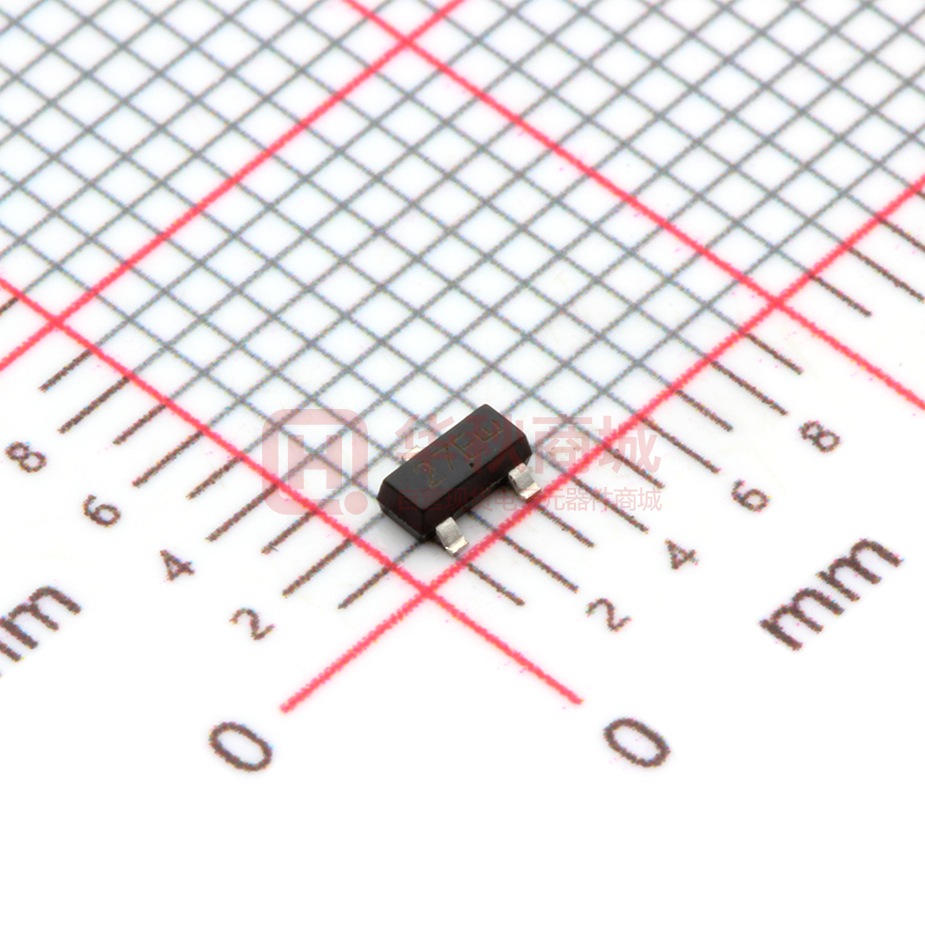

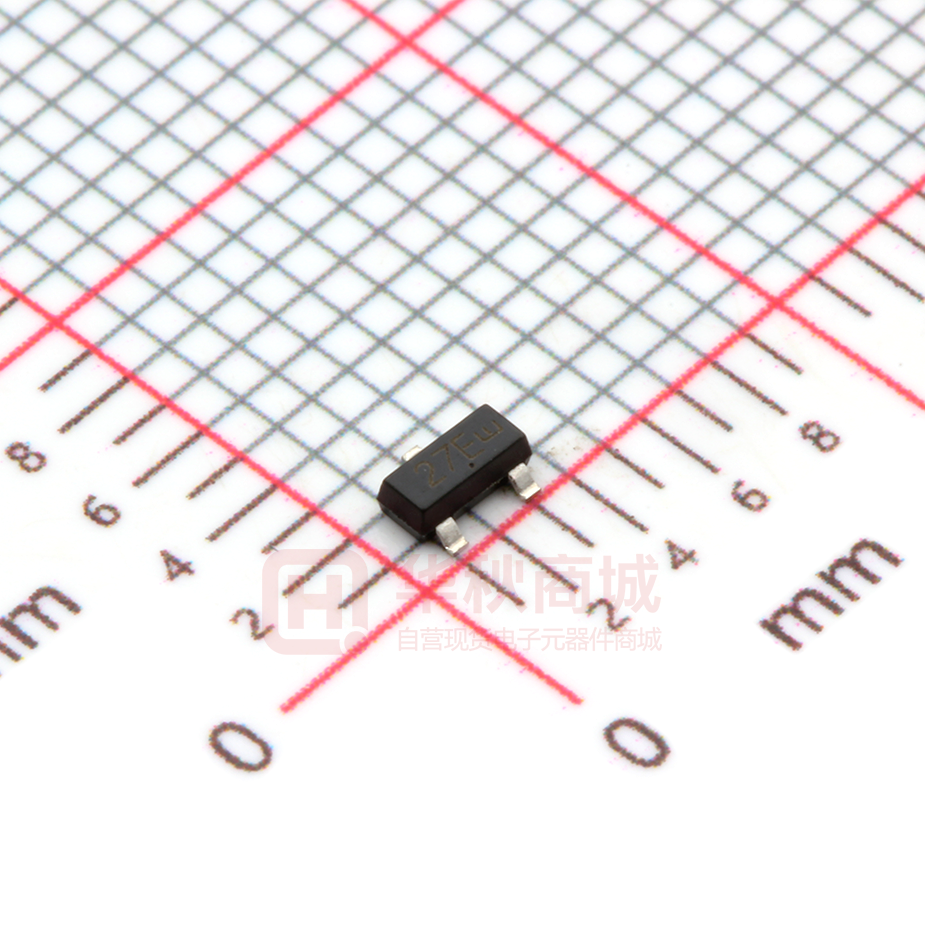

CDSOT23-T24CAN

CDSOT23-T24CAN TVS Protection Array • RoHS compliant and lead-free • Low clamping voltage • Low leakage current • AEC-Q101 qualified • ESD, IEC 61000-4-2, ±24kV contact, ±30kV air • Moisture Sensitivity • EFT, IEC 61000-4-4, 50A (5/50ns) Level (MSL-1) • Lightning, IEC 610004-5, 2 nd Edition, 5A (tp=8/20μs) • Automotive Applications • ADAS Control Units • CAN Bus • PowerTrain Control Units • Electronic Control Units • Factory Automation • Body Control Units • Lightning Control (DALI) Value Units P Pk Peak Pulse Power (tp=8/20μs) 300 W IPP Peak Pulse Current (tp=8/20μs) 5.0 A TOP Operating Temperature -40 to 125 °C T STOR Storage Temperature -55 to 150 °C Symbol Parameter Notes: CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the component. This is a stress only rating and operation of the component at these or any other conditions above those indicated in the operational sections of this specification is not implied. 1/4 CDSOT23-T24CAN TVS Protection Array Symbol Test Conditions VRWM IR≤1μA, Pin 1 or Pin 2 to Pin 3 Reverse Breakdown Voltage VBR IR=1mA, Pin 1 or Pin 2 to Pin 3 Leakage Current I LEAK VR=24V Clamp Voltage1 VC Parameter Reverse Standoff Voltage Dynamic Resistance 2 RDYN ESD Withstand Voltage 1 VESD Diode Capacitance1 CI/O-GND II PP=1A, II PP=5A, 1 Typ Max Units 24.0 V 1.0 μA 36.0 V 26.7 V tp=8/20µs, Pin 1 or Pin 2 to Pin 3 tp=8/20µs, Pin 1 or Pin 2 to Pin 3 50.0 TLP, t p=100ns, I/O to GND 0.7 V Ω IEC 61000-4-2 (Contact Discharge) ±24 kV IEC 61000-4-2 (Air Discharge) ±30 kV Reverse Bias=0V, f=1MHz; Pin 1 or Pin 2 to Pin 3 Note: 2 Min Parameter is guaranteed by design and/or component characterization. Transmission Line Pulse (TLP) with 100ns width and 200ps rise time. 2/4 11 17 pF CDSOT23-T24CAN TVS Protection Array 3/4 CDSOT23-T24CAN TVS Protection Array 4/4
