RS2233
Wide-Bandwidth 4-Channel SPDT Video Analog Switch
FEATURES
•
Wide Bandwidth: 220MHz
•
Single Supply Operation +1.8V to +5.5V
•
Low ON Resistance, 3Ω(TYP)
Low Crosstalk: -58dB at 10MHz (TYP)
•
Rail-to-Rail Operation
•
Fast Switching Time
•
Operating Temperature Range:
-40°C to +85°C
•
PACKAGES: SOIC-16(SOP16), SSOP-16,
TSSOP-16
APPLICATIONS
•
Game Consoles
•
Audio and Video Switching
•
DVD Players
•
Personal Video Recorders
•
Supports defense, aerospace and
medical applications
•
•
DESCRIPTION
The RS2233 is a CMOS analog IC configured as a quad,
bidirectional, single-pole/double-throw (SPDT) switches.
This CMOS device can operate from 1.8 V to 5.5 V.
The select (IN) input control the data flow. The FET
multiplexers/demultiplexers are disabled when the
̅̅̅̅) input is high.
output-enable (OE
The device are digitally-controlled analog switches. It has
low on-resistance (3Ω TYP) and low crosstalk (-58dB at
10MHz TYP).
The RS2233 is available in Green SOIC-16(SOP16),
SSOP-16, TSSOP-16 packages. It operates over an
ambient temperature range of -40°C to +85°C.
Device Information (1)
PART
NUMBER
RS2233
Desktop Video Editors
Hard Disk Recorders
REV A.2
(1)
1 / 13
PACKAGE
BODY SIZE (NOM)
SOIC-16(SOP16)
9.90mm×3.91mm
SSOP-16
4.90mm×3.90mm
TSSOP-16
5.00mm×4.40mm
For all available packages, see the orderable addendum at the
end of the data sheet.
www.run-ic.com
RS2233
Revision History
Note: Page numbers for previous revisions may different from page numbers in the current version.
Version
Change Date
A.1
2021/08/06
A.2
2021/12/09
Change Item
Initial version completed
(1) Change the Minimum operating voltage to 1.8V
(2) Add the Junction temperature
2 / 13
www.run-ic.com
RS2233
Pin Configuration and Function
2
4
1A
3
5
7
2A
6
4A
11
9
3A
12
OE
15
1B1
1B2
2B1
2B2
3B1
10
3B2
14
4B1
13
4B2
DECODER/DRIVERS
1
IN
FUNCTION TABLE
INPUTS
FUNCTION
𝐎𝐄
IN
L
L
A port =B1 port
L
H
A port =B2 port
H
X
Disconnect
X=Don’t care
NOTE: Input and output pins are identical and inter-changeable. Either may be considered an input or output; signals pass equally well
in either direction.
3 / 13
www.run-ic.com
RS2233
PIN CONFIGURATIONS
(TOP VIEW)
IN
1
16 VCC
1B1
2
15 OE
1B2
3
14 4B1
1A
4
2B1
5
2B2
6
11 3B1
2A
7
10 3B2
GND
8
9
RS2233
13 4B2
12 4A
3A
SOIC-16(SOP16)/SSOP-16/
TSSOP-16
PIN DESCRIPTION
PIN
NAME
FUNCTION
SOIC-16(SOP16)/SSOP-16/TSSOP-16
IN
1
Select Input.
1B1
2
Analog Video I/O.
1B2
3
Analog Video I/O.
1A
4
Analog Video I/O.
2B1
5
Analog Video I/O.
2B2
6
Analog Video I/O.
2A
7
Analog Video I/O.
GND
8
Ground.
3A
9
Analog Video I/O.
3B2
10
Analog Video I/O.
3B1
11
Analog Video I/O.
4A
12
Analog Video I/O.
4B2
13
Analog Video I/O.
4B1
14
Analog Video I/O.
OE
15
Switch-Enable Input.
VCC
16
Power Supply.
4 / 13
www.run-ic.com
RS2233
SPECIFICATIONS
Absolute Maximum Ratings (1)
Over operating free-air temperature range (unless otherwise noted) (1)
SYMBOL
PARAMETER
MIN
MAX
VCC
Supply Voltage
-0.3
6
VIN
Input Voltage (All inputs)
-0.3
VCC+0.3
IIK
Input clamp current
TJ
Junction temperature
Tstg
Storage temperature
VIO < 0
-65
UNIT
V
-50
mA
150
°C
+150
°C
(1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may
degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond
those specified is not implied.
ESD Ratings
V(ESD)
Electrostatic discharge
VALUE
UNIT
Human-body model (HBM)
±6000
V
Machine Model (MM)
±400
V
Recommended Operating Conditions
Over operating free-air temperature range (unless otherwise noted)
SYMBOL
PARAMETER
MIN
MAX
UNIT
VCC
Supply Voltage
1.8
5.5
V
TA
Operating temperature
-40
+85
°C
Thermal Information
RS2233
THERMAL METRIC
16 PINS
UNIT
SOIC-16(SOP-16)
SSOP-16
TSSOP-16
76
118.7
111.3
°C/W
RϴJA
Junction-to-ambient thermal resistance
RϴJC(top)
Junction-to-case(top) thermal resistance
42.1
66.4
45.3
°C/W
RϴJB
Junction-to-board thermal resistance
34.8
62.2
56.9
°C/W
ѰJT
Junction-to-top characterization parameter
26.9
20.9
5.4
°C/W
ѰJB
Junction-to-board characterization parameter
34.7
61.7
56.3
°C/W
RϴJC(bot)
Junction-to-case(bottom) thermal resistance
N/A
N/A
N/A
°C/W
5 / 13
www.run-ic.com
RS2233
PACKAGE/ORDERING INFORMATION
PRODUCT
RS2233
ORDERING
NUMBER
RS2233YS16
TEMPERATURE
RANGE
-40°C~+85°C
RS2233YSS16
-40°C~+85°C

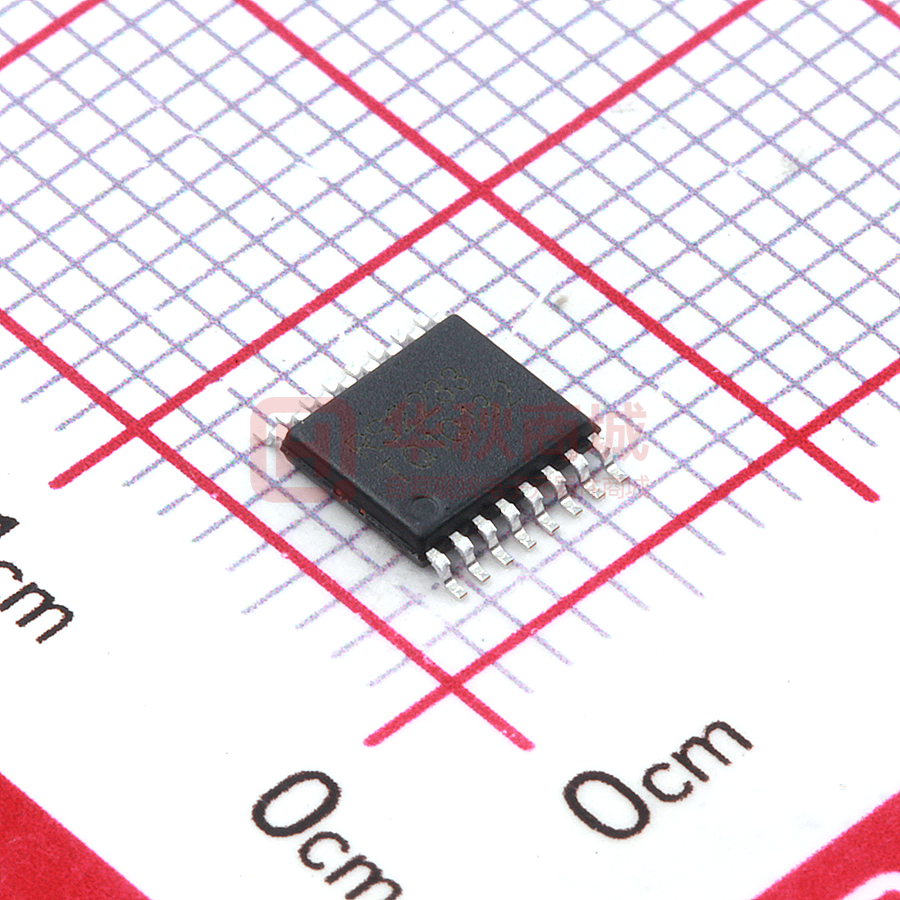

RS2233YTSS16
-40°C~+85°C
SOIC-16(SOP16)
PACKAGE
MARKING (1)
RS2233
PACKAGE
OPTION
Tape and Reel,4000
SSOP-16
RS2233
Tape and Reel,4000
TSSOP-16
RS2233
Tape and Reel,4000
PACKAGE LEAD
NOTE:
(1) There may be additional marking, which relates to the lot trace code information (data code and vendor code), the logo or the
environmental category on the device.
6 / 13
www.run-ic.com
RS2233
ELECTRICAL CHARACTERISTICS
VCC = +1.8V to +5.5 V, FULL= -40°C to +85°C, Typical values are at TA = +25°C. (unless otherwise noted)
PARAMETER
SYMBOL
CONDITIONS
VCC
TA
MIN
TYP
MAX UNITS
5.5V
FULL
1.8V
FULL
1.1
2.5V to 5.5V
FULL
2
1.8V
FULL
0.4
2.5V to 5.5V
FULL
0.5
V
DC CHARACTERISTICS
On-Resistance
RON
IA =13mA
3
Ω
High-level control input
Voltage
VIH
Low-level control input
Voltage
VIL
Input High Current
IIH
̅̅̅̅ = VCC
VIN and VOE
5.5V
+25°C
±1
μA
Input Low Current
IIL
̅̅̅̅ = 0V
VIN and VOE
5.5V
+25°C
±1
μA
Analog Output Leakage
Current
IO
VB1 or VB2 =3.3V/0.3V
VA= 0.3V/3.3V
5.5V
+25°C
±1
μA
Clamp Diode Voltage
VIK
II = -18mA
5.5V
+25°C
-0.9
V
5.5V
+25°C
30
ns
5.5V
+25°C
13
ns
5.5V
+25°C
220
MHz
5.5V
+25°C
-54
dB
5.5V
+25°C
-58
dB
V
DYNAMIC CHARACTERISTICS
Turn-On Time
tON
Turn-Off Time
tOFF
-3dB Bandwidth
BW
RL = 75Ω, CL = 20pF,
Test Circuit 1
RL = 75Ω, CL = 20pF,
Test Circuit 1
RL = 150Ω, Test Circuit 3
Channel-to-Channel
Crosstalk
XTALK
Off Isolation
OIRR
Input/Enable Capacitance
CIN
f = 1MHz,Test Circuit 5
5.5V
+25°C
4
pF
Switch OFF Capacitance
COFF
f = 1MHz,Test Circuit 5
5.5V
+25°C
5
pF
Switch ON Capacitance
CON
f = 1MHz,Test Circuit 5
5.5V
+25°C
8
pF
5.5V
+25°C
0.5
%
5.5V
+25°C
0.03
。
Differential Gain
DG
Differential Phase
DP
RIN = 10Ω, RL = 150Ω,
f = 10MHz, Test Circuit 4
RL = 150Ω, f = 10MHz,
Test Circuit 5
RL = 150Ω, f = 3.58MHz,
Test Circuit 2
RL = 150Ω, f = 3.58MHz,
Test Circuit 2
POWER REQUIREMENTS
Power Supply Range
VCC
Power Supply Current
ICC
Supply Current per Input @
TTL HIGH
ΔICC
FULL
̅̅̅̅ = 5V/0V
VIN and VOE
5.5V
+25°C
̅̅̅̅ = 3.4V
VIN or VOE
5.5V
+25°C
7 / 13
1.8
0.1
5.5
V
1
μA
300
μA
www.run-ic.com
RS2233
Parameter Measurement Information
IN
VOLTAGE WAVEFORMS
t AND t
TIMES
Test
tON
tOFF
VCC
RL
CL
VB1
VB2
5V±0.5V
75Ω
20pF
GND
3V
5V±0.5V
75Ω
20pF
3V
GND
5V±0.5V
75Ω
20pF
GND
3V
5V±0.5V
75Ω
20pF
3V
GND
NOTES:
1.CL includes probe and jig capacitance.
2.All input pulses are supplied by generators having the following characteristics: PRR≤10MHz,ZO=50Ω,tr≤2.5ns,tf≤2.5ns.
3. The outputs are measured one at a time, with one transition per measurement.
Test Circuit 1. Test Circuit for Voltage Waveform and Switch Time
NOTES: Differential gain and phase are measured at the output of the ON channel. For example, when V IN = 0, VOE = 0, and 1A is the
input, the output is measured at 1B1.
Test Circuit 2. Test Circuit for Differential Gain/Phase Measurement
8 / 13
www.run-ic.com
RS2233
Parameter Measurement Information
NOTES: Frequency response is measured at the output of the ON channel. For example, when V IN = 0, VEN = 0, and 1A is the input, the
output is measured at 1B1. All unused analog I/O ports are left open.
Test Circuit 3. Test Circuit for Frequency Response (BW)
NOTE: 1. A 50Ω termination resistor is needed for the network analyzer.
Test Circuit 4. Test Circuit for Crosstalk (XTALK)
NOTE: 1. A 50Ω termination resistor is needed for the network analyzer.
Test Circuit 5. Test Circuit for Off Isolation (OIRR)
9 / 13
www.run-ic.com
RS2233
PACKAGE OUTLINE DIMENSIONS
SOIC-16(SOP16)
e
E1
b
5.2
E
1.27
0.6
D
1.27
RECOMMENDED LAND PATTERN (Unit: mm)
A2
A
c
θ
A1
L
Dimensions In Millimeters
Dimensions In Inches
Symbol
Min
Max
Min
Max
A
1.350
1.750
0.053
0.069
A1
0.100
0.250
0.004
0.010
A2
1.350
1.550
0.053
0.061
b
0.330
0.510
0.013
0.020
c
0.170
0.250
0.006
0.010
D
9.800
10.200
0.386
0.402
E
3.800
4.000
0.150
0.157
E1
5.800
6.200
0.228
0.244
e
1.270(BSC)
0.050(BSC)
L
0.400
1.270
0.016
0.050
θ
0°
8°
0°
8°
10 / 13
www.run-ic.com
RS2233
SSOP-16
e
E1
b
5.588
E
1.651
D
0.635
0.406
RECOMMENDED LAND PATTERN (Unit: mm)
A2
H
C
A
A1
θ
L
Dimensions In Millimeters
Dimensions In Inches
Symbol
Min
Max
Min
Max
A
1.350
1.750
0.053
0.069
A1
0.100
0.250
0.004
0.010
A2
1.350
1.550
0.053
0.061
b
0.200
0.300
0.008
0.012
c
0.170
0.250
0.007
0.010
D
4.700
5.100
0.185
0.200
E
3.800
4.000
0.150
0.157
E1
5.800
6.200
0.228
0.244
e
0.635(BSC)
0.025(BSC)
L
0.400
1.270
0.016
0.050
θ
0°
8°
0°
8°
11 / 13
www.run-ic.com
RS2233
TSSOP-16
e
b
5.94
E1
E
1.78
D
0.65
0.42
RECOMMENDED LAND PATTERN (Unit: mm)
A2
H
C
A
A1
θ
L
Dimensions In Millimeters
Dimensions In Inches
Symbol
Min
Max
A
Min
Max
1.200
0.047
A1
0.050
0.150
0.002
0.006
A2
0.800
1.050
0.031
0.041
b
0.190
0.300
0.007
0.012
c
0.090
0.200
0.004
0.008
D
4.860
5.100
0.191
0.201
E
4.300
4.500
0.169
0.177
E1
6.200
6.600
0.244
0.260
e
L
0.650(BSC)
0.500
H
θ
0.026(BSC)
0.700
0.02
0.25TYP
1°
0.028
0.01TYP
7°
12 / 13
1°
7°
www.run-ic.com
RS2233
TAPE AND REEL INFORMATION
REEL DIMENSIONS
TAPE DIMENSION
Reel
Diameter
Reel Width(W1)
DIRECTION OF FEED
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF TAPE AND REEL
TSSOP-16
Reel
Diameter
13’’
Reel
Width(mm)
12.4
A0
(mm)
6.90
B0
(mm)
5.60
K0
(mm)
1.20
P0
(mm)
4.0
P1
(mm)
8.0
P2
(mm)
2.0
W
(mm)
12.0
Pin1
Quadrant
Q1
SSOP-16
13’’
12.4
8.30
6.70
2.10
4.0
8.0
2.0
12.0
Q1
SOIC-16(SOP16)
13’’
16.4
6.50
10.30
2.10
4.0
8.0
2.0
16.0
Q1
Package Type
13 / 13
www.run-ic.com
很抱歉,暂时无法提供与“RS2233YTSS16”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 1+1.28180
- 30+1.23760
- 100+1.14920
- 500+1.06080
- 1000+1.01660
- 国内价格
- 5+2.57040
- 50+1.97640
- 150+1.72800
- 500+1.40400
