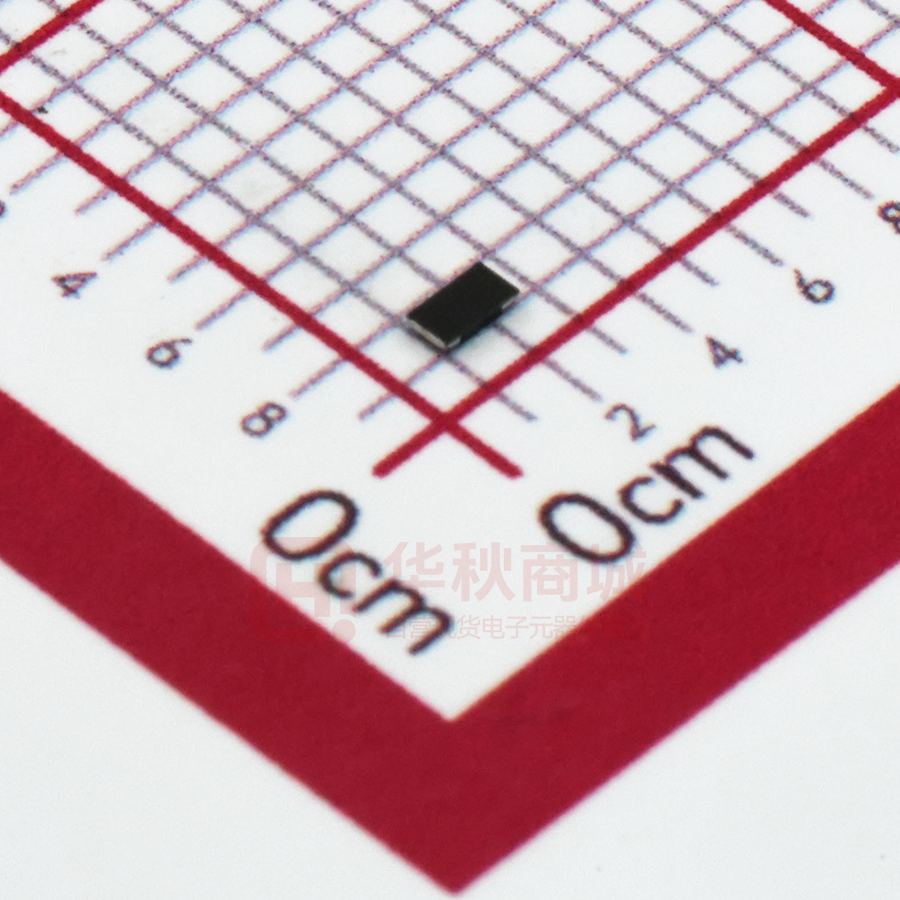

DATA SHEET
CURRENT SENSOR - LOW TCR
AUTOMOTIVE GRADE
PA series
5%, 1%, 0.5%
sizes 0100/0201/0402/0603/0805/1206/2010/2512
Product specification – January 05, 2023 V.3
RoHS compliant & Halogen free
Product specification
Chip Resistor Surface Mount
SERIES
PA
2
12
0100 to 2512
SCOPE
ORDERING INFORMATION - GLOBAL PART NUMBER
This specification describes PA0100
to 2512 series current sensor - low
TCR with metal substrate.
Global part numbers are identified by the series, size, tolerance, packing
type, temperature coefficient, taping reel and resistance value.
GLOBAL PART NUMBER
APPLICATIONS
Smart Phone
Batteries
Computer
Telecom / Datacom
Industrial / Power supply
Car electronics
PA XXXX X X X XX XXXX X
(1)
(2) (3) (4)
(5)
(6)
(7)
(1) SIZE
0100/0201/0402/0603/0805/1206/2010/2512
(2) TOLERANCE
D = ± 0.5%
F = ± 1%
FEATURES
AEC-Q200 qualified
Halogen-free Epoxy
Total lead free without RoHS
exemption
RoHS compliant
Reduce environmentally
hazardous wastes
High component and equipment
reliability
Non-forbidden materials used in
products/production
Low resistances applied to
current sensing
Moisture sensitivity level: MSL 1
J = ± 5%
(3) PACKAGING TYPE
R = Paper taping reel (PA0100~PA1206)
K = Embossed taping reel (PA2010/PA2512)
(4) TEMPERATURE COEFFICIENT OF RESISTANCE
E = ± 50ppm/°C
M = ± 75ppm/°C
F = ± 100ppm/°C
L = ± 150ppm/°C
G = ± 200ppm/°C
I = ± 300ppm/°C
(5) TAPING REEL
07 / 7W / 7T / 47 / 57 / 87 / 0L / WL / 4L inch dia. Reel and specific rated power
Detailed power rating are shown in the Table 2.
(6) RESISTANCE VALUE
0.5 mΩ to 20 mΩ
(7) DEFAULT CODE
Letter L / Z is the system default code for ordering only. (Note)
L is for 0100/0201/0402/0603/0805
Z is for only 1206/2010/2512
Resistance rule of global part
number
Resistance code rule
Example
0UX
0U5=0.0005Ω
0RXXX
0R001 = 1mΩ
0R02 = 20mΩ
ORDERING EXAMPLE
The ordering code for a PA0805
0.125W chip resistor,TC50 value 0.01Ω
(10mR) with ±1% tolerance, supplied in
7-inch tape reel with 5Kpcs quantify is:
PA0805FRE070R01L.
NOTE
1. All our RChip products are RoHS compliant. "LFP" of the internal 2D reel label mentions
"Lead-Free Process"
www.yageo.com
Jan. 05, 2023 V.3
3
Product specification
Chip Resistor Surface Mount
PA
SERIES
12
0100 to 2512
MARKING
PA0100/0201/0402/0603/0805/1206/2010
No Marking
Fig. 1 Value = 10 mΩ
PA2512
YNSC126-2
Fig.2 Value = 0.5 mΩ
4 digits
The "m" is used as decimal point; the other 3 digits are significant and the unit is
milliohm
PA2512: 0.5mΩ and 0.75mΩ
YNSC126-1
Fig.4 Value = 1 mΩ
4 digits
The “R” is used as a decimal point; the other 3 digits are significant
PA2512: 1mΩ to 20mΩ
CONSTRUCTION
The resistors are constructed by using outstanding TCR level materials, which make Yageo PA resistors
excellent for current sensing application in battery charger circuit & DC -DC converter.
The advanced resistive materials are adopted to get the precisely required resistance.
Finally, the three materials of external terminations (Cu / Ni / matte Tin) are added, as shown in Fig. 5.
Outlines
PA0100/0201/0402/0603/0805/1206/2010
Fig. 5 Chip resistor outlines
PA2512
scr001_pa
www.yageo.com
Jan. 05, 2023 V.3
Product specification
Chip Resistor Surface Mount
PA
SERIES
4
12
0100 to 2512
DIMENSION
Table 1 For outlines, please refer to Fig. 5
TYPE
RESISTANCE RANGE
L (mm)
W (mm)
H (mm)
I1 (mm)
PA0100
10mΩ ≤ R < 100mΩ
0.40± 0.03
0.20± 0.03
Max. 0.15
0.10± 0.03
PA0201
5mΩ ≤ R < 50mΩ
0.60± 0.03
0.31± 0.04
Max. 0.30
0.15± 0.06
PA0402
2mΩ ≤ R ≤ 20mΩ
1.00± 0.10
0.55± 0.10
Max. 0.40
0.25± 0.10
1 mΩ
1.60± 0.20
0.80± 0.20
0.55± 0.15
0.38± 0.12
2mΩ
1.60± 0.20
0.80± 0.20
0.45± 0.15
0.38± 0.12
2.5mΩ ≤ R ≤ 20mΩ
1.60± 0.20
0.80± 0.20
0.30± 0.15
0.38± 0.12
0.5mΩ
2.03± 0.20
1.27± 0.20
Max. 0.90
0.70± 0.10
1mΩ
2.03± 0.20
1.27± 0.20
0.55± 0.15
0.60± 0.15
1.5/ 2mΩ
2.03± 0.20
1.27± 0.20
0.45± 0.15
0.50± 0.15
2.5mΩ ≤ R ≤ 20mΩ
2.03± 0.20
1.27± 0.20
0.30± 0.15
0.35± 0.20
1mΩ
3.20± 0.25
1.60± 0.25
0.50± 0.10
1.04± 0.25
2mΩ
3.20± 0.25
1.60± 0.25
0.45± 0.10
1.04± 0.25
1mΩ
3.20± 0.25
1.60± 0.25
0.65± 0.25
0.51± 0.25
2mΩ
3.20± 0.25
1.60± 0.25
0.55± 0.25
0.60± 0.25
2.5/ 3mΩ
3.20± 0.25
1.60± 0.25
0.40± 0.25
0.80± 0.30
4mΩ ≤ R ≤ 20mΩ
3.20± 0.25
1.60± 0.25
0.40± 0.25
0.60± 0.30
1mΩ ≤ R ≤ 3mΩ
5.08± 0.25
2.54± 0.25
0.50± 0.25
1.40± 0.25
4mΩ ≤ R ≤ 20mΩ
5.08± 0.25
2.54± 0.25
0.40± 0.25
0.70± 0.25
0.5mΩ ≤ R ≤ 0.75mΩ
6.35± 0.25
3.18± 0.25
0.40± 0.25
2.72± 0.25
1mΩ ≤ R ≤ 4mΩ
6.35± 0.25
3.18± 0.25
0.40± 0.25
2.21± 0.25
5mΩ ≤ R ≤ 6mΩ
6.35± 0.25
3.18± 0.25
0.40± 0.25
1.19± 0.25
7mΩ ≤ R ≤ 20mΩ
6.35± 0.25
3.18± 0.25
0.40± 0.25
0.76± 0.25
PA0603
PA0805
PA1206
(0L/WL/4L)
PA1206
(07/7W/47)
PA2010
PA2512
Note:
1. For relevant physical dimensions, please refer to construction outlines.
2. Please contact with sales offices, distributors and representatives in your region before ordering.
www.yageo.com
Jan. 05, 2023 V.3
Product specification
Chip Resistor Surface Mount
PA
SERIES
5
12
0100 to 2512
ELECTRICAL CHARACTERISTICS
Table 2
POWER RATING(4) @ 70°C
SIZE
0100
Fig. 4
07
0L(5)
7W
WL(5)
7T
47
4L(5)
57
87
1/32W 1/16W
--
--
--
--
--
--
Chip resistor outlines
0201
0402
0603
0805
1/20W 1/10W 3/20W 1/5W
1/16W
1/10W
1/8W
1/8W
1/5W
1/4W
1/6W 1/4W 1/3W
1/3W 2/5W 1/2W
--
1/2W
--
--
--
1W
1206
(0L/WL/4L)
1/4W
1/2W
--
1W
--
--
1206
(07/7W/47)
1/4W
1/2W
--
1W
--
--
2010
1/2W
1W
3/2W
2512
1W
2W
--
2W
--
--
--
--
--
TOLERANCE(2)
RESISTANCE RANGE
TEMPERATURE COEFFICIENT OF
RESISTANCE(3)
± 1%(F)
± 5%(J)
10mΩ ≤ R < 100mΩ
± 300 ppm/°C(I)
± 0.5%(D)
20mΩ
± 1%(F)
± 5%(J)
5mΩ ≤ R < 50mΩ
± 0.5%(D)
15mΩ ≤ R ≤ 20mΩ
± 1%(F)
± 5%(J)
2mΩ ≤ R ≤ 20mΩ
± 0.5%(D)
10mΩ ≤ R ≤ 20mΩ
± 1%(F)
± 5%(J)
1mΩ ≤ R ≤ 20mΩ
± 0.5%(D)
10mΩ ≤ R ≤ 20mΩ
± 1%(F)
± 5%(J)
0.5mΩ ≤ R ≤ 20mΩ
± 1%(F)
± 5%(J)
1m / 2mΩ
± 0.5%(D)
5mΩ ≤ R ≤ 20mΩ
± 1%(F)
± 5%(J)
1mΩ ≤ R ≤ 20mΩ
± 0.5%(D)
5mΩ ≤ R ≤ 20mΩ
(2W : 5mΩ ≤ R ≤ 10mΩ)
± 150 ppm/°C(L)
± 150 ppm/°C(L)
1mΩ
± 200 ppm/°C(G)
± 150 ppm/°C(L)
2/2.5mΩ
3mΩ ≤ R ≤ 20mΩ ± 50 ppm/°C(E), ±75 ppm/°C(M)
0.5mΩ
1/1.5mΩ
1mΩ ≤ R ≤ 20mΩ
± 100 ppm/°C(F)
± 150 ppm/°C(L)
± 50 ppm/°C(E)
± 50 ppm/°C(E)
1/2mΩ
1mΩ ≤ R ≤ 20mΩ
± 1%(F)
1mΩ ≤ R ≤ 20mΩ
± 5%(J) (2W : 1mΩ ≤ R ≤ 10mΩ)
± 0.5%(D)
(1W : 0.5mΩ ≤ R ≤ 20mΩ)
1mΩ ≤ R ≤ 20mΩ
± 1%(F)
(2W : 0. 5mΩ ≤ R ≤ 5mΩ) 0.5mΩ ≤ R ≤ 0.75mΩ
± 5%(J)
± 100 ppm/°C(F)
± 50 ppm/°C(E)
± 50 ppm/°C(E)
± 50 ppm/°C(E)
± 75 ppm/°C(M)
Note: 1. Please contact with sales offices, distributors and representatives in your region before ordering.
2. Global part number (code7)
3. Global part number (code9)
4. Global part number (code10-11)
5. 0L/WL/4L are only for PA1206 1m/2mΩ
www.yageo.com
Jan. 05, 2023 V.3
Product specification
Chip Resistor Surface Mount
FUNCTIONAL DESCRIPTION
OPERATING TEMPERATURE RANGE
PA0100 to PA0402 Range: –55°C to +125°C
PA0603/ 0805 Range: –55°C to +155°C
MLB206_15_1
70
100
Rated Power (%)
PA1206/ 2010/ 2512 Range: –55°C to +170°C
POWER RATING
Standard rated power at 70°C: For detail power
value, please refer to Table 2.
80
1206/ 2010/ 2512
60
0603/ 0805
40
0100
0201
0402
20
RATED VOLTAGE
The DC or AC (rms) continuous working voltage
corresponding to the rated power is determined by
the following formula:
V=
6
12
0100 to 2512
SERIES
PA
(PxR )
-55
-40
-20
0
20
40
60
80
100
155
125
170
120 140
160
180
Ambient Temperature
Fig. 6 Maximum dissipation (P max ) in percentage of rated power
as a function of the operating ambient temperature (T amb)
Where
V = Continuous rated DC or
AC (rms) working voltage (V)
P = Rated power (W)
R = Resistance value (Ω)
PACKING STYLE AND PACKAGING QUANTITY
Table 3 Packing style and packaging quantity
PACKING STYLE
Paper Taping Reel (R)
REEL
PA0100
DIMENSION
PA0201
PA0402
PA0603
PA0805
PA1206
PA2010
PA2512
7" (178 mm)
20,000
10,000
10,000
5,000
5,000
4,000
-
-
-
-
-
-
-
-
4,000
4,000
Embossed Taping Reel (K) 7" (178 mm)
PAPER TAPE
P0
T
D0
P2
E
F
cover tape
W
B0
Fig. 7 Paper Tape
A0
P1
MBG251
www.yageo.com
Jan. 05, 2023 V.3
Product specification
Chip Resistor Surface Mount
PA
7
12
0100 to 2512
SERIES
EMBOSSED TAPE
P0
D0
P2
E
F
cover tape
W
B0
MBG516_b
A0
D1
T
P1
direction of unreeling
Fig. 8 Embossed Tape
Table 4 Dimensions of paper tape for relevant chip resistors size
SIZE
SYMBOL
Unit: mm
A0
B0
W
E
F
P0
P1
P2
ΦD0
T
PA0100
0.24± 0.03
0.45± 0.03
8.00± 0.20
1.75± 0.10
3.50± 0.05
4.00± 0.05
2.00± 0.10
2.00± 0.05
1.50± 0.10
0.31± 0.10
PA0201
0.39± 0.10
0.70± 0.10
8.00± 0.30
1.75± 0.10
3.50± 0.10
4.00± 0.10
2.00± 0.10
2.00± 0.10
1.55± 0.05
0.43± 0.10
PA0402
0.59± 0.10
1.10± 0.10
8.00± 0.30
1.75± 0.10
3.50± 0.10
4.00± 0.10
2.00± 0.10
2.00± 0.10
1.55± 0.05
0.53± 0.10
PA0603
1.08± 0.10
1.90± 0.10
8.00± 0.30
1.75± 0.10
3.50± 0.10
4.00± 0.10
4.00± 0.10
2.00± 0.10
1.55± 0.05
0.60± 0.10
1.60± 0.10
2.35± 0.10
8.00± 0.30
1.75± 0.10
3.50± 0.10
4.00± 0.10
4.00± 0.10
2.00± 0.10
1.55± 0.05
0.60± 0.10(1)
1.60± 0.10
2.35± 0.10
8.00± 0.30
1.75± 0.10
3.50± 0.10
4.00± 0.10
4.00± 0.10
2.00± 0.10
1.55± 0.05
0.53± 0.10(2)
1.90± 0.10
3.50± 0.10
8.00± 0.30
1.75± 0.10
3.50± 0.10
4.00± 0.10
4.00± 0.10
2.00± 0.10
1.55± 0.05
0.85± 0.15
PA0805
PA1206
Note: 1. 1mΩ ≤ R ≤ 2mΩ (T = 0.60± 0.10mm)
2. 2.5mΩ ≤ R ≤ 20mΩ (T = 0.53± 0.10mm)
Table 5 Dimensions of embossed tape for relevant chip resistors size
SIZE
SYMBOL
Unit: mm
A0
B0
W
E
F
P0
P1
P2
ΦD0
T
PA2010
3.40± 0.15
6.70± 0.15
12.0± 0.30
1.75± 0.10
5.50± 0.10
4.00± 0.10
4.00± 0.10
2.00± 0.10
1.55± 0.10
0.85± 0.15
PA2512
3.40± 0.15
6.70± 0.15
12.0± 0.30
1.75± 0.10
5.50± 0.10
4.00± 0.10
4.00± 0.10
2.00± 0.10
1.55± 0.10
0.80± 0.15
www.yageo.com
Jan. 05, 2023 V.3
Product specification
Chip Resistor Surface Mount
PA
SERIES
8
12
0100 to 2512
REEL SPECIFICATION
W2
D
C
Fig. 9 Reel
N
A
HBK039_a
W1
Table 6 Dimensions of reel specification for relevant chip resistors size
REEL SIZE
8mm
TAPE WIDE
7"
(Φ178mm)
SIZE
QUANTITY
PER REEL
PA0100
20,000
PA0201
10,000
PA0402
10,000
PA0603
5,000
PA0805
5,000
PA1206
4,000
PA2010
4,000
-
PA2512
4,000
-
7"
(Φ178mm)
7"
(Φ178mm)
7"
(Φ178mm)
7"
(Φ178mm)
7"
(Φ178mm)
REEL SIZE
12mm
TAPE WIDE
SYMBOL
Unit: mm
A
N
C
D
W1
-
180.0+0/-3.0
60.0+1/-0
13.00± 0.2
21.0± 0.8
9.0± 0.3
-
178.0± 1.0
60.0+1/-0
13.50± 0.5
21.0± 0.8
9.0± 0.5
12.0± 0.2
-
178.0± 1.0
60.0+1/-0
13.50± 0.5
21.0± 0.8
9.0± 0.5
12.0± 0.2
-
178.0± 1.0
60.0+1/-0
13.50± 0.5
21.0± 0.8
9.0± 0.5
12.0± 0.2
-
178.0± 1.0
60.0+1/-0
13.50± 0.5
21.0± 0.8
9.0± 0.5
12.0± 0.2
-
178.0± 1.0
60.0+1/-0
13.50± 0.5
21.0± 0.8
9.0± 0.5
12.0± 0.2
178.0± 1.0
60.0+1/-0
13.50± 0.5
21.0± 0.8
13.6± 0.5
16.5± 0.5
178.0± 1.0
60.0+1/-0
13.50± 0.5
21.0± 0.8
13.6± 0.5
7"
(Φ178mm)
7"
(Φ178mm)
www.yageo.com
Jan. 05, 2023 V.3
W2 MAX.
9
Product specification
Chip Resistor Surface Mount
SERIES
PA
12
0100 to 2512
LEADER/TRAILER TAPE SPECIFICATION
leader end
empty compartments
with cover tape
(min. 240 mm)
trailer end
cover tape only
trailer (max. 260 mm)
CCB325
Fig. 10 Leader/Trailer Tape
FOOTPRINT AND SOLDERING PROFILES
For recommended soldering profiles, please refer to data sheet “Chip resistors mounting”.
FOOTPRINT
preferred direction during
wave soldering
Typical
sensing
traces
D
C
B
solder land /
solder paste
pattern
SCR022
A
Fig. 11 Single resistor chips recommended dimensions of footprints
Table 7 Footprint dimensions
Unit: mm
TYPE
RESISTANCE RANGE
A
B
C
D
PA0100
10mΩ ≤ R < 100mΩ
0.5~0.8
0.16~0.2
0.17~0.3
0.2~0.4
PA0201
5mΩ ≤ R < 50mΩ
1.00
0.30
0.35
0.40
PA0402
2mΩ ≤ R ≤ 20mΩ
2.00
0.40
0.80
0.60
1mΩ
2.20
0.80
0.70
0.90
1mΩ < R ≤ 20mΩ
2.20
0.80
0.70
0.90
PA0603
PA0805
PA1206
(0L/WL/4L)
PA1206
(07/7W/47)
PA2010
PA2512
0.5mΩ/1mΩ
4.10
0.50
1.80
1.44
1.5mΩ ≤ R ≤ 20mΩ
4.60
1.00
1.80
1.44
1mΩ / 2mΩ
3.90
0.90
1.50
1.78
1mΩ / 2mΩ
4.20
1.00
1.60
1.84
2.5mΩ / 3mΩ
4.80
1.00
1.90
1.84
4mΩ ≤ R ≤ 20mΩ
4.80
1.20
1.80
1.84
1mΩ ≤ R ≤ 3mΩ
6.00
1.60
2.30
3.00
4mΩ ≤ R ≤ 20mΩ
6.00
3.50
1.25
3.00
0.5mΩ ≤ R ≤ 1mΩ
7.36
0.50
3.43
3.68
1mΩ ≤ R ≤ 4mΩ
7.37
1.27
3.05
3.68
5mΩ ≤ R ≤ 6mΩ
7.40
3.18
2.11
3.68
7mΩ ≤ R ≤ 20mΩ
7.36
4.06
1.65
3.68
www.yageo.com
Jan. 05, 2023 V.3
Product specification
Chip Resistor Surface Mount
PA
SERIES
10
12
0100 to 2512
TESTS AND REQUIREMENTS
Table 8 Test condition, procedure and requirements
TEST
Short time
overload
High Temperature
Exposure/
Endurance at
Upper Category
Temperature
TEST METHOD
PROCEDURE
REQUIREMENT
IEC60115-1 4.13
5 times of rated power for 5 seconds at room
temperature
0100 : ± (2.0%+0.0005Ω)
0201~2010 : ± (1.0%+0.0005Ω)
2512 : ± (0.5%+0.0005Ω)
No visible damage
MIL-STD-202GMethod 108
1,000 hours at maximum operating temperature
depending on specification, unpowered
0100 : ± (3.0%+0.0005Ω)
Others : ± (1.0%+0.0005Ω)
No direct impingement of forced air to the par ts
Tolerances:
0100/0201/0402: 125± 3ºC
0603/0805: 155± 3ºC
1206/2010/2512: 170± 3ºC
Temperature
Cycling
JESD22-A104
1,000 cycles, -55/+125ºC for 1 cycle per hour
Others :± (1.0%+0.0005Ω)
2512 : ± (0.5%+0.0005Ω)
Moisture
Resistance
MIL-STD-202GMethod 106
Each temperature / humidity cycle is defined at 8
hours (method 106F), 3 cycles / 24 hours for 10d
with 25ºC / 65ºC 95% R.H, without steps 7a & 7b,
unpowered
0100 : ± (3.0%+0.0005Ω)
Others : ± (0.5%+0.0005Ω)
Biased
Humidity
MIL-STD-202
Method 103
1,000 hours; 85ºC / 85% RH
0100 : ± (3.0%+0.0005Ω)
0201~2010 : ±
(1.0%+0.0005Ω)
10% of operating power
2512 : ± (0.5%+0.0005Ω)
Operational Life/
Endurance
MIL-STD-202GMethod 108 IEC
60115-1 4.25.1
1,000 hours at 125± 3ºC, de-rated power applied for
1.5 hours on, 0.5 hour off,
still-air required
0100 : ± (3.0%+0.0005Ω)
others ± (1.0%+0.0005Ω)
1,000 hours at 70± 2ºC applied rated power
1.5 hours on, 0.5 hour off, still air required
Resistance to
Solvents
MIL-STD-202
Method 215
Immerse in isopropyl alcohol for 5 min with
ultrasonic at room temperature
No visible damage
Mechanical Shock
MIL-STD-202
Method 213
Three shocks in each direction shall be applied along
the three mutually perpendicular axes of the test
specimen.
Peak value: 100 g’s
Duration: 6 ms
Velocity change: 12.3 ft/s
Waveform: Half sine
0100 : ± (1.0%+0.0005Ω)
Others : ± (0.5%+0.0005Ω)
Vibration
MIL-STD-202
Method 204
5 g’s for 20 min., 12 cycles each of 3 orientations
Test from 10-2000 Hz.
0100 : ± (1.0%+0.0005Ω)
Others : ± (0.5%+0.0005Ω)
Resistance to
Soldering Heat
MIL-STD-202GMethod 210
Condition B, no pre-heat of samples
Leadfree solder, 260ºC, 10 seconds immersion time
Procedure 2 for SMD: devices fluxed and cleaned
with isopropanol
0100 : ± (1.0%+0.0005Ω)
Others : ± (0.5%+0.0005Ω)
No visible damage
www.yageo.com
Jan. 05, 2023 V.3
Product specification
Chip Resistor Surface Mount
TEST
Thermal Shock
Electrostatic
Discharge
TEST METHOD
PA
SERIES
11
12
0100 to 2512
PROCEDURE
REQUIREMENT
MIL-STD-202
Method 107
-55/+125ºC, Number of cycles is 300.
Maximum transfer time is 20 seconds.
Dwell time is 15 minutes. Air -Air
Others :± (1.0%+0.0005Ω)
2512 : ± (0.5%+0.0005Ω)
No visible damage
AEC-Q200-002
Human Body Model, 1 pos + 1 neg.
0805/ 1206/ 2010/ 2512 : 2KV
± (1.0%+0.0005Ω)
No visible damage
0402/ 0603 : 1KV
0100/ 0201: 500V
Solderability
- Wetting
J-STD-002
0201 to 2512 :
(a) Method B, aging 4 hours at 155ºC dr y heat,
dipping at 235± 3ºC for 5± 0.5 seconds.
Well tinned (>95% covered)
No visible damage
(b) Method B, steam aging 8 hours, dipping at
215± 3ºC for 5± 0.5 seconds.
(c) Method D, steam aging 8 hours, dipping at
260± 3 ºC for 30± 0.5 seconds.
0100 :
1st step: Method B, aging 4 hours at 155°C dr y heat.
2nd step: Lead-free solder bath at 245± 3°C,
dipping at 245± 3°C for 3± 0.5 seconds
Flammability
UL94
Tr y to inflame a specimen by a needle flame
No ignition of specimen; V-0
Board Flex /
Bending
AEC-Q200-005
Chips mounted on a 90mm glass epoxy resin PCB
(FR4), Bending for
± (1.0%+0.0005Ω)
0100: 5mm
0201: 3mm
0402 and above: 2mm
Holding time: Min.60 seconds
Terminal
Strength (SMD)
AEC-Q200-006
Applied
0100: 1N
0201: 3N
0402: 5N
± (1.0%+0.0005Ω)
No visible damage
0603/0805/1206/2010/2512:17.7N
for 60± 1 seconds.
Flame Retardance
AEC-Q200-001
Apply voltage to increase the surface temp to 350 ºC No flame,
no explosion
Temperature
Coefficient of
Resistance
(T.C.R.)
IEC 60115-1 4.8
0100~2010 at +25/+125 ºC
2512 at +25/+150ºC
Formula:
R2–R1
T.C.R= -------------- × 10 6 (ppm/ºC)
R1 (t 2–t 1)
Where
t 1=+25 ºC or specified room temperature
0100~2010: t2 =+125 ºC test temperature
2512 : t2 =+150ºC test temperature
Refer to table 2
R 1=resistance at reference temperature in ohms
R 2=resistance at test temperature in ohms
www.yageo.com
Jan. 05, 2023 V.3
Product specification
Chip Resistor Surface Mount
PA
SERIES
12
12
0100 to 2512
REVISION HISTORY
REVISION
DATE
Version 3TYPEJan. 05, 2023
CHANGE NOTIFICATION
-
POWER
DESCRIPTION
TEMPERATURE COEFFICIENT
RESISTANCE
TOLERANCE
- Extend PA01005,
PA0201 andRANGE
PA0805's resistance range
OF RESISTANCE
Version 2
Aug. 06, 2021 1/10W, 1/5W, 3/10W, 2/5W, 1/2W
0603
Version 1
Jun. 10, 2021
1/8W, 1/4W, 1/3W, 1/2W
0805
Version 01206
May. 07, 2020 1/4W, 1/2W
- Add size of PA2512 and PA1206(0L/WL/4L)
5 mΩ≦ R < 100 mΩ
- Add size of PA0100 and tol. ± 0.5% for 0201/0402/0603/2010
4 mΩ ≦ R < 100 mΩ
- New datasheet for automotive grade current sensor –
3 mΩ ≦ R < 100 mΩseries.
PA0201/0402/0603/0805/1206/2010
1/2W, 1W
PF
The resistors are constructed
using outstanding TCR level
material, which makes Yageo PF
resistors excellent for current
sensing application in battery
charger circuit & DC-DC
converter.
The composition of the resistive
2010 material is adjusted to give the
approximate required resistance
and is covered with a protective
coating, which printed with the
resistance value.
Finally, the three external
terminations (Ni / matte Tin) are
added, as shown in Fig. 4.
2512
4527
± 1%
± 2%
5 mΩ ≦ R < 100 mΩ
±75 ppm/°C
± 5%
1W, 2W
1 mΩ ≦ R < 100 mΩ
3W
1 mΩ ≦ R ≦ 50 mΩ
2W, 3W, 5W
6 mΩ ≦ R < 1Ω
NOTE: 1. PLEASE CONTACT WITH SALES OFFICES, DISTRIBUTORS AND REPRESENTATIVES IN YOUR REGION BEFORE ORDERING
www.yageo.com
Jan. 05, 2023 V.3
