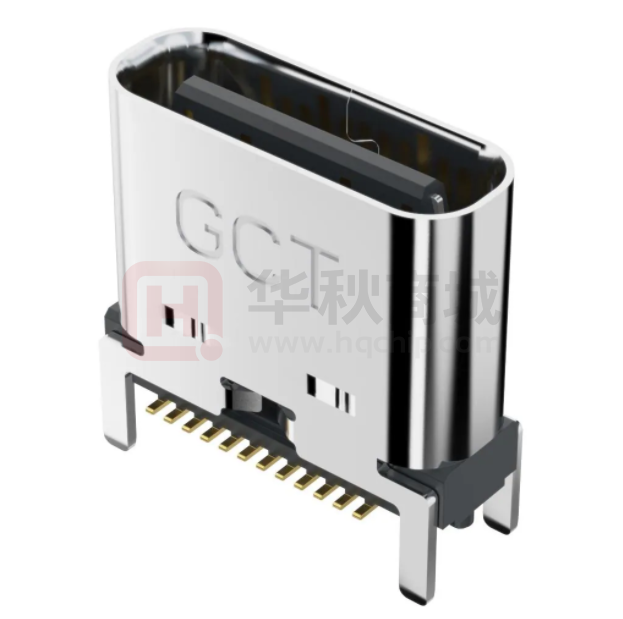

USB4160-03-0170-C

A1 A12 A 1.20±0.05 0.70±0.05 8.34+0.06 -0.02 2.56±0.04 3.69 H T=0.12 4.65 G A B12 Section: A-A B1 8.70 F Specifications Material Insulator: PA9T, UL 94V-0, Black Contact: Copper Alloy Mid Plate: Stainless Steel EMI Plate: Stainless Steel Shell: Stainless Steel 3.16 5.90 Plating Contact Contact Area: 3u" Au over 50µ" min. Nickel Solder Tails: Gold Flash over 50µ" min. Nickel Shell: 30µ" min. Nickel Mid Plate: Clear EMI Plate: Clear 0.64 7.46 (2.3mm stake shown) 7.41 E S+0.10 -0.20 8.94 0.10 D 4x 0.70±0.05 1.845±0.15 1.845±0.15 B B12 8.00±0.10 5.50 0.50 pitch 5.00A collectively for VBUS pins 6.25A collectively for GND pins 1.25A for A5/B5 pin 0.25A per pin for all other pins Voltage Rating: 48V DC Power Rating: 240W Contact Resistance: 40mΩ max initial. 50mΩ max after test Dielectric Withstanding Voltage: 100V AC Insulation Resistance 100MΩ min 0.30±0.05 2x 1.43±0.15 2x 2.86±0.15 2x 8.00±0.15 C Electrical Current Rating: Ordering Grid USB4160 B1 2x Ø0.56±0.05 03 XXXX C Request Samples and Quotation Packing Options C = Tape & Reel with Cap Contact Plating 03 = 3u" Gold Shell Stake Length "S" 0070 = 0.70mm 0170 = 1.70mm 0230 = 2.30mm A12 A1 0.20±0.05 Part Number Product Description USB4160 USB3.2 Gen2, Type C Receptacle, Vertical, SMT, H=7.46mm, 24 Pin Drawing Date A 28th June 2022 By Detail 1 2 3 4 Mechanical & Environmental Operating Temperature: -25°C to +85°C Mating Force: 5 to 20 N. Unmated Force: 6 to 20 N after test Durability: 20K cycles Revision Date 5 CC Drawing Release A2 31/01/23 Tolerances (Except as Noted) Length Angle X.X ± 0.30 X.XX ± 0.20 X.XXX ± 0.10 - Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 1/4 H 5.50 0.50 pitch Ø0.71 A12 2.86 E A1 0.71 2x 8.00 F 4x 0.60 4x 1.10 G 1.15 1.82 B1 D B12 1.01 4x 1.10 4x 1.60 0.30 Pin Signal Mating Sequence Pin Signal Mating Sequence A1 GND First B12 GND First A2 SSTXp1 Second B11 SSRXp1 Second A3 SSTXn1 Second B10 SSRXn1 Second A4 VBUS First B9 VBUS First A5 CC1 Second B8 SBU2 Second A6 Dp1 Second B7 Dn2 Second A7 Dn1 Second B6 Dp2 Second A8 SBU1 Second B5 CC2 Second A9 VBUS First B4 VBUS First A10 SSRXn2 Second B3 SSTXn2 Second A11 SSRXp2 Second B2 SSTXp2 Second A12 GND First B1 GND First Recommended PCB Layout SHELL GND SHELL GND Tolerance: ±0.05mm C Solder Area Keep Out Area Component Outline B Part Number Product Description USB4160 USB3.2 Gen2, Type C Receptacle, Vertical, SMT, H=7.46mm, 24 Pin Drawing Date A 28th June 2022 By Detail 1 2 3 4 Revision Date 5 CC Drawing Release A2 31/01/23 Tolerances (Except as Noted) Length Angle X.X ± 0.30 X.XX ± 0.20 X.XXX ± 0.10 - Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 2/4 H USB4155 (Plug assembly) PCB G 10.00 USB4151 (Plug assembly) Cable Plug 2.00 6.65 0.05 ref. 2.81 4.65 4.60 6.55 min. 0.05 ref. 4.65 4.60 14.0 ref. 8.46 2.81 PCB Panel for plug 6.55 min. Panel for plug 11.15 E D PCB 4.60 max. 1.35 4.00 F PCB PCB C USB4160 (Receptacle assembly) Cap Information USB4160 (Receptacle assembly) USB4160 (Receptacle assembly) Plug and Receptacle Mating View B Part Number Product Description USB4160 USB3.2 Gen2, Type C Receptacle, Vertical, SMT, H=7.46mm, 24 Pin Drawing Date A 28th June 2022 By Detail 1 2 3 4 Revision Date 5 CC Drawing Release A2 31/01/23 Tolerances (Except as Noted) Length Angle X.X ± 0.30 X.XX ± 0.20 X.XXX ± 0.10 - Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 3/4 Paper Board Unloaded Section (10 Pockets) H Load Section Folder Paper Board Unloaded Section (10 Pockets) G Peeling Angle Vacuum Bag 165°~180° Reel and Tape F Ø380 Direction of Unreeling Inner Carton E 320 Ø13 W+0.5 Label Paper Board D 40 0 0 40 12.00 C 330 24.00 Outer Carton B 40 5 Direction of Unreeling Part Number A USB4160-03-0070-C USB4160-03-0170-C USB4160-03-0230-C 1 2 3 Reels / Carton 10 10 10 Pcs / Reel 700 600 600 4 Total Quantity 7,000 pcs 6,000 pcs 6,000 pcs 5 40 Part Number Product Description USB4160 USB3.2 Gen2, Type C Receptacle, Vertical, SMT, H=7.46mm, 24 Pin Drawing Date 28th June 2022 By Detail Revision Date 5 CC Drawing Release A2 31/01/23 Tolerances (Except as Noted) Length Angle X.X ± 0.30 X.XX ± 0.20 X.XXX ± 0.10 - Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 4/4
