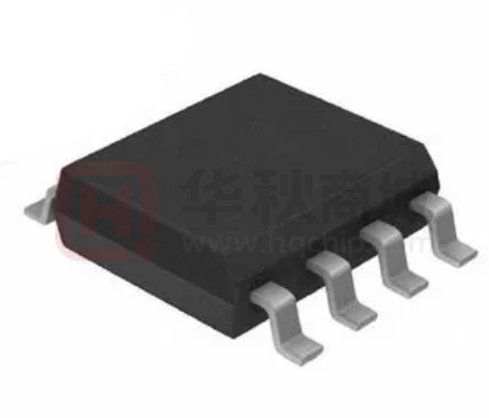

TPC2160S1L1A-SO1R-S

TPC2160/TPC2161 16 bit High Accuracy DAC Features Description ⚫ Full 16-bit performance ⚫ 2.7 – 5.5 V single-supply operation ⚫ High accuracy: INL 1LSB ⚫ Fast settling speed: 1µs ⚫ 10 nV/√Hz output noise density TPC2160 output is 0V to VREF, and TPC2161 can provides ⚫ Unbuffered voltage output bipolar output ±VREF with external buffer and internal feedback ⚫ SPI compatible interface resistor ladder. ⚫ Power-on reset to 0V The parts incorporate a power-on reset circuit to ensure that the ⚫ Low glitch: 10 nV-sec ⚫ TPC2160 package: SOP-8 ⚫ TPC2161 package: SOP-14 The TPC2160, TPC2161 are single channel, 16-bit, voltage output digital-to-analog converters with SPI interface. They accept a wide supply voltage range. DAC output powers up to 0V. The DACs provides 16bit resolution over the full specified temperature range of −40 °C to 105 °C. The DACs achieve a 1µs settling time. The outputs are Applications unbuffered, with low power consumption and low offset errors. ⚫ Data acquisition systems ⚫ Automatic test equipment ⚫ Industrial process control Providing a low noise performance of 10 nV/√Hz and low glitch, the DACs are suitable for deployment across multiple end systems. Functional Block Diagram VDD TPC2160 VDD 16bit 16 DAC -2 VREF RFB INV TPC2161 VOUT AGND VREF-S VREF-F 16bit -2 DAC LDAC DAC Latch DIN Control Logic CS DIN Serial Input Register SCLK DAC Latch Control Logic Serial input register SCLK DGND DGND TPC2160S1 TPC2161S1 www.3peakic.com.cn 1 / 18 VO VOUT AGNDF CS +V AGNDS -V TPC2160/TPC2161 16 bit High Accuracy DAC Table of Contents Features ........................................................................................................................................................................... 1 Applications ..................................................................................................................................................................... 1 Description....................................................................................................................................................................... 1 Functional Block Diagram .............................................................................................................................................. 1 Table of Contents ............................................................................................................................................................ 2 Revision History .............................................................................................................................................................. 3 Order Information ............................................................................................................................................................ 4 Pin Configuration and Functions .................................................................................................................................. 4 Pin Functions – TPC2160 ............................................................................................................................................................. 4 Pin Functions – TPC2161 ............................................................................................................................................................. 5 Specifications .................................................................................................................................................................. 6 Absolute Maximum RatingsNote1 .................................................................................................................................................... 6 ESD Ratings ................................................................................................................................................................................. 6 Thermal Information ...................................................................................................................................................................... 6 Electrical Characteristics ............................................................................................................................................................... 7 Timing Characteristics................................................................................................................................................................... 9 Typical Performance Characteristics........................................................................................................................................... 10 Detailed Description ..................................................................................................................................................... 11 Overview ..................................................................................................................................................................................... 11 Digital-To-Analog Sections.......................................................................................................................................................... 11 Feature Description ..................................................................................................................................................................... 12 Tape and Reel Information ........................................................................................................................................... 16 Package Outline Dimensions ....................................................................................................................................... 17 SOP-8 ......................................................................................................................................................................................... 17 SOP-14 ....................................................................................................................................................................................... 18 www.3peakic.com.cn 2 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC Revision History Date Revision 2021/6/16 A.01 Initial version 2021/8/24 A.02 Update Absolute Maximum Ratings 2022/1/17 A.03 Update reference input impedance 2022/12/27 A.04 Correct TPC2161 name suffix. www.3peakic.com.cn Notes 3 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC Order Information Model Name Order Number Package MSL Transport Media, Quantity Marking Information TPC2160S1 TPC2160S1L1A-SO1R-S SOP-8 1 Tape and Reel, 4,000 2160 TPC2161S1 TPC2161S1L1-SO2R SOP-14 1 Tape and Reel, 2,500 2161 Pin Configuration and Functions Top view 8 VDD 7 DGND 3 6 SDI 4 5 SCLK VOUT 1 AGND 2 VREF CS TPC2160 Pin Functions – TPC2160 Pin Description 1 VOUT DAC analog output. 2 AGND Analog Ground. 3 VREF Voltage Reference Input for the DAC. 4 ̅̅̅̅ CS Chip select input (active low) 5 SCLK 6 SDI Serial Data Input. 7 DGND Digital Ground. 8 VDD Analog Supply Voltage www.3peakic.com.cn Clock Input. Data is clocked into the input register on the rising edge of SCLK. 4 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC Top view RFB 1 14 VDD VOUT 2 13 INV AGNDF 3 12 DGND AGNDS 4 11 LDAC VREF-S 5 10 SDI VREF-F 6 9 NC CS 7 8 SCLK TPC2161 Pin Functions – TPC2161 Pin Description Feedback resistor. Connect to the output of external operational 1 RFB 2 VOUT Analog output of DAC 3 AGNDF Analog ground (Force) 4 AGNDS Analog ground (Sense) 5 VREF–S 6 VREF–F 7 ̅̅̅̅ CS 8 SCLK Serial clock input. 9 NC No internal connection 10 SDI 11 ̅̅̅̅̅̅̅̅ LDAC 12 DGND 13 INV 14 VDD www.3peakic.com.cn amplifier in bipolar mode. Voltage reference input (Sense). Connect to external voltage reference Voltage reference input (Force). Connect to external voltage reference Chip select input (active low). Data are not clocked into SDI unless ̅̅̅̅ is low. CS Serial data input. Data are latched into input register on the rising edge of SCLK. ̅̅̅̅̅̅̅̅ is Low, the DAC Load DAC control input. Active low. When LDAC latch is simultaneously updated with the content of the input register. Digital ground Junction point of internal scaling resistors. Connect to external operational amplifier inverting input in bipolar mode. Analog power supply, +3 V to +5 V. 5 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC Specifications Absolute Maximum RatingsNote1 Parameter Typ Max Unit - 0.3 6 V Analog input Voltage - 0.3 V+ + 0.3 V Digital input voltage to DGND -0.3 V+ + 0.3 V + Supply Voltage: V – V Min – VOUT to AGND -0.3 V + 0.3 V AGND, AGNDF, AGNDS to DGND - 0.3 + 0.3 V Input Current:+ IN, - IN Note 2 - 10 + 10 mA Output Current: OUT - 10 + 10 mA Operating Temperature Range - 40 105 °C 150 °C 150 °C Maximum Junction Temperature Storage Temperature Range - 65 + Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. Note 2: The inputs are protected by ESD protection diodes to each power supply. ESD Ratings Parameter Condition Minimum Level UNIT HBM Human Body Model ESD ANSI/ESDA/JEDEC JS-001 5.5 kV CDM Charged Device Model ESD ANSI/ESDA/JEDEC JS-002 1.5 kV Thermal Information PACKAGE θJA θJC UNIT SOP-8 112.4 64.1 ℃/W SOP-14 96.7 46.7 ℃/W www.3peakic.com.cn 6 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC Electrical Characteristics VDD = 2.7 V to 5.5 V, 2.5 V ≤ VREF ≤ VDD, AGND = DGND = 0 V. All specifications TA = TMIN to TMAX, unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT Linearity error ±1 LSB Differential linearity error ±1 LSB ±7 LSB STATIC PERFORMANCE Gain error ±0.5 Gain drift ±0.1 Zero Code Error ±0.3 Zero Code drift ±0.05 ppm/℃ ±2 LSB ppm/℃ OUTPUT CHARACTERISTICS Voltage output 0 Output Impedance Feedback resistor (TPC2161) Bipolar resistor matching VDD V 6.25 kΩ RFB, RINV 28 kΩ RFB / RINV 1 Ω/Ω Ratio error 0.01 % DYNAMIC PERFORMANCE Settling time To 1/2 LSB of FS, CL = 10 pF 1 uS Slew rate CL = 10 pF@5V 25 V/μs Digital-to-analog glitch 1 LSB change around major carry 10 nV-s 0.2 nV-s 10 nV/√Hz 18 nV/√Hz ±0.1 LSB Digital feedthrough DAC code = 0x8400, frequency = 1 kHz Output noise（TPC2160) TA = +25°C DAC code = 0x8400, frequency = 1 kHz Output noise（TPC2161) TA = +25°C Power-supply rejection REFERENCE INPUT VDD varies ±10% Note2 Reference input voltage range 1.25 Reference input impedance Note1 (TPC2160) Reference input impedance Note1 (TPC2161) 8.5 kΩ Unipolar mode 6.5 kΩ Code = FFFFh Reference feedthrough Code = 0000h, VREF = 1 VPP at 100 kHz 1.3 MHz 1 mV 92 dB Code = 0000h 75 pF Code = FFFFh 120 pF Signal-to-noise ratio, SNR Note 1: Reference input resistance is code-dependent, minimum at 0x8555. Note 2: Guaranteed by design, not subject to production test. www.3peakic.com.cn V Unipolar mode Reference –3dB bandwidth, BW Reference input capacitance VDD 7 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC Electrical Characteristics (continued) VDD = 2.7 V to 5.5 V, 2.5 V ≤ VREF ≤ VDD, AGND = DGND = 0 V. All specifications TA = TMIN to TMAX, unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT 0.2*VDD V DIGITAL INPUTS VIL Input low voltage VIH Input high voltage 0.8*VDD Input current V ±0.5 Input capacitance Note 2 Hysteresis voltage Note 2 5 μA 10 pF 0.4 V POWER SUPPLY VDD Power-supply voltage 2.7 5.5 V IDD Power-supply current VDD=5 150 μA Power VDD=5 825 μW 25 MHz SPI Fclk Note 1: Reference input resistance is code-dependent, minimum at 0x8555. Note 2: Guaranteed by design, not subject to production test. www.3peakic.com.cn 8 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC Timing Characteristics VDD = 2.7 V to 5.5 V ±10%, VREF = 2.5 V, VINH = 3 V and 90% of V DD, VINL = 0 V and 10% of VDD, AGND = DGND = 0 V; TA = TMIN to TMAX, unless otherwise noted. ParameterNote1,2 Limit Unit Description fSCLK 25 MHz max SCLK cycle frequency t1 40 ns min SCLK cycle time t2 20 ns min SCLK high time t3 20 ns min SCLK low time t4 10 ns min ̅̅̅̅ CS low to SCLK high setup t5 15 ns min ̅̅̅̅ high to SCLK high setup CS t6 30 ns min ̅̅̅̅ low hold time SCLK high to CS t7 20 ns min ̅̅̅̅ high hold time SCLK high to CS t8 15 ns min Data setup time t9 4 ns min Data hold time (VINH = 90% of VDD, VINL = 10% of VDD) t10 7.5 ns min Data hold time (VINH = 3V, VINL = 0 V) t11 30 ns min ̅̅̅̅̅̅̅̅ LDAC pulse width t12 30 ns min ̅̅̅̅ CS high to ̅̅̅̅̅̅̅̅ LDAC low setup Note 1: Guaranteed by design and characterization. Not production tested Note 2: All input signals are specified with tR = tF = 1 ns/V and timed from a voltage level of (VINL+ VINH)/2. t11 Note: TPC2161 ONLY. CAN BE TIED PERMANENTLY LOW IF REQUIRED www.3peakic.com.cn 9 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC Typical Performance Characteristics VS = +5V, VCM = 0V, RL = Open, unless otherwise specified. www.3peakic.com.cn 10 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC Detailed Description Overview The TPC2160 and TPC2161 are single channel 16-bit DACs with R-2R structure. They have an SPI serial interface, with 16-bit word format. The TPC2160 and TPC2161 are reset to zero code. Digital-To-Analog Sections A simplified DAC diagram is shown below. The 16 bits of the data word drive switches S0 to S15 of a 16-bit voltage mode R-2R ladder network. www.3peakic.com.cn 11 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC Feature Description Output Range The output of the DAC is 𝑉𝑂𝑈𝑇 = (𝑉𝑅𝐸𝐹 × 𝐶𝑜𝑑𝑒)⁄65536 Where Code is the decimal data word loaded to the DAC latch. Power-On Reset The TPC2160 and TPC2161 have power on reset function, to make sure the output is a known state at power-up, and the DAC Registers are zero until new data are loaded. Therefore, after power-up, the output of VOUT is 0 V. Serial Interface The digital interface is a standard 3-wire serial interface compatible with SPI. ̅̅̅̅ turns low, the transmission is started, and the SDI data is shifted in and latched on the edge of SCLK. When CS The data registers are 16-bit, so ̅̅̅̅ CS must go high after 16 SCLKs to transfer a whole data word. In the TPC2160, the input register is latched to DAC immediately after the input register is loaded, so the DAC output is updated at the same time. The TPC2161 has an ̅̅̅̅̅̅̅̅ LDAC pin. After ̅̅̅̅ CS goes high, the DAC register can be updated by bringing ̅̅̅̅̅̅̅̅ LDAC low. be tied low permanently, And ̅̅̅̅̅̅̅̅ LDAC can also in this case, the DAC register is updated immediately after the input register is loaded, and DAC output is updated at the same time. www.3peakic.com.cn 12 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC TPC2160 Unipolar Output Operation DAC Latch Contents MSB LSB Analog Input 1111 1111 1111 1111 VREF × (65,535 / 65,536) 1000 0000 0000 0000 VREF × (32,768 / 65,536) = ½ VREF 0000 0000 0000 0001 VREF× (1 / 65,536) 0000 0000 0000 0000 0V Considering gain error, INL and zero-scale error, the worst-case output voltage may be calculated by following equation: Unipolar Mode Worst-Case Output 𝑉𝑂𝑈𝑇_𝑈 = 𝐷 × (𝑉𝑅𝐸𝐹 + 𝑉𝐺𝐸 ) + 𝑉𝑍𝑆𝐸 + 𝐼𝑁𝐿 216 Where: VOUT_U = Unipolar mode worst-case output D = Code loaded to DAC VREF = Reference voltage VGE = Gain error in volts VZSE = Zero-scale error in volts INL = Integral nonlinearity in volts www.3peakic.com.cn 13 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC TPC2161 Bipolar Output Operation DAC Latch Contents MSB LSB Analog Input 1111 1111 1111 1111 + VREF × (32,767 / 32,768) 1000 0000 0000 0001 + VREF × (1 / 32,768) 1000 0000 0000 0000 0V 0111 1111 1111 1111 − VREF× (1 / 32,768) 0000 0000 0000 0000 − VREF × (32,768 / 32,768) = − VREF Considering non-idealities of external amplifier, the worst-case output voltage may be calculated from the following equation: Bipolar Mode Worst-Case Output 𝑉𝑂𝑈𝑇_𝐵 = [(𝑉𝑂𝑈𝑇_𝑈 + 𝑉𝑂𝑆 )(2 + 𝑅𝐸) − 𝑉𝑅𝐸𝐹 (1 + 𝑅𝐸)] 2 + 𝑅𝐸 1+ 𝐴 Where: VOS = External operational amplifier input offset voltage RE = RFB and RIN resistor matching error A = Operational amplifier open-loop gain www.3peakic.com.cn 14 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC Output Amplifier Selection For bipolar mode, to provide the ±VREF output, a precision amplifier should be used, supplied from a dual power supply. In a single-supply application, selection of a suitable operational amplifier is also important. Input offset, input bias current, rail-to- rail input and output range, -3dB bandwidth and slew rate, are key features for amplifier selection. Power Supply and Reference Bypassing It is recommended that the reference and supply pins are bypassed with a 10 uF tantalum capacitor in parallel with a 0.1 uF ceramic capacitor, for good supply and noise suppression, and then accurate performance, www.3peakic.com.cn 15 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC Tape and Reel Information Order Number Package D1 W1 A0 B0 K0 P0 W0 Pin1 Quadrant TPC2160S1L1A-SO1R-S SOP-8 330.0 17.6 6.4 5.4 2.1 8.0 12.0 Q1 TPC2161S1L1-SO2R SOP-14 330.0 21.6 6.5 9.0 2.1 8.0 16.0 Q1 www.3peakic.com.cn 16 / 18 TPC2160/TPC2161 16 bit High Accuracy DAC Package Outline Dimensions SOP-8 A2 C θ L1 A1 e E D E1 Symbol b Dimensions Dimensions In In Millimeters Inches Min Max Min Max A1 0.100 0.250 0.004 0.010 A2 1.350 1.550 0.053 0.061 b 0.330 0.510 0.013 0.020 C 0.190 0.250 0.007 0.010 D 4.70 5.100 0.188 0.197 E 3.800 4.000 0.150 0.157 E1 5.800 6.300 0.228 0.248 e www.3peakic.com.cn 17 / 18 1.270TYP 0.050TYP L1 0.400 1.270 0.016 0.050 θ 0° 8° 0° 8° TPC2160/TPC2161 16 bit High Accuracy DAC SOP-14 D Dimensions In Millimeters Symbol E1 E e b MIN TYP MAX A 1.35 1.60 1.75 A1 0.10 0.15 0.25 A2 1.25 1.45 1.65 b 0.36 D 8.53 8.63 8.73 E 5.80 6.00 6.20 E1 3.80 3.90 4.00 e L A A2 A1 1.27 BSC 0.45 0.60 L1 1.04 REF L2 0.25 BSC θ L L1 0.49 0° 0.80 8° θ L2 3PEAK and the 3PEAK logo are registered trademarks of 3PEAK INCORPORATED. All other trademarks are the property of their respective owners. www.3peakic.com.cn 18 / 18
