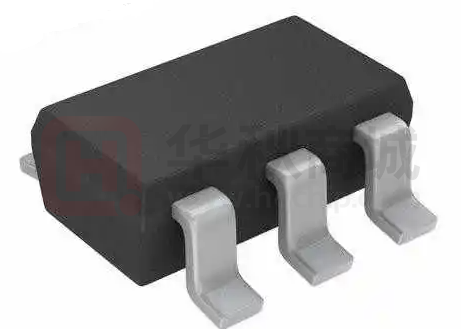

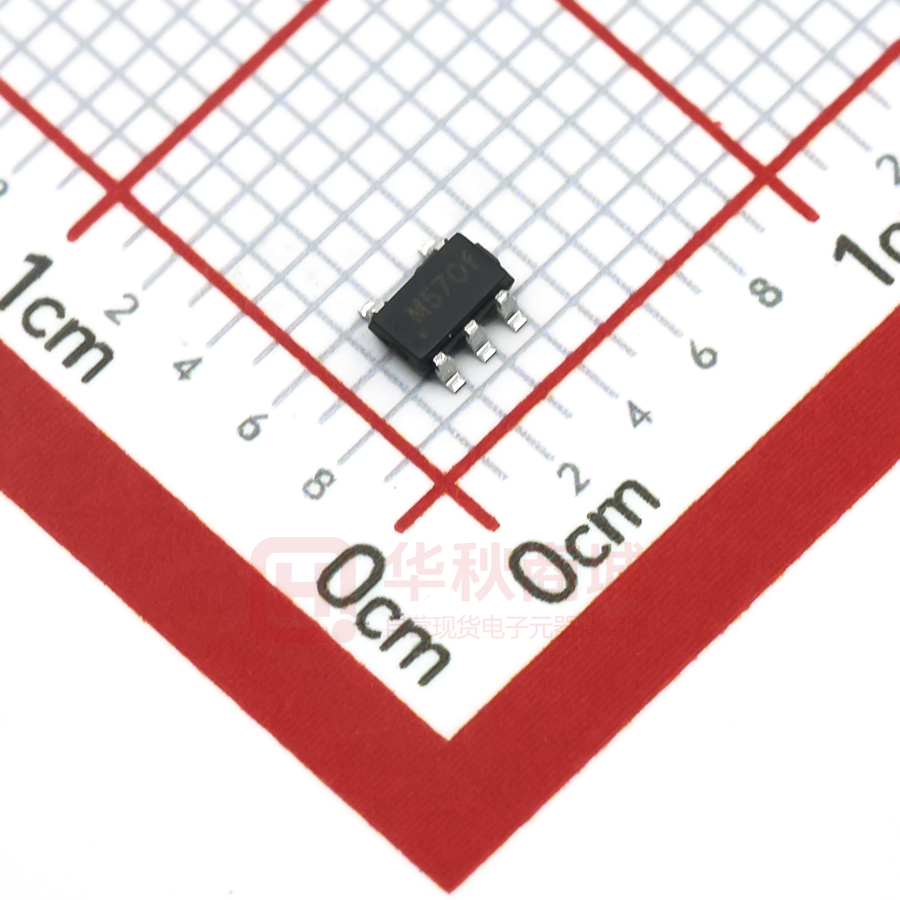

TPM27517-S5TR

TPM27517 Single-Channel 5-A High-Speed Low-Side Gate Driver Features Description  Industry-Standard Pin-Out The TPM27517 is a single-channel low-side gatedriver for MOSFET, IGBT and GaN power switches.  4.5-V to 23-V Single-Supply Range High sourcing and sinking current capability of 5-A allows improving switching efficiencies by minimizing slew time and switching loss. The device supports maximum 25-V supply voltage and −5 V input voltage. It improves system robustness especially in noisy industrial applications. Ultra-low propagation delay allows applications with tight timing requirements.  Single Channel 5-A Peak Source and Sink-Drive Current  TTL and CMOS Compatible Threshold  Outputs Held Low During VDD-UVLO or Input Floating  Low Propagation Delay (13-ns Typical)  Fast Rise and Fall Times (7-ns and 6-ns Typical) A small SOT23-5 package assists design for high density power supply.  ESD Protection Exceeds JESD 22 − 6-kV HBM, 1.5-kV CDM  Available in SOT23-5 Package Applications  Switched-Mode Power Supplies  DC-DC Converters  Motor Control, Solar Inverters, UPS  Gate & IGBT Drive Application Diagram TPM27517 VDD OUT + GND IN+ IN- IGBT / MOSFET / SiC FET Controller www.3peakic.com.cn 1 / 13 Rev.A.0 TPM27517 Single-Channel 5-A High-Speed Low-Side Gate Driver Table of Contents Features .............................................................................................................................................................. 1 Applications ....................................................................................................................................................... 1 Description ......................................................................................................................................................... 1 Application Diagram .......................................................................................................................................... 1 Revision History ................................................................................................................................................ 3 Pin Configuration and Functions ..................................................................................................................... 4 Pin Functions ................................................................................................................................................ 4 Specifications .................................................................................................................................................... 5 Absolute Maximum Ratings .......................................................................................................................... 5 ESD, Electrostatic Discharge Protection ...................................................................................................... 5 Recommended Operating Conditions .......................................................................................................... 5 Thermal Information ..................................................................................................................................... 5 Electrical Characteristics .............................................................................................................................. 6 Typical Performance Characteristics ............................................................................................................ 7 Detailed Description ........................................................................................................................................ 10 Overview..................................................................................................................................................... 10 Functional Block Diagram .......................................................................................................................... 10 Feature Description ..................................................................................................................................... 11 Package Outline Dimensions ......................................................................................................................... 12 SOT23-5 ..................................................................................................................................................... 12 Order Information ............................................................................................................................................ 13 www.3peakic.com.cn 2 / 13 Rev.A.0 TPM27517 Single-Channel 5-A High-Speed Low-Side Gate Driver Revision History Date Revision 2021-09-08 Rev.A.0 www.3peakic.com.cn Notes First release version 3 / 13 Rev.A.0 TPM27517 Single-Channel 5-A High-Speed Low-Side Gate Driver Pin Configuration and Functions SOT23-5 Top View VDD 1 GND 2 IN+ 3 5 OUT 4 IN Pin Functions Pin I/O Description No. Name 2 GND Ground 3 IN+ Input Logic Non-inverting Input. 4 IN− Input Logic Inverting Input. 5 OUT Output Channel Output 1 VDD Power Power Supply Input www.3peakic.com.cn Device Ground 4 / 13 Rev.A.0 TPM27517 Single-Channel 5-A High-Speed Low-Side Gate Driver Specifications Absolute Maximum Ratings Parameter VDD OUT IN+, IN− Min Max Unit Power Supply Voltage −0.3 25 V Output Voltage Range −0.3 VDD + 0.3 V Output Voltage Range (200-ns pulse) −2 VDD + 0.3 V Input Voltage Range −5 20 V −300 300 mA Pulsed Output Channel Current OUT (500 ns) −5 5 A Operating Junction Temperature Range −40 150 °C Storage Temperature Range −65 150 °C 260 °C Continuous Output Channel Current OUT TJ TSTG TL Lead Temperature (Soldering 10 sec) (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. (2) The inputs are protected by ESD protection diodes to each power supply. If the input extends more than 300 mV beyond the power supply, the input current should be limited to less than 10 mA. (3) Power dissipation and thermal limits must be observed. ESD, Electrostatic Discharge Protection Symbol Parameter HBM CDM Condition Human Body Model ESD Charged Device Model ESD Minimum Level Unit ANSI/ESDA/JEDEC JS-001(1) ±6 kV ANSI/ESDA/JEDEC JS-002(2) ±1.5 kV (1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. (2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Recommended Operating Conditions Parameter Min Power Supply Voltage, VDD Input Voltage Range IN+, IN− Operating Ambient Temperature Range Typ Max Unit 4.5 23 V 0 20 V −40 125 °C Thermal Information Package Type θJA θJC Unit SOT23-5 89.1 52.0 °C/W www.3peakic.com.cn 5 / 13 Rev.A.0 TPM27517 Single-Channel 5-A High-Speed Low-Side Gate Driver Electrical Characteristics All test condition is VDD = 12 V, TJ = −40°C − 150°C, 1-μF capacitor between VDD and GND, unless otherwise noted. Symbol IDD(off) Parameter Start-up current, Conditions Min Typ Max VDD = 3.4 V, IN+ = H, IN− = L 40 100 VDD = 3.4 V, IN+ = L, IN− = H 40 100 Unit μA TJ = 25 °C 3.91 4.2 4.5 TJ = −40 °C − 150 °C 3.7 4.2 4.65 TJ = −40 °C − 150 °C 3.4 3.9 4.4 V 0.2 0.3 0.5 V 1.9 2.3 V VON Supply Under Voltage Lock Out rising threshold VOFF Supply Under Voltage Lock Out falling threshold VDD_H Supply Under Voltage Lock Out hysteresis VIN−_H IN− high threshold IN− high threshold VIN−_L IN− low threshold IN− low threshold VIN−_HYS IN− hysteresis VIN+_H IN+ signal high threshold IN+ high threshold VIN+_L IN+ signal low threshold IN+ low threshold VIN+_HYS IN+ hysteresis IOUT Output peak current CLOAD = 0.22 μF, FSW = 1 kHz VDD − VOH Output high voltage IOUT = −10 mA 40 mV VOL Output low voltage IOUT = 10 mA 10 mV ROH Output pull-up Resistance, PMOS pull-up only IOUT = −10 mA 1 1.6 3 Ω ROL Output pull-down Resistance IOUT = 10 mA 0.15 0.5 1 Ω tR Output rise-time CLOAD = 1.8 nF 7 18 ns tF Output fall-time CLOAD = 1.8 nF 6 10 ns tPW Minimal pulse width 15 25 ns tD1 IN+ to output propagation delay CLOAD = 1.8 nF, 5-V IN+ pulse 6 13 23 ns tD2 IN+ to output propagation delay CLOAD = 1.8 nF, 5-V IN+ pulse 6 13 23 ns tD3 IN− to output propagation delay CLOAD = 1.8 nF, 5-V IN− pulse 6 13 23 ns tD4 IN− to output propagation delay CLOAD = 1.8 nF, 5-V IN− pulse 6 13 23 ns www.3peakic.com.cn 6 / 13 V 1 1.2 0.7 0.9 1.1 V 2.1 2.3 V 1 1.2 0.7 0.9 V V 1.1 ±5 V A Rev.A.0 TPM27517 Single-Channel 5-A High-Speed Low-Side Gate Driver High High IN+ IN+ Low Low High High IN- INLow Low 90% 90% Output Output 10% 10% tD1 tD 3 tD2 Figure 1 IN+ Timing Diagram tD 4 Figure 2 IN− Timing Diagram Typical Performance Characteristics 0.1 5 Operating Supply Current (mA) IN+ = VDD IN- = GND Startup Current (mA) 0.075 0.05 0.025 0 -50 0 50 100 4 3 f = 500 kHz CL = 500 pF VDD = 12 V 2 -50 150 0 50 Figure 3 Start-up Current vs. Temperature 5 UVLO Rising UVLO Falling VDD = 12 V IN+ = VDD IN+ = GND 4.5 UVLO Threshold (V) 0.45 Supply Current (mA) 150 Figure 4 Operating Current vs Ambient Temperature 0.6 0.3 0.15 0 -50 100 Temperature (°C) Temperature (°C) 4 3.5 0 50 100 150 Temperature (°C) 0 50 100 150 Temperature (°C) Figure 5. Supply Current vs Temperature (On/Off) www.3peakic.com.cn 3 -50 7 / 13 Figure 6 UVLO Threshold vs Temperature Rev.A.0 TPM27517 Single-Channel 5-A High-Speed Low-Side Gate Driver Typical Performance Characteristics (Continued) 60 2.8 Input Threshold (V) 2.4 Operating Supply Current (mA) IN+ High Threshold IN- High Threshold IN+ Low Threshold IN- Low Threshold 2 1.6 1.2 0.8 0.4 -50 0 50 100 VDD = 4.5V VDD = 12V VDD = 15V 50 40 30 20 10 0 100 150 200 300 400 Figure 7 Input Threshold vs Temperature 700 800 900 1000 1 Output Pull-down Resistance () Output Pullup Resistance () 600 Figure 8 Operating Supply Current vs Frequency 4 3 2 1 0 -50 0 50 100 0.8 0.6 0.4 0.2 -50 150 0 Figure 9 Output Pull-up Resistance vs Temperature 100 150 Figure 10. Output Pull-down Resistance vs Temperature 9 9 8 Fall Time (ns) 10.5 7.5 6 4.5 -50 50 Temperature (°C) Temperature (°C) Rise Time (ns) 500 Frequency (kHz) Temperature (°C) 7 6 0 50 100 150 Temperature (°C) 0 50 100 150 Temperature (°C) Figure 11 Rise-time vs Temperature www.3peakic.com.cn 5 -50 Figure 12. Fall-time vs Temperature 8 / 13 Rev.A.0 TPM27517 Single-Channel 5-A High-Speed Low-Side Gate Driver Typical Performance Characteristics (Continued) 20 Turn-on Turn-off 16 Rise Time (ns) Input to Output Propagation Delay (ns) 18 14 12 15 10 10 8 -50 5 0 50 100 150 Temperature (°C) 4 8 12 16 20 Supply Voltage (V) Figure 14 Rise-time vs Supply Voltage Figure 13 Input to Output Propagation Delay vs Temperature 2.5 Enable Threshold (V) 2 VDD = 4.5 V IN+ High Threshold IN- High Threshold IN+ Low Threshold IN- Low Threshold 1.5 1 0.5 -50 0 50 100 150 Temperature (°C) Figure 15 Enable Threshold vs Temperature Figure 16 IN+ Rising Edge Figure 17 IN+ Falling Edge www.3peakic.com.cn 9 / 13 Rev.A.0 TPM27517 Single-Channel 5-A High-Speed Low-Side Gate Driver Detailed Description Overview The TPM27517 single-channel low-side gate driver is designed for high performance power supplies, motor controls and inverters. Designed with the industrial standard of pin-out and package, the TPM27517 accelerates design process. With extended voltage ranges on supply voltage and negative input voltage, the TPM27517 improves system level reliability. Its 5-A strong driving capability improves gate driver efficiency and lowers heat generation, especially in high-frequency switching applications. Functional Block Diagram VDD VDD IN VDD VDD IN+ OUT GND VDD GND UVLO GND GND Figure 18 Functional Block Diagram www.3peakic.com.cn 10 / 13 Rev.A.0 TPM27517 Single-Channel 5-A High-Speed Low-Side Gate Driver Feature Description Low Propagation Delay Driver Output The low-propagation-delay design between the device input and output allows the device to achieve the industrial leading performance. The low delay enhances the driver performance in high frequency switching regulators. Supply and UVLO The device monitors supply voltage with under-voltage lock-out (UVLO). When the supply voltage is below the UVLO threshold, the output is held low in UVLO to avoid glitches during power rising and falling. The device quiescent current and operating current are measured as shown in Figure 5. The current is related to internal quiescent current consumption as well as output current. The output current can be calculated using external transistor gate charge times switching frequency fsw. Channel Input The input of the TPM27517 gate driver supports TTL and CMOS input with threshold voltage independent of supply voltage. The threshold is also designed as temperature independent to support a wide range of ambient temperature. Wide hysteresis enhances system level noise immunity. The integrated pull-down resistor sets the device in low state when the inputs are floating. The inputs can withstand DC −5 V to improve robustness on ground bouncing. Output Stage The TPM27517 output stage can deliver high current sourcing and sinking up to 5-A with low propagation delay. www.3peakic.com.cn 11 / 13 Rev.A.0 TPM27517 Single-Channel 5-A High-Speed Low-Side Gate Driver Package Outline Dimensions SOT23-5 www.3peakic.com.cn 12 / 13 Rev.A.0 TPM27517 Single-Channel 5-A High-Speed, Low-Side Gate Driver Order Information Order Number Operating Temperature Range Package Marking Information MSL Transport Media, Quantity Eco Plan TPM27517-S5TR −40°C – 125°C (1) SOT23-5 M57 MSL3 3000 Green (1) Ambient temperature indicates device operation condition range. Application thermal behavior needs to be taken care of when operating in high temperature scenarios. Green: 3PEAK defines "Green" to mean RoHS compatible and free of halogen substances. 3PEAK and the 3PEAK logo are registered trademarks of 3PEAK INCORPORATED. All other trademarks are the property of their respective owners. www.3peakic.com.cn 13 / 13 Rev.A.0
