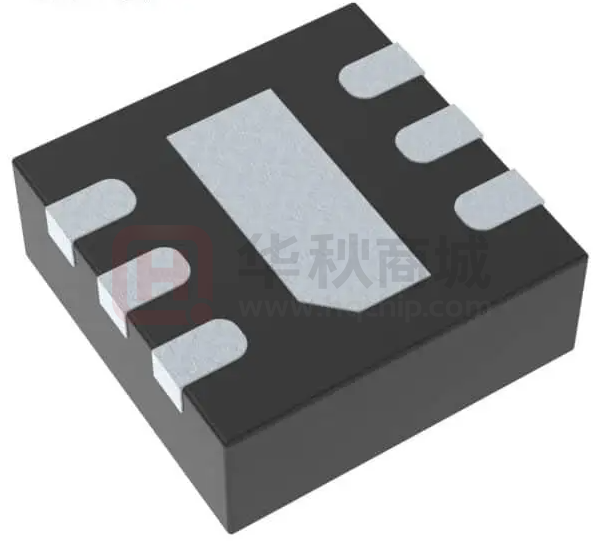

GXTS04D-T&R

                                                                                                 GXTS04    High-Accuracy Digital Temperature Sensor IC GXCAS  Technology    DESCRIPTION The GXTS04 is GXCAS’s new high accuracy digital temperature sensor. Its functionality includes enhanced signal processing, two distinctive and user selectable I2C addresses and communication speeds of up to 1 MHz. The DFN package has a footprint of 2 x 2mm2 while keeping a height of 0.75 mm. This allows for integration of the GXTS04 into a great variety of applications. Additionally, the wide supply voltage range of 1.6 V to 5.5 V guarantees compatibility with a wide range of applications.  Measures Temperatures from -45~130℃  ±0.1°C Accuracy from 35°C to +45°C　 Thermometer Resolution is 16 Bits  Converts Temperature to 16-Bit Digital Word in 1.5ms  6-Pin DFN package PIN CONFIGURATIONS   FEATURES   Fully calibrated and linearized digital output  Wide supply voltage range, from 1.6 V to 5.5 V  I2C Interface with communication speeds up to 1MHz and two user selectable addresses  Typical accuracy of  0.3 °C  Very fast start-up and measurement time     Content           1 Sensor Performance.............................................2 2 Specifications .......................................................3 3 Pin Assignment ....................................................5 4 Operation and Communication.............................5 5 Quality...................................................................7 6 Order Information ........................................... 7 Technical Drawing ........................................... 8 7     www.galaxy-cas.com 1                                                                                                  GXTS04  1   Sensor Performance 1.1 Temperature Sensor Performance     Parameter Accuracy tolerance Accuracy tolerance Condition Value Units typ., 35°C to 45°C 0.1 °C 0.3 0.24 0.12 0.06 °C typ., 0°C to 90°C Repeatability Low Medium High Resolution Specified Range Typ. - Response time 63%        Long Term Drift             max  °C °C °C 0.015 -40 to 125 °C °C >1   s
