P-1
特性
GP8101S将0%-100%占空比的PWM信号输入,线性转换成0-5V或者0-10V的模拟电压输出。
输入信号范围0%-100%
输入PWM信号的频率范围: 50Hz to 50KHz(小于50Hz请联系先积)
输入PWM信号高电平:2.7V-5.5V
输出电压误差:< 0.2%
输出电压线性度误差:0.1% TPY
输出短路保护,输出脚与地短路时芯片进入保护模式停止输出。
电源电压:9V - 36V
功耗:0.5V VCC@12V
TC
温度系数
*1:V5V上外挂负载后可能会轻微影响芯片精度。
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
Linearin and designs are registered trademarks of Linearin Technology Corporation.
© Copyright Linearin Technology Corporation. All Rights Reserved.
All other trademarks mentioned are the property of their respective owners.
0.5
%
20
mA
50
PPM/℃
FN1601-42.1 — Data Sheet
GP8101S
PAC (PWM to Analog Converter)
0%-100% PWM to 0-5V/0-10V
P-6
7. 订购须知
GP 8 1 01 S
-
X - XX
产品类型
8:PAC
9:APC
温度范围
W:-40°C-85°C
H:-40°C-125°C
供电电源
1:PWM INPUT
2:I2C
封装
E:ESOP8
系列号
温度系数
TC50:50PPM
TC25:25PPM
温度系数
封装
工作温度
订购码
50PPM/℃

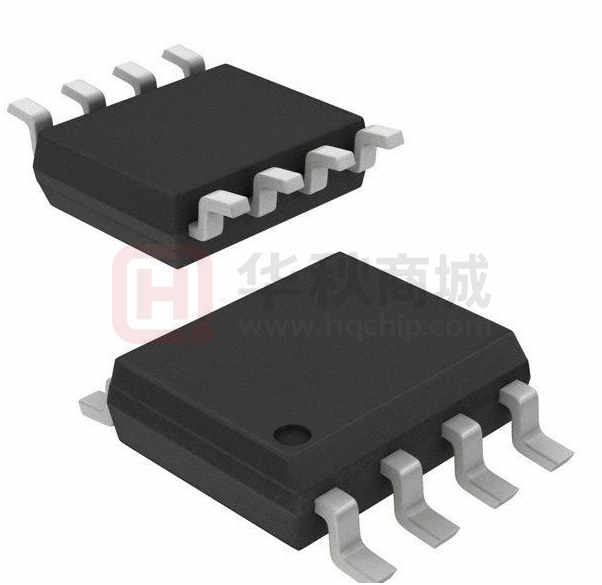

ESOP8
-40℃-85℃
GP8101S-TC50-EW
50PPM/℃
ESOP8
-40℃-125℃
GP8101S-TC50-EH
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
Linearin and designs are registered trademarks of Linearin Technology Corporation.
© Copyright Linearin Technology Corporation. All Rights Reserved.
All other trademarks mentioned are the property of their respective owners.
FN1601-42.1 — Data Sheet
GP8101S
PAC (PWM to Analog Converter)
0%-100% PWM to 0-5V/0-10V
P-7
8. 封装信息
BOTTOM VIEW
(计量单位:毫米)
符号
最小值
正常值
最大值
A1
0.10
–
0.25
A
1.35
–
1.75
b
0.31
–
0.51
C
0.17
–
0.25
D
4.80
–
5.05
–
3.99
D1
3.1
E1
3.81
E2
2.20
E
5.79
e
注意:
此图仅供一般参考。有关合适的尺寸,公差,基准
等,请参阅JEDEC图纸MS-012
3.5
2.60
–
6.20
1.27 BSC
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
Linearin and designs are registered trademarks of Linearin Technology Corporation.
© Copyright Linearin Technology Corporation. All Rights Reserved.
All other trademarks mentioned are the property of their respective owners.
FN1601-42.1 — Data Sheet
GP8101S
PAC (PWM to Analog Converter)
0%-100% PWM to 0-5V/0-10V
