TS-12-BDK-BR-BR-P1-B

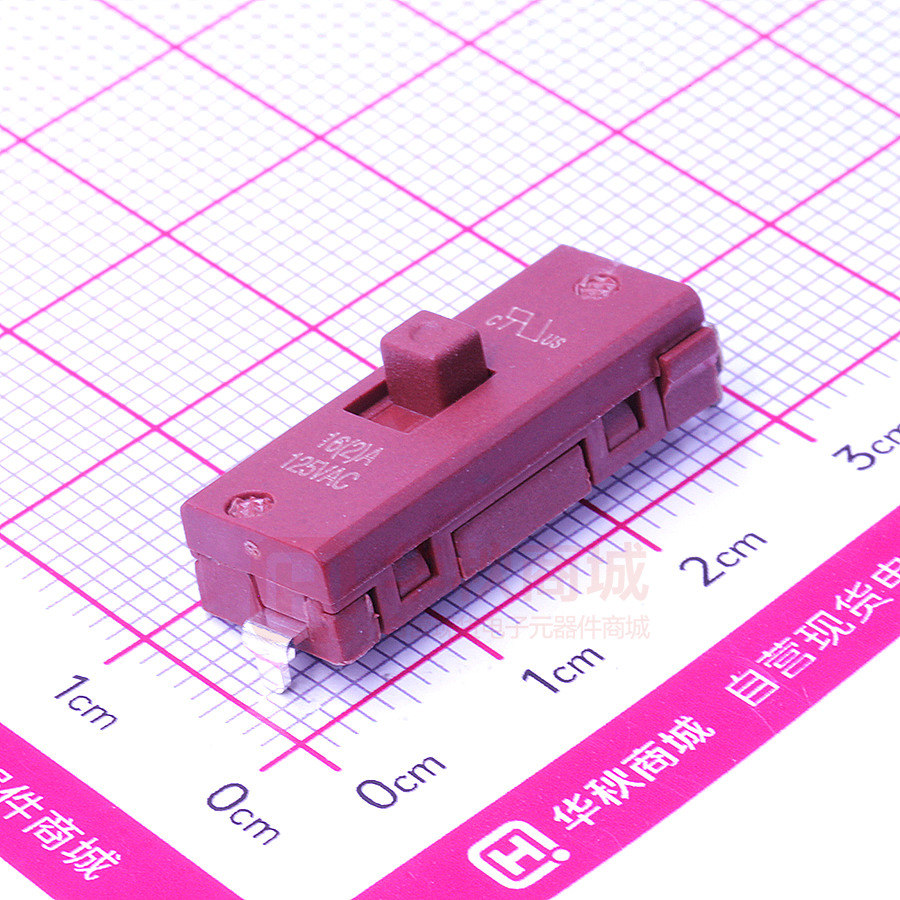

承 认 书 SPECIFICATION FOR APPROVAL 客户名称： 湖南华秋数字科技有限公司 产品名称： 滑动开关 产品型号： TS-12-BDK-BR-BR-P1-B 备 注： 日 期： 2023.8.9 批准 审核 制定 Jason Jim Prius 批准 审核 主办 □ 认 可 □ 有条件认可 □ 驳 回 出厂承认 客户承认 最终确认 备注 珠 海 拓 林 电 子 科 技 有 限 公 司 ZHUHAI TOPLY ELECTRONICS SCIENCE & TECHNOLOGY CO LTD TEL：0756-3378980、3378782 FAX：0756-3378971 File No.(文件编号) WI-EN-031-TS-12 Edition (版本):A2 1. Model No. (型号) Prepared by (制定) Checked by (审核) Approved by (核准) TS-12-B Series Sam 2022-10-17 Jason 2022-10-17 Ben 2022-10-17 General [一般描述] 1.1 Part name [产品名称] Slide switch 2 positions [2 挡推拉开关] 1.2 Function[功能] 1P1T 1.3 Operating temperature 0℃~115℃ [使用环境温度] 1.4 Standard testing condition Normal Temperature (25℃±10℃)、Normal humidity (45~85%RH)、 [测试条件] Normal atmospheric pressure (860~1060hPa) [温度(25℃±10℃)、湿度(45~85%RH)、大气压力(860~1060hPa)] 1.5 Appearance [外观] 2. See attached dwg. [见附件图纸] Approval / Rating [认证∕规格] See attached dwg. [见附件图纸] Approval [安规] Rating [规格] TUV，CQC ENEC UL, 3. C_UL Electrical life [电气寿命] Remarks [备注] 10(3)A 250VAC ；T115；μ 1E4 Approved 8(2)A 250VAC ；5(2)A 250VAC ；T115；μ 1E4 Approved 16(2)A 125VAC ；T115；μ 1E4 Approved Electrical Characteristics [电气特性] No. [序号] Item [项目] Condition [条件] Criteria [标准] 3.1 Electrical life 10,000 life cycles [电气寿命] [10,000 周次] Switch perform 10 cycles of normal function after max. electrical life [开关达到最大电气寿命后能继续运行 10 周次] 3.2 3.3 3.4 3.5 Contact resistance Initial [接触阻抗] [起始] Contact gap In off position [接触间隙] [在 OFF 位] Insulation resistance Between terminals to case at 500VDC for 1 minute [绝缘阻抗] [脚与外壳间承受 500VDC,保持 1 分钟] Dielectric strength Between terminals of contacts 1000VAC 5mA for Measurement before life test, no flash or dielectric [耐压强度] 1 minute breakdown [脚与脚间承受 1000VAC，5mA,保持 1 分钟] [量度于寿命测试前, 无闪光或击穿现象] ≦30mΩ Between terminals to button 1500VAC
