Multilayer Ferrite Chip Beads
■ Features
● High density packaging with a pitch of 2.54mm(0.1 inch) max. is possible.
This series requires less space and has greater EMI suppression effects.
● Different types with the same shape are available.
● Excellent in physical properties,such as terminal strength,flexure strength,
soldering resistance and soderability.
● Applicable to both flow and reflow soldering.
● High impedance cover wide frequency ranges.
● YI series can be used in high current circuits due to its low DC resistance.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● Computers and peripheral devices,personal computers,VCR and cameras.
● Noise suppression in digital equipments,car stereo,car engines controllers and
OA electronic instruments.
● Communication equipment.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Material Code
⑷ :Impedance
⑸ :Rated Current
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-1-
Multilayer Ferrite Chip Beads
■ Shapes and Dimensions (Unit:mm)
TYPE
YI321611
A
3.2±0.2
B
1.6±0.2
C
1.1±0.2
D
0.5±0.3
L
4.40
W
1.80
G
1.20
■ Electrical Requirements
Part Number
Impedance(Ω)
Test Freq.
DCR MAX.
Rating Current MAX
±25%
(MHz)
(Ω)
(A)
120
100
0.02
6.0

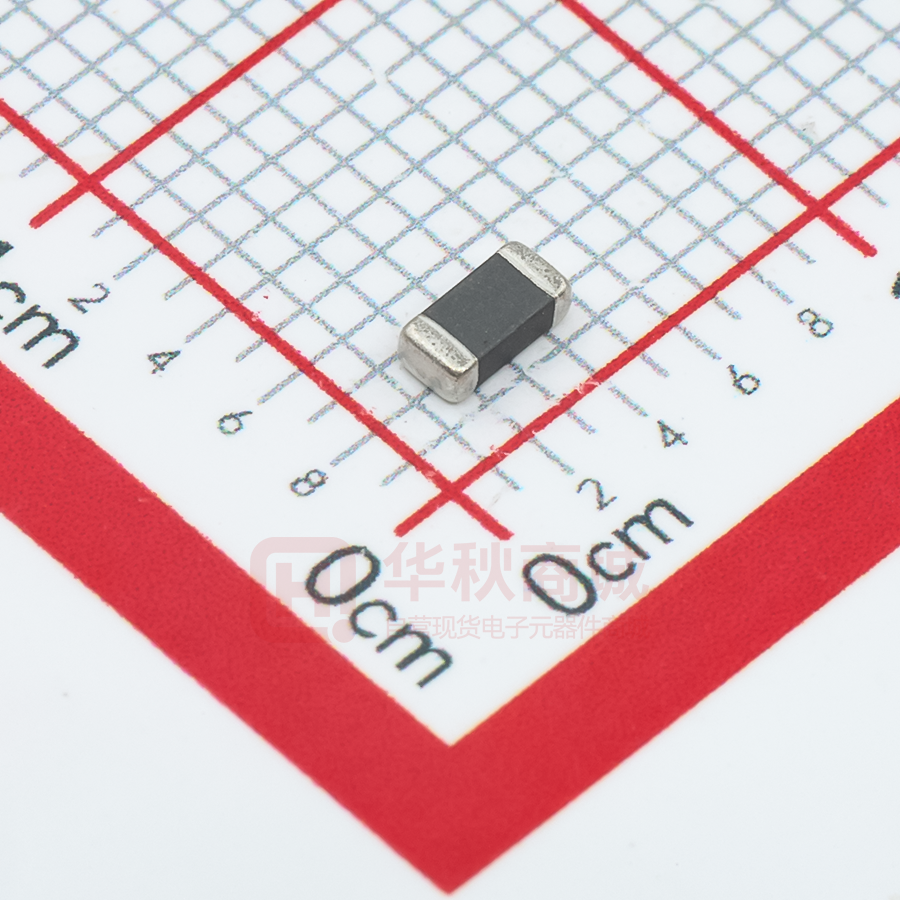

YI321611Z121-6R0T
TEST INSTRUMENTS:
HP 4338A MILLIOHMMETER
HP 4291B RF IMPEDANCE/MATERIAL ANALYZER
■ Impedance VS. Frequency characteristic
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-2-
Multilayer Ferrite Chip Beads
■ Reliability test
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-3-
Multilayer Ferrite Chip Beads
■ Reliability test
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-4-
Multilayer Ferrite Chip Beads
■ Taping Dimensions(Unit:mm)
Material:Paper
TYPE
A
B
W
P
T
CHIPS/REEL
100505
0.62
1.12
8
2
0.60
10000
160808
1.10
1.90
8
4
0.95
4000
201209
1.50
2.30
8
4
0.95
4000
Material:Polystyrene
TYPE
A
B
W
P
T
CHIPS/REEL
160808
1.01
1.80
8
4
1.02
4000
201209
1.42
2.25
8
4
1.04
4000
201212
1.50
2.35
8
4
1.45
3000
321611
1.88
3.50
8
4
1.27
3000
322513
2.77
3.42
8
4
1.55
2000
451616
1.93
4.95
12
4
1.93
2000
453215
3.66
4.95
12
8
1.85
1000
YA3216M4
1.88
3.50
8
4
1.40
3000
