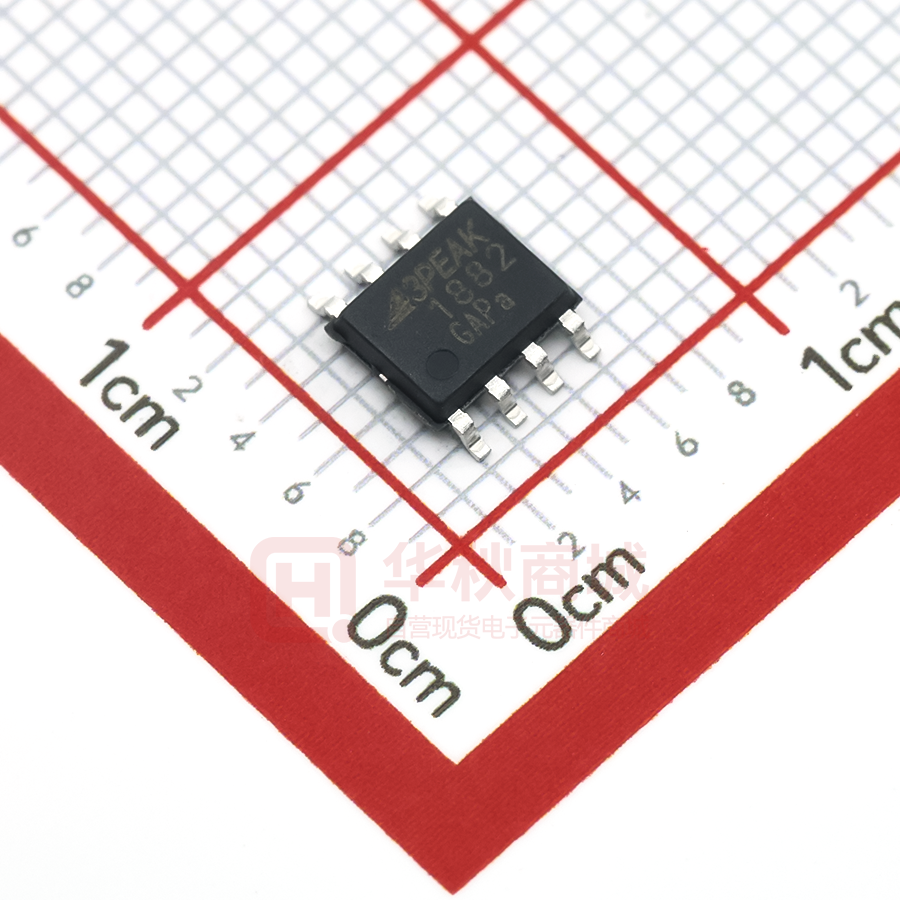

TPA1882-SR

TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Features Description  Supply Voltage: 4.5 V to 40 V or ±2.25 V to ±20 V The TPA188X series amplifiers are the newest high supply voltage amplifiers with 15 μV low offset, low noise, and stable high-frequency response. They incorporate 3PEAK’s proprietary and patented design techniques to achieve excellent AC performance with 12 MHz bandwidth, 12 V/μs slew rate, and low distortion while drawing only 2000 μA of quiescent current per amplifier. The input common-mode voltage range extends to V–, and the outputs swing rail-to-rail.  Offset Voltage: ±15 μV Maximum  Differential Input Voltage Range to Supply Rail, can Work as Comparator  Input Rail to –VS, Rail to Rail Output  Bandwidth: 12 MHz  Slew Rate: 12 V/μs  Over-Temperature Protection  Low Noise: 6 nV/√Hz at 1 kHz  2 kV HBM, 1 kV CDM  –40°C to 125°C Operation Temperature Range Applications  Instrumentation  Active Filters, ASIC Input or Output Amplifier The TPA188X has an over-temperature protection feature to guarantee chip safety. The output of TPA188X will enter high impendence when the die temperature reaches around 170°C and will recover the function when the die temperature is down to around 150°C. The product has a very small power temperature coefficient, which is helpful for temperature-sensitive applications.  Sensor Interface  Motor Control Iq(mA)  Industrial Control  Low noise power supply 5 4.8 4.6 4.4 4.2 4 3.8 3.6 3.4 3.2 3 -50 0 50 100 Temperature(℃) 150 Typical Application Circuit +5V 5.1kΩ VIN VOUT 50pF www.3peak.com 1 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Table of Contents Features .............................................................................................................................................................. 1 Applications ....................................................................................................................................................... 1 Description ......................................................................................................................................................... 1 Typical Application Circuit ................................................................................................................................ 1 Revision History ................................................................................................................................................ 3 Pin Configuration and Functions ..................................................................................................................... 4 Specifications .................................................................................................................................................... 6 Absolute Maximum Ratings .......................................................................................................................... 6 ESD, Electrostatic Discharge Protection ...................................................................................................... 6 Recommended Operating Conditions .......................................................................................................... 6 Thermal Information ..................................................................................................................................... 7 Electrical Characteristics .............................................................................................................................. 8 Electrical Characteristics (Continued) .......................................................................................................... 9 Electrical Characteristics (Continued) ........................................................................................................ 10 Typical Performance Characteristics ........................................................................................................... 11 Detailed Description ........................................................................................................................................ 14 Overview..................................................................................................................................................... 14 Functional Block Diagram .......................................................................................................................... 14 Application and Implementation .................................................................................................................... 15 Low Side Current Sensing Application ....................................................................................................... 15 Power Supply Recommendations .............................................................................................................. 15 Tape and Reel Information .............................................................................................................................. 16 Package Outline Dimensions ......................................................................................................................... 17 SOT23-5 ..................................................................................................................................................... 17 SOIC8 ......................................................................................................................................................... 18 MSOP8 ....................................................................................................................................................... 19 Order Information ............................................................................................................................................ 20 www.3peak.com 2 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Revision History Date Revision Notes 2019/1/10 Rev.Pre 2020/5/19 Rev.A 2020/8/3 Rev.A.1 Added Test Figure 2020/11/6 Rev.A.2 Updated Test Figure: Iq vs. temperature, Vout vs. Iout 2021/7/7 Rev.A.3 Updated maximum rating: Pre-Release Version Initial Version Input voltage: (-VS) – 0.3 to (+VS) + 0.3 -> (-VS) – 0.3 to 40 V Differential Input Voltage : (+VS) - (-VS) -> (-VS) - (+VS) to (+VS) - (-VS) 2022/8/18 Rev.A.4 Updated to new document format including package dimensions. Updated the working voltage to 40V, the absolute rating voltage to 42V 2023/6/1 Rev.A.5 Updated address of web site. Updated the working voltage description, added dual-supply description. www.3peak.com 3 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Pin Configuration and Functions TPA1881 TPA1881 SOT23-5 Package SOP8 Package Top View Top View Table 1. Pin Functions: TPA1881 Pin Name I/O 6 Out Output 2 4 −VS 3 3 +In Input Noninverting input 4 2 −In Input Inverting input 5 7 +VS Positive power supply 1 NC Not connected 5 NC Not connected 8 NC Not connected SOT23-5 SOP8 1 www.3peak.com Description Output Negative power supply 4 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps TPA1882 TPA1882 SOP8 Package MSOP8 Package Top View Top View Table 2. Pin Functions: TPA1882 Pin Name I/O 1 Out A Output 2 −In A Input Inverting input 3 +In A Input Noninverting input 4 −VS 5 +In B Input Noninverting input 6 −In B Input Inverting input 7 Out B Output 8 +VS www.3peak.com Description Output Negative power supply Output Positive power supply 5 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Specifications Absolute Maximum Ratings Over operating ambient temperature (unless otherwise noted) Parameter (1) Min Max Unit 42 V V (−VS) – 0.3 42 V V Differential Input Voltage (−VS) − (+VS) (+VS) − (−VS) V Input Current: +IN, –IN (2) −10 10 mA (−VS) − 0.3 (+VS) + 0.3 V Supply Voltage, (+VS) – (–VS) Input Voltage Output Voltage Output Short-Circuit Duration (3) Infinite Maximum Operating Junction Temperature 150 °C Operating Temperature Range −40 125 °C Storage Temperature Range −65 150 °C 260 °C Lead Temperature (Soldering, 10 sec) (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. (2) The inputs are protected by ESD protection diodes to the negative power supply. If the input extends more than 300 mV beyond the negative power supply, the input current should be limited to less than 10 mA. (3) A heat sink may be required to keep the junction temperature below the absolute maximum. This depends on the power supply voltage and how many amplifiers are shorted. Thermal resistance varies with the amount of PC board metal connected to the package. The specified values are for short traces connected to the leads. ESD, Electrostatic Discharge Protection Symbol Parameter Condition Minimum Level Unit HBM(1) Human Body Model ESD ANSI/ESDA/JEDEC JS-001 2 kV CDM(2) Charged Device Model ESD ANSI/ESDA/JEDEC JS-002 1 kV LU Latch Up JESD 78, 25°C 500 mA JESD 78, 125°C 200 mA (1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. (2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Recommended Operating Conditions Parameter Min Typ Max Unit VS Supply Voltage, (+VS) – (–VS) 4.5(±2.25) 40(±20) V TA Operating Temperature Range –40 125 °C www.3peak.com 6 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Thermal Information θJA θJC Unit SOT23-5 250 81 °C/W SOP8 158 43 °C/W MSOP8 210 45 °C/W Package Type www.3peak.com 7 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Electrical Characteristics All test condition is VS = 30 V, TA = 25°C, RL = 10 kΩ, unless otherwise noted. Symbol Parameter Conditions TA Min Typ Max Unit 40 V Power Supply VS Supply Voltage Range 4.5 IQ Quiescent Current per Amplifier VS = 40 V 2.4 3 mA PSRR Power Supply Rejection Ratio VS = 30 V 2 2.5 mA 2.7 mA 2.4 mA 2.6 mA VS = 30 V -40°C to 125°C VS = 5 V 1.9 VS = 5 V -40°C to 125°C VS = 4.5 V to 36 V PSRR Power Supply Rejection Ratio VS Supply Voltage Range VS = 4.5 V to 36 V 135 -40°C to 125°C 155 dB 130 dB 4.5 36 V VS = 40 V, VCM = 20 V -15 15 μV VS = 30 V, VCM = 15 V -15 15 μV -25 25 μV -15 15 μV -25 25 μV 0.15 μ Input Characteristics VOS Input Offset Voltage -40°C to 125°C VS = 5 V, VCM = 2.5 V -40°C to 125°C VOS TC Input Offset Voltage Drift -40°C to 125°C 0.05 V/°C IB Input Bias Current -40°C to 125°C IOS Input Offset Current IIN Different Input Current 10 pA 100 pA 100 pA VS = 36 V, VID = 36 V -40°C to 125°C CIN Input Capacitance Differential Mode Common Mode Av Open-loop Voltage Gain RLOAD = 10 kΩ, VOUT = 0.5 V to 29.5 V VCMR 135 -40°C to 125°C Common-mode Input Voltage Common Mode Rejection Ratio 120 μA pF 2.5 pF 155 dB 130 dB (V-) (V+) – V 1.5 VCM = 0 V to 28.5 V 135 -40°C to 125°C www.3peak.com μA 5 Range CMRR 100 8 / 20 130 155 dB dB Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Electrical Characteristics (Continued) All test condition is VS = 30 V, TA = 25°C, RL = 10 kΩ, unless otherwise noted. Symbol Parameter Conditions TA Min Typ Max Unit 12 25 mV -40°C to 85°C 35 mV -40°C to 125°C 40 mV 120 mV -40°C to 85°C 170 mV -40°C to 125°C 200 mV 500 mV -40°C to 85°C 700 mV -40°C to 125°C 750 mV 25 mV -40°C to 85°C 30 mV -40°C to 125°C 30 mV 80 mV -40°C to 85°C 95 mV -40°C to 125°C 105 mV 300 mV -40°C to 85°C 450 mV -40°C to 125°C 500 mV Output Characteristics Output Swing from Positive RLOAD = 100 kΩ to VS/2 Rail RLOAD = 10 kΩ to VS/2 80 RLOAD = 2 kΩ to VS/2 Output Swing from Negative 370 RLOAD = 100 kΩ to VS/2 Rail 5 RLOAD = 10 kΩ to VS/2 30 RLOAD = 2 kΩ to VS/2 ISC Output Short-Circuit Current 140 Source 70 55 mA -40°C to 125°C 50 mA 130 9 / 20 mA -40°C to 85°C Sink www.3peak.com 95 150 mA -40°C to 85°C 100 mA -40°C to 125°C 85 mA Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Electrical Characteristics (Continued) All test condition is VS = 30 V, TA = 25°C, RL = 10 kΩ, unless otherwise noted. Symbol Parameter Conditions TA Min Typ Max Unit AC Specifications GBW Gain-Bandwidth Product SR Slew Rate G = 1, 10 V step 8 -40°C to 125°C tOR Overload Recovery tS Settling Time, 0.1% G = 1, 10 V step Settling Time, 0.01% 12 MHz 12 V/μs 7 V/μs 500 ns 5 μs 7 μs PM Phase Margin RL=10 K, CL= 50 pF 60 ° GM Gain Margin RL=10 K, CL= 50 pF 10 dB 0.1 μVPP Noise Performance EN Input Voltage Noise f = 0.1 Hz to 10 Hz eN Input Voltage Noise Density f = 0.1 kHz 6 nV/√Hz f = 1 kHz 6 nV/√Hz f = 10 kHz 7 nV/√Hz 200 fA/√Hz 0.0002 % iN Input Current Noise f = 10 kHz THD+N Total Harmonic Distortion and f = 1 kHz, G =1, RL = 10 kΩ, Noise VOUT = 6 VRMS www.3peak.com 10 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Typical Performance Characteristics 10 10 5 5 0 0 Vos(uV) Vos(uV) Test condition: VS = ±15 V, VCM = 0 V, RL = 10 kΩ, unless otherwise specified. -5 -5 -10 -10 -15 -15 -40 25 85 Temperature(°C) -40 125 25 85 Temperature(°C) 125 Figure 2. VOS at 5 V VS, 2.5 V VCM vs. Temperature, 40pcs 40pcs 20 4.00 15 3.50 10 3.00 IQ（mA） Vos(uV) Figure 1. VOS at 30 V VS, 15 V VCM vs. Temperature, 5 0 -5 2.50 2.00 1.50 -10 1.00 -15 0.50 -20 0.00 -15 -10 -5 0 Vcom(V) 5 10 15 0 10 ±VCC（V） 15 20 Figure 4. Iq vs. Supply Voltage 5 5 4.8 4.8 4.6 4.6 4.4 4.4 4.2 4.2 Iq(mA) Iq(mA) Figure 3. Offset Voltage vs. Common-Mode Voltage 5 4 3.8 4 3.8 3.6 3.6 3.4 3.4 3.2 3.2 3 3 -50 0 50 Temperature(℃) 100 150 Figure 5. Iq vs. Temperature, +-2.5 V Supply, TPA1882 www.3peak.com -50 0 50 100 Temperature(℃) 150 Figure 6. Iq vs. Temperature, +-15 V Supply, TPA1882 11 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps 160 140 120 EMIRR(dB) 100 80 60 40 20 0 1 10 100 Frequency(MHz) 1000 10000 Figure 7. EMIRR vs. Frequency Figure 8. Open Loop Gain and Phase vs. Frequency RL = 10 kΩ, CL = 50 pF 120 160 140 100 PSRR+ PSRR- 120 CMRR(dB) PSRR(dB) 100 80 60 80 60 40 40 20 20 0 100 1K 10K 100K Frequenncy（Hz） 1M 0 1000 10K 100K Frequency(Hz) 1M Figure 9. PSRR vs. Frequency Figure 10. Negative Overload Recovery Time: 2 us/div, Measure Time: 220 ns Time: 2 us/div, Measure Time: 420 ns RL=2 K, CL=100 pF, G=10 RL=2 K, CL=100 pF, G=10 Figure 11. Positive Overload Recovery Figure 12. Negative Overload Recovery www.3peak.com 12 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Voltage: 50 mV/div, Time: 2 us/div Voltage: 2 V/div, Time: 2 μs/div RL=2 K, CL=100 pF, G=1 RL=2 K, CL=100 pF, G=1 Figure 13. 100 mV Signal Step Response Figure 14. 10 V Signal Step Response 0.001 Equivalent Input Voltage Noise(nV/√Hz) 20 3.5Vrms_40KHz Filter 18 16 3.5Vrms_A Weighting Filter THD+N(%) 14 12 0.0005 10 8 6 4 2 0 0 10 100 1K Frequency(Hz) 10K 0 100K Figure 15. Voltage Noise Spectral Density vs. Frequency -6 12 -8 6 20K 25℃ TPA1882 85℃ TPA1882 125℃ TPA1882 -10 -40℃ TPA1882 25℃ TPA1882 85℃ TPA1882 125℃ TPA1882 15K -40℃ TPA1882 Vout(V) 14 Vout (V) -4 8 10K Frequency(Hz) Figure 16. VOUT vs. IOUT, Sink 16 10 5K -12 -14 -16 4 0 20 40 60 Iout (mA) 80 0 100 Figure 17. VOUT vs. IOUT, Source www.3peak.com 50 100 Iout(mA) 150 200 Figure 18. VOUT vs. IOUT, Sink 13 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Detailed Description Overview The TPA188x series op amps can operate on a single-supply voltage (4.5 V to 40 V), or a split-supply voltage (±2.25 V to ±20 V), making them highly versatile and easy to use. The power-supply pins should have local bypass ceramic capacitors (typically 0.01 μF to 0.1 μF). Parameters that can exhibit variance with regard to operating voltage or temperature are presented in the Typical Characteristics. Functional Block Diagram Figure 19. Functional Block Diagram www.3peak.com 14 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Application and Implementation NOTE Information in the following application sections is not part of the 3PEAK’s component specification and 3PEAK does not warrant its accuracy or completeness. 3PEAK’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. Low Side Current Sensing Application Figure 20 shows the TPA188X configured in a low-side current sensing application. The low-side current sensing method consists of placing a sense resistor between the load and the circuit ground. The voltage dropping across the resistor is amplified by different amplifier circuits with TPA188X. The VREF can be used to add bias voltage to output voltage. Particular attention must be paid to the matching and precision of R1, R2, R3, and R4, to maximize the accuracy of the measurement. Figure 20. Dual Supply Operation Connections Power Supply Recommendations Place 0.1-μF bypass capacitors close to the power supply pins for reducing coupling errors from the noisy or high impedance power supplies. www.3peak.com 15 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Tape and Reel Information Package D1 (mm) W1 (mm) A0 (mm) B0 (mm) K0 (mm) P0 (mm) W0 (mm) Pin1 Quadrant TPA1881-TR SOT23-5 180.0 13.1 3.2 3.2 1.4 4.0 8.0 Q3 TPA1881-SR SOP8 330.0 17.6 6.4 5.4 2.1 8.0 12.0 Q1 TPA1882-SR SOP8 330.0 17.6 6.4 5.4 2.1 8.0 12.0 Q1 TPA1882-VR MSOP8 330.0 17.6 5.2 3.3 1.5 8.0 12.0 Q1 Order Number www.3peak.com 16 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps Package Outline Dimensions SOT23-5 www.3peak.com 17 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps SOIC8 www.3peak.com 18 / 20 Rev.A.5 TPA1881/TPA1882 40-V, 12-MHz, Zero-Drift Op Amps MSOP8 www.3peak.com 19 / 20 Rev.A.5 TPA1881/TPA1882 36-V, 12-MHz, Zero-Drift Op Amps Order Information Order Number Operating Temperature Range Package Marking Information MSL Transport Media, Quantity Eco Plan TPA1881-SR -40 to 125°C SOP8 1881 3 Tape and Reel, 4000 TPA1881-SR TPA1881-TR -40 to 125°C SOT23-5 A88 3 Tape and Reel, 3000 TPA1881-TR TPA1882-SR -40 to 125°C SOP8 1882 3 Tape and Reel, 4000 TPA1882-SR TPA1882-VR -40 to 125°C MSOP8 1882 3 Tape and Reel, 3000 TPA1882-VR Green: 3PEAK defines "Green" to mean RoHS compatible and free of halogen substances. 3PEAK and the 3PEAK logo are registered trademarks of 3PEAK INCORPORATED. All other trademarks are the property of their respective owners. 20 / 20
