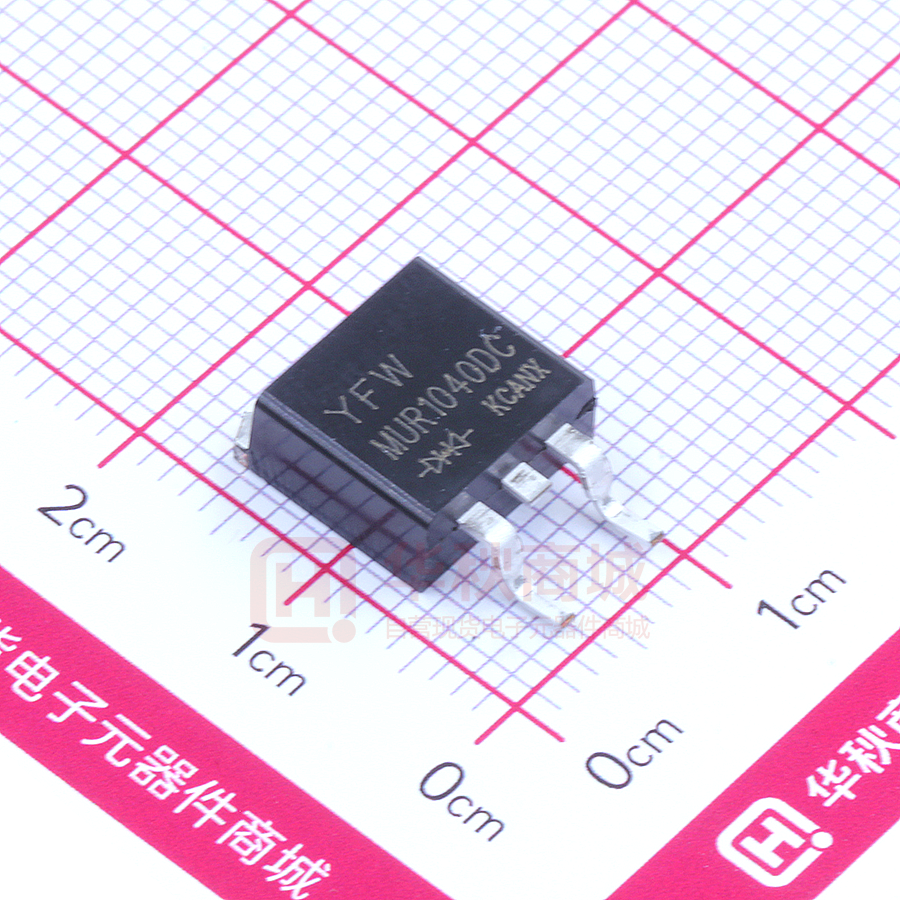

MUR1040AC-FAC-DC
ULTRAFST RECOVERY RECTIFIERS
Reverse Voltage - 400 V
Forward Current - 10 A
FEATURES
High speed switching capability
High current capability
High forward surge capability
Low power losses,High efficiency
For use in low voltage, high frequency inverters
Lead free in comply with EU RoHS 2011/65/EU directives
MECHANICAL DATA
Case: TO-220AC TO-220FAC TO-263/DC
Solder bath temperature275℃maximum,10s per JESD22-106
Primary Characteristic
Io
VRRM
IFSM
VF
TJ Max
10A
400V
160A
0.95V
150°C
Maximum Ratings (Per Leg) at Ta=25°C unless otherwise specified
Parameter
Symbols
Value
Units
Maximum Repetitive Peak Reverse Voltage
VRRM
400
V
Maximum RMS voltage
VRMS
400
V
Maximum DC Blocking Voltage
VDC
400
V
Io
10
A
Peak Forward Surge Current, 8.3ms Single Half Sine-wave
IFSM
160
A
Operating Temperature Range
TJ
-40 ~ +150
°C
TSTG
-40 ~ +150
°C
RθJA/ RθJC
2/4
°C/W
Maximum Average Forward Rectified Current
Storage Temperature Range
Typical Thermal Resistance (Note1)
TO-220AC TO-263/DC TO-220FAC
Note1: Thermal resistance from Junction to case per leg mounted on heatsink.
Electrical Characteristics (Per Leg) unless otherwise specified
Characteristics
Symbols
Forward Voltage Drop(Note2)
at IF=3A
at IF=5A
at IF=10A
Maximum Reverse Current at VR=400V
TA=25°C
TA=125°C
Units
Max
0.91
-
0.76
-
0.97
-
TA=125°C
0.83
1.3
TA=25°C
VF
TA=25°C
1.08
TA=125°C
0.95
-
TA=25°C
0.007
1
TA=125°C
Maximum Reverse Recovery Time at IF=0.5A, IR=1A, IRR=0.25A
Note2:Pulse test: 300 μs pulse width, 1 % duty cycle
www.yfwdiode.com
Value
Typ
IR
TRR
1/4
5
-
-
35
V
uA
uA
nS
Dongguan YFW Electronics Co, Ltd.
MUR1040AC-FAC-DC
RATINGS AND CHARACTERISTIC CURVES
8.3ms Single Half Sine Wave
JEDEC Method
TA=125℃
TA=125℃
TA=25℃
TA=25℃
Marking on the body
Ordering information
Part Number
Package
Unit Weight
Base Quantity
Delivery mode
MUR1040
TO-220AC
0.067oz(1.9g)
50 pcs / tube
1000pcs/box 5000pcs/carton
MUR1040F
TO-220FAC
0.06oz(1.7g)
50 pcs / tube
1000pcs/box 5000pcs/carton
MUR1040DC
TO-263
0.04oz(1.16g)
50 pcs / tube
1000pcs/box 5000pcs/carton
MUR1040DC-R
TO-263
0.04oz(1.16g)
800 pcs / reel
800pcs/box4000pcs/carton
Note: For Halogen Free molding compound, add "H" suffix to part number above.
www.yfwdiode.com
2/4
Dongguan YFW Electronics Co, Ltd.
MUR1040AC-FAC-DC
Package Outline Dimensions millimeters
www.yfwdiode.com
3/4
Dongguan YFW Electronics Co, Ltd.
MUR1040AC-FAC-DC
www.yfwdiode.com
4/4
Dongguan YFW Electronics Co, Ltd.
