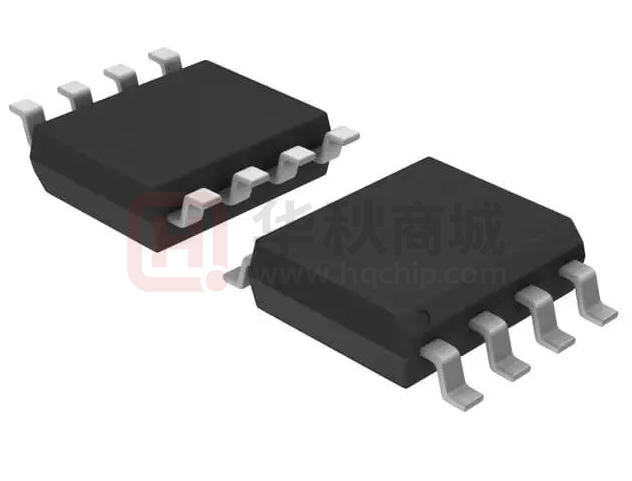

AT24LC512M/TR

AT24LC512 Features  Low-voltage Operation Compatibility  1.8 (VCC = 1.8V to 5.5V)  Write Protect Pin for Hardware Data Protection  Operating Ambient Temperature: -40°C to  128-byte Page (512K) Write Modes  Partial Page Writes Allowed +85°C  Internally Organized 65,536 X 8 (512K),  Self-timed Write Cycle (5 ms max)  Two-wire Serial Interface  High-reliability  Schmitt Trigger, Filtered Inputs for Noise  Endurance: 1 Million Write Cycles  Data Retention: 100 Years  8-lead DIP, 8-lead JEDEC SOP,8-lead MSOP Suppression  Bidirectional Data Transfer Protocol  1MHZ(5V),400 kHz (1.8V, 2.5V, 2.7V) and 8-lead TSSOP Packages General Description The AT24LC512 provides 524,288 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 65,536 words of 8 bits each. The device’s cascadable feature allows up to eight devices to share a common two-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The devices are available in space-saving 8-pin PDIP, 8-lead JEDEC SOP, 8-lead EIAJ SOP, 8-lead TSSOP. Ordering Information DEVICE Package Type MARKING Packing Packing Qty AT24LC512N DIP-8L 24LC512 TUBE 2000pcs/box AT24LC512M/TR SOP-8L 24LC512 REEL 2500pcs/reel AT24LC512MM/TR MSOP-8L LC512 REEL 3000pcs/reel AT24LC512MT/TR TSSOP-8L LC512 REEL 3000pcs/reel Pin Configuration 8-lead DIP http://www.hgsemi.com.cn 8-lead TSSOP 1 / 14 8-lead SOP/MSOP 2022 JUNE AT24LC512 Pin Descriptions  Table 1:Pin Configuration Pin Designation Type Name and Functions A0-A2 I Address Inputs SAD I/O & Open-drain Serial Data SCL I Serial Clock Input WP I Write Protect GND P Ground VCC P Power Supply NC NC No Connect Block Diagram http://www.hgsemi.com.cn 2 / 14 2022 JUNE AT24LC512 Pin Descriptions SERIAL CLOCK (SCL): The SCL input is used to positive edge clock data into each EEPROM device and negative edge clock data out of each device. SERIAL DATA (SDA): The SDA pin is bidirectional for serial data transfer. This pin is opendraindriven and may be wire-ORed with any number of other open-drain or open collector devices. DEVICE/PAGE ADDRESSES (A2, A1, A0): The A2, A1, and A0 pins are device address inputs that are hardwired (directly to GND or to Vcc) for compatibility with other HX24LC512B devices. When the pins are hardwired, as many as eight 512K devices may be addressed on a single bus system. (Device addressing is discussed in detail under “Device Addressing,” page 8.) A device is selected when a corresponding hardware and software match is true. If these pins are left floating, the A2, A1, and A0 pins will be internally pulled down to GND. However, due to capacitive coupling that may appear during customer applications, Fs-Rank recommends always connecting the address pins to a known state. When using a pull-up resistor, Fs-Rank recommendsusing 10kΩ or less. WRITE PROTECT (WP): The write protect input, when connected to GND, allows normal write operations. When WP is connected directly to Vcc, all write operations to the memory are inhibited.If the pin is left floating, the WP pin will be internally pulled down to GND. However, due to capacitive coupling that may appear during customer applications, Fs-Rank recommends always connecting the WP pins to a known state. When using a pull-up resistor, Fs-Rank recommends using 10kΩ or less. Table 2: Write Protect Part of the Array Protected WP Pin Status: AT24LC512 At VCC Full (512K) Array At GND Normal Read/Write Operations Memory Organization AT24LC512, 512 SERIAL EEPROM: The 512K is internally organized as 512 pages of 128 bytes each. Random word addressing requires a 16-bit data word address. Device Operation CLOCK and DATA TRANSITIONS: The SDA pin is normally pulled high with an external device. Data on the SDA pin may change only during SCL low time periods (see to Figure 1 on page 4). Data changes duringSCL high periods will indicate a start or stop condition as defined below. START CONDITION: A high-to-low transition of SDA with SCL high is a start condition which must precedeany other command (see to Figure 2 on page 5). STOP CONDITION: A low-to-high transition of SDA with SCL high is a stop condition. After a read sequence,the stop command will place the EEPROM in a standby power mode (see Figure 2 on page 5). ACKNOWLEDGE: All addresses and data words are serially transmitted to and from the EEPROM in 8-bit words. The EEPROM sends a “0” to acknowledge that it has received each word. This happens during the ninth clock cycle STANDBY MODE: The AT24LC512 features a low-power standby mode which is enabled: (a) upon power-up http://www.hgsemi.com.cn 3 / 14 2022 JUNE AT24LC512 and (b) after the receipt of the STOP bit and the completion of any internal operations MEMORY RESET: After an interruption in protocol, power loss or system reset, any two-wire part can bereset by following these steps: 1. Clock up to 9 cycles. 2. Look for SDA high in each cycle while SCL is high. 3. Create a start condition. Figure 1. Data Validity Figure 2. Start and Stop Definition Figure 3. Output Acknowledge http://www.hgsemi.com.cn 4 / 14 2022 JUNE AT24LC512 Device Addressing The 512K EEPROM devices all require an 8-bit device address word following a start condition to enable the chip for a read or write operation (see to Figure 4 on page 4). The device address word consists of a mandatory “1”, “0” sequence for the first four most significant bits as shown. This is common to all the Serial EEPROM devices. The 512K uses the three device address bits A2,A1, A0 to allow as many as eight devices on the same bus. These bits must compare to their corresponding hardwired input pins. The A2,A1 and A0 pins use an internal proprietary circuit that biases them to a logic low condition if the pins are allowed to float. The eighth bit of the device address is the read/write operation select bit. A read operation is initiated if thisbit is high and a write operation is initiated if this bit is low. Upon a compare of the device address, the EEPROM will output a “0”. If a compare is not made, the chip will return to a standby state. DATA SECURITY: The AT24LC512 has a hardware data protection scheme that allows the user to writeprotect the entire memory when the WP pin is at VCC. Write Operations BYTE WRITE: A write operation requires two 8-bit data word addresses following the device address word and acknowledgment. Upon receipt of this address, the EEPROM will again respond with a “0” and then clock in the first 8-bit data word. Following receipt of the 8-bit data word, the EEPROM will output a “0”. The addressing device, such as a microcontroller, then must terminate the write sequence with a stop condition. At this time the EEPROM enters an internally-timed write cycle, tWR, to the nonvolatile memory. All inputs are disabled during this write cycle and the EEPROM will not respond until the write is complete (see Figure 6-2 on page10). PAGE WRITE: The 512K EEPROM is capable of 128-byte page writes. A page write is initiated the same way as a byte write, but the microcontroller does not send a stop condition after the first data word is clocked in. Instead, after the EEPROM acknowledges receipt of the first data word, the microcontroller can transmit up to 127 more data words. The EEPROM will respond with a “0” after each data word received. The microcontroller must terminate the page write sequence with a stop condition (see Figure 6-3 on page 11). The data word address lower 7 bits are internally incremented following the receipt of each data word. The higher data word address bits are not incremented, retaining the memory page row location. When the word address, internally generated, reaches the page boundary, the followingbyte is placed at the beginning of the same page. If more than 128 data words are transmitted to the EEPROM, the data word address will “roll over” and previous data will be overwritten. The address roll over during write is from the last byte of the current page to the firstbyte of the same page. ACKNOWLEDGE POLLING: Once the internally-timed write cycle has started and the EEPROM inputs are disabled, acknowledge polling can be initiated. This involves sending a start condition followed by the device address word. The Read/Write bit is representative of the operation desired. Only if the internal write cycle has completed will the EEPROM respond with a “0”, allowing the read or write sequence to continue. http://www.hgsemi.com.cn 5 / 14 2022 JUNE AT24LC512 Read Operations Read operations are initiated the same way as write operations with the exception that the Read/Write select bit in the device address word is set to “1”. There are three read operations:current address read, random address read and sequential read. CURRENT ADDRESS READ: The internal data word address counter maintains the last address accessed during the last read or write operation, incremented by “1”. This address staysvalid between operations as long as the chip power is maintained. The address roll over during read is from the last byte of the last memory page, to the first byte of the first page. Once the device address with the Read/Write select bit set to “1” is clocked in and acknowledged by the EEPROM, the current address data word is serially clocked out. The microcontroller does not respond with an input “0” but does generate a following stop condition(see Figure 6-4 on page 11). RANDOM READ: A random read requires a “dummy” byte write sequence to load in the data word address. Once the device address word and data word address are clocked in and acknowledged by the EEPROM, the microcontroller must generate another start condition. Themicrocontroller now initiates a current address read by sending a device address with the Read/Write select bit high. The EEPROM acknowledges the device address and serially clocks out the data word. The microcontroller does not respond with a “0” but does generate a followingstop condition (see Figure 6-5 on page 11). SEQUENTIAL READ: Sequential reads are initiated by either a current address read or a randomaddress read. After the microcontroller receives a data word, it responds with an acknowledge. As long as the EEPROM receives an acknowledge, it will continue to increment the data word address and serially clock out sequential data words. When the memory addresslimit is reached, the data word address will roll over and the sequential read will continue. The sequential read operation is terminated when the microcontroller does not respond with a “0” butdoes generate a following stop condition (see Figure 6-6 on page 11). http://www.hgsemi.com.cn 6 / 14 2022 JUNE AT24LC512 Figure 4. Device Address Figure 5. Byte Write Figure 6. Page Write http://www.hgsemi.com.cn 7 / 14 2022 JUNE AT24LC512 Figure 7. Current Address Read Figure 8. Random Read Figure 9. Sequential Read http://www.hgsemi.com.cn 8 / 14 2022 JUNE AT24LC512 Electrical Characteristics Absolute Maximum Stress Ratings DC Supply Voltage...............................................................................V to +6.5V Input / Output Voltage....................................................GND-0.3V to VCC+0.3V Operating Ambient Temperature......................................................-40°C to +85°C Storage Temperature................................................................... -65°C to +150°C *Comments Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to this device. These are stress ratings only. Functional operation of this device at these or any other conditions above those indicated in the operational sections of this specification is not implied or intended. Exposure to the absolute maximum rating conditions for extended periods may affect device reliability. DC Electrical Characteristics Applicable over recommended operating range from: TA = –40°C to +85°C, VCC = +1.7V to +5.5V (unless otherwise noted) Parameter Symbol Min. Typ. Max. Unit Supply Voltage VCC1 1.8 - 5.5 V Supply Voltage VCC2 2.5 - 5.5 V Supply Voltage VCC3 2.7 - 5.5 V Supply Voltage VCC4 4.5 - 5.5 V Supply Current VCC = 5.0V ICC1 - 0.4 1.0 mA READ at 400 kHz Supply Current VCC = 5.0V ICC2 - 2.0 3.0 mA WRITE at 400 kHz Standby Current VCC = 1.7V ISB1 - 0.6 1.0 µA VIN = VCC or VSS Standby Current VCC = 2.5V ISB2 - 1.0 2.0 µA VIN = VCC or VSS Standby Current VCC = 2.7V ISB3 - 1.0 2.0 µA VIN = VCC or VSS Standby Current VCC = 5.0V ISB4 - 1.0 5.0 µA VIN = VCC or VSS Input Leakage Current ILI - 0.10 3.0 µA VIN = VCC or VSS Output Leakage Current ILO - 0.05 3.0 µA VOUT = VCC or VSS Input Low Level VIL –0.3 -- Input High Level VIH VCC x0.7 - Output Low Level VCC =5.0V VOL3 - - 0.4 V IOL = 3.0 mA Output Low Level VCC =3.0V VOL2 - - 0.4 V IOL = 2.1 mA Output Low Level VCC =1.7V VOL1 - - 0.2 V IOL = 0.15 mA http://www.hgsemi.com.cn 9 / 14 VCC x 0.3 VCC + 0.3 Condition V V 2022 JUNE AT24LC512 Pin Capacitance Applicable over recommended operating range from TA = 25°C, f = 1.0 MHz, VCC = +1.7V Parameter Input/Output Capacitance (SDA) Input Capacitance (A0, A1,A2,SCL) Symbol Min. Typ. Max. Unit Condition CI/O - - 8 pF VI/O = 0V CIN - - 6 pF VIN = 0V AC Electrical Characteristics Applicable over recommended operating range from TA = –40°C to +85°C, VCC = +1.7V to +5.5V, CL = 1 TTL Gate and 100 pF (unless otherwise noted) Parameter Symbol 1.7-volt 5.0-volt Min. Typ. Max. Min. Typ. Max. Units Clock Frequency, SCL fSCL - - 400 - - 1000 kHz Clock Pulse Width Low tLOW 1.2 - - 0.6 - - µs Clock Pulse Width High tHIGH 0.6 - - 0.4 - - µs Noise Suppression Time tI - - 50 - - 50 ns Clock Low to Data Out Valid tAA 0.1 - 0.9 0.09 - 0.9 µs Time the bus must be free before a new transmission can start tBUF 1.2 - - 0.5 - - µs Start Hold Time tHD.STA 0.6 - - 0.25 - - µs Start Setup Time tSU.STA 0.6 - - 0.25 - - µs Data In Hold Time tHD.DAT 0 0 - 0 - 0 µs Data In Setup Time tSU.DAT 100 0 - 100 - 0 ns Inputs Rise Time tR - - 0.3 - - 0.3 µs Inputs Fall Time tF - - 300 - - 300 ns Stop Setup Time tSU.STO 0.6 - - 0.25 - - µs Data Out Hold Time tDH 50 - - 50 - - ns Write Cycle Time tWR - 5 5 - - 5 ms Endurance 1M - - - - WriteCycles 5.0V, 25°C, Byte Mode http://www.hgsemi.com.cn 10 / 14 2022 JUNE AT24LC512 Bus Timing Figure 10. SCL: Serial Clock, SDA: Serial Data I/O Write Cycle Timing Figure 11. SCL: Serial Clock, SDA: Serial Data I/O http://www.hgsemi.com.cn 11 / 14 2022 JUNE AT24LC512 PHYSICAL DIMENSIONS SOP-8L Q A C C1 B D A1 a 0.25 b Dimensions In Millimeters(SOP8L) A A1 B C C1 D Min： 1.35 0.05 4.90 5.80 3.80 0.40 0° 0.35 Max： 1.55 0.20 5.10 6.20 4.00 0.80 8° 0.45 Symbol： Q a b 1.27 BSC DIP-8L D1 L1 L E B d D A c a b Dimensions In Millimeters(DIP8L) A B D D1 E L L1 a b c Min： 6.10 9.00 8.40 7.42 3.10 0.50 3.00 1.50 0.85 0.40 Max： 6.68 9.50 9.00 7.82 3.55 0.70 3.60 1.55 0.90 0.50 Symbol： http://www.hgsemi.com.cn 12 / 14 d 2.54 BSC 2022 JUNE AT24LC512 Physical Dimensions MSOP8 Q A C1 C B A1 D 0.20 b a Dimensions In Millimeters(MSOP8L) A A1 B C C1 D Min： 0.80 0.05 2.90 4.75 2.90 0.35 0° 0.25 Max： 0.90 0.20 3.10 5.05 3.10 0.75 8° 0.35 Symbol： Q a b 0.65 BSC TSSOP8 Q A A1 D C1 C B a b 0.25 Dimensions In Millimeters(TSSOP8L) A A1 B C C1 D Min： 0.750 0 2.900 3.900 2.900 0.330 0° Max： 0.950 0.150 3.100 4.100 3.100 0.470 8° Symbol： http://www.hgsemi.com.cn 13 / 14 Q a b 0.300TYP 0.650 TYP 2022 JUNE AT24LC512 IMPORTANT STATEMENT: Huaguan Semiconductor Co,Ltd. reserves the right to change the products and services provided without notice. Customers should obtain the latest relevant information before ordering, and verify the timeliness and accuracy of this information. Customers are responsible for complying with safety standards and taking safety measures when using our products for system design and machine manufacturing to avoid potential risks that may result in personal injury or property damage. Our products are not licensed for applications in life support, military, aerospace, etc., so we do not bear the onsequences of the application of these products in these fields. Huaguan Semiconductor Co,Ltd. the performance of the semiconductor products produced by the company can reach the performance indicators that can be applied at the time of sales. The use of testing and other quality control technologies is limite d to the quality assurance scope of Huaguan semiconductor. Not all parameters of each device need to be tested. The above documents are for reference only, and all are subject to the physical parameters. Our documentation is only permitted to be copied without any tampering with the content, so we do not accept any responsibility or liability for the altered documents. http://www.hgsemi.com.cn 14 / 14 2022 JUNE
