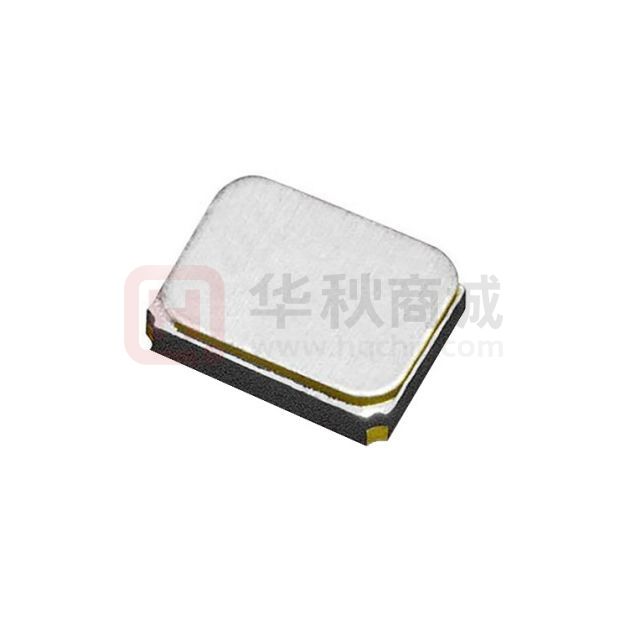

XC322512MOB4SA-18

CRYSTAL UNIT AEC-Q200 YSX321SC Applications Features ‧ GPS Automotive electronics ‧Dimensions:3.20 x 2.50 x 0.70 mm. ‧Standard Frequency: 8~66MHz ‧Low impedance performance. ‧AEC-Q200 qualified. Specifications Standard Frequency 8~66 MHz Vibration Mode AT Fundamental Load Capacitance 8pF,12pF,or specify Frequency Tolerance (at 25 ) ±10ppm,±30ppm,or specify Frequency Versus Temperature Characteristics Operating Temperature ±50ppm,or specify -40~+125℃，or specify -55~+125℃ or specify Storage Temperature Shunt Capacitance 3 pF Max. Level of Drive 1~200μWMax.(100uW typical) Aging (at 25 ℃ ) ±2ppm/year Max. Equivalent Series Resistance(ESR) 8 ~ 9.9MHz 10 ~ 10.9 MHz 11 ~ 11.9 MHz 12 ~ 12.9 MHz 800 250 150 100 Fundamental Ω Max. Ω Max. Ω Max. Ω Max Dimensions and Patterns [unit:mm] 13 ~ 15.9MHz 16 ~ 20.9 MHz 21 ~ 29.9 MHz 30 ~ 66.0 MHz 80 70 60 50 Ω Max. Ω Max. Ω Max. Ω Max Package Size – Dimensions (Unit: mm) www.yxc.hk 第1页共2页 CRYSTAL UNIT AEC-Q200 YSX321SC Reflow Soldering Profile Temperature Pre Heating Temperature Tp1 ~ Tp2 = + 170 °C Heating Temperature TMlt = + 220 °C Peek Temperature TMax. = + 260 °C +260℃ TMax. +220℃ Tmlt Point of measuring In case of Solder ability Terminal. In case of Resistance to soldering heat Surface. Tp2 Tp1 35s 100s t(time) Taping Specification(Unit: mm) Size A B C D E F G H SMD-3225 180±2.0 8.0±0.3 3.80±0.1 3.04±0.1 4.0±0.1 1.54±0.1 61.0±1.0 8.0±1.0 3000 pcs per reel www.yxc.hk 第2页共2页
