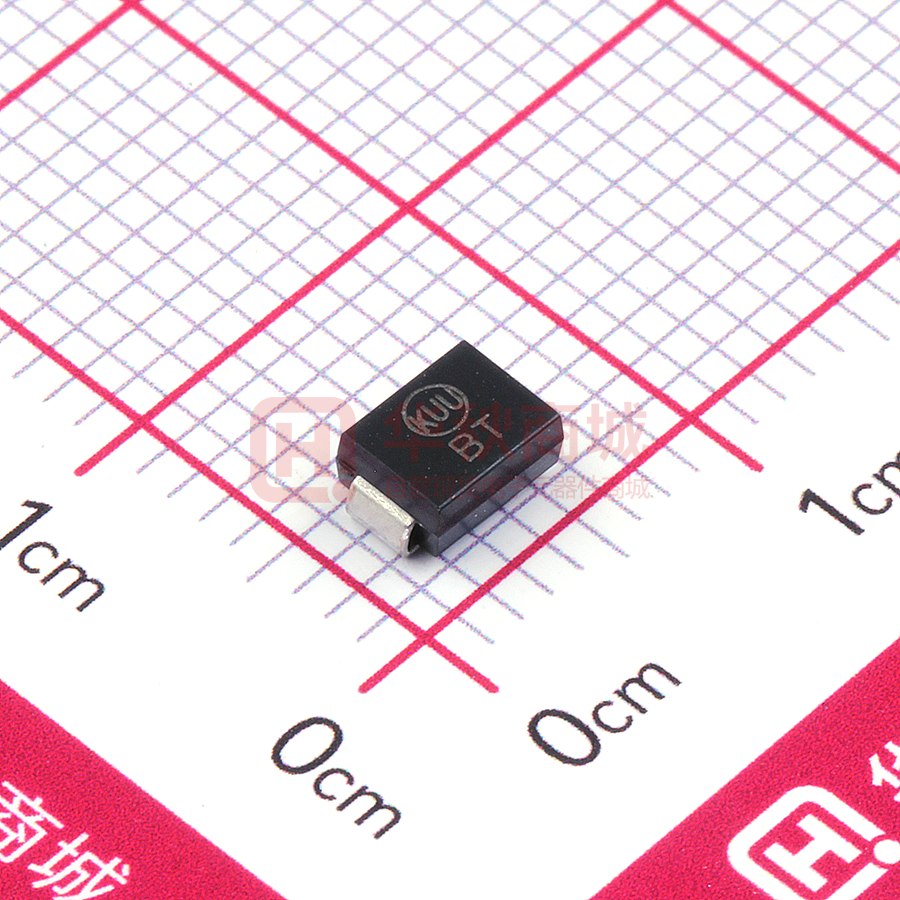

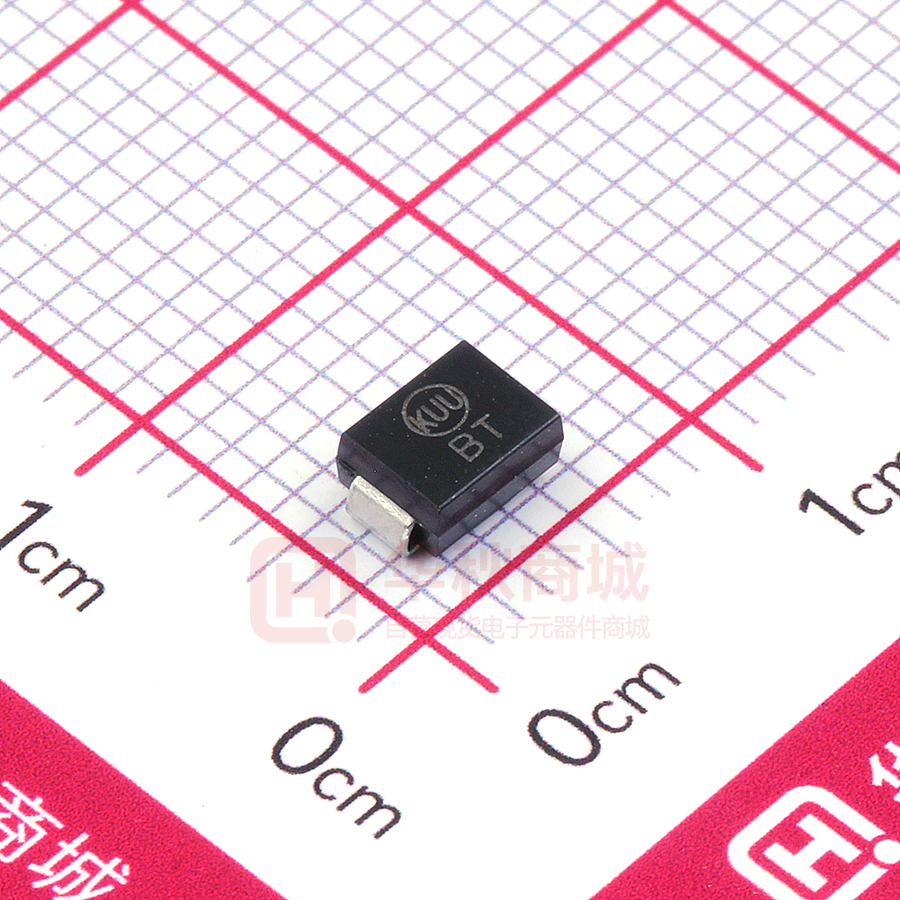

SMBJ18CA

SMBJ Series TRANSIENT VOLTAGE SUPPRESSOR FEATURE  Plastic package.  Glass passivated chip junction in SMB Package  Excellent clamping capability.  Low zener impedance.  600W peak pulse power capability on 10/1000μs waveform.  Typical IR less than 1μA above 13V.  Fast response time: typically less than 1.0ps from 0 Volts to BV min. High temperature soldering guaranteed: 265℃/10 seconds MECHANICAL DATE  Case: JEDEC SMB Molded Plastic.  Terminals: Axial leads, solderable per MIL-STD-750, Method 2026.  Polarity: Color band denoted cathode except bidirectional.  Mounting Position: Any. MAXIMUM RATINGS AND CHRACTERISTICS Ratings at 25ć ambient temperature unless otherwise specified. RATING SYMBOL VALUE UNITS Peak Pulse Power Dissipation on 10/1000us waveform (Note1, Fig.1). PPPM Minimum 600 Watts Peak Pulse Current of on 10/1000us waveform.(Note1,Fig.3) IPPM See Table Amps Steady State Power Dissipation at TL =75℃,Lead lengths.375", (9.5mm) (Fig.5). PM(AV) 5.0 Watts Peak Forward Surge Current,8.3ms Single Half Sine-Wave Superimposed on Rated Load, (JEDEC Method) (Note 2,Fig.6). IFSM 100 Amps TJ , TSTG -55 to +150 ℃ Operating junction and Storage Temperature Range. Notes: 1. Non-repetitive current pulse, per Fig. 3 and derated above TA = 25℃ per Fig. 2. 2. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum. 1/4 SMBJ Series Item A B C D E F G H I J K L Millimeters Min. Max. 1.95 2.2 4.06 4.57 3.3 3.94 2.13 2.44 0.76 1.52 0.203 5.21 5.59 0.152 0.305 2.26 2.16 2.74 2.16 - Inches Min. Max. 0.077 0.086 0.16 0.18 0.13 0.155 0.084 0.096 0.03 0.06 0.008 0.205 0.22 0.006 0.012 0.089 0.085 0.107 0.085 - ELECTRICAL CHARACTERISTICS Part Number Marking Reverse Breakdown Breakdown Reverse Test Peak Maximum Stand-Off Voltage Voltage Leakage Current Pulse Voltage NIN.@IT MAX.@IT @VRWM Current Clamping Voltage @IPP VR(V) BI UNT BI VBL(V) VBH(V) IR(uA) IT(mA) IPP(A) VCH(V) SMBJ5.0A SMBJ5.0CA KE AE 5.0 6.40 7.00 800 10 65.3 9.2 SMBJ6.0A SMBJ6.0CA KG AG 6.0 6.67 7.37 800 10 58.3 10.3 SMBJ6.5A SMBJ6.5CA KK AK 6.5 7.22 7.98 500 10 53.6 11.2 SMBJ7.0A SMBJ7.0CA KM AM 7.0 7.78 8.60 200 10 50.0 12.0 SMBJ7.5A SMBJ7.5CA KP AP 7.5 8.33 9.21 100 1 46.6 12.9 SMBJ8.0A SMBJ8.0CA KR AR 8.0 8.89 9.83 50 1 44.2 13.6 SMBJ8.5A SMBJ8.5CA KT AT 8.5 9.44 10.40 20 1 41.7 14.4 SMBJ9.0A SMBJ9.0CA KV AV 9.0 10.00 11.10 10 1 39.0 15.4 SMBJ10A SMBJ10CA KX AX 10 11.10 12.30 5 1 35.3 17.0 SMBJ11A SMBJ11CA KZ AZ 11 12.20 13.50 1 1 33.0 18.2 SMBJ12A SMBJ12CA LE BE 12 13.30 14.70 1 1 30.2 19.9 SMBJ13A SMBJ13CA LG BG 13 14.40 15.90 1 1 28.0 21.5 UNT 2/4 SMBJ Series Part Number UNT BI Reverse Breakdown Breakdown Reverse Test Peak Maximum Stand-Off Voltage Voltage Leakage Current Pulse Voltage NIN.@IT MAX.@IT @VRWM Current Clamping Voltage @IPP BI VR(V) VBL(V) VBH(V) IR(uA) IT(mA) IPP(A) VCH(V) Marking UNT SMBJ14A SMBJ14CA LK BK 14 15.60 17.20 1 25.9 23.2 SMBJ15A SMBJ15CA LM BM 15 16.70 18.50 1 1 24.6 24.4 SMBJ16A SMBJ16CA LP BP 16 17.80 19.70 1 1 23.1 26.0 SMBJ17A SMBJ17CA LR BR 17 18.90 20.90 1 1 21.8 27.6 SMBJ18A SMBJ18CA LT BT 18 20.00 22.10 1 1 20.6 29.2 SMBJ20A SMBJ20CA LV BV 20 22.20 24.50 1 1 18.6 32.4 SMBJ22A SMBJ22CA LX BX 22 24.40 26.90 1 1 16.9 35.5 SMBJ24A SMBJ24CA LZ BZ 24 26.70 29.50 1 1 15.5 38.9 SMBJ26A SMBJ26CA ME CE 26 28.90 31.90 1 1 14.3 42.1 SMBJ28A SMBJ28CA MG CG 28 31.10 34.40 1 1 13.3 45.4 SMBJ30A SMBJ30CA MK CK 30 33.30 36.80 1 1 12.4 48.4 SMBJ33A SMBJ33CA MM CM 33 36.70 40.60 1 1 11.3 53.3 SMBJ36A SMBJ36CA MP CP 36 40.00 44.20 1 1 10.4 58.1 SMBJ40A SMBJ40CA MR CR 40 44.40 49.10 1 1 9.3 64.5 SMBJ43A SMBJ43CA MT CT 43 47.80 52.80 1 1 8.7 69.4 SMBJ45A SMBJ45CA MV CV 45 50.00 55.30 1 1 8.3 72.7 SMBJ48A SMBJ48CA MX CX 48 53.30 58.90 1 1 7.8 77.4 SMBJ51A SMBJ51CA MZ CZ 51 56.70 62.70 1 1 7.3 82.4 SMBJ54A SMBJ54CA NE DE 54 60.00 66.30 1 1 6.9 87.1 SMBJ58A SMBJ58CA NG DG 58 64.40 71.20 1 1 6.5 93.6 SMBJ60A SMBJ60CA NK DK 60 66.70 73.70 1 1 6.2 96.8 SMBJ64A SMBJ64CA NM DM 64 71.10 78.60 1 1 5.9 103 SMBJ70A SMBJ70CA NP DP 70 77.80 86.00 1 1 5.3 113 SMBJ75A SMBJ75CA NR DR 75 83.30 92.10 1 1 5.0 121 SMBJ78A SMBJ78CA NT DT 78 86.70 95.80 1 1 4.8 126 SMBJ85A SMBJ85CA NV DV 85 94.4 104.0 1 1 4.4 137 SMBJ90A SMBJ90CA NX DX 90 100.0 111.0 1 1 4.1 146 SMBJ100A SMBJ100CA NZ DZ 100 111.0 123.0 1 1 3.7 162 SMBJ110A SMBJ110CA PE EE 110 122.0 135.0 1 1 3.4 177 SMBJ120A SMBJ120CA PG EG 120 133.0 147.0 1 1 3.1 193 SMBJ130A SMBJ130CA PK EK 130 144.0 159.0 1 1 2.9 209 SMBJ150A SMBJ150CA PM EM 150 167.0 185.0 1 1 2.5 243 SMBJ160A SMBJ160CA PP EP 160 178.0 197.0 1 1 2.3 259 SMBJ170A SMBJ170CA PR ER 170 189.0 209.0 1 1 2.2 275 SMBJ180A SMBJ180CA PT ET 180 201.0 222.0 1 1 2.1 292 SMBJ190A SMBJ190CA PA EC 190 209.0 243.0 1 1 2.0 308 SMBJ200A SMBJ200CA PV EV 200 224.0 247.0 1 1 1.9 324 SMBJ220A SMBJ220CA PX EX 220 246.0 272.0 1 1 1.7 356 SMBJ250A SMBJ250CA PZ EZ 250 279.0 309.0 1 1 1.5 405 SMBJ300A SMBJ300CA QE FE 300 335.0 371.0 1 1 1.3 486 SMBJ350A SMBJ350CA QG FG 350 391.0 432.0 1 1 1.1 567 SMBJ400A SMBJ400CA QK FK 400 447.0 494.0 1 1 0.9 648 SMBJ440A SMBJ440CA QM FM 440 492.0 543.0 1 1 0.9 713 Notes: For bidirectional type having VRWM of 10 volts and less, the IR limit is double 3/4 SMBJ Series RATINGS AND CHARACTERISTIC CURVES (TA=25℃ unless otherwise noted) Figure 1 - Peak Pulse Power Rating Curve Figure 2 - Pulse Derating Curve Figure 3 - Pulse Waveform Figure 4 - Typical Junction Capacitance Uni-Directional Figure 5 - Steady State Power Dissipation Derating Curve Figure 6 - Maximum Non-Repetitive Forward Surge Current Uni-Directional Only 4/4
