东莞市中汇瑞德电子股份有限公司
Churod Electronics Co., Ltd.
RELAY SPECIFICATION
继电器规格书
(File No.: 001000 / Version: 00 / Issue Date:Sep. 24th, 2020)
Product Description(品名)

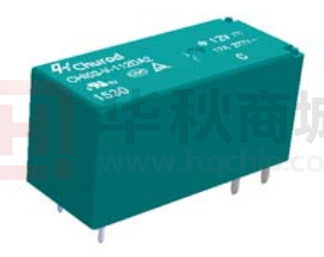

CHI03-S-112DA2
Part Number(编码)
Customer(客户)
Customer Approval (客户批准)
STAMPING AREA (盖章处)
Issued(发行)
Checked(审核)
Approved(承认)
Helena.Gong
JianXiang Guo
Hiroharu Dan
Page 1 of 7
东莞市中汇瑞德电子股份有限公司
Churod Electronics Co., Ltd.
SAFETY STANDARD 安全标准
UL certificate
E341422
UL 证书
TUV certificate
R50384623
TUV 证书
CQC certificate
CQC17002177358
CQC 证书
COIL CHARACTERISTICS 线圈特性
Coil resistance
360±10% Ω
线圈电阻
Rated voltage
12VDC
额定电压
Max. allowable voltage
130% of rated coil voltage
最大允许电压
Rated power
400mW
额定功率
Operate voltage
≤9.0VDC
吸合电压
Release voltage
≥0.6VDC
释放电压
CONTACT RATINGS 触点规格
Contact configuration
1 Form A (SPST)
触点结构
Contact material
Ag Alloy
触点材料
Initial contact resistance
≤100mΩ at 6VDC/1A
初始接触电阻
Rated switching voltage (Normally Open)
277VAC
额定切换电压(常开触点)
Rated switching voltage (Normally Close)
—
额定切换电压(常闭触点)
Rated current (Normally Open)
17A
额定电流(常开触点)
Rated current (Normally Close)
—
额定电流(常闭触点)
Rated switching power (Normally Open)
4,709VA
额定切换功率(常开触点)
Rated switching power (Normally Close)
—
额定切换功率(常闭触点)
Page 2 of 7
东莞市中汇瑞德电子股份有限公司
Churod Electronics Co., Ltd.
Minimum applicable load (Normally Open)
5VDC 100mA
最小使用负载(常开触点)
Minimum applicable load (Normally Close)
—
最小使用负载(常闭触点)
Operate time
≤15ms, excluding bounce time
吸合时间
≤15ms,不含触点抖动时间
Release time
≤8ms, excluding bounce time
释放时间
≤8ms,不含触点抖动时间
Mechanical endurance
1 Million cycles, 300 cycles/minute
机械寿命
Electrical endurance (Resistive Load)
17A, 277VAC, 100k cycles, 6 cycles/minute
电气寿命(阻性负载)
INSULATION PERFORMANCE 绝缘性能
Dielectric strength
1000VAC 1minute, between open contacts
介电强度
1000VAC 1 分钟(断开触点间)
5000VAC 1minute, between coil to contacts
5000VAC 1 分钟(线圈与触点间)
Impulse withstand voltage
10KV (1.2/50μs), between coil to contacts
耐浪涌电压
10KV(线圈与触点间)
Insulation resistance
1000MΩ at 500VDC, between open contacts and coil
绝缘电阻
to contacts
1000MΩ(断开触点间及线圈与触点间)
Insulation systems (UL)
155 (F)
绝缘系统
Insulation type
Basic insulation
绝缘类型
基本绝缘
ENVIRONMENT PERFORMANCE 环境性能
Category of protection (IEC61810-1)
RT III (Wash tight)
密封类型
防水密封型
Operating temperature
-40~105℃
工作温度
Operating humidity
20~85%RH
工作湿度
Storage temperature
-40~85℃
储藏温度
Storage humidity
20~85%RH
储藏湿度
Vibration resistance
(1) Capability to function during vibration
耐振动
No opening or closing of any closed or opened
contact circuit respectively exceed 10μs when the
Page 3 of 7
东莞市中汇瑞德电子股份有限公司
Churod Electronics Co., Ltd.
relay is subjected to vibration of 10~55Hz and 1.5mm
dual
amplitude
in
each
of
three
mutually
perpendicular axes for 10 minutes respectively, while
it is in operate condition and in release condition.
抗误动作能力
动作/释放状态下,继电器在三个轴向耐受频率
10~55Hz及振幅1.5mm的振动各10分钟,触点误动作
不超过10微秒。
(2) Capability to function after vibration
No trouble on structure and characteristics after the
relay is subjected to vibration of 10~55Hz and 1.5mm
dual
amplitude
in
each
of
three
mutually
perpendicular axes for 2 hours respectively.
振动耐久能力
继电器在三个轴向耐受振幅1.5mm及频率10~55Hz的
振动各2小时,产品构造和性能无异常发生。
Shock resistance
(1) Capability to function during shock
耐冲击
No opening or closing of any closed or opened
contact circuit respectively exceed 10μs when the
2
relay is subjected to shock of 98.1m/s for 11ms in
both
directions
of
each
of
three
mutually
perpendicular axes for 3 times respectively, while it is
in operate condition and in release condition.
抗误动作能力
动作/释放状态下,继电器在三轴六方向耐受加速度
2
98.1m/s 及作用时间11毫秒的冲击各3次,触点误动作
不超过10微秒。
(2) Capability to function after shock
No trouble on structure and characteristics after the
2
relay is subjected to shock of 981m/s for 6ms in both
directions of each of three mutually perpendicular
axes for 3 times respectively.
冲击耐久能力
2
继电器在三轴六方向耐受加速度981m/s 及作用时间6
毫秒的冲击各3次,产品构造和性能无异常发生。
Cold resistance
No trouble on structure and characteristics after
耐低温
placed at -40℃ for 240 hours and 2 hours recovery
in standard atmospheric conditions.
-40℃中放置240小时并在标准大气条件中恢复2小时
后继电器构造和特性无异常。
Page 4 of 7
东莞市中汇瑞德电子股份有限公司
Churod Electronics Co., Ltd.
Thermal resistance
No trouble on structure and characteristics after
耐高温
placed at 85℃ for 240 hours and 2 hours recovery in
standard atmospheric conditions.
85℃中放置 240 小时并在标准大气条件中恢复 2 小时
后继电器构造和特性无异常。
Humidity resistance
No trouble on structure and characteristics after
耐湿度
placed at 40℃&95%RH for 240 hours and 2 hours
recovery in standard atmospheric conditions.
40℃及95%相对湿度中放置240小时并在标准大气条
件中恢复2小时后继电器构造和特性无异常。
Thermal shock resistance
No trouble on structure and characteristics after
耐冷热冲击
endure 100 cycles of cyclic temperature and 2 hours
recovery in standard atmospheric conditions, which
the temperature cycle consists of -40℃ for 0.5 hour
and 85℃ for 0.5 hour.
-40℃和85℃中各放置0.5小时为一个温度周期,循环
100次,在标准大气条件中恢复2小时后继电器构造和
特性无异常。
Terminal robustness
No trouble on structure and characteristics after
引出端强度
endure axial pushing/pulling force of 10N for 10
seconds.
继电器引出端承受 10 牛顿的轴向压入、拨出力,延时
10 秒,构造和性能无异常。
MARKING 产品标识
Position of marking
Top of relay cover
标识位置
外壳顶部
Cover color
Blue
外壳颜色
蓝色
Ink color
Laser
字体颜色
激光
Trade mark
商标
Page 5 of 7
东莞市中汇瑞德电子股份有限公司
Churod Electronics Co., Ltd.
MOUNTING INFORMANTION 安装信息
Solderability
260±5℃ for 5±0.5 seconds
可焊性
Resistance to soldering heat
260±5℃ for 10+1 seconds
耐焊接热
350±10℃ for 3.5±0.5 seconds
Standard direction
Relay PCB terminals downward
标准方向
继电器 PCB 型引出端朝下
Terminals assignment and outline dimensions
Refer to APPENDIX
引出端脚位和外形尺寸
请参考附件
ENGINEERING NOTES 注意事项
# Unless otherwise explicitly stated, the standard environment conditions for measurement or testing are
listed as followings:
# 除非特别申明,测量或试验的标准环境条件如下:
(1) Ambient temperature is 23+5℃;
环境温度为 23+5℃;
(2) Atmospheric pressure is 96+10% kPa;
大气压力为 96+10% kPa;
(3) Relative humidity is 50%+25% RH.
相对湿度为 50%+25% RH.
Page 6 of 7
东莞市中汇瑞德电子股份有限公司
Churod Electronics Co., Ltd.
Outline dimension
外形尺寸
Wiring diagram (Bottom View)
Mounting dimensions(Bottom View)
接线图(底视图)
安装孔位图(底视图)
Note:All unspecified tolerance (including outline dimension and PC board dimension) according to following
listing
备注:产品外形尺寸未标注尺寸公差及 PC 板未注尺寸公差按下表执行。
产品外形尺寸未注尺寸公差
PC 板未注尺寸公差
Outline dimensions hadn’t specified tolerance
PC board dimensions hadn’t specified tolerance
外形尺寸
公差
Outline dimensions
Tolerance
≤0.3
±0.1
≤1
±0.2
≤5
±0.3
>5
±0.5
±0.1
Page 7 of 7
