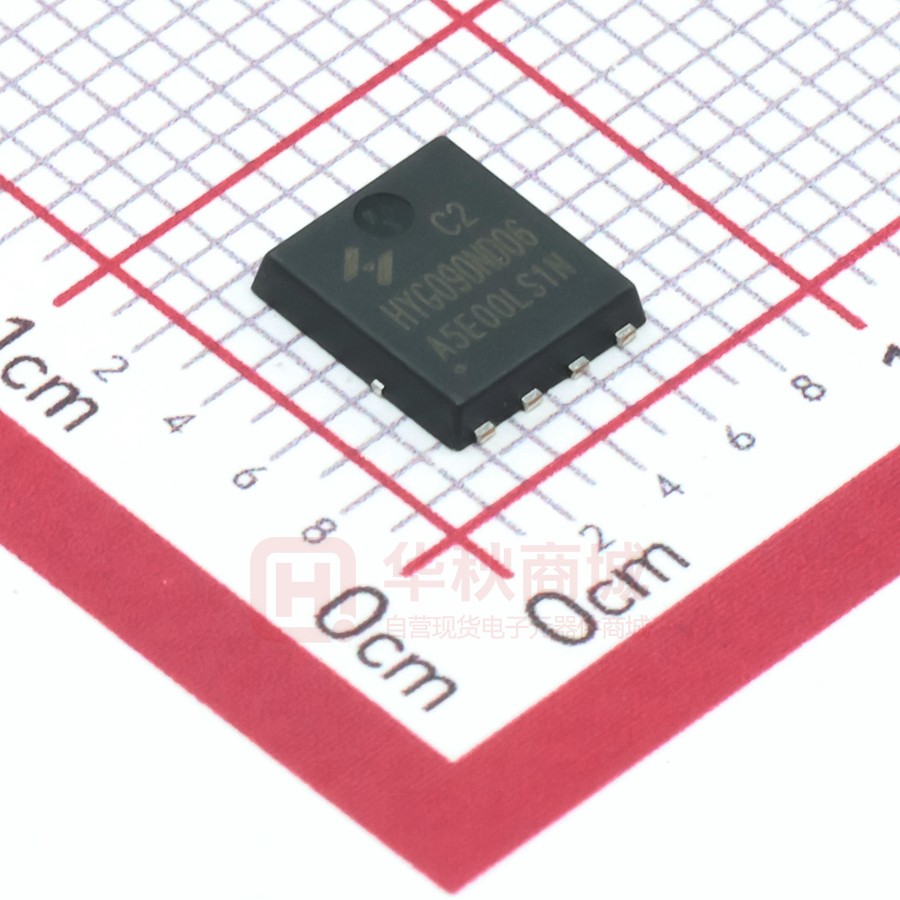

HYG090ND06LS1C2
Dual N-Channel Enhancement Mode MOSFET
Feature
Pin Description
60V/56A
RDS(ON)= 8.0 mΩ(typ.) @VGS = 10V
RDS(ON)= 12.2 mΩ(typ.) @VGS = 4.5V
100% Avalanche Tested
Reliable and Rugged
Halogen Free and Green Devices Available
PIN1
(RoHS Compliant)
PDFN8L(5x6)
Applications
Switching Application
Power Management for DC/DC
Dual N-Channel
Ordering and Marking Information
MOSFET
Package Code
C2
C2: PDFN8L(5x6)
G090ND06
Date Code
XXXYWXXXXX
XXXYWXXXXX
Note:HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNationfinish;which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature.HUAYI defines
“Green” to mean lead-free (RoHS compliant) and halogen free (Br or Cl does not exceed 900ppm by weight in
homogeneous material and total of Br and Cl does not exceed 1500ppm by weight).
HUAYI reserves the right to make changes, corrections, enhancements, modifications, and improvements to this pr
-oduct and/or to this document at any time without notice.
www.hymexa.com
V1.0
1
HYG090ND06LS1C2
Absolute Maximum Ratings
Symbol
Parameter
Rating
Unit
Common Ratings (Tc=25°C Unless Otherwise Noted)
VDSS
Drain-Source Voltage
60
V
VGSS
Gate-Source Voltage
±20
V
TJ
Junction Temperature Range
-55 to 175
°C
TSTG
Storage Temperature Range
-55 to 175
°C
Tc=25°C
56
A
Tc=25°C
220
A
Tc=25°C
56
A
Tc=70°C
39.5
A
Tc=25°C
60
W
Tc=70°C
30
W
IS
Source Current-Continuous(Body Diode)
Mounted on Large Heat Sink
Note:
IDM
Pulsed Drain Current *
ID
Continuous Drain Current
PD
Maximum Power Dissipation
RθJc
Thermal Resistance, Junction-to-Case
2.5
°C/W
RθJA
Thermal Resistance, Junction-to-Ambient
50
°C/W
EAS
SinglePulsed-Avalanche Energy **
83
mJ
*
**
L=0.3mH
Repetitive rating;pulse width limited by max.junction temperature.
Limited by TJmax , starting TJ=25°C, L = 0.3mH, RG= 25Ω, VGS =10V.
Electrical Characteristics(Tc =25°C Unless Otherwise Noted)
Symbol
Parameter
Test Conditions
HYG090ND06LS1
Max
Unit
Min
Typ.
60
-
-
-
1
μA
-
-
50
μA
Static Characteristics
BVDSS
Drain-Source Breakdown Voltage
IDSS
Drain-to-Source LeakageCurrent
VGS(th)
IGSS
RDS(ON)*
VGS=0V,IDS=250μA
VDS=60V,VGS=0V
TJ=125°C
V
Gate Threshold Voltage
VDS=VGS, IDS=250μA
1
1.9
3
V
Gate-Source Leakage Current
VGS=±20V,VDS=0V
-
-
±100
nA
VGS=10V,IDS=20A
-
8.0
9.8
VGS=4.5V,IDS=20A
-
12.2
14.8
Drain-Source On-State Resistance
mΩ
Diode Characteristics
VSD*
Diode Forward Voltage
ISD=20A,VGS=0V
-
0.87
-
V
trr
Reverse Recovery Time
ISD=20A,dISD/dt=100A/μ
-
22.9
-
ns
Qrr
Reverse Recovery Charge
s
-
15
-
nC
www.hymexa.com
V1.0
2
HYG090ND06LS1C2
Electrical Characteristics (Cont.) (Tc =25°C Unless Otherwise Noted)
Symbol
Parameter
Test Conditions
HYG090ND06LS1
Min
Typ.
Max
Unit
Dynamic Characteristics
RG
Gate Resistance
VGS=0V,VDS=0V,
F=1MHz
-
2.1
-
Ciss
Input Capacitance
VGS=0V,
-
926
-
Coss
Output Capacitance
VDS=25V,
-
505
-
Crss
Reverse Transfer Capacitance
Frequency=1.0MHz
-
39
-
td(ON)
Turn-on Delay Time
-
7.7
-
Tr
Turn-on Rise Time
VDD=30V,RG=4Ω,
-
31.7
-
td(OFF)
Turn-off Delay Time
IDS=20A,VGS=10V
-
18.4
-
-
34.8
-
-
18.5
-
Tf
Turn-off Fall Time
Gate Charge
Ω
pF
ns
Characteristics
Qg
Total Gate Charge(VGS=10V)
Qg
Total Gate Charge(VGS=4.5V)
VDS =48V, VGS=10V,
-
9.4
-
Qgs
Gate-Source Charge
ID=20A
-
3.9
-
Qgd
Gate-Drain Charge
-
4.8
-
nC
Note: *Pulse test,pulse width ≤ 300us,duty cycle ≤ 2%
www.hymexa.com
V1.0
3
HYG090ND06LS1C2
Typical Operating Characteristics
Figure 2: Drain Current
ID-Drain Current(A)
Power Dissipation (w)
Figure 1: Power Dissipation
Tc-Case Temperature(℃)
Tc-Case Temperature(℃)
Thermal
Zθjc
ID-Drain Current(A)
Impedance
Figure 4: Thermal Transient Impedance
Normalized Transient
Figure 3: Safe Operation Area
Maximum Effective Transient Thermal
Impedance, Junction-to-Case
Figure 6: Drain-Source On Resistance
VDS-Drain-Source Voltage(V)
ID-Drain Current(A)
RDS(ON)-ON-Resistance(Ω)
Figure 5: Output Characteristics
VDS-Drain-Source Voltage (V)
ID-Drain Current(A)
www.hymexa.com
V1.0
4
HYG090ND06LS1C2
Typical Operating Characteristics
Figure 8: Source-Drain Diode Forward
IS-Source Current (A)
Normalized On-Resistance
Figure 7: On-Resistance vs. Temperature
Figure 9: Capacitance Characteristics
Figure 10: Gate Charge Characteristics
VGS-Gate-Source Voltage (V)
VSD-Source-Drain Voltage(V)
C-Capacitance(pF)
Tj-Junction Temperature (℃)
VDS-Drain-Source Voltage (V)
QG-Gate Charge (nC)
www.hymexa.com
V1.0
5
HYG090ND06LS1C2
Avalanche Test Circuit
Switching Time Test Circuit
Gate Charge Test Circuit
www.hymexa.com
V1.0
6
HYG090ND06LS1C2
Device Per Unit
Package Type
Unit
Quantity
PDFN8L(5x6)
Reel
5000
Package Information
PDFN8L(5x6)
www.hymexa.com
V1.0
7
HYG090ND06LS1C2
Classification Profile
Classification Reflow Profiles
Profile Feature
Preheat & Soak
Temperature min (Tsmin)
Temperature max (Tsmax)
Time (Tsmin to Tsmax) (ts)
Average ramp-up rate
(Tsmaxto TP)
Liquidous temperature (TL)
Time at liquidous (tL)
Peak package body Temperature
(Tp)*
Time (tP)** within 5°C of the specified
classification temperature (Tc)
Average ramp-down rate (Tpto Tsmax)
Time 25°C to peak temperature
Sn-Pb Eutectic Assembly
Pb-Free Assembly
100 °C
150 °C
150 °C
200 °C
60-120 seconds
60-120 seconds
3 °C/second max.
3°C/second max.
183 °C
217 °C
60-150 seconds
60-150 seconds
See Classification Temp in table 1
SeeClassification Tempin table 2
20** seconds
30** seconds
6 °C/second max.
6 °C/second max.
6 minutes max.
8 minutes max.
*Tolerance for peak profile Temperature (Tp) is defined as a supplier minimum and a user maximum.
** Tolerance for time at peak profile temperature (tp) is defined as a supplier minimum and a user maximum.
www.hymexa.com
V1.0
8
HYG090ND06LS1C2
Table 1.SnPb Eutectic Process – Classification Temperatures (Tc)
Package
Volume mm³
Volume mm³
Thickness
