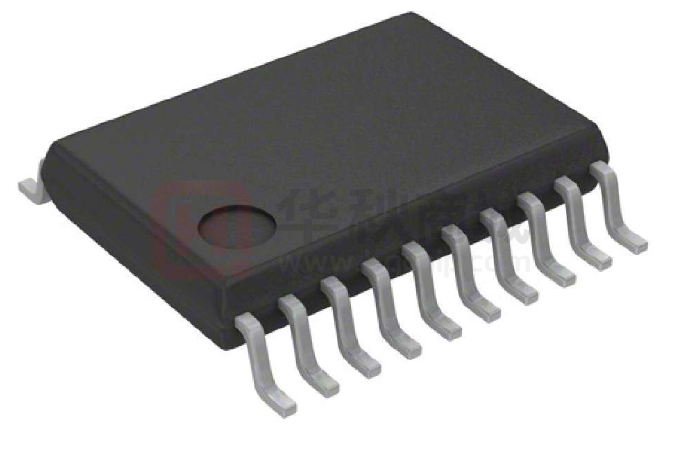

CA-IS3988P

CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS398x Isolated Octal Industrial Digital Input 1. Features • Accepts Industry Standard Input Types Compliant to IEC 61131-2 Input Types 1, 2, and 3 High Integration Eight input channels with serializer (CA-IS3980S) Eight input channels with parallel-output s (CAIS398xP) Support up to 2Mbps Data Rates Integrated Digital Glitch and Debounce Filters with 0 to 100ms Selectable Delay Time High transient immunity: ±300kV/µs CMTI for the low-speed channels ±50kV/µs CMTI for the high-speed channels 2500VRMS Integrated Isolation Reduces BOM and Footprint SPI-Compatible Serial Interface (CA-IS3980S only) 2.25V to 5.5V Single Supply , Eliminates the Need For Field-side Power Supply -40°C to 125°C Ambient Operating Temperature 8.66mm x 3.91mm 20-pin SSOP Package Safety Regulatory Approvals (pending) DIN VVDE V 0884-10 Basic isolation UL1577 certification, 2500 VRMS insulation CSA according to GB4943.1-2011 certification TUV according to EN61010-1:2010 (3rd Ed) and EN 60950-1:2006/A2:2013 certifications • • • • • • • • • • 2. Applications • • • • • Digital Input Modules for PLCs Industrial, Building, and Process Automation Motor Control CNC Control Industrial data acquisition feature up to 2.5kVRMS isolation rating and ±300kV/μs typical CMTI (low-speed channels), provide high electromagnetic immunity, low propagation delay and low jitter. The CA-IS398x devices operate over the supply range of 2.25V to 5.5V on logic side, no power supply required on field side. The logic output level is set by supply voltage independently, easy to connect with 2.5V, 3.3V and 5V controller interface. The CA-IS3980S industrial interface serializer translates, conditions and serializes the eight 24V digital inputs to CMOS-compatible signals through the SPI port required by microcontrollers; While the CA-IS398xP devices translate eight 24V industrial digital inputs to eight CMOS-compatible parallel outputs. All devices provide isolated digital outputs and all digital inputs can be current-sinking or current sourcing industrial inputs (bidirectional inputs) from sensors and switches used in industrial, process, and building automation. For robust operation in industrial environments, each input of the CAIS398x with parallel outputs includes a glitch and debounce filters with fixed delay time; The CA-IS3980S features programmable debounce filters, allow flexible debouncing and filtering of sensor outputs based on the application. Also, for systems with more than eight sensor inputs, CA-IS3980S is capable of daisy-chaining multiple devices and have up to 128 inputs sharing the same isolated SPI interface. A simplified block diagram for the CA-IS398x is shown in the figure below. The CA-IS398x family of devices are specified over -40°C to +125°C operating temperature range and are available in 20-pin SSOP package. Also see the Ordering Information for suffixes associated output interface and filter delay time configuration options. Device information Part number 3. General Description The CA-IS398x family of isolated octal digital inputs are optimized for industrial 24V digital input applications. All devices can be configured for Type 1, Type 2, or Type 3 inputs with a few external components and each channel can sink and source current. The isolation channels based on Chipanalog’s advanced capacitive isolation technology Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3980 CA-IS3988 Package Package size (NOM) SSOP20(Y) 8.66mm x 3.91mm 1 CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Shanghai Chipanalog Microelectronics Co., Ltd. Simplified Block Diagram CA-IS3980P 4. 2 2 A3 3 A4 4 COM 5 COM 6 A5 7 A6 8 A7 9 A8 10 e 20 e 19 e 18 e 17 16 15 B1 A1 1 e 20 MISO B2 A2 2 e 19 MOSI B3 A3 3 e 18 NSS B4 A4 4 e 17 SCLK VDD COM 5 16 VDD GND COM 6 15 GND B5 A5 7 e 14 MOSI_THRU Isolation Barrier 1 A2 Isolation Barrier A1 CA-IS3980S SPI e 14 e 13 B6 A6 8 e 13 NC e 12 B7 A7 9 e 12 NC e 11 B8 A8 10 e 11 NC Ordering Information Part Number Output Interface Number of Highspeed Channels Low-pass Filter Debounce Time Package Isolation Rating (kVRMS) CA-IS3980S Serial 0 0ms/10ms/30ms/100ms SSOP20 2.5kVRMS CA-IS3980P Parallel 0 0ms SSOP20 2.5kVRMS CA-IS3988P Parallel 8 0ms SSOP20 2.5kVRMS Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. Shanghai Chipanalog Microelectronics Co., Ltd. 1. 2. 3. 4. 5. 6. 7. 5. CA-IS3980, CA-IS3988 Contents Features .............................................................1 Applications ........................................................1 General Description ............................................1 Ordering Information ..........................................2 Revision History ..................................................3 Pin Configuration and Description .......................4 Specifications......................................................5 7.1. 7.2. 7.3. 7.4. 7.5. 7.6. 7.7. 7.8. 7.9. 7.10. 7.11. Version 1.05, 2023/05/22 Absolute Maximum Ratings1 ...............................5 ESD Ratings..........................................................5 Recommended Operating Conditions .................5 Thermal Information ...........................................5 Power Rating .......................................................5 Insulation Specifications .....................................6 Safety-Related Certifications ...............................7 Safety Limits1 .......................................................7 Electrical Characteristics .....................................8 Timing Characteristics .........................................9 Typical Operating Characteristics ......................10 8. 9. Parameter Measurement Information ............... 11 Detailed Description .........................................12 9.1. 9.2. 9.3. 9.4. 10. 11. 12. 13. 14. Overview ........................................................... 12 Device Operation Modes .................................. 12 Input Filters ....................................................... 13 9.3.1. Debounce filter selection and delay configuration .................................................................... 13 9.3.2. Debounce filter operation modes .................... 13 SPI Interface (CA-IS3980S) ................................ 15 9.4.1. 9.4.2. 9.4.3. Register Map and Description .......................... 15 SPI Protocol ...................................................... 15 SPI Daisy-Chaining ............................................ 17 Application and Implementation ................ 18 Package Information ..................................21 Soldering Temperature (reflow) Profile ....... 22 Tape and Reel Information ......................... 23 Important statement ..................................24 Revision History Revision Number Version 1.00 Version 1.01 Version 1.02 Version 1.03 Version 1.04 Version 1.05 Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. Description N/A N/A Updated “ESD Ratings” table, HBM ESD protection changed to ±5000V, CDM ESD protection changed to ±2000V. Change POD and Type reel information Removed part number CA-IS3982x,CA-IS3984x Updated SPI sync information Updated VDD UVLO information Page Changed N/A N/A Page 6 22,24 NA 24 8 3 CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 6. Pin Configuration and Description Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3980P / CA-IS3988P CA-IS3980S e 20 B1/BH1 A1 1 e 20 MISO A2/AH2 2 e 19 B2/BH2 A2 2 e 19 MOSI A3/AH3 3 e 18 B3/BH3 A3 3 e 18 NSS A4/AH4 4 e 17 B4/BH4 A4 4 e 17 SCLK COM 5 16 VDD COM 5 16 VDD COM 6 15 GND COM 6 15 GND A5/AH5 7 e 14 B5/BH5 A5 7 e 14 MOSI_THRU A6/AH6 8 e 13 B6/BH6 A6 8 e 13 NC A7/AH7 9 e 12 B7/BH7 A7 9 e 12 NC A8/AH8 10 e 11 B8/BH8 A8 10 e 11 NC Isolation Barrier 1 Isolation Barrier A1/AH1 SPI Figure 6-1. CA-IS398x Pin Configuration Table 6-1. CA-IS3980P/CA-IS3982P/CA-IS3984P/CA-IS3988P pin description CA-IS3980P 1,2,3,4,7,8,9,10 --- Pin Number CA-IS3988P --1,2,3,4,7,8,9,10 Pin Name Type Description A1-A8 AH1-AH8 Input Input Field input, low-speed channels. Field input, high-speed channels. Common, can be connected to ground for sinking inputs or the field supply for sourcing inputs. Logic Outputs, low-speed channels. Indicate the state (high or low) of A1-A8. If the input is open, output is Low. Logic Outputs, high-speed channels. Indicate the state (high or low) of AH1-AH8. If the input is open, output is high-impedance. 2.25V to 5.5V logic supply input. Ground reference for logic side. 5, 6 5, 6 COM COM 11,12,13,14, 17,18,19,20 --- B1-B8 Output --- 11,12,13,14, 17,18,19,20 BH1-BH8 Output 16 15 16 15 VDD GND Power GND Table 6-2. CA-IS3980S pin description Pin Number CA-IS3980S 1,2,3,4,7,8,9,10 4 Pin Name Type A1-A8 Input 5, 6 COM COM 11, 12, 13 16 15 19 17 18 14 20 NC VDD GND MOSI SCLK NSS MOSI_THRU MISO No Connect Power GND Input Input Input Output Output Description Field input, low-speed channels. Common, can be connected to ground for sinking inputs or the field supply for sourcing inputs. Not internally connected. 2.25V to 5.5V logic supply input. Ground reference for logic side. SPI serial data input. SPI serial clock input. SPI chip-select input. SPI serial data out for cascading multiple devices (up to 16). SPI serial data output. Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Shanghai Chipanalog Microelectronics Co., Ltd. 7. Specifications 7.1. Absolute Maximum Ratings1 Parameters Minimum value Maximum value Unit VDD Power supply voltage -0.3 6.0 V IF(AVG) Ax/AHx Average Input Current 30 mA VF(AVG) Ax/AHx Aerage Input Voltage @ 30mA Input Current 2.5 V VO Bx/BHx, MISO Output Voltage -0.5 VDD+0.5 V IO Bx/BHx Output Current -10 10 mA VI MOSI、NSS、SCLK Input -0.5 VDD+0.5 V TJ Junction temperature 150 °C TSTG Storage temperature range -65 150 °C Note: 1. The stresses listed under “Absolute Maximum Ratings” are stress ratings only, not for functional operation condition. Exposure to absolute maximum rating conditions for extended periods may cause permanent damage to the device. 7.2. ESD Ratings VESD Electrostatic discharge Value ±5000 ±2000 Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins Charged device model (CDM), per JEDEC Specification JESD22-C101, all pins 1 Unit V V Note: 1. Per JEDEC document JEP155, 500V HBM allows safe manufacturing of standard ESD control process. 7.3. Recommended Operating Conditions Parameters Power supply voltage Maximum data rate1, high-speed channel Minimum data rate2, high-speed channel Maximum data rate, low-speed channel (+0ms tD) Minimum data rate, low-speed channel (+0ms tD) Maximum data rate, low-speed channel (+10ms tD) Maximum data rate, low-speed channel (+30ms tD) Maximum data rate, low-speed channel (+100ms tD) Input start-up current (sinking or sourcing inputs) Ambient Temperature3 VDD DR Min 2.3 Typ Max 5.5 2 10 250 1 100 33 10 20 125 Unit V Mbps kbps kbps kbps bps bps bps mA °C IF(ON) 1.0 TA -40 Notes: 1. The maximum data rate corresponds to the input signals with 50% duty cycle. If the duty cycle of the input signal is greater than or less than 50%, the maximum data rate will decrease; 2. If the data rate is too low and the rising / falling edge of the input signal is slow, the output signals may have glitches; 3. The maximum ambient temperature is dependent on data frequency, output loading, number of operating channels, and supply voltage. 7.4. Thermal Information Thermal Metric RθJA 7.5. Junction-to-ambient thermal resistance Unit 105 °C/W Maximum value 540 Unit mW Power Rating Parameters Maximum Power Dissipation on input side PD 20-pin SSOP Maximum Power Dissipation on output side Maximum Power Dissipation Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. Test conditions input current = 30mA/channel, TJ=150°C VDD=5.5V, CL=15pF, 1MHz 50% duty cycle input, TJ=150°C VDD=5.5V, input current = 30mA/channel, TJ=150°C 450 mW 990 mW 5 CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 7.6. Insulation Specifications Parameters Clearance1 CLR External CPG External Creepage1 DTI CTI Distance through the insulation Comparative tracking index Material group Overvoltage category per IEC 60664-1 DIN V VDE V 0884-11:2017-01 VIORM Maximum repetitive peak isolation voltage VIOWM Maximum operating isolation voltage VIOTM Maximum transient isolation voltage VIOSM Maximum surge isolation voltage 2 qpd Apparent charge 3 CIO Barrier capacitance, input to output 4 RIO Isolation resistance 4 Shanghai Chipanalog Microelectronics Co., Ltd. Test conditions Shortest terminal-to-terminal distance through air Shortest terminal-to-terminal distance across the package surface Minimum internal gap (internal clearance) DIN EN 60112 (VDE 0303-11)；IEC 60112 Per IEC 60664-1 Rated mains voltage ≤ 150 VRMS Rated mains voltage ≤ 300 VRMS AC voltage (bipolar) AC voltage; time-dependent dielectric breakdown (TDDB) test DC voltage VTEST = VIOTM, t=60 s (certified); VTEST = 1.2 × VIOTM, t=1 s (100% product test) Test method per IEC 60065, 1.2/50 μs waveform, VTEST = 1.6 × VIOSM (production test) Method a, after input/output safety test of the subgroup 2/3, Vini = VIOTM, tini = 60 s; Vpd(m) = 1.2 × VIORM, tm = 10 s Method a, after environmental test of the subgroup 1, Vini = VIOTM, tini = 60 s; Vpd(m) = 1.6 × VIORM, tm = 10 s Method b, at routine test (100% production test) and preconditioning (type test) Vini = 1.2 × VIOTM, tini = 1 s; Vpd(m) = 1.875 × VIORM, tm = 1 s VIO = 0.4 × sin (2πft), f = 1MHz VIO = 500 V, TA = 25°C VIO = 500 V, 100°C ≤ TA ≤ 125°C VIO = 500 V at TS = 150°C Pollution degree UL 1577 VISO Maximum withstanding isolation voltage VTEST = VISO, t = 60 s (qualification) VTEST = 1.2 × VISO, t = 1 s (100% production test) Value SSOP 3.6 (minimum) UNIT mm 3.6 (minimum) mm 8 600 I I-IV I- III μm V 560 VPK 400 VRMS 566 VDC 3600 VPK 4000 VPK ≤5 ≤5 pC ≤5 pF >1012 >1011 >109 2 2500 Ω VRMS Notes: 1. This coupler is suitable for “safe electrical insulation” only within the safety ratings. Compliance with the safety ratings shall be ensured by means of suitable protective circuits. 2. Devices are immersed in oil during surge characterization test. 3. The characterization charge is discharging charge (pd) caused by partial discharge. 4. Capacitance and resistance are measured with all pins on field-side and logic-side tied together. 6 Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Shanghai Chipanalog Microelectronics Co., Ltd. 7.7. Safety-Related Certifications VDE (pending) Certified according to DIN VDE V 0884-11:2017-01. Certification NO.:Pending 7.8. Safety Limits1 Parameters IS UL Certified according to UL 1577 Component Recognition Program. Certification NO.: E511334-20220727 Safety input/output current on logic side Test conditions RθJA = 120 °C/W, VI = 2.75V, TJ = 150°C, TA=25°C. RθJA = 120 °C/W, VI = 3.6V, TJ = 150°C, TA=25°C. RθJA = 120 °C/W, VI = 5.5V, TJ = 150°C, TA=25°C. RθJA = 120 °C/W, TJ = 150°C, TA=25°C. RθJA = 120 °C/W, TJ = 150°C, TA=25°C. Min. Typ. Max. 80 100 Unit mA 240 IS Safety input current on filed side 240 mA PS Total safety power dissipation 1200 mW Maximum safety temperature 150 TS °C Note: 1. Damage to the IC can result in a low-resistance path to ground or to the supply and, without current limiting, the CA-IS398x could dissipate an excessive amount of power. Excessive power dissipation can damage the die and result in damage to the isolation barrier, potentially causing downstream issues. This table shows the safety limits for the CA-IS398x. Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. 7 CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 7.9. Electrical Characteristics TA = -40 to 125°C, over recommended operating conditions, unless otherwise specified. Parameters Test conditions Filed-side Inputs IF(TH) Input current threshold IHYS Input current hysteresis VF(TH) Field input threshold VHYS Input voltage hysteresis CI Input capacitance f=125kHz Logic-side Supply VULVO+ VDD undervoltage threshold VDD rising VUVLOVDD undervoltage threshold VDD falling VHYS(UVLO) UVLO hysteresis All inputs = “0” All inputs = “1” 60kHz, all inputs switching with 50% IDD Operating current duty cycle. 1MHz, all inputs switching with 50% duty cycle. Logic-side Inputs VIL Input logic-low voltage SCLK，NSS，MOSI VIH Input logic-high voltage SCLK，NSS，MOSI VOL Output logic-low voltage IOL = 4 mA VOH Output logic-high voltage IOH = -4 mA IIH Input leakage current at logic-low SCLK，NSS，MOSI IIL Input leakage current at logic-high SCLK，NSS，MOSI 8 Shanghai Chipanalog Microelectronics Co., Ltd. Min. Typ. Max. Unit 460 30 1.0 30 606 76 1.38 73 105 950 200 1.7 130 μA μA V mV pF 1.85 1.74 2.06 1.92 0.14 4.7 4.6 4.7 2.24 2.10 4.7 7.7 7.7 7.6 7.7 0.8 2.0 0.4 VDD-0.4 -1 -1 1 1 V mA V V V V μA μA Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Shanghai Chipanalog Microelectronics Co., Ltd. 7.10. Timing Characteristics TA = -40 to 125°C, over recommended operating conditions, unless otherwise specified. Parameters Test conditions Signal Channels Input current rise/fall time=10ns, input current=10mA, high-speed channels AHx Input current rise/fall time=10ns, input current=10mA, low-speed channel Ax (+0ms tD) Input current rise/fall time=10ns, input tP Propagation delay time current=10mA, low-speed channel Ax (+10ms tD) Input current rise/fall time=10ns, input current=10mA, low-speed channel Ax (+30ms tD) Input current rise/fall time=10ns, input current=10mA, low-speed channel Ax (+100ms tD) AHx high-speed channel PWD Pulse width distortion Ax channel AHx high-speed channel Tpsk( P-P) Propagation delay skew Part-to-part Ax channel AHx high-speed channel Tpsk Propagation delay skew Channel-to-channel Ax channel tr, tf Output rise and fall times CL=15pF tSTART Start-up time AHx high-speed channel Common mode transient CMTI immunity Ax channel SPI Interface SCLK Clock period tC Delay time SCLK falling to MISO valid tDO1 Delay time tDO2 SCLK falling to MISO transition Delay time NSS rising to MISO high-Z tDZ Setup time tSU1 Falling edge of NSS to falling edge of SCLK Hold time tH1 Rising edge of SCLK to rising edge of NSS Setup time tSU2 MOSI to SCLK rising Hold time tH2 SCLK rising to MOSI transition Delay time tNSS NSS delay time Delay time tDTHRU MOSI to MOSI_THRU delay time Min. Typ. Max. Unit 36 120 ns 5.6 6.7  μs 10 ms 30 ms 100 ms 6 450 -30 -250 -30 -250 25 200 50 ns ns ns ns ns ns ns μs kV/μs kV/μs +30 +250 +30 +250 3.3 46 50 300 100 ns ns ns ns ns ns ns ns ns ns 20 20 20 25 20 25 20 200 15 tC SCLK NSS tH1 tSU1 tSU2 MOSI Rx Bit tNSS tH2 Rx Bit Rx Bit Rx Bit tDTHRU MOSI_THRU Rx Bit Rx Bit MISO Tx Bit tDO1 Tx Bit Rx Bit Tx Bit Rx Bit Tx Bit tDO2 Figure 7-1. SPI Timing Diagram Note: The timing specifications depicted in this figure apply to each byte of the three byte CA-IS3980S SPI communications packet. Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. 9 CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 7.11. Typical Operating Characteristics Shanghai Chipanalog Microelectronics Co., Ltd. Input Voltage(V) VI Curve 3.0 2.5 2.0 1.5 TA=125℃ TA=25℃ 1.0 TA=-40℃ 0.5 0.0 0 5 10 15 20 Input Current(mA) Figure 7-2. Input Voltage vs. Input Current Over Temperature Note: 1. Input current and input voltages are absolute values and apply to both sourcing and sinking channel designs. 10 Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Shanghai Chipanalog Microelectronics Co., Ltd. 8. Parameter Measurement Information CA-IS398x IIN Current input with 50% duty circle Ax /AHx VDD Bx /BHx IHYS tP VOUT tP 90% CL=15pF COM IF(TH) IIN VOUT 50% GND 10% tr tf Figure 8-1. Switching Characteristics Test Circuit and Waveform CA-IS398x VDD Input signal switch High Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. Ax /AHx Low Bx /BHx 2.2nF COM GND High Voltage Surge Generator Figure 8-2. Common-Mode Transient Immunity Test Circuit 11 CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 9. Detailed Description 9.1. Shanghai Chipanalog Microelectronics Co., Ltd. Overview The CA-IS398x family of devices is isolated octal digital inputs optimized for industrial 24V digital input applications. These devices are suitable for high-channel density, digital-input modules for programmable logic controllers and motor control digital input modules. The CA-IS398x devices provide compliance with IEC 61131-2 Types 1, 2, 3 inputs with a few external components and can be used to create a bidirectional input module that can sink and source current, see Figure 9-1 the simplified block diagram for a single CA-IS398x channel. There is a diode bridge and an LED emulator at the front end of each input channel, see Figure 7-2 Input Voltage vs. Input Current curve to find more details about input operating characteristics. The internal LED emulator output drives an ON-OFF keying (OOK) modulator, to transfer digital signals across the SiO2 based isolation barrier between circuits with different power domains. In many applications, this capacitive isolation technology is replacing optocoupler-based solution because it can reduce the power requirements and take up less board space while offering the same isolation capability. Ax/AHx OOK Modulator OOK Modulator Jitter Filter B BH Bx/BHx COM Figure 9-1. Simplified block diagram of a single CA-IS398x channel On the output side, the signal is either passed directly to the output stage in the case of a high-speed channel (BHx), or the signal is routed through a debounce filter block in the case of a low-speed channel (Bx) for robust operation in industrial environments. For the CA-IS3980S, there are three debounce filter modes available: deglitch filter mode, low-pass filter mode, and blanking filter mode. For the parallel outputs devices, the CA-IS398xP, there are four debounce filter delay time options available: no delay, delays of 10ms, 30ms, or 100 ms, see the Ordering Information for suffixes associated filter configuration options. Additionally, a built-in low-pass filter delay of 4μs is always present in low-speed channels, regardless of user configuration options. The CA-IS398xP/PF/PM/PS devices translate eight 24V industrial digital inputs from sensors and switches used in industrial, process and building automation to eight CMOS-compatible parallel outputs; while the CA-IS3980S industrial interface serializer translates, conditions and serializes the eight 24V digital inputs to CMOS-compatible signals required by microcontrollers and communicate with controllers through the SPI interface. For systems with more than eight sensor inputs, the CA-IS3980S device is capable of daisy-chaining multiple devices and have up to 128 inputs (16 pieces of CA-IS3980S) sharing the same isolated SPI interface. 9.2. Device Operation Modes The CA-IS398x digital input sense the state (on, high or off, low) of each input (Ax/AHx). The voltages at the Ax/AHx input pins are compared against internal references to determine whether the sensor is on (logic 1) or off (logic 0), then the devices translate the eight digital inputs to serial or parallel outputs, see Table 9-1 the truth table of the CA-IS398x. The CA-IS398x devices include undervoltage lockout (UVLO) to prevent erroneous operation during device startup and shutdown or when VDD is below its specified operating range. During UVLO, the outputs from the device do not track the inputs to the device, would be in an undetermined state. 12 Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Shanghai Chipanalog Microelectronics Co., Ltd. Table 9-1. CA-IS398x Truth Table1 VDD Powered up Powered down Input (Ax/AHx) Output(Bx/BHx) H H L L Open L X Indeterminate2 Note Normal operation. The outputs track the digital inputs. Output is logic-low if input open. If VDD 2.25V; Power down: VDD < VUVLO_. 2. If VDD < VUVLO_, the output is indeterminate, can be any value within the absolute maximum rating. 9.3. 9.3.1. Input Filters Debounce filter selection and delay configuration The CA-IS398x family isolated digital inputs offer serial outputs and parallel outputs options. A digital glitch filter provides debouncing and filtering of noisy sensor signals on each low-speed digital input channel. The high-speed channels have no debounce filtering to reduce the propagation delay. The debounce filter can be configured either through part number selection for parallel output devices or through the SPI interface (CA-IS3980S only), see the Ordering Information for parallel outputs devices selection with different filter delay options. For the CA-IS3980S debounce filter delay configuration details, see Table 9-2. One of four filter delays (0ms, 10ms, 30ms, 100ms) can be independently selected for each channel. Table 9-2. Debounce filter delay control FLT_DLY[1:0] Delay tD(ms) Description 00 0 No additional debounce filter delay. 01 10 Fast channel debounce filter delay. 10 30 Medium channel debounce filter delay. 11 100 Slow channel debounce filter delay. Note: 1. All low-speed channels include a internal 4 μs low-pass debounce filter delay. Additional delay may be added based on the FLT_DLY0, FLT_DLY1 registers configuration. 9.3.2. Debounce filter operation modes In addition to configuring filter delay time, the CA-IS3980S also provide selection between three filtering modes for each of the digital input channels: deglitch filter, low-pass filter and blanking filter, allow flexible debouncing and filtering of sensor outputs based on the application, see Table 9-3 for the debounce filter mode setting. All low-speed channels present on parallel output devices are configured with the low-pass filter mode only. Table 9-3. Debounce filter mode control FLT_MODEx[1:0] Filter mode 00 Deglitch filter Trailing edge delay filter 01 Low-pass filter Traditional low-pass filter 1x Blanking filter Leading edge delay filter Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. Description 13 CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Deglitch filter Shanghai Chipanalog Microelectronics Co., Ltd. The deglitch filter mode corresponding to FLT_MODEx[1:0] = 00, employs only a simple trailing edge delay commonly used in digital deglitch filters. In this mode, the device checks that an input is stable for at least the amount of time specified in the corresponding channel’s debounce delay setting tD. Once the channel’s input has been stable for tD, the channel’s output assumes the value of the channel’s input. Consequently, if the input is not stable for at least tD, the input change is not sent to the internal shift register. Low-pass filter The low-pass filter corresponding to FLT_MODEx[1:0] = 01, provides a low-pass filtering function on each low-speed input channel. This is also the mode of the built-in 4μs default filter in all low-speed channels. Under this filter mode, noise rejection is accomplished through a nonrollover up-down counter where the state of the field digital input controls the counting direction (up or down). When the channel input has assumed a new value, the counter begins counting up toward the debounce delay setting tD. If before the count tD is reached the channel’s input returns to its previous value, it counts down. If the channel input again assumes the new value before the counter reaches 0 (i.e., noise pulse width is less than the time the channel input had previously assumed a new value), the counter counts up from a non-zero value. The filter output is updated and assumes the new value when the counter hits the upper limit tD. Using low-pass filter mode, any noise pulse on the channel input with duration less than the channel’s debounce filter delay setting tD, will be suppressed. Blanking filter The blanking filter mode corresponding to FLT_MODEx[1:0] = 1X, provides a leading edge filtering function on each lowspeed input channel. The internal counter is initialized to zero. When the channel input changes, the channel output immediately assumes the new value, and the counter is reset to the current delay setting tD. Independent of what occurs on the channel input, the counter begins counting down after this change, leaving the channel blind to changes on the input. When the counter again reaches zero, the channel’s current input is compared to the channel’s current output. If they are different the channel output immediately assumes the new value. If they are the same, the channel output will immediately change on the next new value seen by the channel input. In any cases, a change on the channel input resets the counter to the current delay setting tD. Figure 9-2 shows the debounce filter modes timing diagram. t2 tD – t1 DIN A B A tD DOUT|DBNC_MODE=00 (old) A t1 + t2 DOUT|DBNC_MODE=01 DOUT|DBNC_MODE=1x A (old) tD tD A B A Figure 9-2. Debounce Filter Modes Timing Diagram 14 Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3980, CA-IS3988 Shanghai Chipanalog Microelectronics Co., Ltd. Version 1.05, 2023/05/22 9.4. SPI Interface (CA-IS3980S) The CA-IS3980S has an SPI compatible interface used to read digital inputs data and configure the filter delay, debounce mode registers. Each configuration register can be read back to ensure proper configuration. For systems with more than eight sensor inputs, the CA-IS3980S is capable of daisy-chaining multiple devices and have up to 128 inputs sharing the same isolated SPI interface. 9.4.1. Register Map and Description The CA-IS3980S includes below addressable registers: 1. CHAN_STATUS: input data status register. The internal data serializer comprises a 8-bit shift register, containing 8 bits of data corresponding to the eight field inputs. The shift register contents are read only (no write capability exists) through the SPI-compatible interface. 2. FLT_MODE0, FLT_MODE1: the programmable filter mode control bits for A1 to A8, read and write registers, see Table 9-4 for more details. 3. FLT_DLY0, FLT_DLY1: the filter delay configuration bits for A1 to A8, read and write. These registers are used to set one of four filter delays (0ms, 10ms, 30ms, 100ms) for each channel independently. See Table 9-4 for more details. Table 9-4. Register Map Register Address Type CHAN_STATUS 0x0 Read only FLT_MODE0 0x1 Read and Write FLT_MODE1 0x2 Read and Write FLT_DLY0 0x3 Read and Write FLT_DLY1 0x4 Read and Write Description {STATUS[7:0]}, Digital input state, D[x] is the state of the corresponding input pin. 0: D[x] = 0, channel x is driven low. 1: D[x] = 1, channel x is driven high. Programmable filter mode control bits for A1 to A4, organized as: {md_ch3[1:0],md_ch2[1:0],md_ch1[1:0],md_ch0[1:0]} md_chx[1:0] = 00 = deglitch filter; md_chx = 01 = low-pass filter; md_chx = 1X = blanking filter Programmable filter mode control bits for A5 to A8, organized as: {md_ch7[1:0],md_ch6[1:0],md_ch5[1:0],md_ch4[1:0]} md_chx[1:0] = 00 = deglitch filter; md_chx = 01 = low-pass filter; md_chx = 1X = blanking filter Programmable filter delay values for A1 to A4, organized as: {dly_ch3[1:0], dly_ch2[1:0], dly_ch1[1:0], dly_ch0[1:0]} dly_chx[1:0] = 00 = 0ms; dly_chx[1:0] = 01 = 10ms; dly_chx[1:0] = 10 = 30ms, dly_chx[1:0] = 11 = 100ms. Programmable filter delay values for A5 to A8, organized as: {dly_ch7[1:0], dly_ch6[1:0], dly_ch5[1:0], dly_ch4[1:0]} dly_chx[1:0] = 00 = 0ms; dly_chx[1:0] = 01 = 10ms; dly_chx[1:0] = 10 = 30ms, dly_chx[1:0] = 11 = 100ms. 9.4.2. SPI Protocol The CA-IS3980S communicates with microcontrollers through an SPI-compatible 4-wire serial interface. The interface has three inputs: clock (SCLK), chip select (NSS), and data in (MOSI), and one output, data out (MISO). An additional MOSI_THRU output is provided to facilitate the cascading of up to 16 CA-IS3980S devices. The CA-IS3980S devices are the slave device in an SPI communication with the microcontroller being the master. The NSS input is used to initiate and terminate a data transfer. SCLK is used to synchronize data movement between the master (microcontroller) and the slave devices. NSS must be low to clock data into or out of the device, and MOSI must be stable when sampled on the rising edge of SCLK. MISO and MOSI_THRU are stable on the rising edge of SCLK. The CA-IS3980S ignores all activity on SCLK and DIN except when NSS is low. Please see Figure 7-1 SPI timing diagram and Timing Characteristics to find more details. The CA-IS3980S SPI communication packet is composed of three serial bytes, byte0, byte 1 and byte 2, see Figure 9-3 for a SPI communication packet. In this sequence, byte 0 is the control byte, and specifies the operation to be performed as well as the device to be selected in a daisy-chain organization. The CID[3:0] is device ID for each CA-IS3980S in daisy chain. This field should be set to all zeros by the SPI master in non daisy-chained operation. Next, byte 1 specifies the address of the internal Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. 15 CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3980S SPI register to be accessed (read or write). If the write address provided does not correspond to a physically available internal register, no internal CA-IS3980S register update will occur in the SPI write operation; while if the read address provided does not correspond to a physically available internal register, all zeroes will be returned as the read value by the CA-IS3980S in the SPI read operation. The final byte, byte 2 in the packet consists of either the data to be written into the addressed CA-IS3980S SPI register (using MOSI), or the data read from the addressed CA-IS3980S SPI register (using MISO). Data is read from the status/configuration registers or written to the configuration registers MSB first for SPI communication. The serial clock (SCLK), which is generated by the microcontroller, is active only when NSS is low and during control byte, address and data transfer to any device on the SPI bus. Control byte, address and data bits are transferred in groups of eight, MSB first, this means each of the eight bits for this three byte communication packet is captured by the CA-IS3980S on eight adjacent rising edges of SCLK. If NSS goes high in the middle of a transmission (any time before the 8th bit), the sequence is aborted, the CA-IS3980S lost synchronization with host SPI and cause communication error. In this case, the target register value will not be changed. Every time NSS goes low, a new 8-bit stream is expected. (i.e., data does not get written to internal registers). However, if more than 8 bits data are clocked into the CA-IS3980S in the last byte, the target register data will be uncertain, need to rebuild synchronization with SPI host. Take NSS high and SPI host issue clock signal to rebuild SPI communication. The SCLK rising edge during NSS high will reset the internal SPI state machine and build synchronization between the CA-IS3980S and SPI host. After rebuilding communication with host, NSS goes low and the host issues 8 bits as the first byte (byte0) of the three serial bytes to initiate communication. Note that, after the synchronization operation, the first byte of SPI (byte0) must be transmitted to initiate communication. NSS SCLK Control[7:0] MOSI Byte 0 Address[7:0] Data[7:0] Byte 1 Byte 2 Figure 9-3. SPI Communication Protocol Table 9-5. SPI communication packet Control Byte 7 6 5 4 3 2 1 0 BRCT R/Wb 0 0 CID[0] CID[1] CID[2] CID[3] Address Byte 7 6 5 4 3 2 1 0 A[7] A[6] A[5] A[4] A[3] A[2] A[1] A[0] Data Byte 7 6 5 4 3 2 1 0 D[7] D[6] D[5] D[4] D[3] D[2] D[1] D[0] Table 9-6. Bit descriptions for the control byte Control Byte (byte 0) 16 BIT_7 BIT_6 BIT_5 BIT_4 BIT_3 BIT_2 BIT_1 BIT_0 BRCT R/Wb 0 0 CID[0] CID[1] CID[2] CID[3] 1 - broadcast (write) 0 – Write the addressed part only Note: the status of this bit is ignored if in read operation. 1 - read 0 - write Reserved Set to (0,0) CID[3:0] is daisy-chained device ID CID[3:0] = 0000 (CID[0:3] = 0000) in non daisy-chained operation. Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Shanghai Chipanalog Microelectronics Co., Ltd. Referring to Figure 9-3, in an SPI read operation the control byte will only have bit 6 set to a 1 in a single CA-S3980S device organization (no daisy chaining). Bit 7 (the broadcast bit) is ignored during a read operation since only one device may be read at a time in either a single or daisy-chained organization. The read data is provided during the final byte of the three byte read communication packet to the querying master SPI device through the MISO output, which remains tri-stated at all other times. In an SPI write operation, if the bit 7 (the broadcast bit) of control byte set to 1, during an SPI write operation, the broadcast bit forces all daisy-chained CA-IS3980S devices to update the designated internal SPI register with the supplied write data, regardless of the CA-IS3980S device being addressed using the CID[3:0] field of the control word. If the bit 7 of Byte 0 set to 0, only have the addressed CA-IS3980S device to update the internal register. The write data is provided by the SPI master during the final byte of the three byte write communication packet. The CA-IS3980S MISO output remains tri-stated during the entire SPI write operation. 9.4.3. SPI Daisy-Chaining For systems with more than eight sensor inputs, multiple CA-IS3980S devices can be daisy-chained to allow access to all data inputs through a single serial port. When using a daisy-chain configuration, connect MOSI of SPI master to MOSI of the first device CA-IS3980S[0] in the chain. Connect SPI master MISO to MISO pin of all CA-IS3980S devices in the chain. For all middle links, connect MOSI to MOSI_THRU of the previous device and MOSI_THRU to MOSI of the next device. NSS and SCLK of all devices in the chain should be connected together in parallel, see Figure 9-4 which illustrates a 128-inputs application for daisy-chaining. Each CA-IS3980S is assigned a device ID CID[3:0] which is corresponded bit 0 to bit 3 of the control byte, as the address in daisy chain, see Table 9-7 the device ID for each of CA-IS3980S device. All bits composing an SPI communication packet from the SPI master are passed directly through by the CA-IS3980S from the MOSI input to the MOSI_THRU output unchanged, except for the CID[3:0] field of the control byte. As this bit field is passed through the CA-IS3980S, it is decremented by one. When a given CA-IS3980S device in the daisy chain is presented with the CID[3:0] code of 0000, it is activated as the one to be addressed slave device, thereby enabling this device. After locking the addressed device, all remaining operations between the SPI master and the CA-IS3980S activated in this manner proceed as previously discussed in the SPI interface communication protocol above section for the case of a single CA-IS3980S slave. Please note that the SPI master placed the 4-bit device ID (CID [3:0]) in control word in reverse order, as shown in Table 9-7, CID[0] is placed at bit 3 and CID[3] placed at bit 0 of the control byte. When operating the addressing instruction, pay attention to the order of device ID code. Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. MOSI_THRU MISO NSS SCLK MISO NSS SCLK MOSI MOSI_THRU CA-IS3980S[15] MOSI MISO NSS SCLK MOSI CA-IS3980S[2] MOSI_THRU MISO NSS SCLK MOSI CA-IS3980S[1] MOSI_THRU MISO NSS SCLK MOSI CA-IS3980S[0] SPI Master Figure 9-4. SPI Daisy-Chaining Organization 17 CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Shanghai Chipanalog Microelectronics Co., Ltd. The CA-IS3980S device supports three kind of control command: broadcast write, only addressed part write, only addressed part read, see Table 9-8. During the daisy-chain write operation, if the broadcast bit is 0, only the CA-IS3980S device being addressed using the CID[3:0] field of the control byte in a daisy-chain will be updated. If the broadcast bit is 1 during a daisy-chain write operation, the CID[3:0] field is ignored, and all CA-IS3980S devices connected in a daisy chain will be updated. For example, in order to write to CA-IS3980S[12], the control byte would be: Control[7:0] = 00000011, here CID[3:0]=1100. Note that there is a delay time associated with passing the MOSI input pin of a given CA-IS3980S to the MOSI_THRU output pin. As a result, the maximum possible SCLK frequency will be reduced based on the number of devices connected in a daisy-chain. Table 9-7. Device ID for each of CA-IS3980S in the daisy-chain CAIS3980S[1] CAIS3980S[2] CAIS3980S[3] CAIS3980S[4] CAIS3980S[5] CAIS3980S[6] CAIS3980S[7] CID[3:0] CAIS3980S[0] 0000 0001 0010 0011 0100 0101 0110 0111 CID[0:3]1 0000 1000 0100 1100 0010 1010 0110 1110 Device ID CID[3:0] CAIS3980S[8] 1000 CAIS3980S[9] 1001 CAIS3980S[10] 1010 CAIS3980S[11] 1011 CAIS3980S[12] 1100 CAIS3980S[13] 1101 CAIS3980S[14] 1110 CAIS3980S[15] 1111 CID[0:3]1 0001 1001 0101 1101 0011 1011 0111 1111 Device ID Note: 1. CID[3:0] are dedicated to addressing one of up to 16 CA-IS3980S devices connected in a daisy chain. This four bit field is placed in the control word by the SPI master in reverse order, CID[0] is placed at bit 3 and CID[3] placed at bit 0 of the control byte. Table 9-8. Daisy-chain Operation Command Control Byte (Control[7:0]) Command BIT_7 BIT_6 BIT_5 BIT_4 BIT_3 BIT_2 BIT_1 BIT_0 BRCT R/Wb 0 0 CID[0] CID[1] CID[2] CID[3] Broadcast Write 1 0 0 0 0 0 0 0 Write CA-IS3980S[n] 0 0 0 0 Read CA-IS3980S[n] 0 1 0 0 CID[0:3] Note: CID[3:0] is the addressed device ID. 10. Application and Implementation The CA-IS398x devices are complete, isolated digital-input receivers with IEC 61131-2 Type 1, Type 2, and Type 3 characteristics, Figure 10-1 provides the input channel switching characteristics. These devices enable 24 V bipolar digital inputs to be connected to its input through a resistor divider network, see Figure 10-2 and Figure 10-3 the typical application circuits for the current sinking inputs and current sourcing inputs respectively. The digital inputs On/Off voltage thresholds at the device pin are fixed to VF(TH) and (VF(TH) – VHYS), see Electrical Characteristics for the typical threshold value. However the On/Off voltage thresholds of the field input are determined by the value of the resistor divider R1 and R2 placed between the field input and the device, and the input current IIN. Please see Table 10-1 for the recommended external resistors of Type 1, Type 2 and Type 3 sensors or switches based on 24 V DC PLC digital input types as defined by IEC 61131-2. 18 Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Shanghai Chipanalog Microelectronics Co., Ltd. Type 1 Type 2 30 Type 3 30 25 30 25 25 ON ON ON 20 20 15 15 15 VIN (V) VIN (V) VIN (V) 20 10 10 10 5 5 5 OFF 0 OFF 0 -3 OFF 0 5 IIN (mA) 10 15 OFF 0 -3 -3 0 5 10 15 IIN (mA) 20 25 30 0 5 10 15 IIN (mA) Figure 10-1. Switching Characteristics for IEC 61131-2 Type 1, 2, and 3 24VDC Digital Inputs Other digital voltage levels and characteristics can be implemented with simple modifications to the resistor divider network. Note that, the 2.2nF capacitor in Figure 10-2 and Figure 10-3 is used to filter noise on the high-speed channels only. For the low-speed channels, we do not recommend to use external RC filter at inputs because the capacitor will cause very high transient voltage under surge condition. The built-in debounce filters can be used to filter noise on the low-speed channels. Table 10-1. Recommended external components in the typical application circuit Resistor network Type 1 Type 2 Type 3 R1 2.4kΩ 390Ω 750Ω R2 6.2kΩ 1.5kΩ 2.7kΩ Note: These recommendations assume a resistor tolerance of 5%, it is highly recommended that a MELF resistor be used. Field Side μController R2 VD 2.2nF Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. Ax /AHx R1 Isolation Barrier VDD Sensor Switch 24V DC PLC PLC Digital Input Bx /BHx Input R3 D2 COM GND GND CA-IS398x Figure 10-2. Typical Application Circuit with Sinking Inputs 19 CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Shanghai Chipanalog Microelectronics Co., Ltd. PLC Digital Input Field Side PLC µController R1 2.2nF 24V DC Ax /AHx VD R2 Isolation Barrier VDD Bx /BHx Input R3 D2 COM Sensor Switch GND GND CA-IS398x Figure 10-3. Typical Application Circuit with Sourcing Inputs Designing high-channel count digital inputs modules require cascading multiple CA-IS3980S devices. Simply connect the serial output (MOSI_THRU) of a leading device with the serial input (MOSI) of a following device without changing the processor interface, see Figure 10-4 the typical application circuit, also refer SPI Daisy-Chaining section for more details about the daisy-chain operation. Ax /AHx COM MOSI_THRU MISO NSS SCLK GND VDD MISO NSS SCLK MISO MOSI_THRU CA-IS3980S[15] MOSI NSS SCLK MOSI GND VDD …… MOSI …… 24V DC COM Sensor Switch 24V DC CA-IS3980S[2] MOSI_THRU MISO NSS SCLK GND VDD MOSI_THRU MISO NSS SCLK GND MOSI Ax /AHx Ax /AHx CA-IS3980S[1] CA-IS3980S[0] VDD …… MOSI …… Sensor Switch 24V DC COM Sensor Switch 24V DC COM Ax /AHx Sensor Switch μController Figure 10-4. Typical Application Circuit with Daisy-Chaining To reduce ripple and the chance of introducing data errors, bypass VDD with at least 0.1μF low-ESR ceramic capacitors to GND. Place the bypass capacitor as close to the power supply input pin as possible. The PCB designer should keep the input/output traces as short as possible and keep signal paths low-inductance, avoid using vias. The area underneath the CAIS398x isolation barrier should be free from ground and signal planes. 20 Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. Shanghai Chipanalog Microelectronics Co., Ltd. 11. Package Information CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 SSOP20 Package Outline Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. 21 CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 12. Soldering Temperature (reflow) Profile Shanghai Chipanalog Microelectronics Co., Ltd. TP Max. Ramp Up Rate=3℃/s Temperature TL Tsmax tP TC-5℃ tL Preheat Area Tsmin ts 25℃ Time 25℃ to Peak Time Figure 12-1. Soldering Temperature (reflow) Profile Table 12-1. Soldering Temperature Parameter Profile Feature Average ramp-up rate(217˚C to Peak) Time of Preheat temp(from 150˚C to 200 ˚C Time to be maintained above 217˚C Peak temperature Time within 5 ˚C of actual peak temp Ramp-down rate Time from 25˚C to peak temp 22 Pb-Free Assembly 3˚C /second max 60-120 second 60-150 second 260 +5/-0 ˚C 30 second 6 ˚C /second max. 8 minutes max Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 Shanghai Chipanalog Microelectronics Co., Ltd. 13. Tape and Reel Information REEL DIMENSIONS TAPE DIMENSIONS Y0 B0 K0 W P1 Dimension designed to accommodate the component width Dimension designed to accommodate the component length Dimension designed to accommodate the component thickness Overall width of the carrier tape Pitch between successive cavity centers QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE *All dimensions are nominal. Device Package Type Package Drawing Pins SPQ CA-IS3980S CA-IS3980P CA-IS3988P SSOP SSOP SSOP Y Y Y 20 20 20 2500 2500 2500 Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. Reel Diameter (mm) 330 330 330 Reel Width W1 (mm) A0 (mm) B0 (mm) K0 (mm) P1 (mm) W (mm) 16.4 16.4 16.4 6.50 6.50 6.50 9.40 9.40 9.40 2.00 2.00 2.00 8.00 8.00 8.00 16.00 16.00 16.00 Pin1 Quadran t Q1 Q1 Q1 23 CA-IS3980, CA-IS3988 Version 1.05, 2023/05/22 14. Important statement Shanghai Chipanalog Microelectronics Co., Ltd. The above information is for reference only and used for helping Chipanalog customers with design, research and development. Chipanalog reserves the rights to change the above information due to technological innovation without advance notice. All Chipanalog products pass ex-factory test. As for specific practical applications, customers need to be responsible for evaluating and determining whether the products are applicable or not by themselves. Chipanalog's authorization for customers to use the resources are only limited to development of the related applications of the Chipanalog products. In addition to this, the resources cannot be copied or shown, and Chipanalog is not responsible for any claims, compensations, costs, losses, liabilities and the like arising from the use of the resources. Trademark information Chipanalog Inc.® and Chipanalog® are registered trademarks of Chipanalog. http://www.chipanalog.com 24 Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd.
