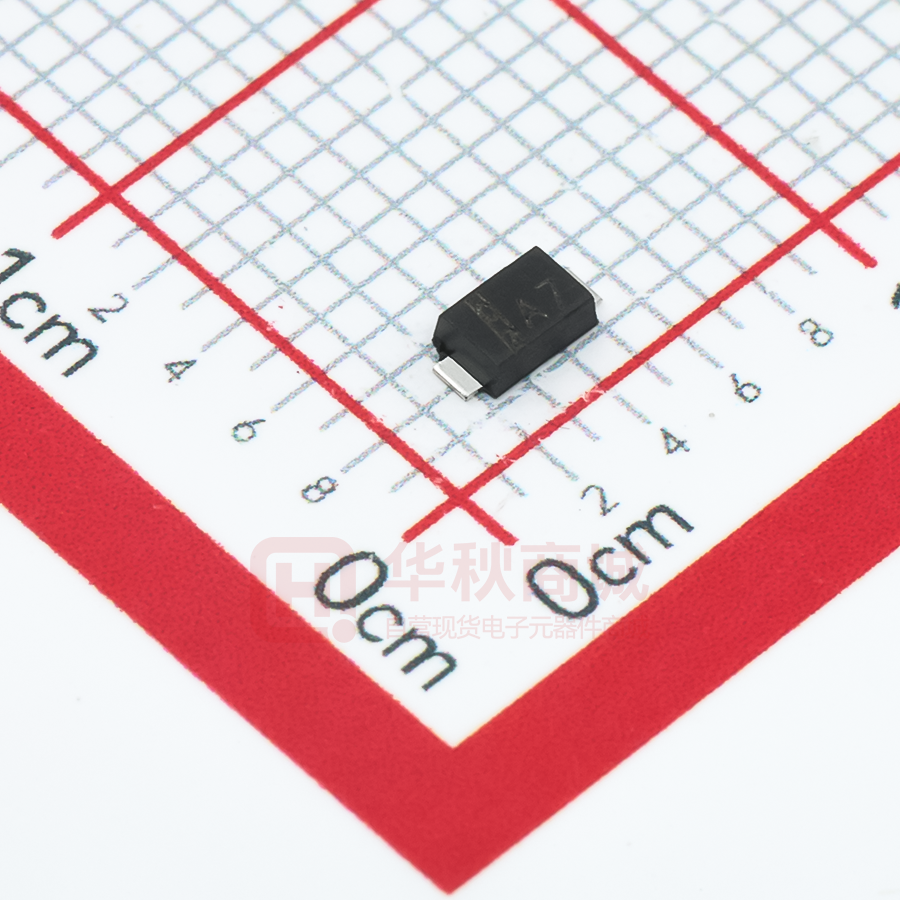

1N4007W 42MIL

1N4007W Surface Mount General Purpose Silicon Rectifiers Forward Current - 1 A FEATURES ▪For surface mounted applications ▪Low profile package ▪Glass Passivated Chip Junction ▪Ideal for automated placement ▪Lead free in comply with EU RoHS 2011/65/EU directives PINNING PIN DESCRIPTION 1 Cathode 2 Anode 1 2 Top View Simplified outline SOD-123FL and symbol MECHANICAL DATA ▪Case: SOD-123FL ▪Terminals: Solderable per MIL-STD-750, Method 2026 ▪Approx. Weight: 15mg / 0.00053oz Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols 1N4007W Units Maximum Repetitive Peak Reverse Voltage V RRM 1000 V Maximum RMS voltage V RMS 700 V Maximum DC Blocking Voltage V DC 1000 V Maximum Average Forward Rectified Current at T c = 125 °C I F(AV) 1 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 30 A Maximum Instantaneous Forward Voltage at 1 A VF 1.1 V IR 5 50 μA Cj 8(TYP.) pF RθJA 90 °C/W T j , T stg -55 ~ +150 °C Parameter Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Typical Junction Capacitance Typical Thermal Resistance （1） （2） Operating and Storage Temperature Range （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. www.yongyutai.com PAGE 1 1N4007W Fig.2 Typical Instaneous Reverse Characteristics Average Forward Current (A) 1.2 1.0 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current ( μ A) Fig.1 Forward Current Derating Curve 100 T J=150°C T J=125°C 10 1.0 T J=75°C 0.1 T J =25°C 1N4007W 0.01 0 Junction Capacitance ( pF) 1.0 TJ = 2 5° C TJ = 10 15 0°C 0°C 0.5 TJ = Instaneous Forward Current (A) 800 Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 0.9 600 Instaneous Reverse Voltage (V) Case Temperature (°C) 0.8 400 200 0.2 100 T J=25°C 10 1 0.1 0.5 0.6 0.7 1.0 1.1 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surage Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 35 30 25 20 15 10 05 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles www.yongyutai.com PAGE 2 1N4007W PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-123FL ∠ALL ROUND C A ∠ALL ROUND VM D E A g Top View mil Bottom View A C D E e g HE max 1.1 0.20 2.9 1.9 1.1 0.9 3.8 min 0.9 0.12 2.6 1.7 0.8 0.7 3.5 max 43 7.9 114 75 43 35 150 min 35 4.7 102 67 31 28 138 UNIT mm g pad e E A pad HE ∠ 7° The recommended mounting pad size 2.0 (79) 1.2 (47) 1.2 (47) 1.2 (47) Unit： mm (mil) www.yongyutai.com PAGE 3
