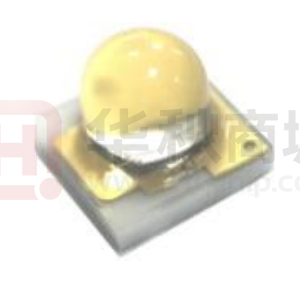

IN-C33(X)TL(X) Series 3535 High Power LED Features Description • 3535 High Power LED The IN-C33(X)TL(X) is a high-power LED. It is a SMD • ROHS and REACH Compliant • MSL3 qualified according to J-STD 020 • ESD 2KV type LED which can be used in various applications. Applications • Portable lighting • Indoor/ Outdoor lighting • Commercial lighting • Industrial lighting Outline 60D 120D 90D 3.5x3.5x2.8 3.5x3.5x2.0 3.5x3.5x2.34 IN-C33BTL(X) IN-C33CTL(X) IN-C33ETL(X) Recommended Solder Pattern (Suggest Stencil t=0.12 mm) Recommended PCB Solder PAD Recommended Stencil Pattern(Hatched Area is Opening) Figure 1. IN-C33(X)TL(X) Recommended Solder Pattern *Note: All dimensions are in mm, tolerance is ±0.13mm Inolux Corporation Proprietary & Confidential Page 1 June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED Package Dimensions (All dimensions are in mm, tolerance is ±0.13mm) IN-C33BTL(X) IN-C33ETL(X) IN-C33CTL(X) Figure 2. IN-C33(X)TL(X) Series Package Dimension Inolux Corporation Proprietary & Confidential Page 2 June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED Absolute Maximum Rating( Ta=25oC) Characteristics Symbol Min. Typical Max. Unit 350 700 mA 1000 mA DC Forward Current1 IF Pulse Forward Current2 IPF Forward Voltage - Blue/Green/ Royal Blue VF 2.8 3.8 V Forward Voltage - Red/ Yellow/ Amber/ Deep Red VF 1.4 2.8 V Reverse Voltage VR Leakage Current (5V) IR Junction Temperature3 Tj Storage Temperature Range Tstg Soldering Temperature Tsol Thermal Resistance Junction / Solder Point Rth Viewing Angle 2θ1/2 -5 V 10 ℃ 115 -40 - 100 8 60/90/120 ℃ ℃ 260 6 μA 12 ℃/W Deg Notes 1. For other ambient, limited setting of current will depend on de-rating curves. 2. D=0.01s duty 1/10. 3. When drive on maximum current , Tj must be kept below 115℃ 4. Viewing angle(2θ1/2) ±10° ESD Precaution ATTENTION: Electrostatic Discharge (ESD) protection The symbol above denotes that ESD precaution is needed. ESD protection for GaP and AlGaAs based chips is necessary even though they are relatively safe in the presence of low static-electric discharge. Parts built with AlInGaP, GaN, or/and InGaN based chips are STATIC SENSITIVE devices. ESD precaution must be taken during design and assembly. If manual work or processing is needed, please ensure the device is adequately protected from ESD during the process. Please be advised that normal static precautions should be taken in the handling and assembly of this device to prevent damage or degradation which may be induced by electrostatic discharge (ESD). Inolux Corporation Proprietary & Confidential Page 3 June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED Electronic-Optical Characteristics Spectrum Distribution Forward Current VS. Forward Voltage (Ta=25℃) Relative luminous Flux vs. Forward Current (Ta=25℃) (Blue/ Green / Royal Blue) (Blue/ Green / Royal Blue) Forward Current VS. Forward Voltage (Ta=25℃) Relative luminous Flux vs. Forward Current (Ta=25℃) (Red/ Yellow / Deep Red) (Red/ Amber / Deep Red) Inolux Corporation Proprietary & Confidential Page 4 June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED Typical Spatial Distribution Product List Part Number IN-C33(X)TLB IN-C33(X)TLG IN-C33(X)TLR IN-C33(X)TLY IN-C33(X)TLDR IN-C33(X)TLRB IN-C33(X)TLA Color Blue Green Red Yellow Deep Red Royal Blue Amber Luminous Flux (lm@350mA) Min Max 25 35 90 110 40 60 50 70 15 30 15 30 45 75 Wavelength (nm) 460-470 515-535 620-630 585-595 650-670 450-460 600-610 Forward Voltage (V) Min 2.8 3.0 1.8 1.8 1.4 2.8 1.8 Max 3.6 3.6 2.6 2.6 2.6 3.6 2.8 Bin Code information ■Forward Voltage Binning Bin Code (@350mA) Min. VF(V) Max. VF(V) V14 1.4 1.6 V16 1.6 1.8 V18 1.8 2.0 V20 2.0 2.2 V22 2.2 2.4 V24 2.4 2.6 V26 2.6 2.8 V28 2.8 3.0 V30 3.0 3.2 V32 3.2 3.4 V34 3.4 3.6 V36 3.6 3.8 Inolux Corporation Proprietary & Confidential Page 5 June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED ■Flux Binning Color Blue Green Red Yellow Deep Red Royal Blue Amber Luminous Flux (lm@350mA) Group Min Max B15 15 20 B20 20 25 B25 25 30 G80 80 90 G90 90 100 GH1 100 110 R40 40 45 R45 45 50 R50 50 55 R55 55 60 Y50 50 55 Y55 55 60 Y60 60 65 Y65 65 70 R15 15 20 R20 20 25 R25 25 30 B15 15 20 B20 20 25 B25 25 30 A45 45 50 A50 50 55 A55 55 60 A60 60 65 A65 65 70 A70 70 75 Note: 1. Tolerance of luminous flux (Φv) ±5%. Inolux Corporation Proprietary & Confidential Page 6 June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED ■Wavelength Binning Color Wavelength (Wd nm@350mA) Group Min Max B1 460 465 B2 465 470 G1 515 520 G2 520 525 G3 525 530 G4 530 535 R1 620 625 R2 625 630 Y1 585 590 Y2 590 595 DR1 650 660 DR2 660 670 RB1 450 455 RB2 455 460 A1 600 605 A2 605 610 Blue Green Red Yellow Deep Red Royal Blue Amber Note: 1. Tolerance of Wavelength ±nm. 2. Wavelength of Deep Red is meaning peak wavelength only. Inolux Corporation Proprietary & Confidential Page 7 June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED Ordering Information Orderable Part Number Luminous Flux Color Angle (lm@350mA) Min Max 60 25 35 90 25 IN-C33CTLB 120 IN-C33BTLG Wavelength (nm) Forward Voltage (V) Min Max 460-470 2.8 3.6 35 460-470 2.8 3.6 25 35 460-470 2.8 3.6 60 90 110 515-535 3.0 3.6 90 90 110 515-535 3.0 3.6 IN-C33CTLG 120 90 110 515-535 3.0 3.6 IN-C33BTLR 60 40 60 620-630 1.8 2.6 90 40 60 620-630 1.8 2.6 IN-C33CTLR 120 40 60 620-630 1.8 2.6 IN-C33BTLY 60 50 70 585-595 1.8 2.6 90 50 70 585-595 1.8 2.6 IN-C33CTLY 120 50 70 585-595 1.8 2.6 IN-C33BTLDR 60 15 30 650-670 1.4 2.6 90 15 30 650-670 1.4 2.6 IN-C33CTLDR 120 15 30 650-670 1.4 2.6 IN-C33BTLRB 60 15 30 450-460 2.8 3.6 90 15 30 450-460 2.8 3.6 IN-C33CTLRB 120 15 30 450-460 2.8 3.6 IN-C33BTLA 60 45 75 600-610 1.8 2.8 90 45 75 600-610 1.8 2.8 120 45 75 600-610 1.8 2.8 IN-C33BTLB IN-C33ETLB IN-C33ETLG IN-C33ETLR IN-C33ETLY IN-C33ETLDR IN-C33ETLRB IN-C33ETLA IN-C33CTLA Inolux Corporation Proprietary & Confidential Blue Green Red Yellow Deep Red Royal Blue Amber Page 8 June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED Label Specifications Inolux P/N: I N - C 3 Material C= Ceramic Type Inolux SMD 3 Package (X) T L Variation Orientation Current 33B = 3.5 x 3.5, 60 Deg. 33C = 3.5 x 3.5, 120 Deg. 33E = 3.5 x 3.5, 90 Deg. T = Top Mount L= 350mA (X) Lens Color (Blank) = Clear B = 470nm G = 520nm R = 630nm Y = 590nm DR = 660nm RB = 450nm A = 605nm - X X X X Customized Stamp-off Lot No.: Z Internal Tracker Inolux Corporation Proprietary & Confidential 2 0 1 7 Year (2017, 2018, …..) Page 9 01 24 001 Month Date Serial June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED Reflow Soldering Soldering Iron Basic Spec is ≦ 4 sec. when 260°C (+10°C ➔ -1 second). Power dissipation of Iron should be less than 15W. Surface temperature should be under 230°C Rework Rework should be completed within 4 second under 245°C Notes 1. Do not stress the silicone resin while it is exposed to high temperature. 2. The number of reflow process should not exceed 3 times. Inolux Corporation Proprietary & Confidential Page 10 June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED Packing Inolux Corporation Proprietary & Confidential Page 11 June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED Notes: 1. Each Reel (minimum number of pieces is 100 and maximum is 500 (60D)/1000 (120D) is packed in a moisture-proof bag along with 2 packs of desiccant and a humidity indicator card; 2. A maximum of 5 moisture-proof bags are packed in an inner box (size: 240mm x 200mm x 105mm ± 5mm) 3. A maximum of 4 inner boxes are put in an outer box (size: 410mm x 255mm x 230mm ± 5mm) 4. Part No., Lot No., quantity should be indicated on the label of the moisture-proof bag and the cardboard box. Inolux Corporation Proprietary & Confidential Page 12 June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED Precautions 1. Recommendation for using LEDs 1.1 The lens of LEDs should not be exposed to dust or debris. Excessive dust and debris may cause a drastic decrease in the luminosity. 1.2 Avoid mechanical stress on LED lens. 1.3 Do not touch the LED lens surface. It would affect the optical performance of the LED due to the LED lens’ damage. 1.4 Pick & place tools are recommended for the remove of LEDs from the factory tape & reel packaging 2. Pick & place nozzle The pickup tool was recommended and shown as below 3. Lens handling Please follow the guideline to pick LEDs 3.1 Use tweezers to pick LEDs 3.2 Do not touch the lens by using tweezers 3.3 Do not touch lens with fingers 3.4 Do not apply more than 4N of lens (400g) directly onto the lens 4. Lens cleaning In the case which a small amount of dirt and dust particles remain on the lens surface, a suitable cleaning solution can be applied. 4.1 Try a gentle wiping with dust-free cloth 4.2 If needed, use dust-free cloth and isopropyl alcohol to gently clean the dirt from the lens surface. 4.3 Do not use other solvents as they may directly react with the LED assembly 4.4 Do not use ultrasonic cleaning which will damage the LEDs Inolux Corporation Proprietary & Confidential Page 13 June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED Test Items and Results of Reliability Test Item Duration/ Number of Cycle Damage ↑↓5min 125℃ 30min 100 cycles 0/22 Ta=100℃ 1000 hrs 0/22 1000 hrs 0/22 1000 hrs 0/22 1000 hrs 0/22 1000 hrs 0/22 1000 hrs 0/22 3 Times 0/22 Test Conditions Reference –40℃ 30min Thermal Shock High Temperature Storage Humidity Heat Storage Ta=85℃ RH=85% Low Temperature Storage Ta=-40℃ Life Test High Humidity Heat Life Test High Temperature Life Ta=25℃ If=350mA 85℃ RH=85% If=350mA Ta=85℃ Test ESD(HBM) 2KV at 1.5kΩ;100pf AECQ101 EIAJ ED-4701 200 201 EIAJ ED-4701 100 103 EIAJ ED-4701 200 202 Tested with Inolux standard Tested with Inolux standard Tested with Inolux standard MIL-STD-883 Criteria for Judging the Damage Item Symbol Condition Forward Voltage VF If=350mA Reverse Current IR VR =5V Luminous Intensity Iv If=350mA Criteria for Judgment Min Max - USL1 ×1.1 - 100μA LSL2 ×0.7 - Notes: 1. USL: Upper specification level 2. LSL: Lower specification level Inolux Corporation Proprietary & Confidential Page 14 June 19, 2021 www.inolux-corp.com IN-C33(X)TL(X) Series 3535 High Power LED Revision History Changes since last revision Initial Release Revise Format Revise the Drawing Page 4 Version No. 1.0 1.1 1.2 Revision Date 04-17-2018 10-18-2018 06-19-2021 DISCLAIMER INOLUX reserves the right to make changes without further notice to any products herein to improve reliability, function or design. INOLUX does not assume any liability arising out of the application or use of any product or circuit described herein; neither does it convey any license under its patent rights, nor the rights of others. LIFE SUPPORT POLICY INOLUX’s products are not authorized for use as critical components in life support devices or systems without the express written approval of the President of INOLUX or INOLUX CORPORATION. As used herein: 1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury of the user. 2. A critical component in any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness. Inolux Corporation Proprietary & Confidential Page 15 June 19, 2021 www.inolux-corp.com
