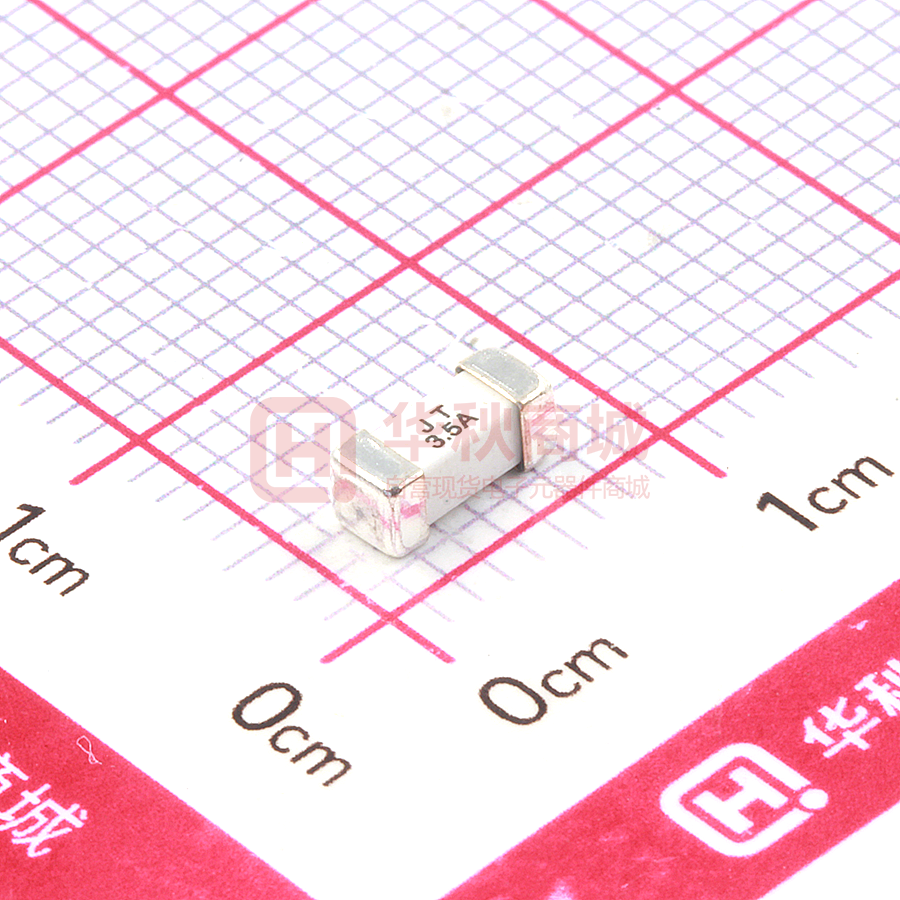

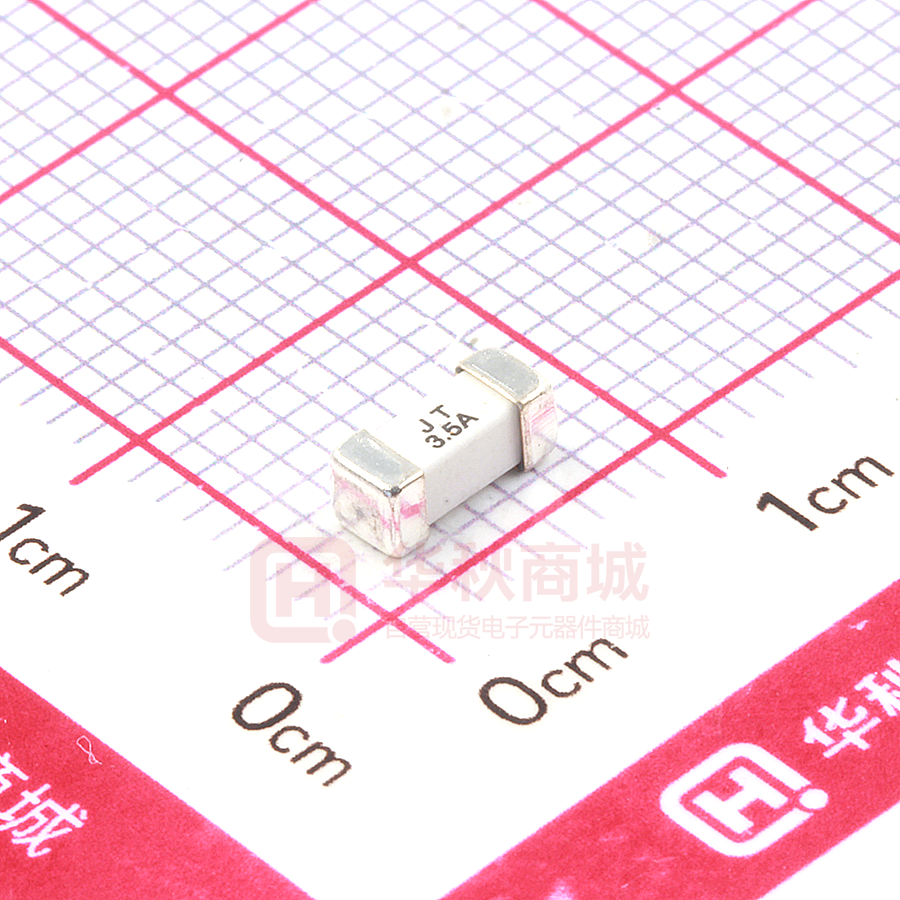

JFC2410-1350TS

PRODUCT DATASHEET Surface Mount Fuse JFC2410TS TIME-LAG FUSE JFC2410TS TIME-LAG FUSE Descriptions JFC2410TS series are time-lag square Surface Mount fuses are ceramic tube/end cap constructions, RoHS compliant, Halogen Free and lead(Pb) exempts of the requirements of RoHS Directive(2002/95/EC), with U.S. (UL/CSA) safety agency approvals. Provide board level primary and secondary circuit protection in a wide variety of applications. With excellent inrush current withstanding capability, excellent reliability for thermal and mechanic shock, also have a high reliability and stable solder ability, end caps are available in gold/silver/nickel plated. Applications Agency Approvals AGENCY FILE NUMBER AGENCY E486200 ● ● ● ● ● ● ● ● ● ● LED lighting Notebook PC Battery devices LCD/PDP devices LCD backlight in verter Portable Device Power supply Networking devices PC server Cooling fan system ● ● ● ● ● ● ● ● ● ● ● Storage system Telecom system Wireless base station White goods Game console Digital camera Office equipment Digital camera Automotive devices Medical equipment Industrial equipment Features ● ● ● ● ● ● ● ● Time-Lag RoHS compliant Conflict free metals Small size (6.1mm*2.5mm) Wide range of current rating available Wide operating temperature range Low temperature de-rating Tape and Reel for automatic placement Electrical Characteristics ● Pre-Arcing Time / Current Characteristics: % of Ampere Rating(In) JDT FUSE Industrial Co., Ltd www.jdtfuse.com Opening Time 100%*In 4 hours Min 200%*In 60 sec Max 1000%*In 10ms Min Page 1/6 Revised 01/17/22 JFC2410TS TIME-LAG FUSE Performance Specification Part Number Rated Current (A) JFC2410-0062TS Nominal Cold Resistance (mΩ) Nominal Melting I2t (A2sec) 0.062 5645 0.00028 JFC2410-0100TS 0.10 3136 0.0404 JFC2410-0160TS 0.16 2295 0.0638 JFC2410-0200TS 0.20 1646 0.0682 JFC2410-0250TS 0.25 1446 0.0715 JFC2410-0300TS 0.30 847 0.2101 JFC2410-0315TS 0.315 646 0.2222 JFC2410-0375TS 0.375 608 0.3630 JFC2410-0400TS 0.40 577 0.4089 JFC2410-0500TS 0.50 316 0.520 JFC2410-0600TS 0.60 263 0.852 JFC2410-0630TS 0.63 252 1.085 JFC2410-0700TS 0.70 50A@250V 226 2.315 JFC2410-0750TS 0.75 100A@125V 224 2.464 JFC2410-0800TS 0.80 201 2.618 JFC2410-1100TS 1.00 126 4.059 JFC2410-1125TS 1.25 90.2 4.136 JFC2410-1150TS 1.50 83.8 7.441 JFC2410-1160TS 1.60 72.3 7.485 JFC2410-1200TS 2.00 35.6 13.365 JFC2410-1250TS 2.50 33.2 17.627 JFC2410-1300TS 3.00 24.5 23.716 JFC2410-1315TS 3.15 24.7 28.325 JFC2410-1350TS 3.50 22.1 33.055 JFC2410-1400TS 4.00 18.2 47.528 JFC2410-1500TS 5.00 12.5 60.775 JFC2410-1600TS 6.00 10.2 82.769 JFC2410-1630TS 6.30 9.15 102.905 JFC2410-1700TS 7.00 8.63 106.832 JFC2410-1800TS 8.00 7.33 119.625 JFC2410-2100TS 10.0 6.48 130.218 JFC2410-2120TS 12.0 4.36 154.088 JFC2410-2150TS 15.0 2.86 231.748 JFC2410-2160TS 16.0 2.68 236.775 JFC2410-2200TS 20.0 1.88 393.888 JFC2410-2250TS 25.0 1.36 511.687 JFC2410-2300TS 30.0 1.22 1088.615 JFC2410-2400TS 40.0 1.13 1155.858 JDT FUSE Industrial Co., Ltd www.jdtfuse.com Max Voltage Rating(V) 250V 125V 72V 63V Interrupting Rating 100A@125V 500A@72V 500A@63V Page 2/6 Revised 01/17/22 JFC2410TS TIME-LAG FUSE Dimensions and Structure ● Outline Drawing and dimensions (unit : mm) 2.5±0.1 1.4±0.1 3.0±0.3 2.5±0.1 6.10 ± .20 8.0±0.3 ① Cap 3.0±0.3 2.5±0.3 ② Ceramic tube Recommended pad layout ● Material Details： NO. Component ① End caps ② Body ③ Fuse element Material Au Plated Brass Cap Non-Transparent Square Ceramic Tube Cu-Ag Alloy wire Product Characteristics No. Item 1 Insulation Resistance 2 Solderability 3 Resistance to Soldering Heat 10 sec at 260°C MIL-STD-202G, Method 210F Test Condition B 4 Thermal Shock 5 cycles, -65°C to +125°C, 15minutes @each extreme MIL-STD-202G, Method 107G Test Condition B 5 Mechanical Shock 100G’s peak for 6 milliseconds, 3 cycles MIL-STD-202G, Method 213B Test 1 6 Vibration 0.03” amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrs MIL-STD-202G, Method 201A 7 Moisture Resistance 10 cycles MIL-STD-202G, Method 106G 8 Salt Spray 5% salt solution,48hrs MIL-STD-202G, Method 101E Test Condition B -55°C to +125°C IEC60068-2-1/2 9 Operating Temperature JDT FUSE Industrial Co., Ltd www.jdtfuse.com   Contain 10,000 ohms minimum T=240°C±5°C, t=5+0/-0.5s, Cover≥95% Reference standard MIL-STD-202G, Method 302 Test ConditionA MIL-STD-202G, Method 208H Page 3/6 Revised 01/17/22 JFC2410TS TIME-LAG FUSE Environmental Characteristic ● Company operating temperature of the environment more than 25+/-5℃, in the selection of fuse specifications, it needs to consider the impact of the operating environment of the temperature fuse. Photo: temperature derating curve. Temperature Rerating Curve 100 0.062A 0.10A 0.16A 0.20A 0.25A 0.30A 0.315A 0.375A 0.40A 0.5A 0.6A 0.63A 0.70A 0.75A 0.80A 1A 1.25A 1.5A 1.6A 2.0A 2.5A 3.0A 3.15A 3.5A 4A 5A 6A 6.3A 7A 8A 10A 12A 15A 16A 20A 25A 30A 40A Average Time-Current Curve Test TIME IN SECONDS 10 1 0.1 0.01 0.001 0.1 1 10 100 1000 CURRENT IN AMPERES Recommended Soldering Parameters tp TP Ramp-up Critical Zone TL to TP TL Reflow Condition Average ramp-up rate(Ts(max)to Tp) tL Temperature Min (Ts(min)) Temperature (°C ) Ts(max) Preheat Ts(min) 25 Ramp-down Preheat Temperature Max (Ts(max)) Soldering Method Parameter Solder paste process Reflow solder Hand-Solder Solder Pot Temperature 260°C max Solder Dwell Time 5 seconds max 150°C 200°C 60~120 seconds Temperature (TL) 220°C Time Max (tL) 60 seconds Peak Temperature (Tp) 260°C max Ramp-down Rate 5°C/second max Time 25°C to peak Temperature(Tp) 8 minutes max Reflow Time 5°C/second max. Time (Min to Max)(ts) ts time to peak temperature （t 25°C to peak） Pb-Free assembly Solder Iron Temperature 300±5°C max Heating Time JDT FUSE Industrial Co., Ltd www.jdtfuse.com 1-2 s max Page 4/6 Revised 01/17/22 JFC2410TS TIME-LAG FUSE Packing Quantity &Packaging Code No. 1500 fuses/reel JFC2410TS (12mm tape-and-reel on a 7 inch (178mm) reel per EIA Standard 481) D=φ21±0.20 C=φ13±0.20 E=2.2±0.20 Wp=14.5±0.20 08 06 04 B=φ6000±0.50 02 02 04 06 08 W1=12.5±0.20 A=φ178.00±0.10 Item A B C D E W1 W2 Spec.(mm) 178±0.10 60±0.50 13±0.20 21±0.20 2.2±0.20 12.5±0.20 14.5±0.20 P0 D0 P2 t P1 E 5°(MAX) F W B0 K0 D1 A0 5° Item A0 B0 D0 D1 E F Spec.(mm) 2.70±0.10 6.4±0.10 1.5±0.10 1.50±0.25 1.75±0.10 5.50±0.10 Item K0 P0 P1 P2 W t Spec.(mm) 2.70±0.10 4.00±0.10 4.00±0.10 2.0±0.10 12.00±0.15 0.25±0.05 JDT FUSE Industrial Co., Ltd www.jdtfuse.com Page 5/6 Revised 01/17/22 JFC2410TS TIME-LAG FUSE Part Numbering JF C 2410 - xxxx T S S=SMD T=Time-Lag Rated Current 2410 Series C=Ceramic JF=JDT Fuse OTHERS ● If in use beyond the requirements of the specifications, must pass through the mutual confirmation ! ● If the specification is not appropriate, must through consultation between the two sides and by the company to modify. ● It could be in conformance with another file which made by our company. JDT FUSE Industrial Co., Ltd www.jdtfuse.com Page 6/6 Revised 01/17/22
