LCB CRBP.01
DATASHEET
LCB CRBP.01
Datasheet
Published by ams-OSRAM AG
Tobelbader Strasse 30, 8141 Premstaetten, Austria
Phone +43 3136 500-0
ams-osram.com
© All
reserved
| Version
1.1 | 2023-02-01
1 rights
LCB CRBP.01
DATASHEET

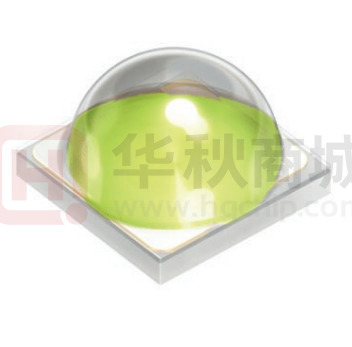

OSLON® Signal
LCB CRBP.01
The OSLON® Signal combines a compact form factor with high
efficiency and electrically insulated thermal pad. The square
package matches the optical center with the mechanical center.
This provides easy clustering flexibility and high packing density
for a maximum flux density.
The color bins are defined for best fit to most signaling norms.
Applications
- Dynamic Signaling
Features
- Package: SMD ceramic package with silicone lens
- Chip technology: UX:3
- Typ. Radiation: 120°
- Color: Cx = 0.16, Cy = 0.12 acc. to CIE 1931 (● converted blue)
- Corrosion Robustness Class: 3B
- ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
- Bipolar, back to back (B2B) ESD: Minimum reverse voltage 5V
2 | Version 1.1 | 2023-02-01
LCB CRBP.01
DATASHEET
Ordering Information
Type
Luminous Flux 1)
IF = 350 mA
ΦV
LCB CRBP.01-KXLX-3B6B-Y474
3 | Version 1.1 | 2023-02-01
71.0 ... 130.0 lm
Ordering Code
Q65113A4672
LCB CRBP.01
DATASHEET
Maximum Ratings
Parameter
Symbol
Operating Temperature
Top
min.
max.
-40 °C
125 °C
Storage Temperature
Tstg
min.
max.
-40 °C
125 °C
Junction Temperature
Tj
max.
150 °C
Junction Temperature for short time applications*
Tj
max.
175 °C
Forward current
TS = 25 °C
IF
min.
max.
30 mA
1000 mA
Surge current
t ≤ 10 µs; D = 0.005 ; TS = 25 °C
IFS
max.
2000 mA
ESD withstand voltage
acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
VESD
* The median lifetime (L70/B50) for Tj = 175°C is 100h.
4 | Version 1.1 | 2023-02-01
Values
8 kV
LCB CRBP.01
DATASHEET
Characteristics
IF = 350 mA; TS = 25 °C
Parameter
Symbol
Chromaticity Coordinate 2)
Cx
Cy
typ.
typ.
0.16
0.12
Viewing angle at 50% IV
2φ
typ.
125 °
Forward Voltage 3)
IF = 350 mA
VF
min.
typ.
max.
2.65 V
2.90 V
3.25 V
Reverse voltage (ESD device)
VR ESD
min.
5V
Reverse voltage
IR = 5 mA
VR
max.
7V
Real thermal resistance junction/solderpoint 5)
RthJS real
typ.
max.
9.4 K / W
11.2 K / W
Electrical thermal resistance junction/solderpoint 5)
with efficiency ηe = 62.4 %
RthJS elec.
typ.
max.
3.5 K / W
4.2 K / W
4)
5 | Version 1.1 | 2023-02-01
Values
LCB CRBP.01
DATASHEET
Brightness Groups
Group
Luminous Flux 1)
IF = 350 mA
min.
ΦV
Luminous Flux 1)
IF = 350 mA
max.
ΦV
Luminous Intensity 6)
IF = 350 mA
typ.
Iv
KX
71.0 lm
82.0 lm
22.3 cd
KY
82.0 lm
97.0 lm
26.1 cd
KZ
97.0 lm
112.0 lm
30.5 cd
LX
112.0 lm
130.0 lm
35.3 cd
Forward Voltage Groups
Group
Forward Voltage 3)
IF = 350 mA
min.
VF
Forward Voltage 3)
IF = 350 mA
max.
VF
Y4
2.65 V
2.85 V
34
2.85 V
3.05 V
74
3.05 V
3.25 V
6 | Version 1.1 | 2023-02-01
LCB CRBP.01
DATASHEET
Chromaticity Coordinate Groups
Chromaticity Coordinate Groups
Group
Cx
Cy
Group
Cx
Cy
3B
0.1297
0.0503
5B
0.1096
0.0868
0.1748
0.1131
0.1743
0.1581
0.1750
0.0985
0.1746
0.1369
0.1355
0.0399
0.1195
0.0688
0.1195
0.0688
0.0969
0.1099
0.1746
0.1369
0.1740
0.1827
0.1748
0.1131
0.1743
0.1581
0.1297
0.0503
0.1096
0.0868
4B
7 | Version 1.1 | 2023-02-01
6B
LCB CRBP.01
DATASHEET
Group Name on Label
Example: KX-3B-34
Brightness
Color Chromaticity
KX
3B
8 | Version 1.1 | 2023-02-01
Forward Voltage
34
LCB CRBP.01
DATASHEET
Relative Spectral Emission
6)
Φrel = f (λ); IF = 350 mA; TS = 25 °C
Φrel
LCB CRBP.01
1,0
: Vλ
: converted blue
0,8
0,6
0,4
0,2
0,0
350
400
Radiation Characteristics
450
500
550
600
650
700
750
800
λ / nm
6)
Irel = f (ϕ); TS = 25 °C
LCB CRBP.01
ϕ/°
-40°
-50°
-20°
-10°
0° 10° 20° 30° 40° 50° 60° 70° 80° 90°
1,0
-30°
0,8
0,6
-60°
-70°
0,4
-80°
0,2
-90°
0,0
-100°
9 | Version 1.1 | 2023-02-01
Irel
LCB CRBP.01
DATASHEET
Forward current
Relative Luminous Flux
6)
IF = f(VF); TS = 25 °C
IF / mA
6),
7)
Φv/Φv(350 mA) = f(IF); TS = 25 °C
LCB CRBP.01
1000
ΦV
LCB CRBP.01
2,5
ΦV(350mA)
2,0
800
1,5
600
1,0
400
0,5
200
Chromaticity Coordinate Shift
6)
ΔCx, ΔCy = f(IF); TS = 25 °C
∆Cx
∆Cy
LCB CRBP.01
0,03
: ∆ Cx
: ∆ Cy
0,02
0,01
0,00
-0,01
-0,02
10
00
80
0
60
0
40
0
20
0
30
-0,03
IF / mA
10 | Version 1.1 | 2023-02-01
10
00
80
0
3,2 3,3
VF / V
60
0
3,0
40
0
2,8
20
0
30
2,6
30
0,0
IF / mA
LCB CRBP.01
DATASHEET
Forward Voltage
Relative Luminous Flux
6)
ΔVF = VF - VF(25 °C) = f(Tj); IF = 350 mA
∆VF / V
0,15
6)
Φv/Φv(25 °C) = f(Tj); IF = 350 mA
LCB CRBP.01
Φv
1,10
LCB CRBP.01
Φv(25°C)
1,05
0,10
1,00
0,05
0,95
0,00
0,90
-0,05
0,85
-0,10
0,80
-0,15
0,75
-0,20
-40 -20 0 20 40 60 80 100120140
Tj / °C
0,70
-40 -20 0 20 40 60 80 100120140
Tj / °C
Chromaticity Coordinate Shift
6)
ΔCx, ΔCy = f(Tj); IF = 350 mA
∆Cx
∆Cy
0,03
0,02
0,01
LCB CRBP.01
: ∆ Cx
: ∆ Cy
0,00
-0,01
-0,02
-0,03
-40 -20 0 20 40 60 80 100120140
Tj / °C
11 | Version 1.1 | 2023-02-01
LCB CRBP.01
DATASHEET
Max. Permissible Forward Current
IF = f(T)
IF / mA
LCB CRBP.01
1100
1000
900
800
700
600
500
400
300
200
100
0
Don't use below 30 mA
0
20
40
60
80
100
120
Ts / °C
Permissible Pulse Handling Capability
Permissible Pulse Handling Capability
IF = f(tp); D: Duty cycle; TS = 25 °C
IF = f(tp); D: Duty cycle; TS = 85 °C
LCB CRBP.01
IF / A
2,4
2,2
LCB CRBP.01
IF / A
2,4
2,2
2,0
2,0
1,8
1,8
1,6
1,4
1,2
10-6 10-5 10-4 10-3 0,01 0,1
12 | Version 1.1 | 2023-02-01
: D = 1.0
: D = 0.5
: D = 0.2
: D = 0.1
: D = 0.05
: D = 0.02
: D = 0.01
: D = 0.005
1 10
Pulse time / s
1,6
1,4
1,2
10-6 10-5 10-4 10-3 0,01 0,1
: D = 1.0
: D = 0.5
: D = 0.2
: D = 0.1
: D = 0.05
: D = 0.02
: D = 0.01
: D = 0.005
1 10
Pulse time / s
LCB CRBP.01
DATASHEET
Dimensional Drawing
8)
Further Information:
Approximate Weight:
26.8 mg
Corrosion test:
Class: 3B
Test condition: 40°C / 90 % RH / 15 ppm H2S / 14 days (stricter than IEC
60068-2-43)
ESD advice:
The device is protected by ESD device which is connected in parallel to the
Chip.
13 | Version 1.1 | 2023-02-01
LCB CRBP.01
DATASHEET
Recommended Solder Pad
8)
For superior solder joint connectivity results we recommend soldering under standard nitrogen atmosphere. Package not
suitable for ultra sonic cleaning.
14 | Version 1.1 | 2023-02-01
LCB CRBP.01
DATASHEET
Reflow Soldering Profile
