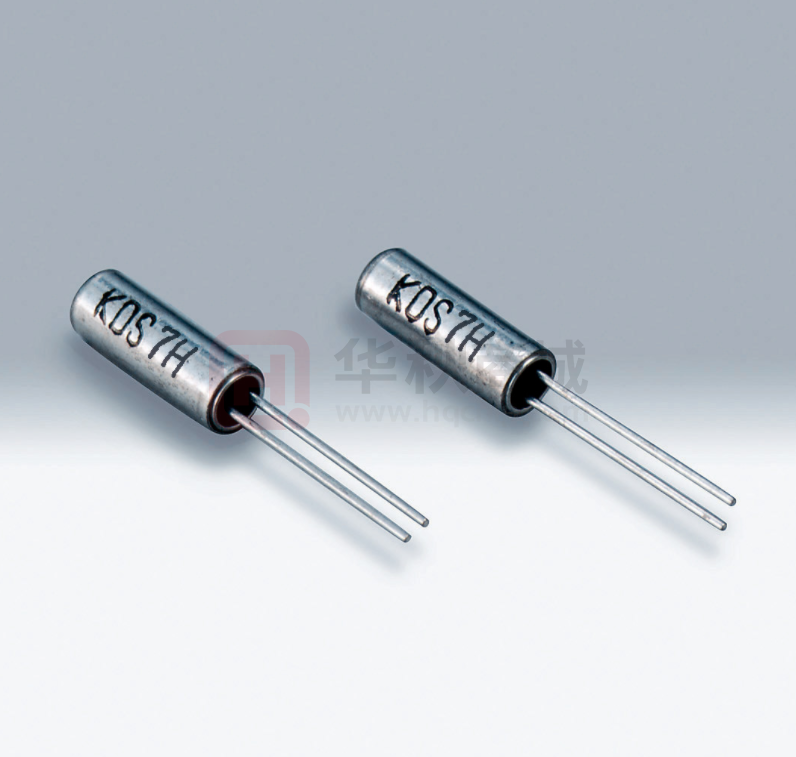

Y2616000202080D3

承 认 书 SPECIFICATION FOR APPROVAL 客户名称：Customer 货 深圳立创商务电子有限公司 Y2*6 石英晶体谐振器 名：Description 客户料号： Part No 物料编号： Code No Y2616000202080D3 16.000MHz 频 率：Frequency 日 期：Date 备 注：RoHS compliance with Directive (EU) 2015/863 2020-12-23 制作(Prepare by) 检查(Check by) 批准（Approve by） 江丹娜 甘瑛 张刚 客户批准 Approve by customer 批准日期 Approval date Add:广东省深圳市华发北路桑达工业区桑达雅苑 7P 7 P Sangda Yayuan Huafa North Road, Futian District, Shenzhen, Guangdong Tel: 86-755-83048260 86-755-83048290 Fax: 86-755-83048280 www.jghcorp.com ShenZhen JingGuangHua Electronics Co.，Ltd. 1、 Specifications Type Y2*6 Nominal frequency: 16.000MHz Frequency tolerance at ±20ppm (25℃±3℃) Mode of vibration Fundamental Load capacitance 20pF Effective series resistance 80Ω Max Shunt capacitance ≤3pF Operating temperature range -20℃~+70℃ Storage temperature range -40℃~+85℃ Frequency stability vs. operating ±30ppm temperature 2. Drive level 1uW Insulation resistance 500MΩ/100V±15VDC Aging ±5ppm/First year Test machine 250B Frequency stability over temperature range(AT cut) Temperature Range Frequency Stability ±3PPM ±5PPM ±7.5PPM ±10PPM ±30PPM ±50PPM ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ -40℃~+85℃ ☆ ☆ ☆ -40℃~+125℃ ☆ ☆ ☆ 0℃~+50℃ -10℃~+60℃ -20℃~+70℃ -30℃~+70℃ www.jghcorp.com ±20PPM ±70PPM ShenZhen JingGuangHua Electronics Co.，Ltd. 3. Dimensions 4. Suggested reflow profile www.jghcorp.com ShenZhen JingGuangHua Electronics Co.，Ltd. 5．Reliability specifications NO Item Condition Free drop from 50cm height on a hard 1. 2. Drop Test Mechanical wooden board for 3 times. (Board is Shock ≤5ppm Rr as specification Half sine wave (1000G) three mutually Frequency change: perpendicular axes each 3times,0.5mS ≤5ppm Rr as specification Frequency range:10~2000hz Vibration Frequency change: thickness more than 30 mm.) duration time 3. Standard Amplitude:1.52mm/20G Sweep time:20mintutes perpendicular axes each test time:4Hrs Frequency change: ≤5ppm Rr as specification Temperature:245℃±5℃ 4. Solderability Immersing depth:0.5mm minimum Immersion time:5±1sec. 90% exhibit tin ok Flux:Rosin resin methyl alcohol solvent(1:4) Pre-heat temperature:125℃ 5. Resistance to Pre-heat time:60~120sec. soldering heat Test temperature:260℃±5℃ Test time :10±1sec. 6. 7. 8. High Temp &Humidity Low temperature storage High temperature storage Frequency change: ≤10ppm Rr as specification Frequency change: 85±3℃& RH85%, 500±12 hours ≤10ppm Rr as specification Frequency change: -40±3℃, 500±12 hours ≤10ppm Rr as specification Frequency change: +85±3℃,500±12 hours ≤10ppm Rr as specification Frequency change: 9. Temperature cycling -40±3℃/10min~+85±3℃/10min, 100cycles ≤10ppm Rr as specification www.jghcorp.com ShenZhen JingGuangHua Electronics Co.，Ltd. 6. Packaging standard Dimensions of outside Package 10 inner box=1 outer box www.jghcorp.com ShenZhen JingGuangHua Electronics Co.，Ltd.
