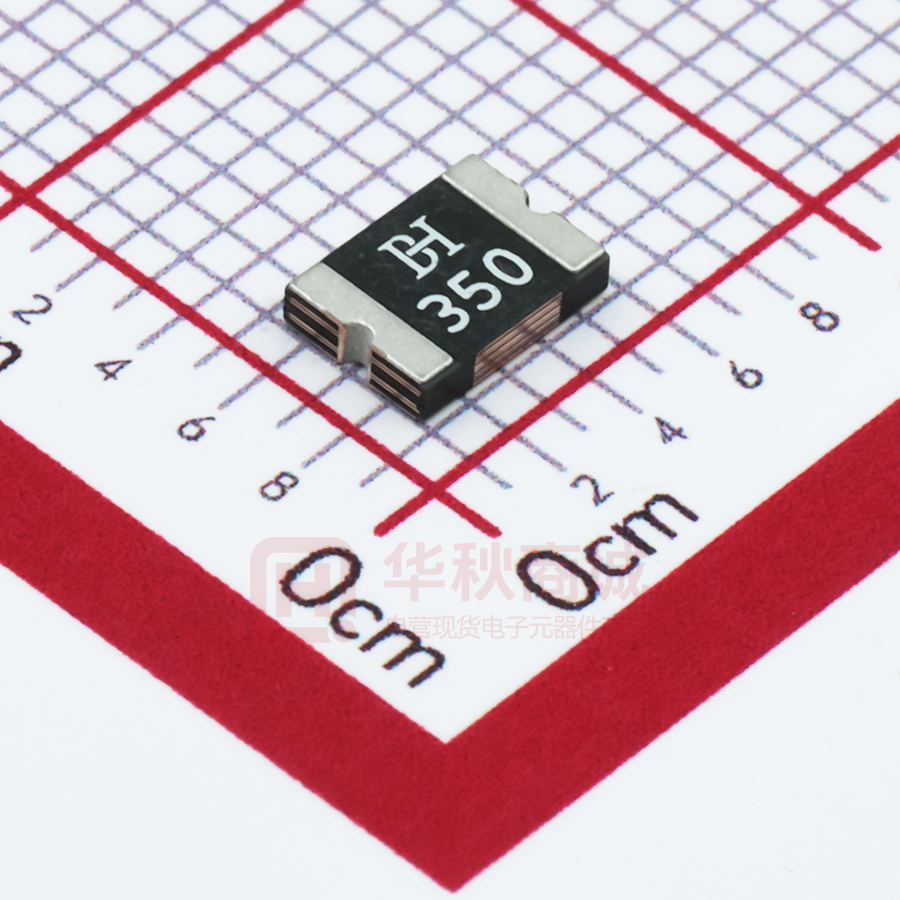

BSMD1812-350-16V

BHFUSE BSMD1812 Series Surface Mount PTC Device 佰宏保险丝  Features       Size 0.18*0.12 inch /4.5*3.2 mm RoHS compliant, lead-free and halogen-free Fast response to fault current Low resistance Low profile Compatible with high temperature solders  Applications  Computer, Mobile phones, Multimedia  Automotive, Industrial controls, Telephony and broadband  Game machines, Portable electronics, Battery  Electrical Characteristics（25℃） Part Number BSMD1812-010-30V BSMD1812-010-60V BSMD1812-014-60V BSMD1812-020-30V BSMD1812-020-60V BSMD1812-030-30V BSMD1812-030-60V BSMD1812-050-15V BSMD1812-050-24V BSMD1812-050-30V BSMD1812-050-60V BSMD1812-075-13.2V BSMD1812-075-16V BSMD1812-075-24V BSMD1812-075-33V BSMD1812-110-8V BSMD1812-110-16V BSMD1812-110-24V BSMD1812-110-33V Ihold (A) 0.10 0.10 0.14 0.20 0.20 0.30 0.30 0.50 0.50 0.50 0.50 0.75 0.75 0.75 0.75 1.10 1.10 1.10 1.10 Itrip (A) 0.30 0.30 0.34 0.40 0.40 0.60 0.60 1.00 1.00 1.00 1.00 1.50 1.50 1.50 1.50 2.20 2.20 2.20 2.20 Vmax (Vdc) 30 60 60 30 60 30 60 15 24 30 60 13.2 16 24 33 8 16 24 33 Specifications are subject to change without notice Revision 2022 Imax (A) 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 100 100 40 40 Pd typ (W) 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 1.0 0.8 0.8 0.8 1.0 0.8 0.8 1.0 1.0 Time to trip (A) (Sec) 0.50 1.50 0.50 1.50 1.50 0.15 8.00 0.04 8.00 0.04 8.00 0.10 8.00 0.10 8.00 0.15 8.00 0.15 8.00 0.15 8.00 0.15 8.00 0.20 8.00 0.20 8.00 0.20 8.00 0.20 8.00 0.30 8.00 0.30 8.00 0.30 8.00 0.30 Rmin (Ω) 0.750 0.750 0.650 0.350 0.350 0.250 0.250 0.150 0.150 0.150 0.150 0.090 0.090 0.090 0.090 0.045 0.045 0.045 0.045 Polymer PTC Thermistor www.bhfuse.com R1max (Ω) 15.00 15.00 6.000 5.000 5.000 3.000 3.000 1.400 1.400 1.400 1.400 0.450 0.450 0.450 0.450 0.250 0.250 0.250 0.250 1/9 BHFUSE BSMD1812 Series Surface Mount PTC Device 佰宏保险丝 Part Number BSMD1812-125-16V BSMD1812-125-24V BSMD1812-150-8V BSMD1812-150-16V BSMD1812-150-24V BSMD1812-150-33V BSMD1812-160-8V BSMD1812-160-16V BSMD1812-160-24V BSMD1812-200-8V BSMD1812-200-12V BSMD1812-200-16V BSMD1812-200-24V BSMD1812-200-30V BSMD1812-250-8V BSMD1812-260-8V BSMD1812-260-13.2V BSMD1812-260-16V BSMD1812-260-24V BSMD1812-300-8V BSMD1812-300-12V BSMD1812-300-16V BSMD1812-350-6V BSMD1812-350-16V BSMD1812-400-6V Ihold (A) 1.25 1.25 1.50 1.50 1.50 1.50 1.60 1.60 1.60 2.00 2.00 2.00 2.00 2.00 2.50 2.60 2.60 2.60 2.60 3.00 3.00 3.00 3.50 3.50 4.00 Itrip (A) 2.50 2.50 3.00 3.00 3.00 3.00 3.20 3.20 3.20 4.00 4.00 4.00 4.00 4.00 5.00 5.20 5.20 5.20 5.20 6.00 6.00 6.00 7.00 7.00 8.00 Vmax (Vdc) 16 24 8 16 24 33 8 16 24 8 12 16 24 30 8 8 13.2 16 24 8 12 16 6 16 6 Specifications are subject to change without notice Revision 2022 Imax (A) 100 40 100 100 40 40 100 100 40 100 100 100 40 40 40 100 40 40 40 100 100 40 100 100 100 Pd typ (W) 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.2 1.2 1.2 1.2 1.4 2.0 2.0 2.0 Time to trip (A) (Sec) 8.00 0.40 8.00 0.40 8.00 0.50 8.00 0.50 8.00 0.50 8.00 0.50 8.00 1.00 8.00 1.00 8.00 1.00 8.00 2.00 8.00 2.00 8.00 2.00 8.00 2.00 8.00 2.00 8.00 2.50 8.00 2.50 8.00 2.50 8.00 2.50 8.00 2.50 8.00 4.00 8.00 4.00 8.00 4.00 10.00 4.00 10.00 4.00 10.00 4.00 Rmin (Ω) 0.050 0.050 0.040 0.040 0.040 0.040 0.030 0.030 0.030 0.020 0.020 0.020 0.020 0.020 0.015 0.010 0.010 0.010 0.010 0.010 0.010 0.010 0.008 0.008 0.005 Polymer PTC Thermistor www.bhfuse.com R1max (Ω) 0.180 0.180 0.160 0.160 0.160 0.160 0.130 0.130 0.130 0.100 0.100 0.100 0.100 0.100 0.090 0.070 0.070 0.070 0.070 0.050 0.050 0.050 0.035 0.035 0.025 2/9 BHFUSE 佰宏保险丝 BSMD1812 Series Surface Mount PTC Device  Vocabulary Ihold = Itrip = Vmax = Imax = Pd typ. = Rmin = R1max = Hold current: maximum current device will pass without tripping in 25℃ still air. Trip current: minimum current at which the device will trip in 25℃ still air. Maximum voltage device can withstand without damage at rated current (Imax). Maximum fault current device can withstand without damage at rated voltage (Vmax). Typical power dissipated from device when in the tripped state at 25℃ still air. Minimum resistance of device in initial (un-soldered) state. Maximum resistance of device at 25℃ measured one hour after tripping or reflow soldering of 260℃ for 20 sec. Caution：Operation beyond the specified ratings may result in damage and possible arcing and flame.  Warning  Users shall independently assess the suitability of these devices for each of their applications.  Operation of these devices beyond the stated maximum ratings could result in damage to the devices and lead to electrical arcing and/or fire.  These devices are intended to protect against the effects of temporary over-current or over-temperature conditions and are not intended to perform as protective devices where such conditions are expected to be repetitive or prolonged in duration.  Exposure to silicon-based oils, solvents, electrolytes, acids, and similar materials can adversely affect the prolonged of these PPTC devices.  These devices undergo thermal expansion under fault conditions, and thus shall be provided with adequate space and be protected against mechanical stresses.  Circuits with inductance may generate a voltage (L di/dt) above the rated voltage of the PPTC device. Specifications are subject to change without notice Revision 2022 Polymer PTC Thermistor www.bhfuse.com 3/9 BHFUSE 佰宏保险丝 BSMD1812 Series Surface Mount PTC Device  Thermal Derating Curve Derating Curves for BSMD1812 Series  Average Time-Current Curve A=BSMD1812-010 B=BSMD1812-014 C=BSMD1812-020 D=BSMD1812-030 E=BSMD1812-050 F=BSMD1812-075 G=BSMD1812-110 H=BSMD1812-125 I=BSMD1812-150 J=BSMD1812-160 K=BSMD1812-200 L=BSMD1812-260 M=BSMD1812-300 N=BSMD1812-350 Specifications are subject to change without notice Revision 2022 Polymer PTC Thermistor www.bhfuse.com 4/9 BHFUSE BSMD1812 Series Surface Mount PTC Device 佰宏保险丝  Thermal Derating Chart Part Number Ambient operating temperature hold current(Ihold) BSMD1812-010 -40℃ 0.16 -20℃ 0.14 0℃ 0.12 25℃ 0.10 40℃ 0.08 50℃ 0.07 60℃ 0.06 70℃ 0.05 85℃ 0.03 BSMD1812-014 0.23 0.19 0.17 0.14 0.12 0.10 0.09 0.08 0.06 BSMD1812-020 BSMD1812-030 0.29 0.44 0.26 0.39 0.23 0.35 0.20 0.30 0.17 0.26 0.15 0.23 0.14 0.21 0.12 0.18 0.10 0.15 BSMD1812-050 0.69 0.59 0.55 0.50 0.45 0.43 0.35 0.30 0.23 BSMD1812-075 1.10 0.99 0.87 0.75 0.63 0.57 0.49 0.45 0.35 BSMD1812-110 BSMD1812-125 1.60 2.00 1.45 1.75 1.28 1.52 1.10 1.25 0.92 1.00 0.83 0.95 0.71 0.90 0.66 0.75 0.52 0.53 BSMD1812-150 BSMD1812-160 2.10 2.30 1.96 2.05 1.77 1.88 1.50 1.60 1.23 1.26 1.09 1.12 0.95 0.98 0.82 0.84 0.61 0.63 BSMD1812-200 2.88 2.61 2.25 2.00 1.80 1.66 1.45 1.09 0.80 BSMD1812-260 BSMD1812-300 3.90 4.15 3.42 3.76 2.96 3.46 2.60 3.00 2.22 2.55 2.07 2.28 1.94 2.01 1.35 1.61 1.00 1.33 BSMD1812-350 BSMD1812-400 4.84 4.97 4.39 4.62 4.04 4.32 3.50 4.00 2.98 3.48 2.66 3.16 2.35 2.85 1.88 2.38 1.55 2.05  Environmental Specifications Test Conditions Passive aging +85°C, 1000 hrs. Humidity aging +85°C, 85% R.H. , 168 hours Thermal shock +85°C to -40°C, 20 times Resistance to solvent MIL-STD-202,Method 215 Vibration MIL-STD-202,Method 201 Ambient operating conditions : - 40 °C to +85 °C Maximum surface temperature of the device in the tripped state is 125 °C Specifications are subject to change without notice Revision 2022 Resistance change ±5% typical ±5% typical ±33% typical No change No change Polymer PTC Thermistor www.bhfuse.com 5/9 BHFUSE BSMD1812 Series Surface Mount PTC Device 佰宏保险丝  Soldering Parameters Profile Feature Average Ramp-Up Rate(Tsmax to Tp) Preheat -Temperature Min(Tsmin) -Temperature Max(Tsmax) -Time(Tsmin to Tsmax) Time maintained above: -Temperature(TL) -Time(tL) Peak Temperature(Tp) Ramp-Down Rate Time 25℃ to Peak Temperature Storage Condition Pb-Free Assembly 3℃/second max 150℃ 200℃ 60~180 seconds 217℃ 60~150 seconds 260℃ 6℃/second max 8 minutes max 0℃~30℃,30%-60%RH  Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead-free.  Recommended maximum paste thickness is 0.25mm.  Devices can be cleaned using standard industry methods and solvents. Note 1: All temperature refer to topside of the package, measured on the package body surface. Note 2: If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements. Specifications are subject to change without notice Revision 2022 Polymer PTC Thermistor www.bhfuse.com 6/9 BHFUSE BSMD1812 Series Surface Mount PTC Device 佰宏保险丝  Physical Dimensions & Recommended Pad Layout (mm) A 1.78±0.1 D Part Number BSMD1812-010-30V BSMD1812-010-60V BSMD1812-014-60V BSMD1812-020-30V BSMD1812-020-60V BSMD1812-030-30V BSMD1812-030-60V BSMD1812-050-15V BSMD1812-050-24V BSMD1812-050-30V BSMD1812-050-60V BSMD1812-075-13.2V BSMD1812-075-16V BSMD1812-075-24V BSMD1812-075-33V BSMD1812-110-8V BSMD1812-110-16V BSMD1812-110-24V BSMD1812-110-33V BSMD1812-125-16V BSMD1812-125-24V BSMD1812-150-8V BSMD1812-150-16V BSMD1812-150-24V BSMD1812-150-33V BSMD1812-160-8V BSMD1812-160-16V BSMD1812-160-24V 3.15±0.1 B 010 014 B 3.45±0.1 E C Marking Quantity B010 B010 B014 B020 B020 B030 B030 B050 B050 B050 B050 B075 B075 B075 B075 B110 B110 B110 B110 B125 B125 B150 B150 B150 B150 B160 B160 B160 1.78±0.1 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 Min 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 Specifications are subject to change without notice Revision 2022 A Max 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 Min 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 B Max 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 Min 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.40 0.40 0.40 0.50 0.50 0.50 0.50 0.50 0.40 0.40 0.40 0.60 0.60 0.60 0.60 0.60 0.80 0.80 0.50 0.50 0.50 C Max 1.10 1.10 1.10 1.10 1.10 1.10 1.10 1.00 1.00 1.00 1.10 1.10 1.10 1.10 1.10 1.00 1.00 1.00 1.30 1.30 1.30 1.30 1.30 1.50 1.50 1.10 1.10 1.10 Polymer PTC Thermistor www.bhfuse.com D Min 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 E Min 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 7/9 BHFUSE BSMD1812 Series Surface Mount PTC Device 佰宏保险丝 Part Number BSMD1812-200-8V BSMD1812-200-12V BSMD1812-200-16V BSMD1812-200-24V BSMD1812-200-30V BSMD1812-250-8V BSMD1812-260-8V BSMD1812-260-13.2V BSMD1812-260-16V BSMD1812-260-24V BSMD1812-300-8V BSMD1812-300-12V BSMD1812-300-16V BSMD1812-350-6V BSMD1812-350-16V BSMD1812-400-6V Marking Quantity B200 B200 B200 B200 B200 B250 B260 B260 B260 B260 B300 B300 B300 B350 B350 B400 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 Min 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 4.37 Specifications are subject to change without notice Revision 2022 A Max 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 4.73 Min 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 3.07 B Max 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 3.41 Min 0.60 0.60 0.60 0.60 0.60 0.60 0.60 0.60 0.60 0.60 0.60 0.60 0.60 0.60 0.60 0.60 C Max 1.30 1.30 1.30 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 Polymer PTC Thermistor www.bhfuse.com D Min 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 E Min 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 8/9 BHFUSE BSMD1812 Series Surface Mount PTC Device 佰宏保险丝  Tape And Reel Specifications (mm) Governing Specifications W F E1 D0 D1 P0 P1 P2 A0 B0 T K0 Leadermin Trailermin Reel Dimensions C D H W BSMD1812-010~BSMD1812-400 12.0 ± 0.3 5.5 ± 0.05 1.75 ± 0.1 1.55 ± 0.05 1.55min 4.0 ± 0.1 8.0 ± 0.1 2.0 ± 0.05 3.58 ± 0.1 4.93 ± 0.1 0.2 ± 0.1 1.25 ± 0.1 390 160 φ178 ± 1.0 φ60.2 ± 0.5 16.0 ± 0.5 13.2 ± 1.5  Contact information SHENZHEN BHFUSE INDUSTRIAL CO., LTD TEL: 0755-85259917 E-MAIL: sales@bhfuse.com Specifications are subject to change without notice Revision 2022 Polymer PTC Thermistor www.bhfuse.com 9/9
