BS3500N-C-F

BS3500N-C-F

  • 厂商:

    BENCENT(槟城)

  • 封装:

    SMBF

  • 描述:

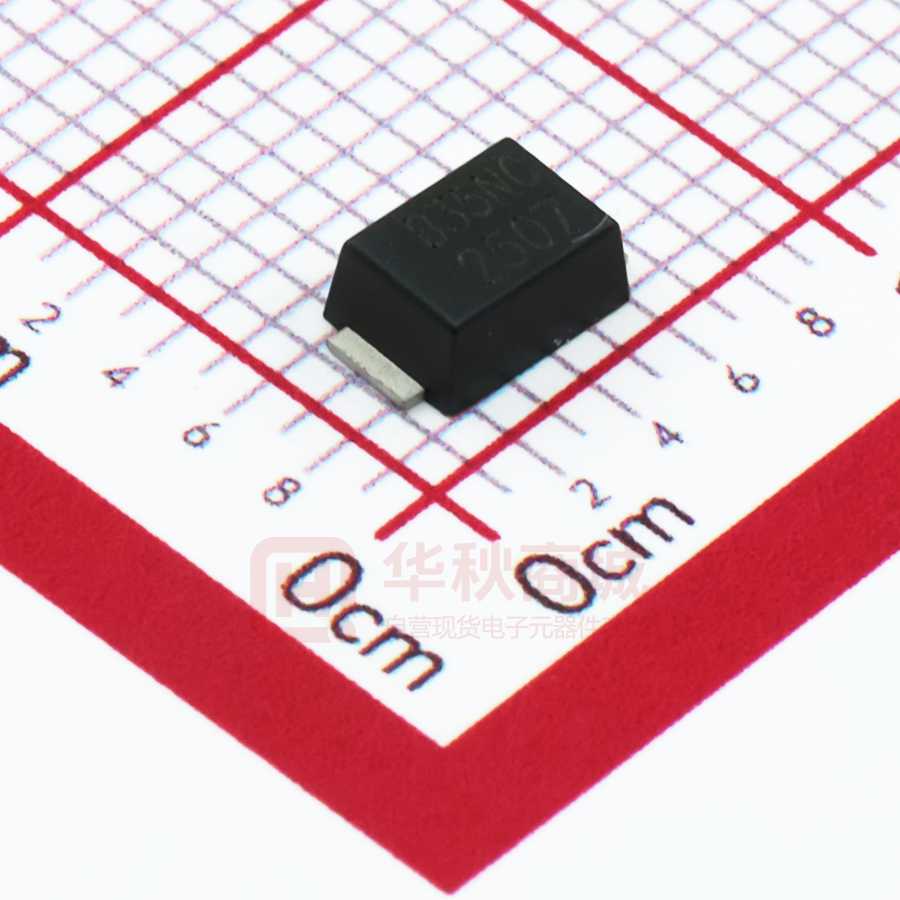

    陶瓷气体放电管(GDT) SMBF 4.40 x 3.30mm

  • 数据手册
  • 价格&库存
BS3500N-C-F 数据手册
BS3500N-C-F Order Code: BS3500N-C-F Version: A1 2017-12-11 Thyristor Surge Suppresser Features Exterior Excellent capability of absorbing transient surge Quick response to surge voltage (nS Level) Eliminates overvoltage caused by fast rising transients Moisture sensitivity level: Level 1 Weight: 87mg Non degenerative SMB-F Application Information rmation Package (Top View) xDSL ` B35NC 1308 1 Agency Approvals 2 Schematic Symbol Icon Description Compliance with 2011/65/EU 2 1 Compliance with IEC61249-2-21:2003 Part Number and Electrical Parameter ① VS @ IS IDRM@ VDRM Part Number µA V MAX BS3500N-C-F 5 V mA MAX 320 400 VT@ IT V IH A MAX 800 4 2.2 CO ② mA pF MIN MAX 150 35 Absolute maximum ratings measured at TA= 25ºC RH = 45%-75% (unless otherwise noted). ① Vs is measured at 100KV/S ② Off-state capacitance is measured at VDC=2V, VRMS=1V, f=1MHz 1/5 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BS3500N-C-F Order Code: BS3500N-C-F Version: A1 2017-12-11 Thyristor Surge Suppresser Part Numbering System Mark BS 3500 N C F (1) (2) (3) (4) (5) B35NC B006U2G B42LC 1308 0909 0909 (1) Bencent Semiconductor Surge Arrester (2) Off-state Voltage, e.g.3500=350×100=350V (3) Package: SMB-F (4) Rating Surge Voltage: 6KV (10/700μs) B35NC: Part Number (5) Flat Feet 1308: August, 2013 V-I Curve Parameters Definition VDRM Peak off-state voltage IDRM Off-state Current VS Switching Voltage IS Switching Current IH Holding Current VT On-state voltage IT On-state current CO Off-state capacitance +I IT IS IH IDRM -V +V VDRM VT VS -I Surge Ratings Current Waveform 2/10μs 8/20μs 10/160μs 5/320μs* 10/1000μs Voltage Waveform 2/10μs 1.2/50μs 10/160μs 10/700μs* 10/1000μs Ipp 500A 400A 200A 150A 100A -Peak pulse current rating (IPP) is repetitive and guaranteed for the life of the product; -Bencent only makes the test for 5/320μs@150A* (10/700μs@6KV), but for other IPP value derived from experience is just for reference only. Bencent will not take any obligation for these parameters, so before applying our parts, please make sure to verify the parameters listed in the above table. Thermal Considerations Symbol TJ TS 2/5 Parameter Operating Junction Temperature Range Storage Temperature Range www.bencent.com.cn Product Characteristics Characteristics Value Unit -40 to +150 ℃ Body Material -60 to +150 ℃ Terminal Finish Lead Material Copper Alloy UL recognized epoxy meeting flammability classification 94V-0 100% Matte-Tin Plated Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BS3500N-C-F Order Code: BS3500N-C-F Thyristor Surge Suppresser Version: A1 2017-12-11 Typical Characteristics 3/5 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BS3500N-C-F Order Code: BS3500N-C-F Version: A1 2017-12-11 Thyristor Surge Suppresser Environmental Characteristics Testing items Technical standards High temperature Reverse Bias Test Temperature: 150±3℃, Bias=80%VDRM Time: 168H High Temperature Life Test Temperature: 150℃ Time: 168H High-low Temperature Cycle test Temperature: From -40℃ to125℃ Dwell time: 30min, 10cycles High Temperature &High Humidity Test Temperature: 85℃, Humidity: 85% Test time: 168H Pressure cooker Test Temperature: 121℃, 2atm, Humidity: 100% Test time: 24H Resistance of soldering heat Temperature: 260±5℃ Time of dip soldering: 10s, 3times Note: The above testing items can be specified by customer’s special request Product Dimensions A B C D REF mm inch A 5.4±0.3 0.213±0.012 B 4.4±0.2 0.173±0.008 C 2.0±0.1 0.079±0.004 D 3.3±0.3 0.130±0.012 E 0.8±0.3 0.032±0.012 F 0.25±0.05 0.010±0.002 G 2±0.3 0.079±0.012 E Bottom view F G Side view Recommended Soldering Pad A B C 4/5 www.bencent.com.cn REF mm inch A 6.4 0.252 B 3.4 0.134 C 2.75 0.108 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BS3500N-C-F Order Code: BS3500N-C-F Version: A1 2017-12-11 Thyristor Surge Suppresser Reflow Profile Pre Heat Pb-Free assembly Temperature Min 150°C Temperature Max 200°C Time (min to max) 60 – 180 secs Average ramp up rate (Liquid) Tamp (TL) to peal TS (max) to TL - Ramp-up Rate - Temperature (TL) Reflow (Liquid) - Temperature (TL) Peak Temperature (TP) TP TP 3°C/second max 3°C/second max 217°C 60 – 150 seconds TL TS(max) Ramp-down Preheat TS(min) TS 260+0/-5 °C Time within 5°C of actual peak Temperature (TP) Critical Zone TL to TP Ramp-up TL Temperature Reflow Condition TL 8 – 15 seconds Ramp-down Rate 6°C/second max Time 25°C to peak Temperature (TP) 8 minutes Max. Do not exceed 260°C 25 Time time to peak temperature Package Reel Information 5/5 REF mm inch A 3.65+/-0.3 0.144+/-0.012 B 5.69+/-0.3 0.244+/-0.012 d 1.5+/-0.1 0.059+/-0.004 D 330.0 13.0 D1 100+/-3 3.937+/-0.118 D2 13+/-0.3 0.512+/-0.012 E 1.5+/-0.2 0.059+/-0.008 F 5.65+/-0.2 0.222+/-0.008 P 8.0+/-0.2 0.315+/-0.008 P0 4.0+/-0.2 0.157+/-0.008 P1 2.0+/-0.2 0.079+/-0.008 W 12.0+/-0.2 0.472+/-0.008 W1 16.8+/-2.0 0.661+/-0.079 OUTLINE REEL (PCS) PER CARTON (PCS) REEL DIAMETERS (mm) L W H TAPING 3,000 48,000 330 360 360 385 www.bencent.com.cn CARTON SIZE(mm) Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications
