深圳市首韩科技有限公司
SHENZHEN SHOUHAN TECHNOLOGYCO.,LTD
Tel: 0755-27597601 Fax: 0755-27597491
认
户 Customer:
产品名称 Project:
有
客
FOR APPROVAL
司
SPECIFICATION
书
限
公
承
规格型号 Part No:
TS4540TP
韩
科
技
轻触开关
首
贵公司承认印 Approal slgnatures
签
章/Signatures
深
圳
市
料 号/Part No.
日期 Date:
拟制/Drawn
李春风
审核/Check
张栋
批准/Approved
罗孝金
深圳市首韩科技有限公司
产 品 规 格 书
PRODUCT SPECIFICATION
系列:FLIP SWITCHES(轻触开关)
MODEL

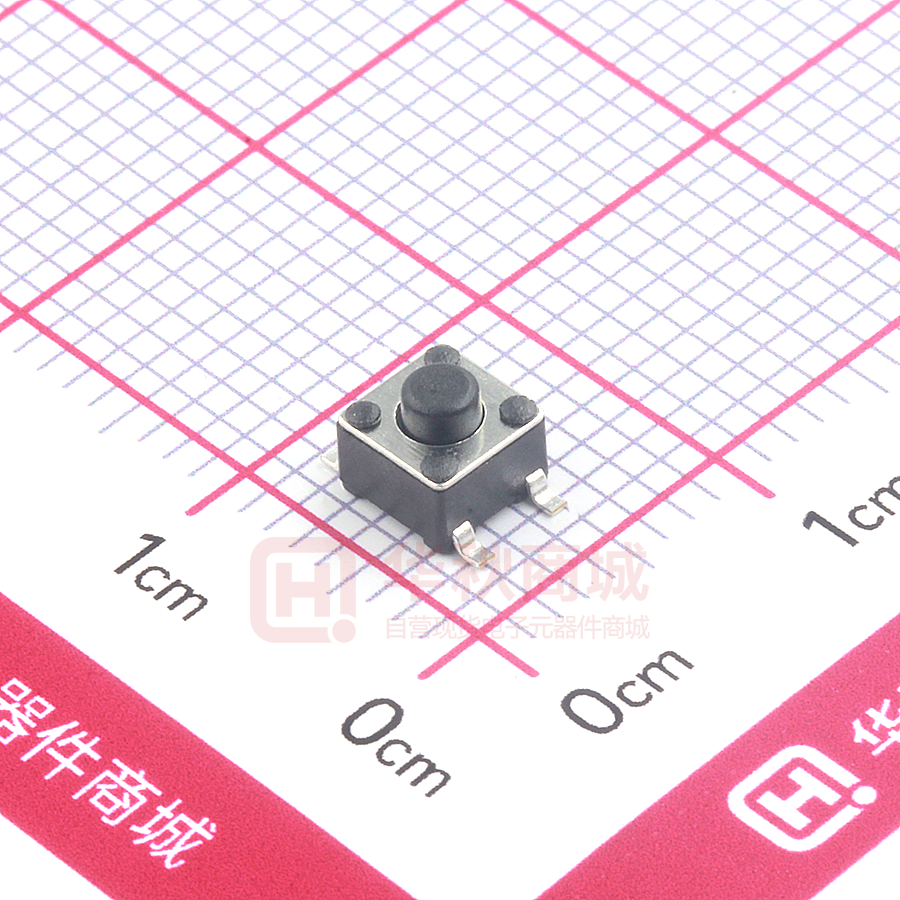

型号: TS4540TP
1.RATING
额定值:50mA 12V DC
2.CONSTRUTION DIMENSION 结构尺寸
Apply to the appended drawing:符合附加图纸
3.APPEARANCE 外观
Have no remarkable damage,crack and rust etc: 无
明显损伤,裂纹,锈迹等.
4.CONTACTLOOP 接触回路
Monople loop:单通单极回路
公
司
SIRLES
ITEM 专案
TEST CONDITION 测试条件
5.CAPABILITY OF ELECTRIC 电气性能
Measurements shall be made following Application
of DC100V potential across terminals and across 100MΩ min
terminals and fuame for 1minute,在端子之间和端 100 MΩ以上.
子与壳之间加 DC100V 条件下,持续 1 分钟测量.
有
限
5A
INSULATION RESISTANCE
绝缘电阻
SPECIFICATION 规格
WITHSTAND VILTAGE
耐电压
AC250V、50HZ、1 min(imin(interrupting
current ≤500uA). AC250V、50HZ、1 分钟(漏
电流 500uA)
5C
CONTACT CIRCUIT
接触电路
Addition 1.5-2 time force on the top of the keystrok
and press the switch,DC50V100mA 在按键顶端上
等于作用力 1.5-2 倍的力按动开关,DC50V,10Ma.
韩
科
技
5B
首
5D SWITCH CONNECTION FLASH
市
开关接触点抖动
Addition DC5V on the two side of switch,at a speed
of 3-5time a sec.to press the switch.在开关的两端
加 DC5V 的电压,以 3-5 次/秒的速度按动开关.
There shall be no
briakdown 无 击 穿
现象出现。
100mΩ Max
(100mΩ以下)
The flash time
betwcen open not
more than 10ms.
开关在接通和断开
时的接点抖动时间
不大于 10 ms.
CONTACT STRENGTH
按键强度
深
6A
圳
6.MECHANICAL EFFICIENCY 机械性能
6B
6C
CONTACT JOURNEY
按键行程
DRIVE FORCE
驱动力
Switch
electric
The contact shall be capable of a rorce of 5N for 5 andmechanical
efficiency
does
seconds in any directions.沿开关动作方向可承受
not break 无 损 开
静能压力 5N,保持 5 秒钟.
关 电 气或 者 机 械
性能
开关 的动作方向为垂直放置开关,并以双倍动作
力的静 负荷作用推柄中心,测量推柄从开始到停
0.25± 0.1mm
止的行程 距离
Being measure at across spring piece and across
keystoke forergometer.
用测力计在按键与弹片之 间测量.
按键开关驱动力为
250±50gf
深圳市首韩科技有限公司
6D
CONNECTION
STRENGTH
接线端强度
Switch mechanical
A force of 1N being appling in any directions of the
efficiency does not
switch connection partt..在接线端的作用方向施
break.无损开关机
加 1N 的力.
械性能.
6E
MECHANICAL LIFE
机械寿命
Operatin at a rate of 30-50 cycles a minute. 以
30-50 次/分的驱动速度操作.
7B
The first temperature shall be 70 ℃ ,3h and 1. The appearance
changed to-25℃,0.5h,5cycles of above test. should not break.外观
应无损伤.
先 70℃,3h,然后-25℃,0.5h,如此重复 5 次.
2. Contact
司
CHANGE OF
TEMPERATURE 温度变化
40±2℃ in temperature and 90-95%RH,Ruring
thetest time without load; After testing
the temperature should be 24h.经 40±2℃,
相对湿度 90-95%,试验期间,开关不动作,不带
电负荷,试验后恢复到常温 24h.
公
7A
NT----RESISTANT EFFICIENCY 耐环境性能
HUMIDITY RESISTANT
耐湿热
有
限
7.ENVIRONME
8.IOINTING EFFICIENCY 焊接性能
Temperature260±5℃;Duration;3±0.5S:温度在
260±5℃,持续 3±0.5S.
技
SOLDERABILITY
可焊性
SOLDER—RESISTANT
耐焊剂性
市
首
8B
韩
科
8A
Life:100000ycles
寿命:100000次
JOINTING—RESISTANT
耐焊接热
8D
NORMAL JOLNTING TIMES
正常焊接次数
Jointing temperature: 260 ± 5 ℃ ,Duration of
immersion: 5±1S.焊锡温度 260±5℃,浸焊时间
5±1S
深
圳
8C
Warm-up temperature:100℃,40S,焊锡温度 260±5
℃,浸焊时间 5±0.5S.
resistance ≤ 100 M Ω
接触电阻≤100MΩ
3. Insulation
resistance ≥ 100 M
Ω.
绝缘电阻≥100 MΩ
Solderability part
should above 90%
可 焊 部分 被 焊 料
覆 盖 面 应 在 90%
以上.
Froth height of assist
solder should under
switch
and
board
electric
and
mechanical efficiency does not break.助焊
剂发泡不应超过印制
板,无损伤开关电气或
机械动作性能.
efficiency does not
break 无 损 伤 开 关
电气或机械动作性
能.
≤2times 小于 2 次
9.NOTES
9A
The whole boxes of switch should keep in the temperature -30--80 ℃ and less than 80%RH withort
acidic,alkalescence,caustic gas in the environment of the storage.
整箱包装的开关,应在温度为-30--80℃,相对湿度不大于 80%,周围的空气中没有酸性、碱性或其他腐蚀
性气体的库房内保管。
9B
Operating Temperature Range:-20 to 85℃
操作温度的范围:-20 to 85℃
9C
Switch should install in a correct method.
开关应按正确的安装方法进行正确安装使用。
深
科
技
韩
首
市
圳
司
限
公
有
4.0
7.0
深圳市首韩科技有限公司
TS4540TP
李春风
张栋
罗孝金
