MS0603ESDA-05

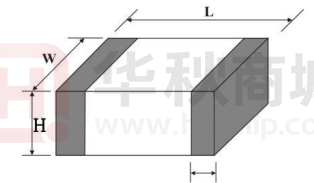

www.msksemi.com MS0603ESDA-XX Semiconductor Other Data Body End termination Packaging Complies with Standard Notes: ZnO Ag/Ni/Sn Tape IEC61000-4-2、IEC61000-4-5 *2 Varistor voltage *3 Capacitance *4 Maximum clamping voltage *5 Rated peak single pulse transient current Measured at 1mA DC Measured at f=1kHz,Vrms=0.5V Measured at 1A by 8/20µs Pulse Measured by 8/20µs Pulse Compiance *1 AC voltage at 50~60Hz PKG 0603 Unit：mm High（H） Length（L） Width（W） Termination（L1） Max 1.60±0.15 Standards MS ① 0.80±0.15 0603 ② 0.95 ESDA ③ 0.35±0.15 XX ④ ①production series：msksemi ②size： 0603 ③type：ESD高分子保护器件 ④ VDC : 5V 9V 12V 14V 18V 24V Technical Data Maximum allowable continuous DC voltage Varistor voltage Measured*2 Varistor voltage tolerance Typical capacitance value measured*3 Typical capacitance value tolerance Maximum clamping voltage measured*4 Reference Data Response time Leakage current at VB×80%(At initial state) Leakage current at VB×80%(After reliability Test) Operating ambient temperature Storage temperature Reflow temperature profile(Recommend) Symbol VDC VB C VC T rise ILVB ILVBA Value 5.0 130 ±20 1.0 ±0.3 250 Unit V V % pF PF V
