Molded SMD Power Inductors APH Series
APH series is designed for low profile type with low RDC and ultra
large current. Its molded magnetic shielded type is suitable for
high-density mounting and ultra low buzz noise. Soldering
conditions can be easily confirmed when mounting onto the board.
This series also provides customers with embossed carrier type
packaging for automatic mounting machine.
Features
● RoHS, Halogen Free and REACH Compliance
● High rated current
● Ultra low buzz noise
Applications
● Laptops and PCs
● Switchs and servers
● Base stations
● DC/DC converters
▉ Part Numbering
A
PH
0630
T
100
M
Grade
Series Name
Dimensions Code
Configuration
Inductance
Tolerance
(mm)
▉ Dimensions
(μH)
0420
4.2x4.4x2.0
100
10
0530
5.2x5.4x3.0
2R2
2.2
0630
6.6x7.1x3.0
4R7
4.7
1040
10.5x11.5x4.0
1240
12.8x13.5x4.0
1250
12.8x13.5x5.0
1265
12.8x13.5x6.5
±20%
▉ Recommended Land Pattern
Specifications subject to change without notice. Please check our website for latest information.
Sept. 16, 2022
Molded SMD Power Inductors APH Series
Series
A
B
C
D
E
I Typ.
J Typ.
APH0412T
4.2±0.25
4.4±0.35
1.0±0.2
0.8±0.3
2.0±0.3
1.5
2.2
2.5
APH0420T
4.2±0.25
4.4±0.35
1.8±0.2
0.8±0.3
2.0±0.3
1.5
2.2
2.5
APH0518T
5.2±0.2
5.4±0.35
1.6±0.2
1.2±0.2
2.2±0.3
1.9
2.2
2.5
APH0530T
5.2±0.2
5.4±0.35
2.8±0.2
1.2±0.2
2.2±0.3
1.9
2.2
2.5
APH0615T
6.6±0.2
7.0±0.3
1.3±0.2
1.6±0.3
3.0±0.3
2.35
3.7
3.5
APH0618T
6.6±0.2
7.0±0.3
1.6±0.2
1.6±0.3
3.0±0.3
2.35
3.7
3.5
APH0620T
6.6±0.2
7.0±0.3
1.8±0.2
1.6±0.3
3.0±0.3
2.35
3.7
3.5
APH0624T
6.6±0.2
7.0±0.3
2.2±0.2
1.6±0.3
3.0±0.3
2.35
3.7
3.5
APH0630T
6.6±0.2
7.0±0.3
2.8±0.2
1.6±0.3
3.0±0.3
2.35
3.7
3.5
APH0640T
6.6±0.2
7.0±0.3
3.8±0.2
1.6±0.3
3.0±0.3
2.35
3.7
3.5
APH0650T
6.6±0.2
7.0±0.3
4.8±0.2
1.6±0.3
3.0±0.3
2.35
3.7
3.5
APH0840T
8.8±0.4
8.2±0.3
3.8±0.2
1.4±0.3
5.0±0.3
2.75
4
5.5
APH1030T
10.0±0.3
11.5 Max
2.8±0.2
2.0±0.5
3.0±0.3
4.1
5.4
4.1
APH1040T
10.0±0.3
11.0±0.5
3.8±0.2
2.0±0.5
3.0±0.5
4.1
5.4
4.1
APH1050T
10.0±0.3
11.5 Max
4.8±0.2
2.0±0.5
3.0±0.5
4.1
5.4
4.1
3.25
8
5.5
3.25
8
5.5
3.25
8
5.5
3.25
8
5.5
See
Remarks
See
Remarks
See
Remarks
H Typ.
APH1240T
12.8±0.5
13.45±0.35
4.0Max.
2.0±0.5
APH1250T
12.6±0.3
13.45±0.35
4.8±0.2
2.0±0.5
APH1260T
12.6±0.3
13.45±0.35
5.8±0.2
2.0±0.5
APH1265T
12.6±0.3
13.45±0.35
6.5Max.
2.0±0.5
5.0±0.3
APH1770T
17.15Max
17.15±0.35
6.7±0.3
2.5±0.5
12.0±0.3
3.5
11.2
12.8
APH2213T
23.5±0.5
22.0±0.3
12.6±0.4
5.0±0.4
19.0±0.3
5.75
12.5
19.6
▉ Electrical Characteristics
APH0412T series
DCR(mΩ)
Inductance
Max.
Tolerance
7.50
9
±20%
R15
7.00
11
±20%
R22
5.82
6.50
19
±20%
R33
5.32
6.00
21
±20%
R47
6.00
4.28
4.70
36
±20%
R68
4.57
5.50
3.91
4.50
47
±20%
1R0
1.5
3.32
4.00
2.78
3.25
75
±20%
1R5
2.2
2.49
3.00
2.28
2.75
83.5
±20%
2R2
APH0412T3R3M
3.3
2.43
2.70
1.80
2.00
160
±20%
3R3
APH0412T4R7M
4.7
1.86
2.20
1.50
1.80
195
±20%
4R7
Part Number
Inductance(μH)
Saturation Current (A)
Heat Rating Current(A)
@100KHz,1V
Max.
Typ.
Max.
Typ.
APH0412TR15M
0.15
12.45
15.00
6.91
APH0412TR22M
0.22
9.13
11.00
6.58
APH0412TR33M
0.33
6.96
8.40
APH0412TR47M
0.47
5.61
6.80
APH0412TR68M
0.68
4.98
APH0412T1R0M
1
APH0412T1R5M
APH0412T2R2M
Specifications subject to change without notice. Please check our website for latest information.
Marking
Sept. 16, 2022
Molded SMD Power Inductors APH Series
APH0420T series
Part Number
APH0420TR10M
APH0420TR22M
APH0420TR33M
APH0420TR47M
APH0420TR56M
APH0420TR68M
APH0420T1R0M
APH0420T1R2M
APH0420T1R5M
APH0420T2R2M
APH0420T3R3M
APH0420T4R7M
APH0420T6R8M

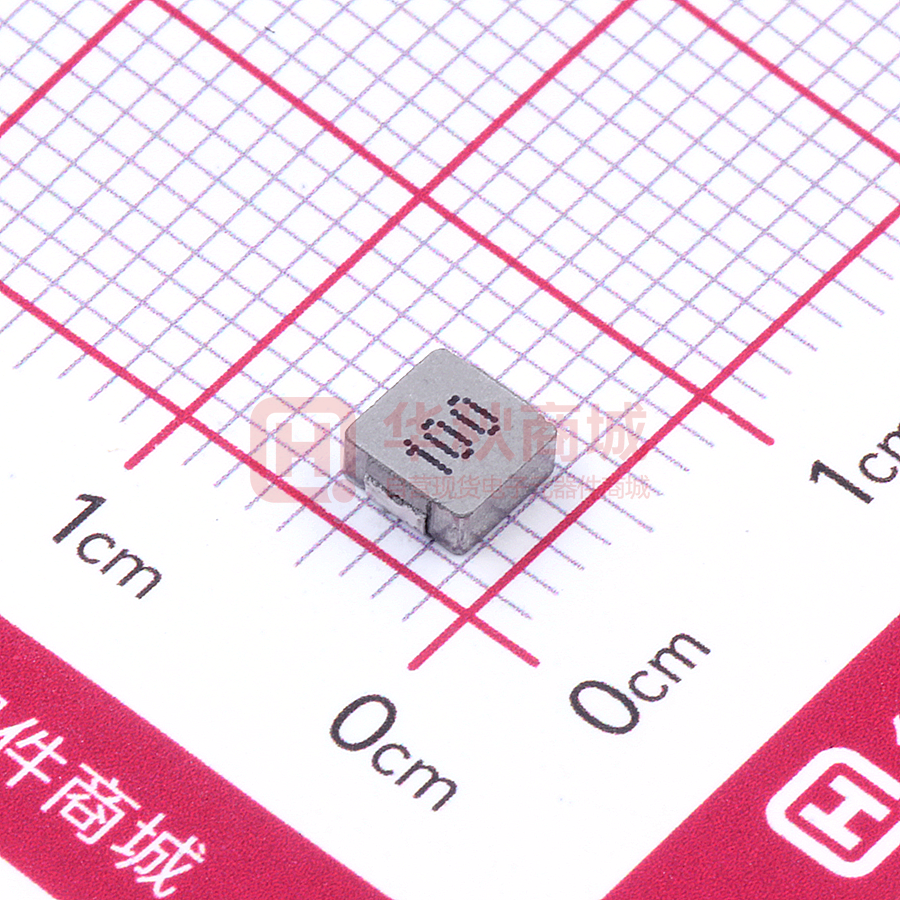

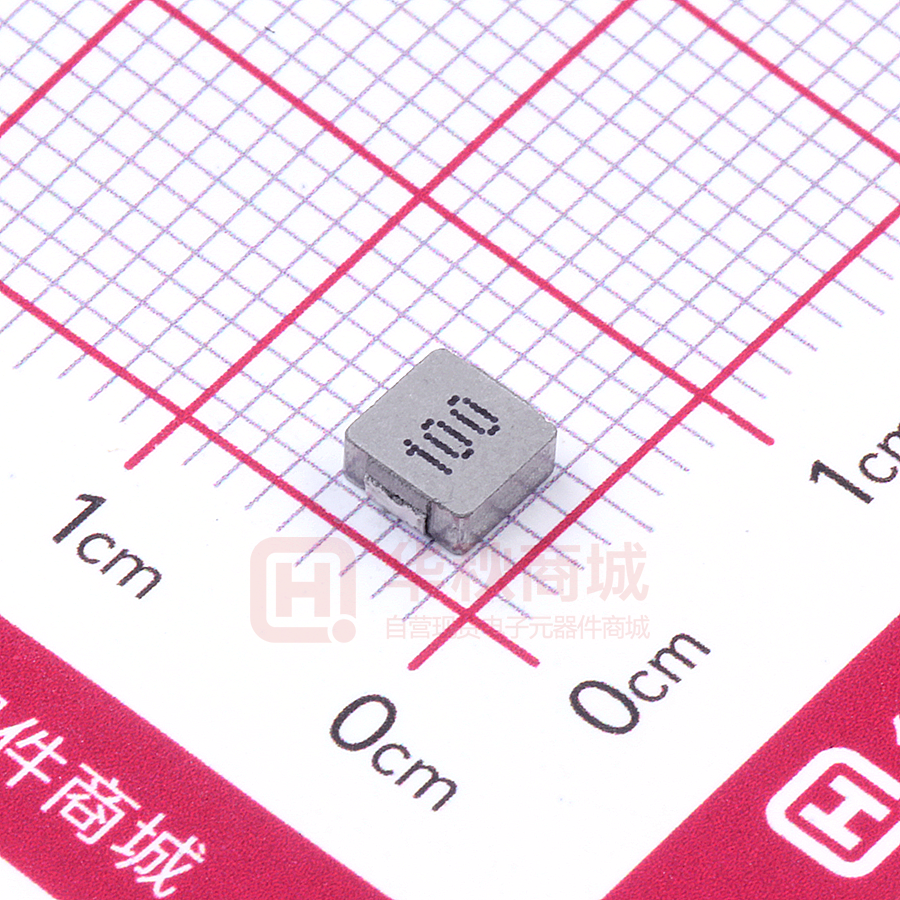

APH0420T100M
APH0420T220M
Inductance(μH)
Saturation Current (A)
Heat Rating Current(A)
DCR(mΩ)
Inductance
@100KHz,1V
Max.
Typ.
Max.
Typ.
Max.
Tolerance
0.1
0.22
0.33
0.47
0.56
0.68
1
1.2
1.5
2.2
3.3
4.7
6.8
10
22
18.26
10.38
9.96
7.89
7.47
6.64
5.81
5.40
4.57
4.15
2.91
2.49
2.08
1.66
1.16
22.00
12.50
12.00
9.50
9.00
8.00
7.00
6.50
5.50
5.00
3.50
3.00
2.50
2.00
1.40
11.47
8.40
8.81
6.78
6.24
6.28
5.49
5.49
4.41
3.91
2.88
2.29
1.98
1.35
0.95
13.00
9.50
10.00
7.50
7.00
7.00
6.00
6.00
5.00
4.50
3.30
2.80
2.40
1.60
1.20
4
6.6
11
14
16
18
27
27
46
58
87
105
175
282
363
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Marking
R10
R22
R33
R47
R56
R68
1R0
1R2
1R5
2R2
3R3
4R7
6R8
100
220
APH0518T series
Part Number
APH0518TR47M
APH0518TR56M
APH0518TR68M
APH0518T1R0M
APH0518T1R5M
APH0518T2R2M
APH0518T3R3M
APH0518T4R7M
APH0518T6R8M
APH0518T100M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
0.47
0.56
0.68
1
1.5
2.2
3.3
4.7
6.8
10
9.96
9.13
9.48
7.47
6.64
4.98
3.98
3.32
2.82
2.08
12.00
11.00
10.50
9.00
8.00
6.00
4.80
4.00
3.40
2.50
9.65
8.40
7.85
7.32
6.74
4.32
3.91
3.08
2.46
2.25
10.50
9.50
8.70
8.00
7.50
5.00
4.50
3.50
2.80
2.50
9
10
13.8
17
26
35
58
85
120
155
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Marking
R47
R56
R68
1R0
1R5
2R2
3R3
4R7
6R8
100
APH0530T series
Part Number
APH0530TR10M
APH0530TR20M
APH0530TR33M
APH0530TR47M
APH0530TR68M
APH0530TR82M
APH0530T1R0M
APH0530T1R2M
APH0530T1R5M
APH0530T2R2M
APH0530T3R3M
APH0530T4R7M
APH0530T6R8M
APH0530T100M
APH0530T150M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
0.1
0.2
0.33
0.47
0.68
0.82
1
1.2
1.5
2.2
3.3
4.7
6.8
10
15
24.90
16.60
14.94
12.45
9.55
9.40
8.30
7.89
7.47
5.81
4.98
3.82
2.99
2.91
2.03
30.00
20.00
18.00
15.00
11.50
10.50
10.00
9.50
9.00
7.00
6.00
4.60
3.60
3.50
2.20
23.30
13.15
13.24
10.15
8.32
9.23
7.91
7.95
7.69
6.49
5.08
4.08
2.99
2.86
1.63
25.00
14.00
14.00
11.00
9.00
10.50
8.50
8.50
8.20
7.00
5.50
4.50
3.50
3.20
1.80
3
3.9
5.5
8.5
12
10.4
14
16
25
29
38
60
90
125
170
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Specifications subject to change without notice. Please check our website for latest information.
Marking
R10
R20
R33
R47
R68
R82
1R0
1R2
1R5
2R2
3R3
4R7
6R8
100
150
Sept. 16, 2022
Molded SMD Power Inductors APH Series
APH0615T series
Part Number
APH0615TR47M
APH0615TR56M
APH0615TR68M
APH0615TR82M
APH0615T1R0M
APH0615T2R2M
APH0615T3R3M
APH0615T4R7M
APH0615T6R8M
APH0615T100M
APH0615T220M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
0.47
0.56
0.68
0.82
1
2.2
3.3
4.7
6.8
10
22
14.44
12.62
10.83
9.02
8.12
6.31
4.96
4.51
3.61
2.70
2.25
16.00
14.00
12.00
10.00
9.00
7.00
5.50
5.00
4.00
3.00
2.50
9.02
8.12
7.67
7.22
5.41
3.43
3.16
2.89
2.25
1.80
1.33
10.00
9.00
8.50
8.00
6.00
3.80
3.50
3.20
2.50
2.00
1.40
8.5
11
12
17
21
54
63
85
135
175
510
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Marking
R47
R56
R68
R82
1R0
2R2
3R3
4R7
6R8
100
220
APH0618T series
Part Number
APH0618TR10M
APH0618TR22M
APH0618TR47M
APH0618TR68M
APH0618T1R0M
APH0618T1R5M
APH0618T2R2M
APH0618T3R3M
APH0618T4R7M
APH0618T6R8M
APH0618T8R2M
APH0618T100M
APH0618T220M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
0.1
0.22
0.47
0.68
1
1.5
2.2
3.3
4.7
6.8
8.2
10
22
31.54
19.92
14.94
13.70
9.96
7.64
6.64
4.98
4.15
3.74
3.01
3.32
1.91
38.00
24.00
18.00
16.50
12.00
9.20
8.00
6.00
5.00
4.50
3.60
4.00
2.30
23.30
20.30
10.23
8.57
7.74
7.24
6.32
3.91
3.58
2.49
2.15
2.00
1.46
25.00
22.00
11.50
9.50
8.50
8.00
7.00
4.50
4.00
3.00
2.40
2.30
1.80
2.3
3.5
8.4
12
16
26
35
50
62
110
135
155
350
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Marking
R10
R22
R47
R68
1R0
1R5
2R2
3R3
4R7
6R8
8R2
100
220
APH0620T series
Part Number
APH0620T1R5M
APH0620T4R7M
APH0620T100M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
1.5
4.7
10
10.30
-
12.00
5.50
4.00
7.15
-
8.00
4.30
2.80
18
60
145
±20%
±20%
±20%
Marking
1R5
4R7
100
APH0624T series
Part Number
APH0624TR22M
APH0624TR33M
APH0624TR47M
APH0624TR56M
APH0624TR68M
APH0624T1R0M
APH0624T1R5M
APH0624T2R2M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
0.22
0.33
0.47
0.56
0.68
1
1.5
2.2
24.90
20.34
16.60
14.11
13.28
12.45
11.21
8.30
30.00
24.50
20.00
17.00
16.00
15.00
13.50
10.00
19.30
16.30
13.73
11.73
10.73
8.15
7.18
6.32
21.00
18.00
15.00
13.00
12.00
9.00
8.20
7.00
3
4.1
5.1
6.5
7
13.5
20
28
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Specifications subject to change without notice. Please check our website for latest information.
Marking
R22
R33
R47
R56
R68
1R0
1R5
2R2
Sept. 16, 2022
Molded SMD Power Inductors APH Series
APH0624T series
Part Number
APH0624T3R3M
APH0624T4R7M
APH0624T6R8M
APH0624T100M
APH0624T150M
APH0624T220M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
3.3
4.7
6.8
10
15
22
6.64
5.40
4.98
3.32
2.74
2.08
8.00
6.50
6.00
4.00
3.30
2.50
4.91
4.41
3.32
2.51
2.08
1.66
5.50
5.00
4.00
3.10
2.50
2.00
39
50
70
101
160
230
±20%
±20%
±20%
±20%
±20%
±20%
Marking
3R3
4R7
6R8
100
150
220
APH0630T series
Part Number
APH0630TR10M
APH0630TR12M
APH0630TR22M
APH0630TR24M
APH0630TR33M
APH0630TR47M
APH0630TR56M
APH0630TR68M
APH0630TR82M
APH0630T1R0M
APH0630T1R5M
APH0630T1R8M
APH0630T2R2M
APH0630T3R3M
APH0630T4R7M
APH0630T5R6M
APH0630T6R8M
APH0630T8R2M
APH0630T100M
APH0630T150M
APH0630T220M
APH0630T330M
APH0630T470M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
0.1
0.12
0.22
0.24
0.33
0.47
0.56
0.68
0.82
1
1.5
1.8
2.2
3.3
4.7
5.6
6.8
8.2
10
15
22
33
47
54.05
31.50
28.22
23.24
20.75
16.60
14.94
14.11
13.28
12.45
9.96
9.76
8.30
7.89
7.47
5.40
4.98
4.57
4.57
3.32
2.49
2.08
1.66
60.00
40.00
34.00
28.00
25.00
20.00
18.00
17.00
16.00
15.00
12.00
11.80
10.00
9.50
9.00
6.50
6.00
5.50
5.50
4.00
3.00
2.50
2.00
29.10
32.90
21.45
19.09
19.30
16.73
15.23
14.73
12.73
10.73
10.73
8.37
8.65
7.65
5.15
4.91
4.32
4.32
3.91
2.41
2.08
1.66
1.25
32.50
38.00
24.00
23.00
21.00
18.00
16.50
16.00
14.00
12.00
12.00
9.30
9.50
8.50
6.00
5.50
5.00
5.00
4.50
3.00
2.50
2.00
1.50
1.7
0.75
3
3.1
3.5
4.1
4.5
5.3
6
7.4
12.1
12.6
15
22
33
42
48
60
68
113
170
270
385
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Marking
R10
R12
R22
R24
R33
R47
R56
R68
R82
1R0
1R5
1R8
2R2
3R3
4R7
5R6
6R8
8R2
100
150
220
330
470
APH0640T series
Part Number
APH0640TR68M
APH0640T1R0M
APH0640T1R5M
APH0640T2R2M
APH0640T3R3M
APH0640T4R7M
APH0640T6R8M
APH0640T100M
APH0640T150M
APH0640T220M
APH0640T330M
APH0640T470M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
0.68
1
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
9.13
7.47
3.74
-
19.00
16.00
12.50
11.00
9.50
9.00
6.50
6.00
4.50
4.00
3.00
2.50
8.13
6.08
2.94
-
17.00
13.50
12.40
10.00
8.50
6.50
5.50
4.80
3.70
3.30
2.20
1.80
4.8
6.6
10
14
20
30
45
65
95
125
240
320
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Specifications subject to change without notice. Please check our website for latest information.
Marking
R68
1R0
1R5
2R2
3R3
4R7
6R8
100
150
220
330
470
Sept. 16, 2022
Molded SMD Power Inductors APH Series
APH0650T series
Part Number
APH0650TR47M
APH0650TR68M
APH0650T1R0M
APH0650T1R5M
APH0650T2R2M
APH0650T3R3M
APH0650T4R7M
APH0650T6R8M
APH0650T8R2M
APH0650T100M
APH0650T150M
APH0650T220M
APH0650T330M
APH0650T470M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
0.47
0.68
1
1.5
2.2
3.3
4.7
6.8
8.2
10
15
22
33
47
17.43
14.94
13.28
10.79
9.13
8.30
6.64
5.23
4.57
4.40
3.32
2.91
2.49
2.16
21.00
18.00
16.00
13.00
11.00
10.00
8.00
6.30
5.50
5.30
4.00
3.50
3.00
2.60
17.45
14.80
10.30
8.40
8.15
7.74
5.15
4.27
4.91
3.91
2.68
2.09
1.88
1.58
20.00
16.50
12.00
9.50
9.00
8.50
6.00
5.80
5.50
4.50
3.10
2.60
2.30
2.00
3.9
4.5
6.6
10
12.5
22
29
41
48
60
90
140
190
230
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Marking
R47
R68
1R0
1R5
2R2
3R3
4R7
6R8
8R2
100
150
220
330
470
APH0840T series
Part Number
APH0840TR22M
APH0840TR33M
APH0840TR47M
APH0840TR56M
APH0840TR68M
APH0840TR82M
APH0840T1R0M
APH0840T1R5M
APH0840T1R8M
APH0840T2R2M
APH0840T3R3M
APH0840T4R7M
APH0840T5R6M
APH0840T6R8M
APH0840T8R2M
APH0840T100M
APH0840T150M
APH0840T220M
APH0840T330M
APH0840T470M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
0.22
0.33
0.47
0.56
0.68
0.82
1
1.5
1.8
2.2
3.3
4.7
5.6
6.8
8.2
10
15
22
33
47
55.75
40.75
36.90
23.45
22.30
19.30
17.30
15.30
13.73
12.30
11.23
10.65
10.15
8.15
7.85
7.15
4.99
4.58
3.33
2.93
60.00
45.00
42.00
26.00
24.00
21.00
19.00
17.00
15.00
14.00
12.50
11.50
11.00
9.00
8.70
8.00
5.50
5.00
3.50
3.10
30.90
25.75
25.45
22.30
21.30
19.30
17.30
15.30
12.88
12.30
10.30
8.65
8.15
7.15
6.15
5.65
4.89
4.29
3.08
2.56
36.00
30.00
28.00
24.00
23.00
21.00
19.00
17.00
15.00
14.00
12.00
9.50
9.00
8.00
7.00
6.50
5.40
4.80
3.50
2.90
1.8
2.4
2.8
3.2
3.8
4.4
4.62
7.6
11
11.4
15
26.5
30
36.8
46
59
71
113
156
225
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Marking
R22
R33
R47
R56
R68
R82
1R0
1R5
1R8
2R2
3R3
4R7
5R6
6R8
8R2
100
150
220
330
470
APH1030T series
Part Number
APH1030TR22M
APH1030TR33M
APH1030TR36M
APH1030TR47M
APH1030TR82M
APH1030T1R0M
APH1030T1R5M
APH1030T2R2M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
0.22
0.33
0.36
0.47
0.82
1
1.5
2.2
45.10
28.86
25.28
23.45
20.75
18.94
18.04
12.62
50.00
32.00
28.00
26.00
23.00
21.00
20.00
14.00
29.77
20.75
20.75
19.85
16.24
13.53
11.73
9.92
33.00
23.00
23.00
22.00
18.00
15.00
13.00
11.00
1.2
1.6
1.6
2.5
3.7
6
7.5
9
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Specifications subject to change without notice. Please check our website for latest information.
Marking
R22
R33
R36
R47
R82
1R0
1R5
2R2
Sept. 16, 2022
Molded SMD Power Inductors APH Series
APH1030T series
Part Number
APH1030T3R3M
APH1030T4R7M
APH1030T8R2M
APH1030T100M
APH1030T330M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
3.3
4.7
8.2
10
33
10.82
9.01
6.32
5.86
3.60
12.00
10.00
7.00
6.50
4.00
8.12
6.31
4.51
4.06
2.35
9.00
7.00
5.00
4.50
2.60
16
22.5
45
55
160
±20%
±20%
±20%
±20%
±20%
Marking
3R3
4R7
8R2
100
330
APH1040T series
Part Number
APH1040TR13M
APH1040TR15M
APH1040TR22M
APH1040TR30M
APH1040TR36M
APH1040TR45M
APH1040TR47M
APH1040TR56M
APH1040TR68M
APH1040TR80M
APH1040T1R0M
APH1040T1R5M
APH1040T2R2M
APH1040T3R3M
APH1040T4R7M
APH1040T6R8M
APH1040T8R2M
APH1040T100M
APH1040T150M
APH1040T220M
APH1040T330M
APH1040T470M
APH1040T680M
APH1040T820M
APH1040T101M
Inductance(μH)
Saturation Current (A)
Heat Rating Current(A)
DCR(mΩ)
Inductance
@100KHz,1V
Max.
Typ.
Max.
Typ.
Max.
Tolerance
0.13
0.15
0.22
0.3
0.36
0.45
0.47
0.56
0.68
0.8
1
1.5
2.2
3.3
4.7
6.8
8.2
10
15
22
33
47
68
82
100
67.35
62.25
49.80
37.35
37.35
35.35
33.20
27.39
24.90
24.07
23.24
19.92
13.70
13.28
10.79
9.96
7.47
7.06
5.81
4.57
3.98
3.16
2.49
2.38
2.13
92.00
75.00
60.00
45.00
45.00
43.00
40.00
33.00
30.00
29.00
28.00
24.00
16.50
16.00
13.00
12.00
9.00
8.50
7.00
5.50
4.80
3.50
3.00
2.80
2.30
64.35
40.75
30.75
30.75
25.75
25.75
25.75
20.75
19.60
19.60
16.45
14.30
10.30
9.73
7.73
7.23
6.98
7.04
5.74
4.32
3.89
2.88
2.08
2.13
1.83
72.00
45.00
35.00
35.00
30.00
30.00
30.00
25.00
23.00
23.00
19.00
16.00
12.00
11.00
9.00
8.50
8.00
7.80
6.50
5.00
4.40
3.30
2.50
2.30
2.00
0.52
0.65
1
1.1
1.2
1.5
1.7
1.8
2.4
2.7
3.3
4.2
7
11.8
20
25
27
30
45
66
92
145
195
285
340
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Marking
R13
R15
R22
R30
R36
R45
R47
R56
R68
R80
1R0
1R5
2R2
3R3
4R7
6R8
8R2
100
150
220
330
470
680
820
101
APH1050T series
Part Number
APH1050TR22M
APH1050TR68M
APH1050T1R0M
APH1050T1R5M
APH1050T2R2M
APH1050T3R3M
APH1050T4R7M
APH1050T5R6M
APH1050T6R8M
APH1050T100M
APH1050T150M
APH1050T220M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
0.22
0.68
1
1.5
2.2
3.3
4.7
5.6
6.8
10
15
22
58.63
34.45
28.30
22.45
17.13
14.30
13.47
12.56
12.56
8.98
6.65
5.41
65.00
37.00
30.00
25.00
19.00
16.00
15.00
14.00
14.00
10.00
7.50
6.00
33.18
21.30
20.71
18.88
13.47
11.73
9.90
8.65
8.15
7.15
5.82
5.08
37.00
23.00
23.00
21.00
15.00
13.00
11.00
9.50
9.00
8.00
6.50
5.50
0.8
1.95
3
3.8
6
10
14
17
18.5
28
42
50
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Specifications subject to change without notice. Please check our website for latest information.
Marking
R22
R68
1R0
1R5
2R2
3R3
4R7
5R6
6R8
100
150
220
Sept. 16, 2022
Molded SMD Power Inductors APH Series
APH1050T series
Part Number
APH1050T330M
APH1050T470M
APH1050T680M
APH1050T820M
APH1050T101M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
33
47
68
82
100
4.69
4.08
2.86
3.08
2.55
5.20
4.50
3.20
3.50
2.80
4.29
3.28
2.45
1.75
1.85
4.80
3.70
2.70
2.00
2.10
86
127
185
280
290
±20%
±20%
±20%
±20%
±20%
Marking
330
470
680
820
101
APH1240T series
Part Number
APH1240TR22M
APH1240TR47M
APH1240TR68M
APH1240TR82M
APH1240T1R0M
APH1240T1R5M
APH1240T2R2M
APH1240T3R3M
APH1240T4R7M
APH1240T6R8M
APH1240T100M
APH1240T150M
APH1240T220M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
0.22
0.47
0.68
0.82
1
1.5
2.2
3.3
4.7
6.8
10
15
22
41.50
39.84
39.01
33.20
29.05
25.32
21.58
17.43
14.94
11.62
8.30
6.23
4.98
50.00
48.00
47.00
40.00
35.00
30.50
26.00
21.00
18.00
14.00
10.00
7.50
6.00
38.60
29.60
24.60
24.60
20.60
17.45
15.45
13.30
11.30
8.15
7.15
5.91
3.91
42.00
33.00
28.00
28.00
24.00
20.00
18.00
15.00
13.00
9.00
8.00
6.50
4.50
0.9
2
3.5
4.5
7.5
9.5
11.5
13
14.5
20
25
39
51
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Marking
R22
R47
R68
R82
1R0
1R5
2R2
3R3
4R7
6R8
100
150
220
APH1250T series
Part Number
APH1250TR22M
APH1250TR36M
APH1250TR50M
APH1250TR68M
APH1250TR82M
APH1250T1R0M
APH1250T1R5M
APH1250T2R2M
APH1250T3R3M
APH1250T4R7M
APH1250T6R8M
APH1250T100M
APH1250T150M
APH1250T220M
APH1250T330M
APH1250T470M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
0.22
0.36
0.5
0.68
0.82
1
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
62.25
41.50
39.84
38.18
32.37
29.05
27.39
19.92
18.26
16.60
13.28
9.96
8.30
5.40
4.98
4.15
75.00
50.00
48.00
46.00
39.00
35.00
33.00
24.00
22.00
20.00
16.00
12.00
10.00
6.50
6.00
5.00
45.75
37.75
33.75
29.60
26.60
22.60
19.60
13.30
12.30
11.30
10.30
8.15
7.15
3.91
2.91
2.66
50.00
42.00
38.00
33.00
30.00
26.00
23.00
15.00
14.00
13.00
12.00
9.00
8.00
4.50
3.50
3.00
0.7
0.85
1.15
1.55
1.67
2.2
3.2
5
7
9
18
22
30
58
84
130
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Specifications subject to change without notice. Please check our website for latest information.
Marking
R22
R36
R50
R68
R82
1R0
1R5
2R2
3R3
4R7
6R8
100
150
220
330
470
Sept. 16, 2022
Molded SMD Power Inductors APH Series
APH1260T series
Part Number
APH1260T1R5M
APH1260T2R2M
APH1260T3R3M
APH1260T4R7M
APH1260T5R6M
APH1260T6R8M
APH1260T8R2M
APH1260T100M
APH1260T120M
APH1260T150M
APH1260T180M
APH1260T220M
APH1260T270M
APH1260T330M
APH1260T470M
APH1260T680M
APH1260T101M
APH1260T121M
APH1260T151M
Inductance(μH)
Saturation Current (A)
Heat Rating Current(A)
DCR(mΩ)
Inductance
@100KHz,1V
Max.
Typ.
Max.
Typ.
Max.
Tolerance
1.5
2.2
3.3
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
47
68
100
120
150
27.45
24.60
21.60
19.92
18.68
15.77
11.21
11.31
8.30
7.47
6.64
6.23
5.40
4.98
4.57
3.74
2.91
2.66
2.24
30.00
28.00
25.00
24.00
22.50
19.00
13.50
12.50
10.00
9.00
8.00
7.50
6.50
6.00
5.50
4.50
3.50
3.20
2.70
23.60
18.60
14.45
12.45
11.30
10.30
9.30
8.73
7.98
7.65
6.65
6.15
5.15
4.91
4.32
3.32
2.58
1.75
1.25
27.00
22.00
17.00
15.00
13.00
12.00
11.00
10.00
9.00
8.50
7.50
7.00
6.00
5.50
5.00
4.00
3.00
2.00
1.50
2.9
4.2
6.8
9
11
13.5
16
20.7
23
29
35
39.5
56
75
90
140
200
235
350
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
DCR(mΩ)
Inductance
Max.
Tolerance
Marking
1R5
2R2
3R3
4R7
5R6
6R8
8R2
100
120
150
180
220
270
330
470
680
101
121
151
APH1265T series
Part Number
Inductance(μH)
Saturation Current (A)
@100KHz,1V
Max.
APH1265T4R7M
4.7
APH1265T5R6M
5.6
APH1265T6R8M
Heat Rating Current(A)
Marking
Typ.
Max.
Typ.
-
24
-
16
8.5
±20%
4R7
-
22.5
-
14
10.5
±20%
5R6
6.8
-
19
-
13
12
±20%
6R8
APH1265T8R2M
8.2
-
16
-
12
14
±20%
8R2
APH1265T100M
10
-
15
-
11
16.5
±20%
100
APH1265T150M
15
-
11
-
9.5
26
±20%
150
APH1265T220M
22
-
9
-
8
36
±20%
220
APH1265T330M
33
-
8
-
6.5
65
±20%
330
APH1265T470M
47
-
6.8
-
5.5
70
±20%
470
APH1265T680M
68
-
5.2
-
4.8
120
±20%
680
APH1265T820M
82
-
4.5
-
4
135
±20%
820
APH1265T101M
100
-
4
-
3.5
170
±20%
101
Specifications subject to change without notice. Please check our website for latest information.
Sept. 16, 2022
Molded SMD Power Inductors APH Series
APH1770T series
Part Number
APH1770T2R2M
APH1770T3R3M
APH1770T4R7M
APH1770T6R8M
APH1770T8R2M
APH1770T100M
APH1770T150M
APH1770T220M
APH1770T330M
APH1770T470M
APH1770T680M
APH1770T101M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
2.2
3.3
4.7
6.8
8.2
10
15
22
33
47
68
100
-
34.00
30.00
24.00
22.00
20.00
19.00
14.50
11.50
10.00
7.50
6.50
5.00
-
29.00
24.00
21.00
17.00
13.00
12.00
11.00
8.50
8.00
6.00
5.20
3.70
2.5
3.95
4.75
7.5
8.7
9.9
17
23
37
47
85
130
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Marking
2R2
3R3
4R7
6R8
8R2
100
150
220
330
470
680
101
APH2213T series
Part Number
APH2213T2R2M
APH2213T4R7M
APH2213T100M
APH2213T150M
APH2213T680M
Inductance(μH)
DCR(mΩ)
Inductance
@100KHz,1V
Saturation Current (A)
Max.
Typ.
Heat Rating Current(A)
Max.
Typ.
Max.
Tolerance
2.2
4.7
10
15
68
43.75
34.60
21.20
18.75
9.45
48.00
38.00
28.00
23.00
12.00
52.00
44.00
30.00
23.00
12.00
52.90
44.45
30.45
23.45
12.30
1.25
2.2
4.15
6.12
29.5
±20%
±20%
±20%
±20%
±20%
Marking
2R2
4R7
100
150
680
△1: All test data is referenced to 20°C ambient;
△2: Rated current: Isat or Irms, whichever is smaller;
△3: Isat(Typ): DC current at which the inductance drops approximate 30% from its value without current;
△4: Isat(Max): DC current at which the inductance drops approximate 20% from its value without current;
△5: Irms(Typ): DC current that causes the temperature rise (△T =40°C) from 20°C ambient.
△6: Irms(Max): DC current that causes the temperature rise (△T =20°C) from 20°C ambient.
△7: Absolute maximum voltage 30VDC
Note:
1. Operating temperature range -40℃~125℃(Including self - temperature rise)
2. 2. Rated Current: Inductance drop = 35% typ.
3. Irms for a 40℃ temprature rise from 25℃ ambient with current
4. Measure Equipment:
L: Agilent E4980 or HP4284A
RDC: CH502BC
Rate Current: HP4284+42841A or WK3260B+WK3265B
Please be sure to request approval specifications that provide further details of the products. Kindly not that the content of
these specifications are subject to change or may be discontinued without prior notice. This product may not be
designed/used in medical or high risk applications without APV approval.
Specifications subject to change without notice. Please check our website for latest information.
Sept. 16, 2022
Molded SMD Power Inductors APH Series
Specifications subject to change without notice. Please check our website for latest information.
Sept. 13, 2021
Molded SMD Power Inductors APH Series
Specifications subject to change without notice. Please check our website for latest information.
Sept. 13, 2021
Molded SMD Power Inductors APH Series
Specifications subject to change without notice. Please check our website for latest information.
Sept. 13, 2021
Molded SMD Power Inductors APH Series
Specifications subject to change without notice. Please check our website for latest information.
Sept. 13, 2021
很抱歉,暂时无法提供与“APH0420T100M”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 10+0.75371
- 100+0.68721
- 500+0.62071
- 1000+0.55421
- 2000+0.50987
- 4000+0.49657
- 国内价格
- 5+0.52255
- 50+0.41533
- 150+0.36166
- 500+0.32144
- 3000+0.28924
- 6000+0.27313
