3-Electrode Gas Discharge Tube (GDT)
UN3E5 Series
UN3E5-XXXLM
Description
UN3E5-XXXL
Gas discharge Tubes (GDT) are classical components for
protecting the installations of the telecommunications. It is
essential that IT and telecommunications systems -with their
high-grade but sensitive electronic circuits - be protected by
arresters. They are thus fitted at the input of the power supply
UN3E5-XXXLSMD
system together with varistors and at the connection points to
telecommunication lines. They have become equally indispensable
for protecting base stations in mobile telephone systems as well as
extensive cable television (CATV) networks with their repeaters
and distribution systems.
These protective components are also indispensable in other
Schematic Symbol
sectors, In AC power transmission systems, they are often used
with current-limiting varistors, In customer premises equipment
such as DSL modems, WLAN routers, TV sets and cable modems
a
a = Tip
b = Ring
e = Ground
(Center electrode)
b
In air-conditioning equipment, the integral black-box concept offers
graduated protection by combining arresters with varistors, PTC,
e
diodes and inductor.
Agency Approvals
Features
u
Non-Radioactive
u
RoHS compliant
u
Low insertion loss
u
Excellent response to fast rising transients
u
Ultra low capacitance
u
5KA surge capability tested with 8/20μs
AGENCY
E341061
Product Characteristics
Materials
pulse as defined by IEC 61000-4-5
Applications
u
u
u
u
u
u
u
u
u
u
u
Product Marking
Communication equipment
CATV equipment
Test equipment
Data lines
Power supplies
Telecom SLIC protection
Broadband equipment
ADSL equipment, including ADSL2+
XDSL equipment
Satellite and CATV equipment
Consumer electronics
Leaded Device: Nickel-plated
Tinplated wires
Surface Mount: Dull Tin-plated
XXX
L
-Nominal voltage
-5KA
< 0.5 Amps
Glow Voltage
~60 Volts
Storage and
Operational
Temperature
-40 to +90°C
Climatic category
(IEC 60068-1)
with
UNION
XXXL
Glow to Arc
Transition Current
Weight
SOCAY Electronics Co., Ltd.
Revision March 6, 2014
AGENCY FILE NUMBER
UN3E5-XXXLM
~0.78g
UN3E5-XXXLM
~0.66g
UN2E5-XXXLSMD
~0.68g
40/ 90/ 21
www.socay.com
1/4
@SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
3-Electrode Gas Discharge Tube (GDT)
UN3E5 Series
Dimensions
(Unit: mm)
Radial Leaded Devices
(UN3E5-XXXLM)
Without wire Devices
(UN3E5-XXXL)

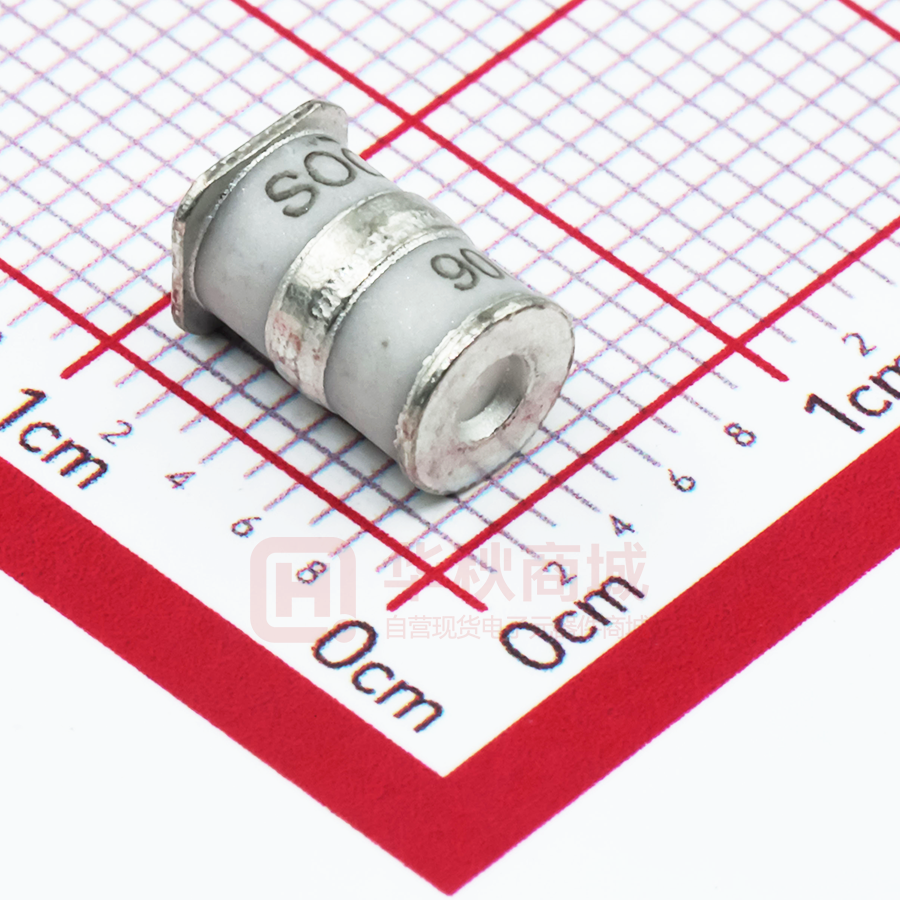

Surface Mount Devices (UN3E5-XXXLSMD)
Recommended
Pad Outline
Electrical Characteristics
Service Life
DC Spark-over
Voltage
Part Number
UN3E5-75LM
UN3E5-75L
UN3E5-75LSMD
UN3E5-90LM
UN3E5-90L
UN3E5-90LSMD
UN3E5-150LM
UN3E5-150L
UN3E5-150LSMD
UN3E5-230LM
UN3E5-230L
UN3E5-230LSMD
UN3E5-250LM
UN3E5-250L
UN3E5-250LSMD
UN3E5-300LM
UN3E5-300L
UN3E5-300LSMD
UN3E5-350LM
UN3E5-350L
UN3E5-350LSMD
UN3E5-420LM
UN3E5-420L
UN3E5-420LSMD
UN3E5-470LM
UN3E5-470L
UN3E5-470LSMD
UN3E5-600LM
UN3E5-600L
UN3E5-600LSMD
Maximum Impulse
Spark-over Voltage
Marking
@100V/S
@100V/μs
@1KV/μs
UNION
75L
75V±20%
<500V
<600V
UNION
90L
90V±20%
<500V
<600V
UNION
150L
150V±20%
<500V
<600V
UNION
230L
230V±20%
<600V
<700V
UNION
250L
250V±20%
<600V
<700V
UNION
300L
300V±20%
<800V
<900V
UNION
350L
350V±20%
<800V
<900V
UNION
420L
420V±20%
<900V <1000V
UNION
470L
470V±20%
<900V <1000V
UNION
600L
600V±20%
<1100V <1200V
Maximum
Minimum Capacitance
Insulation
Resistance
1 GΩ
(at 25V)
1 GΩ
(at 50V)
1 GΩ
(at 50V)
1 GΩ
(at 100V)
1 GΩ
(at 100V)
1 GΩ
(at 100V)
1 GΩ
(at 100V)
1 GΩ
(at 100V)
1 GΩ
(at 100V)
1 GΩ
(at 100V)
Arc
Voltage
Nominal
Impulse
Discharge
Current
Nominal
Max Impulse
Alternating
Discharge
Discharge
Current
Current
Impulse Life
@1MHz
@1A
@8/20μs 4)
±5 times
@8/20μs 4)
1 time
@50Hz 4)
1 Sec
10 times
@10/1000μs 4)
300 times
<1.5pF
~15V
5KA
10KA
5A
200A
<1.5pF
~15V
5KA
10KA
5A
200A
<1.5pF
~20V
5KA
10KA
5A
200A
<1.5pF
~20V
5KA
10KA
5A
200A
<1.5pF
~20V
5KA
10KA
5A
200A
<1.5pF
~20V
5KA
10KA
5A
200A
<1.5pF
~20V
5KA
10KA
5A
200A
<1.5pF
~20V
5KA
10KA
5A
200A
<1.5pF
~20V
5KA
10KA
5A
200A
<1.5pF
~20V
5KA
10KA
5A
200A
Notes:
1). Terms in accordance with ITU-T K.12 and GB/T 9043-2008
2). At delivery AQL 0.65 level Ⅱ, DIN ISO 2859
3). Tip or ring electrode to center electrode
4). Total current through center electrode, half value through tip respectively ring electrode
SOCAY Electronics Co., Ltd.
Revision March 6, 2014
www.socay.com
2/4
@SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
3-Electrode Gas Discharge Tube (GDT)
UN3E5 Series
Electrical Rating
Item
Test Condition / Description
DC Spark-over Voltage
Impulse Spark-over
Voltage
Insulation Resistance
Capacitance
Requirement
The voltage is measured with a slowly rate of rise dv / dt=100V/s
The maximum impulse spark-over voltage is measured with a rise time of
dv / dt=100V//μs or 1KV/μs
The resistance of gas tube shall be measured each terminal each other terminal,
please see above spec.
The capacitance of gas tube shall be measured each terminal to each other
terminal.
Test frequency :1MHz
The maximum current applying a waveform of 8/20μs that can be applied across
the terminals of the gas tube. One hour after the test is completed, re-testing of the
DC spark-over voltage does not exceed ±30% of the nominal DC spark-over
voltage. Dwell time between pulses is 3 minutes.
I
1.0
0.9
To meet
the specified
value
Nominal Impulse
Discharge Current
0.5
0.1
0.0
8μsec
20μsec
Nominal Alternating
Discharge Current
30% Max
T
Rated RMS value of AC current at 50Hz, 1 sec. 10 times. Intervals: 3min. The DC
spark-over voltage does not exceed ±30% of the nominal DC spark-over voltage.
8
IR > 10 ohms.
Recommended soldering profile
Reflow soldering
Wave soldering
Soldering profile applied a single process
Soldering Parameters - Hand Soldering
Solder Iron Temperature: 350°C +/-5°C
Heating Time: 5 seconds max.
SOCAY Electronics Co., Ltd.
Revision March 6, 2014
www.socay.com
3/4
@SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
3-Electrode Gas Discharge Tube (GDT)
UN3E5 Series
Part Numbering
UN3E5 – XXX L M
M,
with wire
No,
without wire
SMD, Surface Mount
8/20μs Level
L, 5KA
Nominal DC Spark-over Voltage
75 = 75V
300=300V
90 =90V
350 =350V
150 = 150V
470 =470V
230 = 230V
600 = 600V
Series
Packaging
Part Number
Description
Quantity
UN3E5-XXXLM
100PCS per Tray, 10 Trays / Inner
1000
UN3E5-XXXL
100PCS per Tray, 10 Trays / Inner
1000
100PCS per Tray, 10 Trays/ Inner
1000
16mmTape & 13″ Reel
1000
UN3E5-XXXLSMD
Tray Dimension
Tape and Reel Dimension (Unit: mm)
(Unit: mm)
Cautions and warnings
u
u
u
u
Gas discharge tubes (GDT) must not be operated directly in power supply networks.
Gas discharge tubes (GDT) may become hot in case of longer periods of current stress (danger of burning).
Gas discharge tubes (GDT) may be used only within their specified values. In the event of overload, the head contacts may
fail or the component may be destroyed.
Damaged Gas discharge tubes (GDT) must not be re-used.
SOCAY Electronics Co., Ltd.
Revision March 6, 2014
www.socay.com
4/4
@SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
