承认书
SPECIFICATION FOR APPROVAL
1、订货代码
RH
A
HOW TO ORDER
3.5 × 0.8 × 9.0 P52
B
2、外形尺寸
C
D
E
E
G
项目
Item
代码
Code
描 述
Description
A
RH

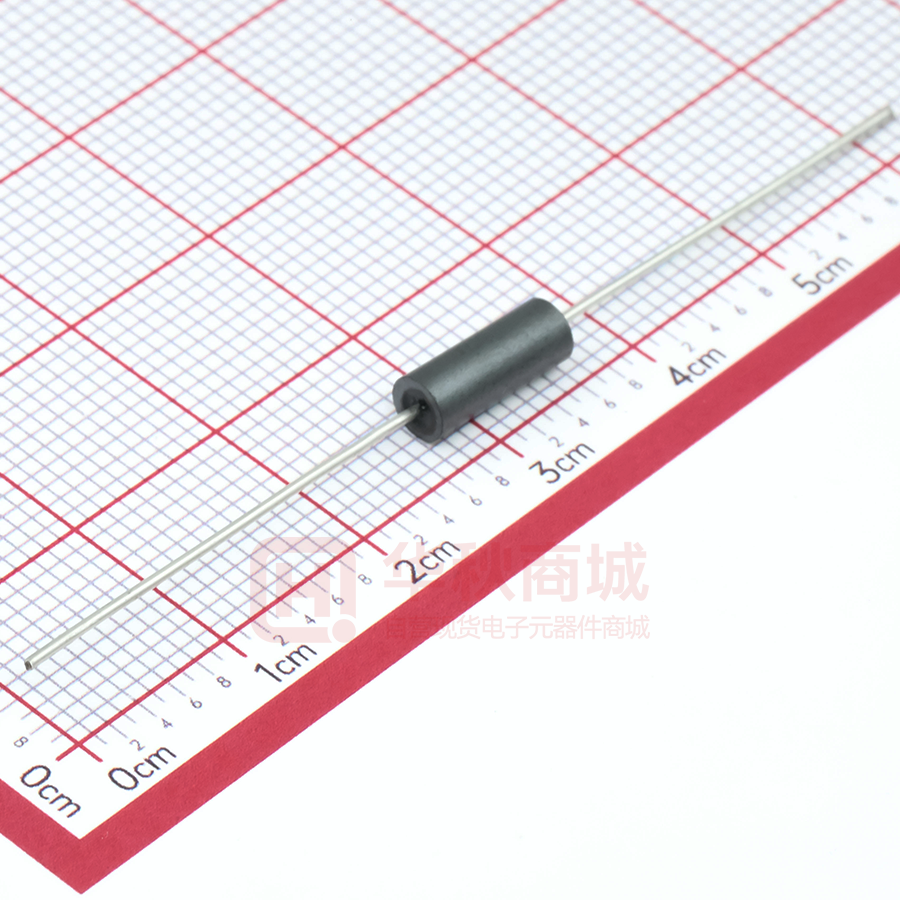

穿芯磁珠 RH 型 Bead core inductor RH type
B
3.5
外径尺寸 Outer diameter ФA
C
0.8
内径尺寸 Inside diameter ФC
D
9.0
磁芯体长 Core length D
E
P52
编带包装内距 Tape width :52mm
G
E
无铅 Lead Free
EXTERNAL DIMENSIONS
尺寸 Dimensions (mm)
3、产品结构
ФA
ФC
D
ФW
3.5±0.2
0.8±0.1
9.0±0.3
0.60±0.05
STRUCTURE
项目 Item
①磁体 Core
②引脚 Leading
材料名称
Material name
Ni-Zn 铁氧体
Ni-Zn Ferrite
铜包钢线
CP
Page 1 of 4
承认书
SPECIFICATION FOR APPROVAL
4、 主要电性能参数 ELECTRICAL CHARACTERISTICS
型 号 规 格
Type
阻抗 Impedance(Ω)
(@25MHz)
阻抗 Impedance(Ω)
(@100MHz)
RH 3.5×0.8×9.0 P52
60.0(Min)
100.0(Min)
# 不同规格的产品可以根据客户要求生产
The products can be customized according to customer requirement.
5、 试验项目及要求
1
2
3
项目
性能要求
Item
Specification
工作温度范围
Operating
-25~+85℃
temperature
range
储存温度范围
Storage
-20~+85℃
temperature
range
外观和外形尺寸 符合产品规范和公差要求
Appearance & Conformity
to
the
dimensions
product specification
阻抗值(Z)
Impedance
在规定的允许范围内
Within the specified
tolerance
5
引出端强度
Terminal
strength
外观无可见损伤、引线不
断
There shall be no
evidence
of
damage
during the test and the
lead no breakage.
6
耐焊接热
Resistance to
soldering
heat
7
可焊性
Solder
ability
4
试验条件及方法
Test methods and remarks
目测,精度不低于 0.02 ㎜的游标卡尺测量
Eyeball; vernier calliper with precision no
lower than 0.02mm
在规定的测试频率下,用 HP-4291B 进行测试。
Condition: at specified test frequency.
Test equipment:HP-4291B
拉力:沿轴向施加 2kgf,持续时间:5s
Pull: adding 2kgf down axial Duration: 5s
弯折循环:在靠近端子末端将引线弯折 90 度后还
原持续 5s,再向反方向重复一次为一个循环。重
复2次
Bucking cycle: buck lead 90°at the end of
closing terminal and then reset keeping 5s,
redoing one time at the counter is one cycle.
Repeat two times.
ΔZ/Z ≤±10%
焊锡温度: 270±5℃ 浸锡时间:10±1s
恢复时间:1~2 小时
Tin review: 270±5℃ Duration: 10±1s
Recovery: 1~2hours
引线的表面圆周覆盖率不
小于 95%
Leads shall be at least
95% areas covered with a
new solder coating.
焊锡温度: 250±5℃
浸锡时间: 2±0.5s
Tin review: 250±5℃ Duration: 2±0.5s
Page 2 of 4
承认书
SPECIFICATION FOR APPROVAL
6、 包装方式 PACKAGING STYLE
●
编带尺寸
单位 UNIT:mm
Taping dimensions
编带方式 Tape style
L
Z
编带内距 Tape width:26
26±1.0
0.8 Max
编带内距 Tape width:52
52
+2.0
-1.0
● 卷带包装尺寸 Tape & reel packaging dimensions
Page 3 of 4
∣L1-L2∣
1.0 Max
1.2 Max
承认书
SPECIFICATION FOR APPROVAL
● 盒带包装尺寸 Ammo packaging dimensions
z
包装盒尺寸 Dimensions of box
A
尺寸
Dimensions(±5mm)
B
C
52
70
60
256
26
50
110
256
盒带包装
Ammo
卷带包装
Tape & reel
散包装
Bulk
1000
5000
1000
编带类型
Tape type
z
单位 UNIT:mm
包装数量 Packaging quantity
包装方式
Packaging
style
包装数量
Quantity
# 可根据用户需求包装
Packaging according to customer’s requirement
Page 4 of 4
