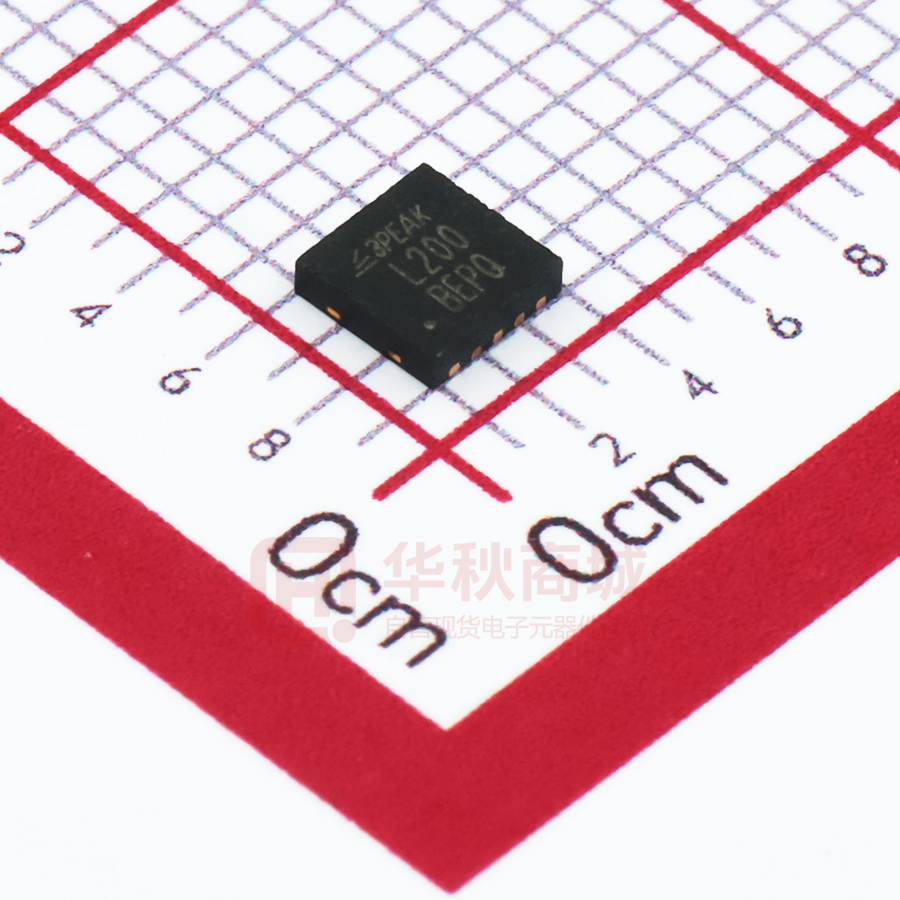

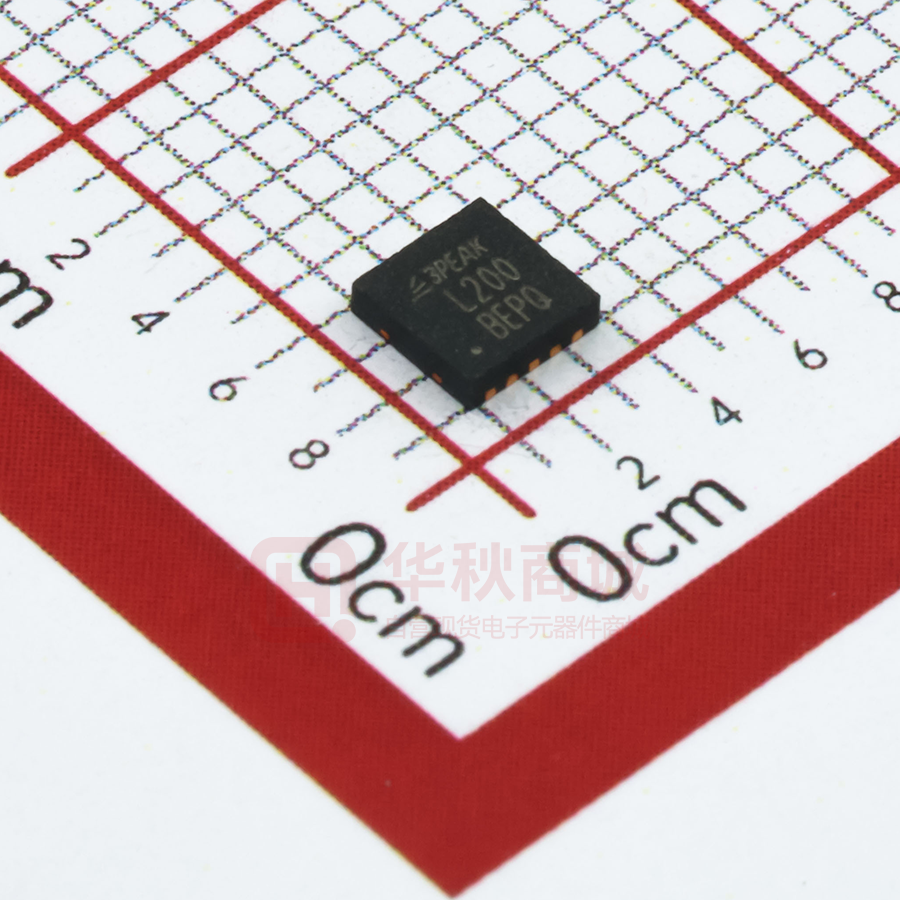

TPL51200-DF8R

TPL51200 Series 3-A Sink and Source DDR Termination Regulator Features Description ◼ VIN Voltage: Support 2.5-V, 3.3-V and 5-V Power Rails With the development of main processors in PCs and servers, ◼ VLDOIN Voltage Range: 1.1 V to 3.5 V more and more source double-data-rate (DDR) memories are ◼ Flexible Input Voltage Tracking Directly from REFIN or required in the mainboard, where the input voltage becomes Through External Resistor Divider lower and lower, and space limitation becomes higher and 3-A Sink and Source Current Capability for DDR higher. ◼ Termination ◼ Integrated Power MOSFETs The TPL51200 series devices are 3-A sink and source DDR ◼ Output Remote Sensing termination regulators specifically designed for the DDR ◼ Fast Load-Transient Response applications with heavy space limitation. The TPL51200 series ◼ Open-Drain Power Good to Monitor OUT Regulation devices implement a fast load-transient response and only ◼ Built in Soft-Start and UVLO, Current Limit and Thermal requires a minimum output capacitance of 20 μF. Shutdown Protection Support DDR, DDR2, DDR3, DDR3L, Low Power DDR3 The TPL51200 series devices support a remote-sensing and DDR4 VTT Applications function and all power requirements for DDR VTT bus ◼ Operating Temperature Range: –40°C to +125°C termination. In addition, the TPL51200 series devices provide ◼ Small Package with 3×3 DFN-10 an open-drain PG signal for VTT regulation indication and an ◼ Pb−Free and are RoHS Compliant EN signal that can be used to discharge VTT for DDR ◼ applications. Applications ◼ The TPL51200 series devices are available in the thermally Memory VTT Regulator for DDR, DDR2, DDR3, DDR3L, efficient 10-pin 3×3 DFN package with thermal pad, and support Low Power DDR3 and DDR4 the operating temperature range from –40°C to +125°C. ◼ Notebooks, Desktops, and Workstations ◼ Servers, Networking equipment and Datacenters ◼ Telecom and Base Station Typical Application Schematic 10 kΩ VDDQ = 1.2 V 1 1 nF REFIN IN 10 10 kΩ VLD OIN = VDDQ = 1.2 V 10 μF 10 μF 10 μF 10 μF GND www.3peakic.com.cn VIN = 3.3 V 100 kΩ 0.1 μF 2 LDOIN TPL51200 VTT = 0.6 V 4.7 μF 3 OUT 4 PGND 5 SNS 1 / 18 PG 9 GND 8 EN 7 REFOUT 6 PG Sig nal to I/O Ena ble Signa l 0.1 μF VTTRE F = 0.6 V Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Product Family Table Part Number Output Current Orderable Number Package Transport Media, Quantity MSL Marking information TPL51200 3A TPL51200-DF8R 3×3 DFN-10 4,000 MSL3 L200 www.3peakic.com.cn 2 / 18 Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Table of Contents Features ........................................................................................................................................................................... 1 Applications ..................................................................................................................................................................... 1 Description....................................................................................................................................................................... 1 Typical Application Schematic ...................................................................................................................................... 1 Product Family Table ...................................................................................................................................................... 2 Table of Contents ............................................................................................................................................................ 3 Revision History .............................................................................................................................................................. 4 Pin Configuration and Functions .................................................................................................................................. 5 Specifications .................................................................................................................................................................. 6 Absolute Maximum Ratings .......................................................................................................................................................... 6 ESD Ratings ................................................................................................................................................................................. 6 Recommended Operating Conditions ........................................................................................................................................... 6 Thermal Information ...................................................................................................................................................................... 6 Electrical Characteristics ............................................................................................................................................................... 7 Typical Performance Characteristics............................................................................................................................................. 9 Detailed Description ..................................................................................................................................................... 12 Overview ..................................................................................................................................................................................... 12 Functional Block Diagram ........................................................................................................................................................... 12 Feature Description ..................................................................................................................................................................... 12 Application and Implementation.................................................................................................................................. 14 Application Information................................................................................................................................................................ 14 Typical Application ...................................................................................................................................................................... 14 Layout Requirements .................................................................................................................................................................. 15 Tape and Reel Information .............................................................................................................................................. 16 Package Outline Dimensions ....................................................................................................................................... 17 3×3 DFN-10 ................................................................................................................................................................................ 17 www.3peakic.com.cn 3 / 18 Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Revision History Date Revision 2019/11/30 Rev.Pre Preliminary Version 2020/05/15 Rev.A.0 Initial Released 2020/12/22 Rev.A.1 www.3peakic.com.cn Notes 1. Add Tape and Reel Information 2. Update Package Outline Dimensions 4 / 18 Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Pin Configuration and Functions TPL51200 Series DFN-20 Package Top View REFIN 1 LDOIN 2 Exposed PAD 10 IN 9 PG 8 GND OUT 3 PGND 4 7 EN SNS 5 6 REFOUT Pin Functions NAME PIN NUMBER TYPE DESCRIPTION EN 7 I GND 8 − IN 10 I LDOIN 2 I OUT 3 O PG 9 O Open-drain power-good output pin. PGND 4 − Power ground pin. Connect PGND pin to PCB ground plane directly. REFIN 1 I Reference input pin. For DDR application, set to VDDQ/2 through resistor divider. REFOUT 6 O Reference output pin. Connect to ground through a 0.1-μF to 1-μF ceramic capacitor. SNS 5 I Regulator enable pin. Drive EN high to turn on the regulator; drive EN low to turn off the regulator. For automatic startup, connect EN to VIN directly. Ground reference pin. Connect GND pin to PCB ground plane directly. Regulator power supply input pin. A 1-μF or larger ceramic capacitor from IN to ground (as close as possible to IN pin) is required to reduce the jitter from previous-stage power supply. LDO power supply input pin. LDO output voltage pin. Total capacitance of 20-μF or larger from OUT to ground (as close as possible to OUT pin) is required to ensure regulator stability. LDO output voltage sense pin. Connect SNS to the remote DDR termination bypass capacitors to get accurate remote feedback sensing of OUT voltage. (1) Exposed PAD must be connected to a large-area ground plane to maximum the thermal performance. www.3peakic.com.cn 5 / 18 Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Specifications Absolute Maximum Ratings MIN MAX UNIT EN, IN, LDOIN, PG, REFIN, SNS –0.3 6 V PGND to GND –0.3 0.3 V OUT, REFOUT –0.3 3.6 V TJ Junction Temperature Range –40 150 °C TSTG Storage Temperature Range –55 150 °C TL Lead Temperature (Soldering 10 sec) 260 °C (1) Stresses beyond the Absolute Maximum Ratings may permanently damage the device. (2) All voltage values are with respect to GND. ESD Ratings Condition Minimum Level Unit HBM Human Body Model ESD ANSI/ESDA/JEDEC JS-001 ±2000 V CDM Charged Device Model ESD ANSI/ESDA/JEDEC JS-002 ±1500 V Recommended Operating Conditions MIN MAX UNIT IN Regulator input voltage 2.375 5.5 V LDOIN LDO input voltage –0.1 3.5 V EN Regulator enable voltage –0.1 3.5 V OUT LDO output voltage –0.1 3.5 V SNS LDO output sense voltage –0.1 3.5 V REFIN Reference input voltage 0.5 1.8 V REFOUT Reference output voltage –0.1 1.8 V PG Power-good pull-up voltage –0.1 3.5 V PGND Power ground voltage to GND –0.1 0.1 V TJ Junction Temperature Range –40 125 °C Thermal Information PACKAGE θJA θJC UNIT 3×3 DFN-10 77.66 16.33 °C/W www.3peakic.com.cn 6 / 18 Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Electrical Characteristics TJ = –40°C to +125°C (typical value at TJ = +25°C), VIN = VEN = 3.3 V; VLDOIN = 1.8 V, VREFIN = 0.9 V, VSNS = 0.9 V, CIN = 10 µF, and COUT = 3 x 10 µF; unless otherwise noted unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT 5.5 V 3.5 V 2.375 V Supply Input Voltage and Current VIN Input supply voltage range VLDOIN LDO input voltage range UVLOIN Input supply UVLO 2.375 TA = +25°C, VIN rising 2.3 Hysteresis IIN Input supply current of IN IIN_SD Shutdown current of IN ILDOIN Input current of LDOIN ILDOIN_SD Shutdown current of LDOIN 50 mV TA = +25°C, VEN = 3.3 V, IOUT = 0 mA 0.8 1 mA TA = +25°C, VEN = 0 V, VREFIN = 0 V, IOUT = 0 mA 65 80 µA TA = +25°C, VEN = 0 V, VREFIN > 0.4 V, IOUT = 0 mA 200 400 µA TA = +25°C, VEN = 3.3 V, IOUT = 0 mA 1 50 µA TA = +25°C, VEN = 0 V, IOUT = 0 mA 1 50 µA 1.8 V 420 mV Reference Input and Output VREFIN UVLOREFIN Reference input voltage Reference input UVLO 0.5 TA = +25°C, VREFIN rising 360 Hysteresis IREFIN Input current of REFIN VREFOUT Reference output voltage VREFOUT_TOL Tolerance of REFOUT to REFIN IREFOUT_SRCL IREFOUT_SNKL VEN = 3.3 V 390 20 mV 1 µA VREFIN V −1 mA ≤ IREFOUT ≤ 1 mA, 0.5 V ≤ VREFIN ≤ 1.8 V −12 12 mV −10 mA ≤ IREFOUT ≤ 10 mA, 0.5 V ≤ VREFIN ≤ 1.8 V −15 15 mV Source current limit of REFOUT VREFOUT = 0.5 V 10 60 mA Sink current limit of REFOUT VREFOUT = 1.5 V 10 60 mA 1.25 V Regulated Output Voltage and Current VREFOUT = 1.25 V (DDR1), IOUT = 0 A Tolerance −15 VREFOUT = 0.9 V (DDR2), IOUT = 0 A Tolerance VOUT Output voltage 15 0.9 −15 VREFOUT = 0.75 V (DDR3), IOUT = 0 A Tolerance 0.75 VREFOUT = 0.675 V (DDR3L), IOUT = 0 A Tolerance V 15 −15 0.675 VREFOUT = 0.6 V (DDR4), IOUT = 0 A mV V 15 −15 mV mV V 15 0.6 mV V Tolerance −15 15 mV −25 25 mV ΔVOUT Tolerance of OUT to REFOUT –2A < IOUT < 2A IOUT_SRCL Source current limit of OUT VSNS = 90% × VREFOUT 3 4.5 A IOUT_SNKL Sink current limit of OUT VSNS = 110% × VREFOUT 3.2 5.5 A RDIS Discharge resistance TA = +25°C, VREFIN = 0 V, VOUT = 0.3 V, VEN = 0 V www.3peakic.com.cn 7 / 18 12 Ω Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Electrical Characteristics (continued) TJ = –40°C to +125°C (typical value at TJ = +25°C), VIN = VEN = 3.3 V; VLDOIN = 1.8 V, VREFIN = 0.9 V, VSNS = 0.9 V, CIN = 10 µF, and COUT = 3 x 10 µF; unless otherwise noted unless otherwise noted. Enable Control VEN EN High-level input voltage Device enable EN Low-level input voltage of Device disable 1.7 0.5 Hysteresis IEN V 0.25 –1 V V Leakage current of EN TA = +25°C, VEN = 0 V to 6.5 V 1 PG lower threshold With respect to REFOUT –23.5% –20% –17.5% PG upper threshold With respect to REFOUT 17.5 20% 23.5% µA Power Good VPG Hysteresis 5% IPG Leakage current of PG 1 µA VOL(PG) PG low-level output voltage Source 4 mA to PG pin 0.4 V tDLY(PG) PG start-up delay Startup rising edge, VSNS within 15% of VREFOUT 2 ms tDLY(PG_B) PG start-up bad delay VSNS is beyond the ±20% PG trip threshold 10 µs Temperature increasing 155 °C 25 °C Temperature Range Thermal shutdown threshold TSD TJ Hysteresis Operating junction temperature www.3peakic.com.cn –40 8 / 18 125 Rev.A.1 °C TPL51200 Series 3-A Sink and Source DDR Termination Regulator Typical Performance Characteristics TJ = –40°C to +125°C (typical value at TJ = +25°C), VIN = VEN = 3.3 V; VLDOIN = 1.8 V, VREFIN = 0.9 V, VSNS = 0.9 V, CIN = 10 µF, and COUT = 3 x 10 µF; unless otherwise noted unless otherwise noted. 1.29 0.920 −40°C 0°C 1.27 Output Voltage (V) Output Voltage (V) −40°C 25°C 85°C 1.25 1.23 1.21 0°C 0.910 25°C 85°C 0.900 0.890 0.880 -3 -2 -1 0 1 2 3 -3 -2 Output Current (A) -1 0 1 VIN = 3.3 V DDR VIN = 3.3 V Figure 1 OUT Load Regulation DDR2 0.695 −40°C −40°C 0°C 0.76 Output Voltage (V) Output Voltage (V) 3 Figure 2 OUT Load Regulation 0.77 25°C 85°C 0.75 0.74 0.73 0°C 0.685 25°C 85°C 0.675 0.665 0.655 -3 -2 -1 0 1 2 3 -3 -2 Output Current (A) VIN = 3.3 V -1 0 1 2 3 Output Current (A) DDR3 VIN = 3.3 V Figure 3 OUT Load Regulation DDR3L Figure 4 OUT Load Regulation 0.620 1.300 −40°C −40°C 0°C 0.610 Output Voltage (V) Output Voltage (V) 2 Output Current (A) 25°C 85°C 0.600 0.590 0.580 0°C 1.275 25°C 85°C 1.250 1.225 1.200 -3 -2 -1 0 1 2 3 -3 Output Current (A) VIN = 3.3 V -1 0 1 2 Output Current (A) LP DDR3 or DDR4 Figure 5 OUT Load Regulation www.3peakic.com.cn -2 VIN = 2.5 V DDR Figure 6 OUT Load Regulation 9 / 18 Rev.A.1 3 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Typical Performance Characteristics (continued) TJ = –40°C to +125°C (typical value at TJ = +25°C), VIN = VEN = 3.3 V; VLDOIN = 1.8 V, VREFIN = 0.9 V, VSNS = 0.9 V, CIN = 10 µF, and COUT = 3 x 10 µF; unless otherwise noted unless otherwise noted. 0.950 0.800 −40°C 0°C 0.925 Output Voltage (V) Output Voltage (V) −40°C 25°C 85°C 0.900 0.875 0.850 0°C 0.775 25°C 85°C 0.750 0.725 0.700 -3 -2 -1 0 1 2 3 -3 -2 -1 Output Current (A) 0 1 2 VIN = 2.5 V DDR2 VIN = 2.5 V DDR3 Figure 7 OUT Load Regulation Figure 8 OUT Load Regulation 0.725 0.650 −40°C 0°C 0.700 Output Voltage (V) Output Voltage (V) −40°C 25°C 85°C 0.675 0.650 0.625 0°C 0.625 25°C 85°C 0.600 0.575 0.550 -3 -2 -1 0 1 2 3 -3 -2 -1 Output Current (A) 0 1 2 3 Output Current (A) VIN = 2.5 V DDR3L VIN = 2.5 V Figure 9 OUT Load Regulation LP DDR3 or DDR4 Figure 10 OUT Load Regulation 1.253 0.903 −40°C 1.252 0°C 1.251 25°C REFOUT Output Voltage (V) REFOUT Output Voltage (V) 3 Output Current (A) 85°C 1.250 1.249 1.248 1.247 0.902 0.901 0.900 −40°C 0.899 0°C 25°C 0.898 85°C 0.897 -10 -5 0 5 10 -10 REFOUT Output Current (mA) -5 0 5 DDR DDR2 Figure 11 REFOUT Load Regulation www.3peakic.com.cn 10 REFOUT Output Current (mA) Figure 12 REFOUT Load Regulation 10 / 18 Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Typical Performance Characteristics (continued) TJ = –40°C to +125°C (typical value at TJ = +25°C), VIN = VEN = 3.3 V; VLDOIN = 1.8 V, VREFIN = 0.9 V, VSNS = 0.9 V, CIN = 10 µF, and COUT = 3 x 10 µF; unless otherwise noted unless otherwise noted. 0.678 REFOUT Output Voltage (V) REFOUT Output Voltage (V) 0.753 0.752 0.751 0.750 −40°C 0.749 0°C 25°C 0.748 85°C 0.747 -10 -5 0.677 0.676 0.675 −40°C 0.674 0°C 25°C 0.673 85°C 0.672 0 5 10 -10 REFOUT Output Current (mA) -5 0 5 DDR3 DDR3L Figure 14 REFOUT Load Regulation 0.603 1.2 0.602 1 Output Voltage (V) REFOUT Output Voltage (V) Figure 13 REFOUT Load Regulation 0.601 0.600 −40°C 0.599 0°C 25°C 0.598 -10 -5 0.8 −40°C 0.6 0°C 0.4 25°C 85°C 0.2 125°C 85°C 0.597 10 REFOUT Output Current (mA) 0 0 5 10 2.1 REFOUT Output Current (mA) 2.15 2.2 2.25 2.3 Input Voltage (V) DDR4 Figure 15 REFOUT Load Regulation Figure 16 UVLO Rising 500 µs/div 10 µs/div Figure 17 Load Transient www.3peakic.com.cn Figure 18 Output Short-to-GND Protection 11 / 18 Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Detailed Description Overview The TPL51200 series devices are 3-A sink and source DDR termination regulators specifically designed for the DDR applications with heavy space limitation. The TPL51200 series devices implement a fast load-transient response and only requires a minimum output capacitance of 20 μF. The TPL51200 series devices support a remote-sensing function and all power requirements for DDR VTT bus termination. In addition, the TPL51200 series devices provide an open-drain PG signal for VTT regulation indication and an EN signal that can be used to discharge VTT for DDR1 to DDR4 applications. Functional Block Diagram LDOIN IN EN OUT AMP UVLO ENABL E Device Control Regula tion Control Discha rge SNS AMP PGND – EA + REFIN REFOUT BUF GND Power Goo d Control Discha rge PG Figure 19 Functional Block Diagram Feature Description Sink and Source Regulator (OUT and SNS) The TPL51200 series devices are 3-A sink and source DDR termination regulators specifically designed for the DDR applications with heavy space limitation. The TPL51200 series integrate a high-performance, low-dropout linear regulator with fast-feedback loop that can support fast load transient response with small ceramic capacitors. To get tight regulation tolerance, the remote sensing pin, SNS pin, must be connected to OUT pin through a separate trace from high current path. Voltage Reference (REFIN and REFOUT) The TPL51200 series uses the voltage at the REFIN pin as the reference voltage, and the output voltage at the REFOUT pin exactly follow the REFIN voltage within the tolerance of VREFOUT_TOL. When the TPL51200 series are configured for standard DDR applications, the voltage at the REFIN pin is divided through an external voltage divider from the DDR supply bus, VDDQ. The TPL51200 series support the REFIN input voltage range from 0.5 V to 1.8 V. When the REFIN voltage is higher than rising UVLO threshold of REFIN and IN voltage is ready, there is voltage regulated at the REFOUT pin, which the REFOUT pin is independent with EN status. www.3peakic.com.cn 12 / 18 Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Enable Control (EN) The TPL51200 series integrate the high-active device enable control feature. Connect this pin to the GPIO of an external processor or digital logic control circuit to enable and disable the device. Under-voltage Lockout (IN UVLO) The TPL51200 series use an under-voltage lockout circuit to keep the regulator shut off until IN voltage exceeds the rising UVLO threshold of IN. Power-Good Indicator (PG) The TPL51200 series integrate an open-drain output power good indicator. After regulator startup, the PG pin keeps low impendence until the output voltage enters the power-good window, ±20% of REFOUT voltage. When output voltage enters the power-good window, the PG pin turns to high output impedance, and PG is pulled up to high-voltage level after 2-ms delay to indicate the output voltage is ready. It is recommended to connect a 100-kΩ pull-up resistor between PG pin and the pull-up voltage supply. Over-Current Protection The TPL51200 series integrate a constant over-current protection. When the output voltage exists the power-good window, ±20% of REFOUT voltage, the current-limit level reduces 50% of the full level. After the output voltage enters the power-good window, the current-limit level is released to the full level. Over-Temperature Protection The recommended operating junction temperature range is –40°C to 125°C. When the junction temperature is between 125°C and the thermal shutdown (TSD) threshold, the regulator can still work well, but it will reduce the device lifetime for long-term using. The over-temperature protection works when the junction temperature exceeds the thermal shutdown (TSD) threshold, which turns off the regulator immediately. Until when the device cools down and the junction temperature falls below the thermal shutdown threshold minus thermal shutdown hysteresis, the regulator turns on again. www.3peakic.com.cn 13 / 18 Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Application and Implementation NOTE Information in the following applications sections is not part of the 3PEAK’s component specification and 3PEAK does not warrant its accuracy or completeness. 3PEAK’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. Application Information The TPL51200 series devices are 3-A sink and source DDR termination regulators specifically designed for the DDR applications. The following application schematic shows a typical usage of the TPL51200 series. Typical Application Adjustable Output Operation Figure 20 shows the typical application schematic of the TPL51200 series in DDR4 applications. 10 kΩ VDDQ = 1.2 V 1 1 nF REFIN IN 10 10 kΩ VLD OIN = VDDQ = 1.2 V 10 μF 10 μF 10 μF VIN = 3.3 V 100 kΩ 0.1 μF 2 LDOIN TPL51200 VTT = 0.6 V 4.7 μF 10 μF GND 3 OUT 4 PGND 5 SNS PG 9 GND 8 EN 7 REFOUT 6 PG Sig nal to I/O Ena ble Signa l 0.1 μF VTTRE F = 0.6 V Figure 20 Typical Application Schematic IN Input Capacitor 3PEAK recommends placing a 1-μF or greater capacitor with a 0.1-μF bypass capacitor in parallel close to IN pin to keep the input voltage stable. The voltage rating of the capacitors must be greater than the maximum input voltage. LDOIN Input Capacitor 3PEAK recommends placing a 10-μF or greater capacitor with a 0.1-μF bypass capacitor in parallel close to LDOIN pin to keep the voltage stable during transient. More input capacitors are required if there are large output capacitors used at the OUT pin. It is suggested to place input capacitors with a half of the output capacitance value at the LDOIN pin. Output Capacitor To ensure stable operation, the TPL51200 series requires output capacitors of 20 μF or greater. 3PEAK recommends selecting three 10-μF X5R-or X7R-type ceramic capacitor in parallel to minimize the equivalent series resistance (ESR) and equivalent series inductance (ESL). The output capacitors must be placed as close to the OUT pin as possible. Power Dissipation During normal operation, LDO junction temperature should not exceed 125°C. Using below equations to calculate the power dissipation and estimate the junction temperature. www.3peakic.com.cn 14 / 18 Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator The power dissipation can be calculated using Equation 1. PD = ( VIN − VOUT )  IOUT + VIN  IGND (1) The junction temperature can be estimated using Equation 2. θJA is the junction-to-ambient thermal resistance. TJ = TA + PD  JA (2) Layout Requirements • Both input capacitors and output capacitors must be placed as close to the device pins as possible. • Suggest bypass the input pin to ground with a 0.1 μF bypass capacitor. The loop area formed by the bypass capacitor connection, voltage input pin and the ground pin of the system must be as small as possible. • Suggest use wide trace lengths or thick copper weight to minimize I×R drop and heat dissipation. • The GND pin and the PGND pin must be connected to the thermal pad with multiple thermal vias as many as possible connected to the internal ground planes. www.3peakic.com.cn 15 / 18 Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Tape and Reel Information Order Number Package TPL51200-DF8R 3×3 DFN-10 www.3peakic.com.cn D1 W1 A0 B0 K0 P0 W0 Pin1 (mm) (mm) (mm) (mm) (mm) (mm) (mm) Quadrant 330 17.6 3.3 3.3 1.1 8 12 Q2 16 / 18 Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator Package Outline Dimensions 3×3 DFN-10 Nd D L SYMBOL R1 E E2 D2 A MILLIMETER MIN NOM MAX 0.70 0.75 0.80 A1 0 0.02 0.05 b 0.20 0.25 0.30 b1 0.23REF c 0.203REF 2.90 3.00 3.10 2.35 2.40 2.45 R D D2 k Nd PIN 1(Laser Mark) e EXPOSED THERMAL BOTTOM VIEW PAD ZONE A A1 TOP VIEW 0.50BSC e b1 b 2.00BSC E 2.90 3.00 3.10 E2 1.60 1.65 1.70 L 0.35 0.40 0.45 R 0.20REF R1 0.075REF k 0.35REF ** 　特殊设计：D2和E2尺寸的公差是±0.05； c 引脚根部缩小较少； SIDE VIEW www.3peakic.com.cn 17 / 18 Rev.A.1 TPL51200 Series 3-A Sink and Source DDR Termination Regulator 3PEAK and the 3PEAK logo are registered trademarks of 3PEAK INCORPORATED. All other trademarks are the property of their respective owners. www.3peakic.com.cn 18 / 18 Rev.A.1
