BCIHP5430SC-6R8M

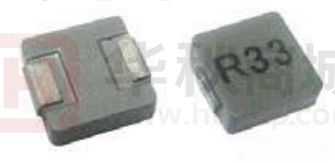

Powder Molding Type BCIHP54SC-Series ● Photograph picture BCIHP54SC ● Dimensions XXX ITEM A(mm) B(mm) BCIHP5420SC-Series 5.45±0.35 5.5±0.4 BCIHP5430SC-Series 5.45±0.35 5.5±0.4 C(mm) 2.0MAX 3.0MAX D(mm) 2.0±0.5 2.0±0.5 E(mm) a(mm) b(mm) c(mm) 1.2±0.2 2.2 6.0 2.5 1.2±0.2 2.2 6.0 2.5 ● Part Numbering BCIHP 5430SC – 4R7 M S A B C D A:Series(系列代號) B:Dimension( 尺 寸 ) B×C C:Inductance( 電 感 值 ) 4R7=4.7uH D:Inductance Tolerance(電感值公差) M=±20% N=±30% ● Features 1. 2. 3. 4. 5. Compliance with RoHs. Lowest DCR. Frequency range up to 3.0MHz. Handles high transient current spikes without saturation Ultra low buzz noise, due to composite construction. ● Applications 1. DC/DC converter for CPU in Notebook PC. 2. Battery powered devices. 3. Cellular phones LCD displays, HDDs, DVCs, DSCs, PDA etc. 4. Thin type on-board power supply module. TEL:+86-512-57823500 TAX:+86-512-57823503 ● 特點 1. 2. 3. 4. 5. 符合 RoHs. 低電阻. 頻率可達到 3.0 MHz. 可處理在未飽和時的高瞬間電流. 設計緊湊/超低噪音 ● 應用 1. 用於筆記本電腦處理器的DC/DC 轉換設備. 2. 電源,電池設備. 3. 適用於手機液晶屏顯示,HDD, DVC, DSC, PDA 等. 4. 薄型車載電源模組. Cheng Yang Electronics Corp Ltd www.cheng yang .biz 25 JUN 2022 TAPE BCIHP54SC-Series P: 1 / 9 Powder Molding Type BCIHP54SC-Series ● Specification ITEM BCIHP5420SC-R47M BCIHP5420SC-R56M BCIHP5420SC-R68M BCIHP5420SC-1R0M BCIHP5420SC-1R5M BCIHP5420SC-2R2M BCIHP5420SC-3R3M BCIHP5420SC-4R7M BCIHP5420SC-6R8M BCIHP5420SC-100M BCIHP5430SC-R10M BCIHP5430SC-R20M BCIHP5430SC-R33M BCIHP5430SC-R47M BCIHP5430SC-R68M BCIHP5430SC-1R0M BCIHP5430SC-1R2M BCIHP5430SC-1R5M BCIHP5430SC-2R2M BCIHP5430SC-3R3M BCIHP5430SC-4R7M BCIHP5430SC-6R8M BCIHP5430SC-100M BCIHP5430SC-220M TEL:+86-512-57823500 TAX:+86-512-57823503 INDUCTANCE uH DCR mΩ @100KHZ,1.0V,0A(1) 25℃ MAX. 0.47 0.56 0.68 1.0 1.5 2.2 3.2 4.7 6.8 10.0 0.1 0.2 0.33 0.47 0.68 1.0 1.2 1.5 2.2 3.3 4.7 6.8 10.0 22.0 9.0 10.0 13.8 17.0 26.0 35.0 58.0 85.0 120.0 155.0 3.0 3.9 5.5 8.5 12.0 15.0 16.0 25.0 35.0 46.0 60.0 110.0 126.0 270.0 HEAT RATING SATURATION CURRENT DC AMPS CURRENT DC AMPS (5) (6) TYPICAL(Irms) TYPICAL(Isat) 10.5 15.5 9.5 15.0 8.9 11.2 8.0 9.0 7.5 8.0 5.0 6.5 4.5 5.0 3.5 4.0 2.8 3.4 2.5 3.0 25.0 30.0 14.0 20.0 14.0 18.0 10.0 14.0 8.0 11.5 7.0 10.0 6.5 9.5 6.0 9.0 5.0 7.0 4.5 6.0 4.0 4.6 3.0 3.6 2.5 3.5 2.0 2.0 Cheng Yang Electronics Corp Ltd www.cheng yang .biz 25 JUN 2022 TAPE BCIHP54SC-Series P: 2 / 9 Powder Molding Type BCIHP54SC-Series Note: (1) (2) (3) (4) (5) (6) (7) Tolerance of Inductance: N=±30% ,M=±20%. All test data is referenced to 25℃ ambient. Inductance is measured at 100KHz. 25℃ ambient. Operating Temperature Range-50℃ to +125℃. DC current (Irms) (A) that will cause an approximate △T of 40℃. DC current (Isat) (A) that will cause Lo to drop approximately 30%. The part Temperature (ambient + temp rise) should not exceed 125℃ under worst case operating conditions. Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature Part temperature should be verified in the end application. (1) 電感的公差：N=±30 ,M=±20 . (2) 所有的測試資料應該是在 25℃的環境溫度下測試. (3) 感值測試頻率 100KHz. (4) 操作溫度範圍－50℃到+125℃. (5) 加 DC(Irms)電流值(A)會導致△T 40℃左右的變化. (6) 加 DC(Isat)電流值(A)會導致初始值下降 30 左右. (7) 產品的溫度不能超過 125℃，即使在最壞的操作情況下，基板設計，元件放置，PWB 尺寸和厚度， 氣流和一些冷卻設備都會影響產品溫度，產品溫度要在最終應用時才被驗證. TEL:+86-512-57823500 TAX:+86-512-57823503 Cheng Yang Electronics Corp Ltd www.cheng yang.biz 25 JUN 2022 TAPE BCIHP54SC-Series P: 3 / 9 Powder Molding Type BCIHP54SC-Series ● Material List NO 1 2 3 ITEM Core Wire External Electode Electroplating Materials Magnetic Metal Powder FeSiCr or equivalen Polyester Wire or equivalen Copper Sn ● Packaging Information (1) Reel Dimension & Tape Dimension / Packaging Quantity ITEN DIMENSIONS (m/m) Q’TY (PCS) BCIHP5420SC BCIHP5430SC W1±0.3 W2±0.5 W±0.3 A0±0.1 B0±0.1 K0±0.1 P±0.1 F±0.1 T±0.05 2000 12.80 17.00 12.00 5.40 5.90 2.3 8.00 5.50 0.30 2000 12.80 17.00 12.00 5.40 5.90 3.3 8.00 5.50 0.30 (2) Tearing Off Force The force tearing off cover 10 to 130 grams (0.1N to 1.3N) in the arrow direction under the following conditions. ● Storage conditions/Note things (1) Storage temperature and humidity conditions : 1. Product packing with Carrier tape: +5℃~+40℃ and less than 60% RH. 2. Product alone: -20℃~+60℃ and less than 60% RH. (2) Products should be used within 6 months. (3) The packaging material should be kept where no chlorine or sulfur exists in the air. (4) Do not touch the electrodes (soldering terminals) with fingers as this may lead to deterioration of solder ability. (5) The use of tweezers or vacuum pick-ups is strongly recommended for individual components. (6) Bulk handling should ensure that abrasion and mechanical shock are minimized. TEL:+86-512-57823500 TAX:+86-512-57823503 Cheng Yang Electronics Corp Ltd www.cheng yang.biz 25 JUN 2022 TAPE BCIHP54SC-Series P: 4 / 9 SMD Power Inductors BCIHP54SC-Series ITEM Packing method & Dimensions Box Size W=345mm D=345mm H=185mm ITEM BCIHP5420SC BCIHP5430SC TEL:+86-512-57823500 TAX:+86-512-57823503 Packing Quantity Reel Quantity Total Quantity 2000 Pcs/Reel 2000 Pcs/Reel 8 Reel/Box 8 Reel/Box 16000Pcs/Box 16000Pcs/Box Cheng Yang Electronics Corp Ltd www.cheng yang.biz 25 JUN 2022 TAPE BCIHP54SC-Series P: 5 / 9
