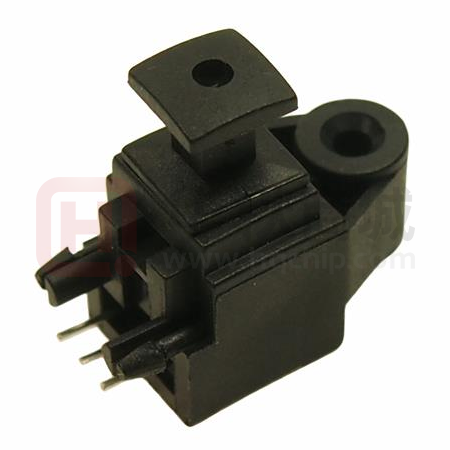

FCR6842031R

FIBER OPTIC DATA LINK DATA SHEET MODEL NO. : FCR6842031R DATE : 09­05­2017 VERSION : 1.0 DEVICE : ORJ­1 Optical Receiver CUSTOMER DESIGNER CHECKER ： APPROVER CLIFF 13.50 .40 Ø2 AMEND DATE 1 ISSUED 08/05/17 11.50±0.2 11.50 19.50 10.00±0.2 7.3 6.00±0.2 1.90 8.20±0.2 ISS. Ø2.50 2.30 0.25 4.70 3.75 0.50 4.10±0.5 3 2 1 2.54 2.54 9.50±0.2 13.50 Ø2. 4.70 7.62 60 +0.1 0 2.54 2.54 3.75 Ø0.80 RoHS ü COMPLIANT TOLERANCE NO DEC. PLACE ± 1 DEC. PLACE ± 2 DEC. PLACE ± HOLE Ø ± ANGLES ± UNLESS OTHERWISE STATED Cliff Electronic Components Ltd. 76 Holmethorpe Avenue, Holmethorpe Industrial Estate, Redhill, Surrey, RH1 2PF, England, UK Tel: 01737-771375 Fax: 01737-766012 Website: www.cliffuk.co.uk THE CONTENTS OF THIS DOCUMENT MUST NOT BE COPIED OR DISCLOSED TO A 3rd PARTY WITHOUT WRITTEN PERMISSION OF CLIFF UK. © 2017 DIMENSIONS IN MILLIMETERS UNLESS OTHERWISE STATED. WORK TO DIMENSIONS. REMOVE ALL BURRS. IF IN DOUBT ASK. FINISH: SEE TABLE SEE TABLE DRAWN: T.J.O. MATERIAL: TITLE: APPROVED: D.P.J. 3rd ANGLE PROJECTION: DO NOT SCALE OPTICAL JACK RECEIVER ORJ-1 DRWG. No. FCR6842031R FORM: A4DRWGH Features  High PD sensitivity for red light  High speed up to 16 Mbps  Low power consumption and current dissipation  +3~+5V power source Descriptions The light receiving unit is a standard-package product with connector and opto-electric component packaged with PD and I/V amplifier IC. The function of unit changes the light signal into electric signal. The unit is operated at +3~+5V and the input signal is TTL compatible. FCR6842031R has a maximum operating speed of 16 Mbps. Applications  Audio equipment  Digital optical data link  MD  Sound card Device Selection Guide Chip IC Material Si Operating Voltage LED λp(nm) (Vcc) 700 2.7~5.5 Dissipation Current(mA) Fiber Coupling Light Output (dBm) Typ. Min. Typ. Max. 6.5 -24 - -14.5 Absolute Maximum Ratings( Ta = 25℃) Parameter Symbol Rating Unit Vcc Tstg Topr Tsol 5.5 -30 to 80 -20 to 70 260* V ℃ ℃ ℃ Supply Voltage Storage Temperature Operating Temperature Soldering Temperature * Soldering time  5s / 2times. *Don't touch flux soldering and white Gas Electro-Optical Characteristics Parameter Symbol Conditions MIN. TYP. MAX. Unit Operating Voltage Vcc - 2.7 - 5.5 V Peak Detective Wavelength p - - 700 - nm Transfer Speed NRZ signal 0.1 - 16 Mbps Receiving Distance Using APF 0.2 - 20 m 16Mbps NRZ Signal -20 - 20 ns Pulse Width Distortion tw Input Light power Pi *1 -24 - -14.5 dBm Dissipation Current Icc *2 - 6 10 mA High Level Output Voltage VOH 2.4 - - v Low Level Output Voltage VoL - - 0.4 v Rise Time tr *3 - - 25 ns Fall Time tf *3 - - 25 ns Low time High propagation delay tPLH *3 - - 100 ns High time Low propagation delay tPHL *3 - - 100 ns tj *3 - 1.5 15 ns Jitter time FCR6842031R light receiving unit satisfies EIAJ CP-1201 digital audio interface standard. Reliability Test Items No. Item 1 Soldering Heat Test Condition 260℃±5℃ Test Hour/Cycle Samples Number (n) Failure (c) 5 sec./2times 22 n=22, c=0 2 High temp. & Hum. storage Ta=40℃, 90%RH 500 22 n=22, c=0 3 High temp. storage Ta=80℃ 500 22 n=22, c=0 4 Low Temp. storage Ta=-30℃ 500 22 n=22, c=0 20 22 n=22, c=0 500 22 n=22, c=0 22 n=22, c=0 5 Temp. cycling -30℃ ~ 80℃ (30min) (5min) (30min) 6 High Temp. Operation life Ta=60℃, Vcc=5V ON 7 Repeated operation 500 times Coupling force < 2 kg 0.4kg
