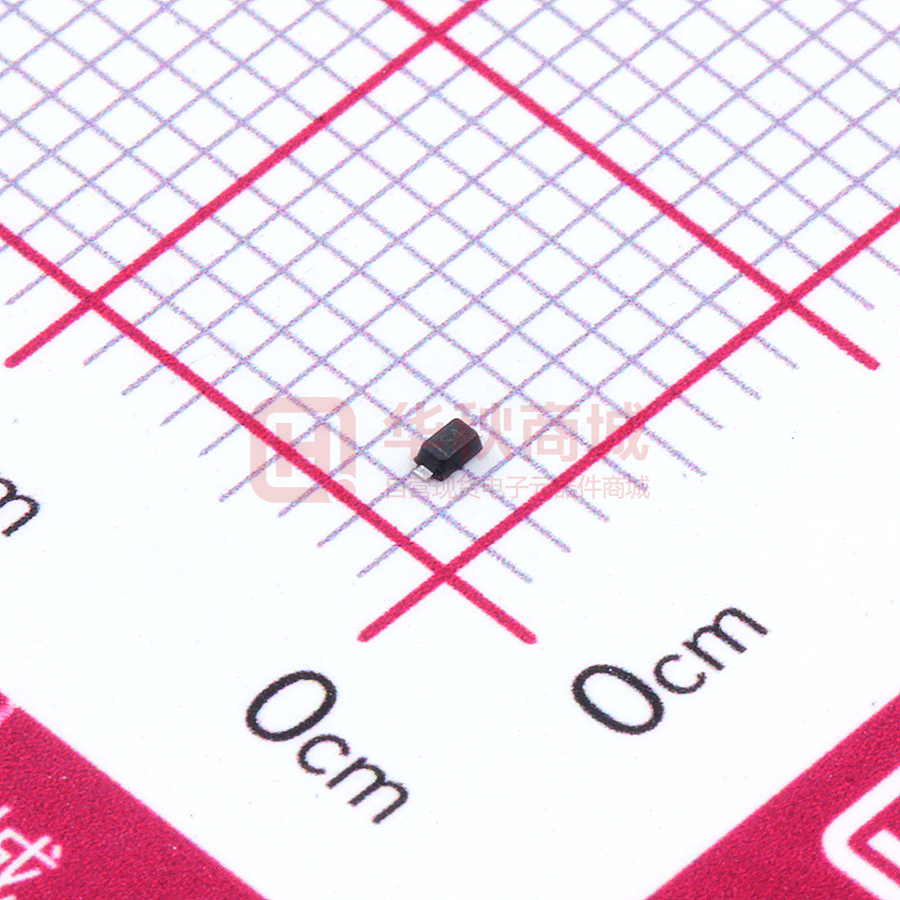

B5819WT

B5819WT Schottky Barrier Diode »Features  Low forward voltage drop  High current capability  High reliability  High surge current capability  Epitaxial construction SOD-523 »General Description  Case: molded plastic  Polarity: Color band denotes cathode  Package: SOD-523 Plastic Package » Maximum Ratings @T =25℃ unless otherwise noted A Parameters Symbol B5819WT Unit Maximum repetitive peak reverse voltage VRRM 40 V Maximum RMS voltage VRMS 28 V Maximum DC blocking voltage VDC 40 V Maximum average forward rectified current IFM 350 mA Repetitive peak forward current @t≤1.0s IFSM 1.5 A PD 150 mW RθJA 660 ℃/W Tj 125 ℃ TSTG -55-+150 ℃ Power Dissipation ypical thermal resistance Operating junction temperature Storage temperature range Revision 2018 www.born-tw.com 1/4 B5819WT »Electrical Characteristics @T =25℃ unless otherwise noted A Parameters Maximum forward voltage Symbol Test conditions B5819WT Unit IF =20mA 0.37 V IF = 200mA 0.6 V VF Maximum reverse current IR VR=30V 5 uA Type junction capacitance Cj VR =4V, f = 1MHz 50 pF Reverse recovery time Trr IF=IR=200mA, Irr=0.1xIR,RL=100Ω 10 ns Revision 2018 www.born-tw.com 2/4 B5819WT »Typical Performance Characteristics（(TJ = 25 °C, unless otherwise noted)） Revision 2018 www.born-tw.com 3/4 B5819WT »Package Information SOD-523 A B D 1 2 1.40 0.0547 0.40 0.0157 C K J 0.40 0.0157 S Inches Millimeters DIM Min Max Min Max A 1.10 1.30 0.043 0.051 B 0.70 0.90 0.028 0.035 C 0.50 0.70 0.020 0.028 D 0.25 0.35 0.010 0.014 J 0.07 0.20 K 0.15 0.25 0.006 0.010 S 1.50 1.70 0.059 0.067 0.0028 0.0079 »Ordering information Order code B5819WT Revision 2018 Package SOD-523 Marking S4 www.born-tw.com Base qty Delivery mode 3K Tape and reel 4/4
