JFC2410-2100FS

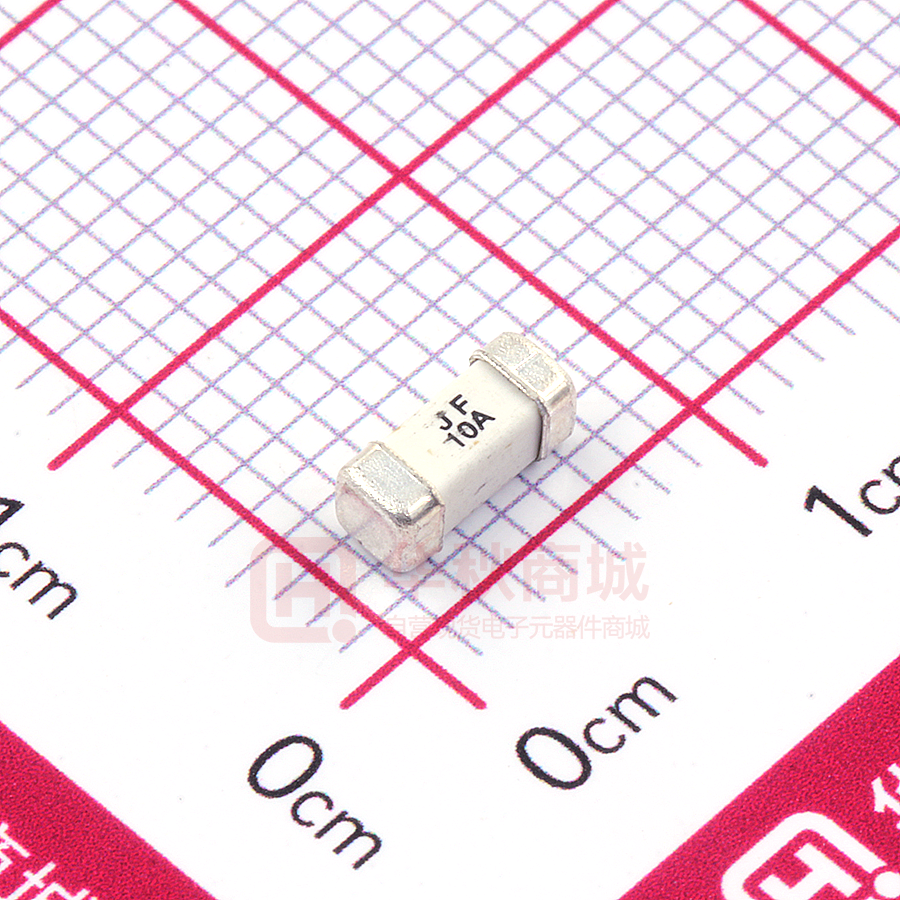

PRODUCT DATASHEET Surface Mount Fuse JFC2410FS FAST ACTING FUSE JFC2410FS FAST ACTING FUSE Descriptions JFC2410FS series are fast acting square Surface Mount fuses are ceramic tube/end cap constructions, RoHS compliant, Halogen Free and lead(Pb) exempts of the requirements of RoHS Directive(2002/95/EC), with U.S. (UL/CSA) safety agency approvals. Provide board level primary and secondary circuit protection in a wide variety of applications. With excellent inrush current withstanding capability, excellent reliability for thermal and mechanic shock, also have a high reliability and stable solder ability, end caps are available in gold/silver/nickel plated. Applications Agency Approvals AGENCY FILE NUMBER AGENCY E486200 ● ● ● ● ● ● ● ● ● ● LED lighting Notebook PC Battery devices LCD/PDP devices LCD backlight in verter Portable Device Power supply Networking devices PC server Cooling fan system ● ● ● ● ● ● ● ● ● ● ● Storage system Telecom system Wireless base station White goods Game console Digital camera Office equipment Digital camera Automotive devices Medical equipment Industrial equipment Features ● ● ● ● ● ● ● ● Fast acting RoHS compliant Conflict free metals Small size (6.1mm*2.5mm) Wide range of current rating available Wide operating temperature range Low temperature de-rating Tape and Reel for automatic placement Electrical Characteristics ● Pre-Arcing Time / Current Characteristics: % of Ampere Rating(In) JDT FUSE Industrial Co., Ltd www.jdtfuse.com Opening Time 100%*In 4 hours Min 200%*In 5 sec Max Page 1/6 Revised 01/17/22 JFC2410FS FAST ACTING FUSE Performance Specification Part Number Rated Current (A) JFC2410-0062FS Nominal Cold Resistance (mΩ) Nominal Melting I2t (A2sec) 0.062 5650 0.00034 JFC2410-0100FS 0.10 3140 0.040 JFC2410-0160FS 0.16 2300 0.058 JFC2410-0200FS 0.20 1650 0.062 JFC2410-0250FS 0.25 1450 0.065 JFC2410-0300FS 0.30 850 0.191 JFC2410-0315FS 0.315 650 0.202 JFC2410-0375FS 0.375 610 0.330 JFC2410-0400FS 0.40 580 0.338 JFC2410-0500FS 0.50 320 0.475 JFC2410-0600FS 0.60 265 0.775 JFC2410-0630FS 0.63 256 0.986 JFC2410-0700FS 0.70 50A@250V 230 2.105 JFC2410-0750FS 0.75 100A@125V 225 2.240 JFC2410-0800FS 0.80 203 2.380 JFC2410-1100FS 1.00 128 3.690 JFC2410-1125FS 1.25 92.0 3.760 JFC2410-1150FS 1.50 85.0 6.765 JFC2410-1160FS 1.60 75.0 6.805 JFC2410-1200FS 2.00 38.0 12.15 JFC2410-1250FS 2.50 35.0 16.025 JFC2410-1300FS 3.00 26.0 21.56 JFC2410-1315FS 3.15 25.0 25.75 JFC2410-1350FS 3.50 2.0 30.05 JFC2410-1400FS 4.00 19.0 43.208 JFC2410-1500FS 5.00 13.0 55.25 JFC2410-1600FS 6.00 11.0 75.245 JFC2410-1630FS 6.30 10.0 93.55 JFC2410-1700FS 7.00 9.0 97.12 JFC2410-1800FS 8.00 7.8 108.75 JFC2410-2100FS 10.0 6.6 118.38 JFC2410-2120FS 12.0 4.5 140.08 JFC2410-2150FS 15.0 3.0 210.68 JFC2410-2160FS 16.0 2.8 215.25 JFC2410-2200FS 20.0 2.0 358.08 JFC2410-2250FS 25.0 1.58 465.17 JFC2410-2300FS 30.0 1.45 989.65 JFC2410-2400FS 40.0 1.20 1050.78 JDT FUSE Industrial Co., Ltd www.jdtfuse.com Max Voltage Rating(V) 250V 125V 72V 63V Interrupting Rating 100A@125V 500A@72V 500A@63V Page 2/6 Revised 01/17/22 JFC2410FS FAST ACTING FUSE Dimensions and Structure ● Outline Drawing and dimensions (unit : mm) 2.5±0.1 1.4±0.1 3.0±0.3 2.5±0.1 6.10 ± .20 8.0±0.3 ① Cap 3.0±0.3 2.5±0.3 ② Ceramic tube Recommended pad layout ● Material Details： NO. Component ① End caps ② Body ③ Fuse element Material Au Plated Brass Cap Non-Transparent Square Ceramic Tube Cu-Ag Alloy wire Product Characteristics No. Item 1 Insulation Resistance 2 Solderability 3 Resistance to Soldering Heat 10 sec at 260°C MIL-STD-202G, Method 210F Test Condition B 4 Thermal Shock 5 cycles, -65°C to +125°C, 15minutes @each extreme MIL-STD-202G, Method 107G Test Condition B 5 Mechanical Shock 100G’s peak for 6 milliseconds, 3 cycles MIL-STD-202G, Method 213B Test 1 6 Vibration 0.03” amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrs MIL-STD-202G, Method 201A 7 Moisture Resistance 10 cycles MIL-STD-202G, Method 106G 8 Salt Spray 5% salt solution,48hrs MIL-STD-202G, Method 101E Test Condition B -55°C to +125°C IEC60068-2-1/2 9 Operating Temperature JDT FUSE Industrial Co., Ltd www.jdtfuse.com   Contain 10,000 ohms minimum T=240°C±5°C, t=5+0/-0.5s, Cover≥95% Reference standard MIL-STD-202G, Method 302 Test ConditionA MIL-STD-202G, Method 208H Page 3/6 Revised 01/17/22 JFC2410FS FAST ACTING FUSE Environmental Characteristic ● Company operating temperature of the environment more than 25+/-5℃, in the selection of fuse specifications, it needs to consider the impact of the operating environment of the temperature fuse. Photo: temperature derating curve. Temperature Rerating Curve 100 0.062A 0.10A 0.16A 0.20A 0.25A 0.30A 0.315A 0.375A 0.40A 0.5A 0.6A 0.63A 0.70A 0.75A 0.80A 1A 1.25A 1.5A 1.6A 2.0A 2.5A 3.0A 3.15A 3.5A 4A 5A 6A 6.3A 7A 8A 10A 12A 15A 16A 20A 25A 30A 40A Average Time-Current Curve Test TIME IN SECONDS 10 1 0.1 0.01 0.001 0.1 1 10 100 1000 CURRENT IN AMPERES Recommended Soldering Parameters tp TP Ramp-up Critical Zone TL to TP TL Reflow Condition Average ramp-up rate(Ts(max)to Tp) tL Temperature Min (Ts(min)) Temperature (°C ) Ts(max) Preheat Ts(min) 25 Ramp-down Preheat Temperature Max (Ts(max)) Soldering Method Parameter Solder paste process Reflow solder Hand-Solder Solder Pot Temperature 260°C max Solder Dwell Time 5 seconds max 150°C 200°C 60~120 seconds Temperature (TL) 220°C Time Max (tL) 60 seconds Peak Temperature (Tp) 260°C max Ramp-down Rate 5°C/second max Time 25°C to peak Temperature(Tp) 8 minutes max Reflow Time 5°C/second max. Time (Min to Max)(ts) ts time to peak temperature （t 25°C to peak） Pb-Free assembly Solder Iron Temperature 300±5°C max Heating Time JDT FUSE Industrial Co., Ltd www.jdtfuse.com 1-2 s max Page 4/6 Revised 01/17/22 JFC2410FS FAST ACTING FUSE Packing Quantity &Packaging Code No. JFC2410FS 1500 fuses/reel (12mm tape-and-reel on a 7 inch (178mm) reel per EIA Standard 481) D=φ21±0.20 C=φ13±0.20 E=2.2±0.20 Wp=14.5±0.20 08 06 04 B=φ6000±0.50 02 02 04 06 08 W1=12.5±0.20 A=φ178.00±0.10 Item A B C D E W1 W2 Spec.(mm) 178±0.10 60±0.50 13±0.20 21±0.20 2.2±0.20 12.5±0.20 14.5±0.20 P0 D0 P2 t P1 E 5°(MAX) F W B0 K0 D1 A0 5° Item A0 B0 D0 D1 E F Spec.(mm) 2.70±0.10 6.4±0.10 1.5±0.10 1.50±0.25 1.75±0.10 5.50±0.10 Item K0 P0 P1 P2 W t Spec.(mm) 2.70±0.10 4.00±0.10 4.00±0.10 2.0±0.10 12.00±0.15 0.25±0.05 JDT FUSE Industrial Co., Ltd www.jdtfuse.com Page 5/6 Revised 01/17/22 JFC2410FS FAST ACTING FUSE Part Numbering JF C 2410 - xxxx F S S=SMD F=Fast acting xxxx=四位电流 2410 Series C=Ceramic JF=JDT Fuse OTHERS ● If in use beyond the requirements of the specifications, must pass through the mutual confirmation ! ● If the specification is not appropriate, must through consultation between the two sides and by the company to modify. ● It could be in conformance with another file which made by our company. JDT FUSE Industrial Co., Ltd www.jdtfuse.com Page 6/6 Revised 01/17/22
