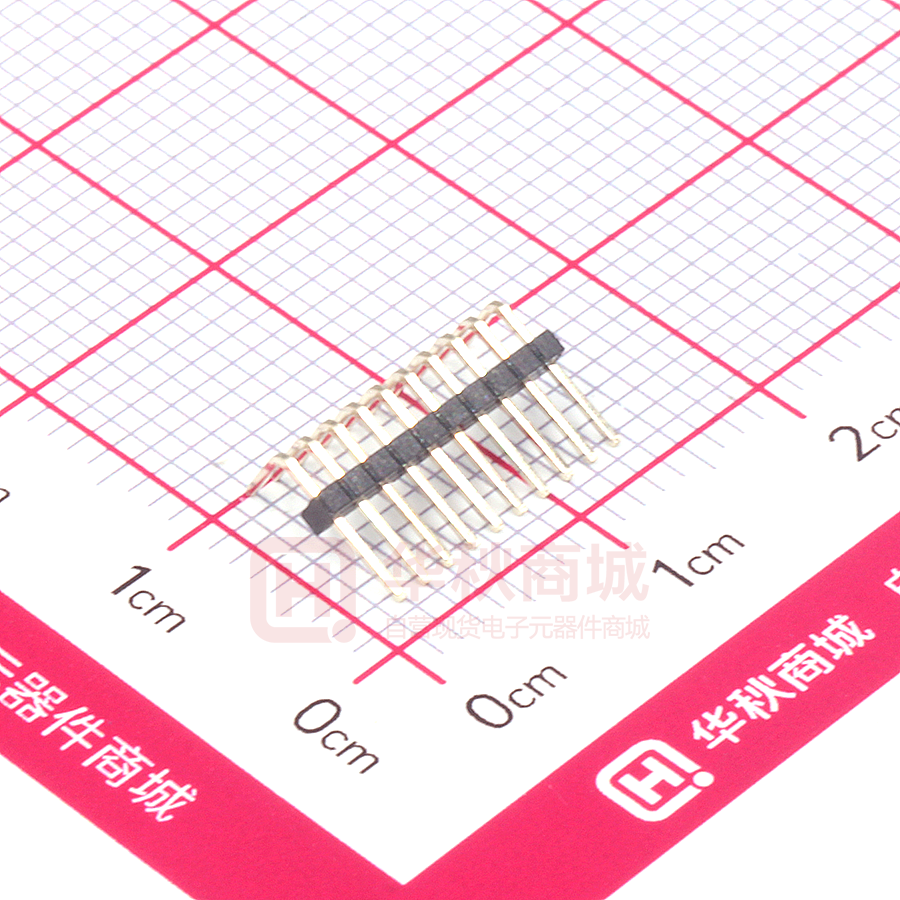

KH-1.27PH90-1X10P-L10.5

SPECIFICATIONS RECOMMEND P.C.B LAYOUT PCB TOLERANCE:±0.05 (TOP VIEW) Current Rating: 1.0 Amps Withstanding Voltage: AC 500V Insulation Resistance:1000M Min Contact Resistance: 20 mΩ Max Operation Temperature:-40 °to+105° Insrlator Material: Polyester(UL94V-0) Contact Material: Brass Standard: PA6T Contact Plating: Gold Flash Max.Processing Temp: 240 °C for30-60seconds (260 °C for5seconds) (1) Pin Spacing: 127=1.27mm (2) Product Name: PH=Pin Header (3) No.of Rows: 1=Single Row;2=Dual Row (4) No.of Pins Per Row: 1～50 (5) Insulator Material Height: 10=1.0mm;15=1.5mm (6) Connector Type:S=Straight;R=Right Angle;M=SMT (7) Contact Material Length: 72=7.2mm;105=10.5mm (8) No.of Insulator Material: 1=1PCS;2=2PCS (9) Contact Plating:G0=Gold Flash; AU15=Au 1.5u" (10)Insulator Material Option: A=BK-PA6T;B=BK-PA46;C=KB-LCP;S=Special 深圳市金航标电子有限公司 WWW.BDS666.COM KH-1.27PH90-1X10P-L10.5 0755-83044319 UNLESS OTHEWIXE SPECIFIED TOLERANCE X :±0.3 X.X :±0.2 X.XX:±0.1 X° :±5° X.X° :±1° X.XX°:±0.5° CHECKED: LI BEI LIN 12/03/07 1.27PH SIZE REV A4 A CHECKED: of DIM.A 1xnPin H1.0 90 ° L10.5 SCALE PROUCT NO. UNIT PROJECT / / APPROVED: PAGE 1/1 / / No. of DIM.A DIM.B No. of DIM.A DIM.B No. of DIM.A DIM.B No. of DIM.A DIM.B
