LM2902
LOW POWER QUAD OPERATIONAL AMPLIFIER
■ WIDE GAIN BANDWIDTH: 1.3MHz
■ INPUT COMMON-MODE VOLTAGE RANGE
INCLUDES GROUND
■ LARGE VOLTAGE GAIN: 100dB
■ VERY LOW SUPPLY CURRENT/AMPLI:
375µA
■ LOW INPUT BIAS CURRENT: 20nA
■ LOW INPUT OFFSET CURRENT:2nA
■ WIDE POWER SUPPLY RANGE:
DIP14
SINGLE SUPPLY: +3V TO +30V
DUAL SUPPLIES: ±1.5V TO ±15V
TSSOP14
DESCRIPTION
This circuit consists of four independent, high
gain, internally frequency compensated operational amplifiers which were designed specially for automotive and industrial control systems. It operates from a single power supply over a wide range
of voltages. Operation from split power supplies is
also possible and the low power supply current
drain is independent of the magnitude of the power supply voltage.

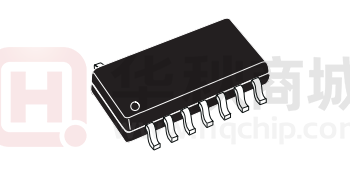

SOP14
ORDERING INFORMATION
DEVICE
Package Type
MARKING
Packing
Packing Qty
LM2902N
DIP14
LM2902
TUBE
1000/box
LM2902
SOP14
LM2902
REEL
2500/reel
TSSOP14
LM2902
REEL
2500/reel
LM2902P
PIN CONNECTIONS (top view)
14 Output 4
Output 1 1
Inverting Input 1 2
-
-
13 Inverting Input 4
Non-inverting Input 1 3
+
+
12 Non-inverting Input 4
11 VCC -
VCC + 4
Non-inverting Input 2
5
+
+
10 Non-inverting Input 3
Inverting Input 2
6
-
-
9
Inverting Input 3
8
Output 3
Output 2 7
www.slkormicro.com
1
LM2902
SCHEMATIC DIAGRAM (1/4 LM2902)
V CC
6µA
4µA
100µA
Q5
Q6
CC
Inverting
input
Q3
Q2
Q1
Q7
Q4
R SC
Q11
Non-inverting
input
Output
Q13
Q10
Q8
Q9
Q12
50mA
GND
ABSOLUTE MAXIMUM RATINGS
Symbol
Parameter
VCC
Supply Voltage
Vid
Differential Input Voltage
VI
Input Voltage
Value
1)
ptot
Iin
1.
2.
Unit
±16 to 32
V
+32
V
-0.3 to +32
V
Infinite
Output Short-circuit to Ground
Power Dissipation
N Suffix
D Suffix
Input Current 2)
500
400
mW
50
mA
Toper
Operating Free-Air Temperature Range
-40 to +125
°C
Tstg
Storage Temperature Range
-65 to +150
°C
Short-circuit from the output to VCC can cause excessive heating if V CC > 15V. The maximum output current is approximately 40mA independent of
the magnitude of VCC. Destructive dissipation can result from simultaneous short-circuit on all amplifiers.
This input current only exists when the voltage at any of the input leads is driven negative. It is due to the collector-base junction of the input PNP
transistor becoming forward biased and thereby acting as input diodes clamps. In addition to this diode action, there is also NPN parasitic action on
the IC chip. This transistor action can cause the output voltages of the Op-Amps to go to the VCC voltage level (or to ground for a large overdrive)
for the time duration than an input is driven negative. This is not destructive and normal output will set up again for input voltage higher than -0.3V.
www.slkormicro.com
2
LM2902
ELECTRICAL CHARACTERISTICS
VCC+ = 5V, V cc- = Ground, VO = 1.4V, Tamb = 25°C (unless otherwise specified)
Symbol
Parameter
Min.
Typ.
Max.
Unit
Vio
Input Offset Voltage 1)
Tamb = +25°C
Tmin ≤ Tamb ≤ Tmax.
2
7
9
mV
Iio
Input Offset Current
Tamb = +25°C
Tmin ≤ Tamb ≤ Tmax.
2
30
40
nA
I ib
Input Bias Current 2)
Tamb = +25°C
Tmin ≤ Tamb ≤ Tmax.
20
150
300
nA
Avd
Large Signal Voltage Gain
VCC+ = +15V,RL=2kΩ, Vo = 1.4V to 11.4V
Tamb = +25°C
Tmin ≤ Tamb ≤ Tmax.
50
25
100
SVR
Supply Voltage Rejection Ratio (RS ≤10kΩ)
Tamb = +25°C
Tmin ≤ Tamb ≤ Tmax.
65
65
110
Icc
Supply Current, all Amp, no load
Tamb = +25°C
VCC = +5V
VCC = +30V
Tmin ≤ Tamb ≤ Tmax.
VCC = +5V
VCC = +30V
0.7
1.5
0.8
1.5
Vicm
Input Common Mode Voltage Range (Vcc= +30V)3)
Tamb = +25°C
Tmin ≤ Tamb ≤ Tmax.
0
0
CMR
Common-mode Rejection Ratio (RS ≤10kΩ)
Tamb = +25°C
Tmin ≤ Tamb ≤ Tmax.
70
60
80
Output Short-circuit Current (Vid = +1V)
VCC = +15V, Vo = +2V
20
40
Isink
Output Sink Current (Vid = -1V)
VCC = +15V, Vo = +2V
VCC = +15V, Vo = +0.2V
10
12
20
50
26
26
27
27
27
VOH
High Level Output Voltage (Vcc + 30V)
Tamb = +25°C
RL = 2kΩ
Tmin ≤ Tamb ≤ Tmax.
Tamb = +25°C
RL = 10kΩ
Tmin ≤ Tamb ≤ Tmax.
(Vcc + 5V), RL = 2kΩ
Tmin ≤ Tamb ≤ Tmax.
Tamb = +25°C
IO
dB
1.2
3
1.2
3
V CC -1.5
VCC -2
mA
V
dB
70
mA
mA
µA
28
V
3.5
3
VOL
Low Level Output Voltage (RL = 10kΩ)
Tamb = +25°C
Tmin ≤ Tamb ≤ Tmax
SR
Slew Rate
Vcc = 15V, Vi = 0.5 to 3V, RL = 2kΩ, CL = 100pF,
unity gain
www.slkormicro.com
V/mV
5
3
20
20
mV
V/µs
0.4
LM2902
Symbol
THD
Total Harmonic Distortion
f = 1kHz, AV = 20dB, RL = 2kΩ, Vo = 2Vpp,
C L = 100pF, Vcc = 30V
4.
Typ.
Max.
Unit
MHz
1.3
%
0.015
nV
-----------Hz
Equivalent Input Noise Voltage
f = 1kHz, RS = 100Ω, Vcc = 30V
40
DVio
Input Offset Voltage Drift
7
30
µV/°C
DIio
Input Offset Current Drift
10
200
pA/°C
Channel Separation 4)
1kHz ≤ f ≤ 20kHz
120
V O1/VO2
3.
Min.
GBP
en
1.
2.
Parameter
Gain Bandwidth Product
Vcc = 30V,Vin = 10mV, RL = 2kΩ, CL = 100pF
dB
VO = 1.4V, RS = 0Ω, 5V < VCC+ < 30V, 0V < Vic < VCC+ - 1.5V
The direction of the input current is out of the IC. This current is essentially constant, independent of the state of the output, so no loading charge
change exists on the input lines
The input common-mode voltage of either input signal voltage should not be allowed to go negative by more than 0.3V. The upper end of the
common-mode voltage range is VCC+ –1.5V, but either or both inputs can go to +32V without damage.
Due to the proximity of external components insure that coupling is not originating via stray capacitance between these external parts. This typically
can be detected as this type of capacitance increases at higher frequences.
INPUT VOLTAGE RANGE
INPUT BIAS CURRENT
versus AMBIENT TEMPERATURE
24
21
18
15
12
9
6
3
0
INPUT VOLTAGE (V)
IB (nA)
15
10
0
AMBIENT TEMPERATURE (°C)
SUPPLY CURRENT (mA)
OUTPUT CURRENT (mA)
VCC
IO
+
50
40
30
20
10
-55 -35
ID
mA
3
-
2
+
Tamb = 0°C to +125°C
1
Tamb = -55°C
-15
5
25
45
65
85 105
125
0
TEMPERATURE (°C)
www.slkormicro.com
15
4
70
0
10
SUPPLY CURRENT
CURRENT LIMITING (Note 1)
60
5
POWER SUPPLY VOLTAGE (±V)
90
-
Positive
5
-55-35-15 5 25 45 65 85 105 125
80
Négative
10
20
POSITIVE SUPPLY VOLTAGE (V)
4
30
LM2902
GAIN BANDWIDTH PRODUCT
VOLAGE FOLLOWER PULSE RESPONSE
GBP (mhz)
4
OUTPUT
VOLTAGE (V)
GAIN BANDWIDTH PRODUCT (MHz)
1.35
1.30
1.25
1.2
1.15
1.1
1.05
1
-95
-9
RL 2 k Ω
VCC = +15V
3
2
1
0
INPUT
VOLTAGE (V)
3
-55-35-15 5 25 45 65 85 105 125
AMBIENT TEMPERATURE (°C)
2
1
0
OUTPUT VOLTAGE (V)
COMMON MODE REJECTION RATIO (dB)
100
+7.5V
100kΩ
100 Ω
60
-
40
100 Ω
eI
eO
+
100kΩ
20
VCC = +5V
VCC = +15V
VCC = +30V
1
-
0.1
IO
10K
1K
Tamb = +25°C
0,001
1M
100K
OUTPUT VOLTAGE (mV)
VCC
VI
VCC/2
VO
+
80
VCC = 30V &
-55°C Tamb +125°C
60
40
20
1
VCC = +10 to + 15V &
-55°C Tamb +125°C
10
100
1k
10k
100k
eO
el
-
50pF
400
Input
350
Output
300
Tamb = +25°C
VCC = 30 V
1M
250
10M
0
1
2
FREQUENCY (Hz)
100k Ω
15
+15V
VO
VI
+7V
+
2k Ω
10
5
0
1k
10k
4
5
6
7
8
OUTPUT CHARACTERISTICS
100k
8
V CC
7
6
TO VCC+ (V)
OUTPUT VOLTAGE REFERENCED
20
-
3
TIME (µs)
LARGE SIGNAL FREQUENCY RESPONSE
1k Ω
100
+
450
0
1.0
10
500
10M Ω
-
100
0,1
VOLTAGE FOLLOWER PULSSE RESPONSE
(SMALL SIGNAL)
140
0.1µF
0,01
OUTPUT SINK CURRENT (mA)
OPEN LOOP FREQUENCY RESPONSE (NOTE 3)
120
VO
+
FREQUENCY (Hz)
OUTPUT SWING (Vpp)
v cc
v cc /2
0.01
100
40
+7.5V
0
V CC /2
5
+
VO
IO
-
4
3
2
Independent of V CC
T amb = +25°C
1
0,001 0,01
1M
0,1
1
10
100
OUTPUT SOURCE CURRENT (mA)
FREQUENCY (Hz)
www.slkormicro.com
30
OUTPUT CHARACTERISTICS
10
120
80
20
TIME (µ s)
COMMON MODE REJECTION RATIO
VOLTAGE GAIN (dB)
10
5
LM2902
POWER SUPPLY & COMMON MODE
REJECTION RATIO
(dB) 120
POWER SUPPLY & COMMON MODE
REJECTION RATIO (dB)
75
50
25
Tamb= +25°C
0
10
20
30
POSITIVE SUPPLY VOLTAGE (V)
Avd (dB)
LARGE SIGNAL VOLTAGE GAIN
VOLTAGE GAIN (dB)
R L = 20k Ω
120
R L = 2kΩ
40
0
10
20
30
POSITIVE SUPPLY VOLTAGE (V)
www.slkormicro.com
SVR
CMR
70
-55-35-15 5 25 45 65 85 105 125
AMBIENT TEMPERATURE (°C)
160
80
115
110
105
100
95
90
85
80
75
6
LARGE SIGNAL VOLTAGE GAIN
120
115
110
105
-55
INPUT CURRENT (nA)
100
100
-55-35-15 5 25 45 65 85 105 125
AMBIENT TEMPERATURE (°C)
LM2902
TYPICAL SINGLE - SUPPLY APPLICATIONS
AC COUPLED INVERTING AMPLIFIER
Rf
100k Ω
Rf
R1
(as shown AV = -10)
R1
10kΩ
Co
1/4
LM2902
1/4
LM2902
2VPP
e o0
RB
6.2kΩ
R3
100kΩ
eI ~
R2
VCC 100kΩ
AV = 1 + R2
R1
(As shown AV = 101)
10k Ω
eO
+5V
RL
10k Ω
R2
1M Ω
R1
10kΩ
e O (V)
CI
A V= -
NON-INVERTING DC GAIN
C1
10µF
0
e I (mV)
AC COUPLED NON-INVERTING AMPLIFIER
R1
100kΩ
R2
1MΩ
A V= 1 + R2
R1
(as shown A V = 11)
C1
0.1µF
Co
1/4
LM2902
CI
RL
10kΩ
RB
6.2kΩ
eI ~
R3
1MΩ
2VPP
0
eo
R4
100kΩ
VCC
C2
10µF
R5
100kΩ
ACTIVER BADPASS FILTER
DC SUMMING AMPLIFIER
e1
R1
100kΩ
100kΩ
C1
330pF
100kΩ
e2
1/4
LM2902
1/4
LM2902
eO
R5
470kΩ
R4
10MΩ
e1
1/4
LM2902
100kΩ
C2
330pF
e3
R3
10kΩ
100kΩ
eO
100kΩ
e4
R6
470kΩ
1/4
LM2902
R7
100kΩ
V CC
100kΩ
R8
100kΩ
eo = e1 + e2 - e3 - e4
where (e1 + e2) ≥ (e3 + e4)
to keep eo ≥ 0V
www.slkormicro.com
Fo = 1kHz
Q = 50
Av = 100 (40dB)
7
C3
10µF
LM2902
HIGH INPUT Z, DC DIFFERENTIAL AMPLIFIER
HIGH INPUT Z ADJUSTABLE GAIN DC
INSTRUMENTATION AMPLIFIER
R1
100k Ω
R3
100k Ω
1/4
LM2902
e1
Gain adjust
R2
2k Ω
R1
100kΩ
1/4
LM2902
e
1/4
LM2902
R4
100k Ω
R2
100kΩ
R4
100k Ω
R3
100kΩ
1/4
LM2902
+V1
+V2
R5
100k Ω
eo = [ 1 +
R4 ] (e2 - e1)
R3
As shown eo = (e2 - e1)
R6
100k Ω
1/4
LM2902
R7
100k Ω
e2
If R1 = R5 and R3 = R4 = R6 = R7
eo = [ 1 + 2R1 ] (e2 - e1)
R2
As shown eo = 101 (e2 - e1)
USING SYMMETRICAL AMPLIFIERS TO
REDUCE INPUT CURRENT (GENERAL
CONCEPT)
LOW DRIFT PEAK DETECTOR
1/4
IB
I
1/4
I B LM2902
1/4
LM2902
eI
C
*
1µF
ZI
2I B
R
1MΩ
eo
IB
3R
3MΩ
eo
I B LM2902
2N 929
0.001µ F
0.001µF
IB
IB
IB
3MΩ
1/4
LM2902
Input current
compensation
IB
1.5MΩ
* Polycarbonate or polyethylene
www.slkormicro.com
IB
Zo
2I B
2N 929
eI
I
8
1/4
LM2902
Aux. amplifier for input
current compensation
Vo
LM2902
SOP14
Q
A
C1
C
B
D
A1
a
0.25
b
Dimensions In Millimeters
Symbol:
A
Min:
Max:
4.520
Symbol:
Min:
Max:
4.620
D
0.400
0.950
0°
8°
A1
0.100
0.250
Q
B
8.500
9.000
a
0.420 TYP
b
1.270 TYP
C
5.800
6.250
C1
3.800
4.000
DIP14
Dimensions In Millimeters
Symbol:
www.slkormicro.com
9
Min:
Max:
Symbol:
Min:
Max:
A
6.100
6.680
L
0.500
0.800
B
18.940
19.560
L1
3.000
3.600
D
8.200
9.200
a
1.524 TYP
D1
7.42
7.820
c
0.457 TYP
E
3.100
3.550
d
2.540 TYP
LM2902
A
A2
TSSOP14
D
E1
E
A1
c
e
Dimensions In Millimeters
θ
L1
www.slkormicro.com
L
Symbol:
L2
10
Min:
Max:
Symbol:
Min:
Max:
A
0.950
1.200
E1
4.300
4.500
A1
0.050
A2
0.900
0.150
L
0.450
0.750
1.050
θ
0°
8°
B
0.200
0.280
e
0.650 BSC
C
0.100
0.190
L1
1.000 REF
D
4.860
5.060
L2
1.250 BSC
E
6.200
6.600
很抱歉,暂时无法提供与“LM2902”相匹配的价格&库存,您可以联系我们找货
免费人工找货
