PRODUCT FAMILY DATA SHEET

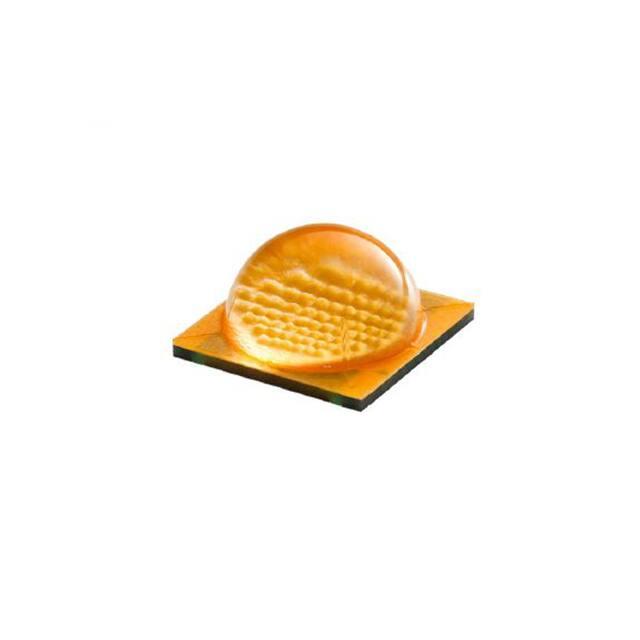

XLamp® MT-G2 EasyWhite® LEDs
PRODUCT DESCRIPTION
The XLamp®
FEATURES
MT-G2 EasyWhite®
LED • EasyWhite color temperatures from
builds on the breakthrough performance
2700 K to 5000 K CCT
TABLE OF CONTENTS
Characteristics................................................ 2
Flux Characteristics, Standard Order Codes,
of the original MT-G by increasing lumen • 85 °C binning and characterization
Bins, 6-Volt MT-G2........................................... 3
output up to 25%, while providing a small, • Three voltage options: 6 V, 9 V, 36 V
Flux Characteristics, Standard Order Codes,
uniform, single point source for precise • 80 and 90 minimum CRI options
Bins, 9-Volt MT-G2........................................... 4
optical control. The MT-G2 shares the same • Low thermal resistance: 0.4 °C/W
Flux Characteristics, Standard Order Codes,
mechanical footprint as the original MT‑G, • High lumen density
Bins, 36-Volt MT-G2......................................... 5
providing customers with a seamless • Small, uniform emitting area for
Relative Spectral Power Distribution............. 6
upgrade path and shortening the LED
Relative Luminous Flux vs. Junction
luminaire and retrofit lamp design cycle.
excellent optical control
• Electrically neutral thermal path
Temperature.................................................... 6
• RoHS and REACH compliant
Electrical Characteristics................................ 7
MT-G2 LEDs are designed for high-output, • UL recognized component (E349212)
Relative Luminous Flux vs. Current................ 8
directional lighting applications and are the
Typical Spatial Distribution........................... 10
®
ideal replacement for lighting applications
APPLICATIONS
that currently use inefficient halogen • MR, PAR, BR, AR and other directional
lamps. MT-G2 LEDs are optimized for use
retrofit lamps
in track, accent, lamp retrofit, downlighting • Commercial/residential directional
and other applications where color quality,
consistency
required.
and
optical
control
lighting
are • General illumination
Performance Groups – Brightness.............. 10
Performance Groups – Chromaticity........... 11
EasyWhite® Color Temperatures Plotted on
the 1931 CIE Curve....................................... 12
Bin and Order Code Formats........................ 13
Reflow Soldering Characteristics................. 14
Notes............................................................. 15
Mechanical Dimensions............................... 17
Tape and Reel................................................ 19
Packaging...................................................... 21
Cree LED / 4001 E. Hwy. 54, Suite 2000 / Durham, NC 27709 USA / +1.919.313.5330 / www.cree-led.com
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
1
XLAMP ® MT-G2 EASYWHITE ® LED
CHARACTERISTICS
Characteristics
Viewing angle (FWHM)
ESD withstand voltage (HBM per Mil-Std-883D)
Thermal resistance, junction to solder point◊
Unit
Minimum
Typical
degrees
125
V
Class 2
°C/W
0.4
Maximum
LED junction temperature
°C
150
DC forward current (6 V)
mA
3000
DC forward current (9 V)
mA
2000
DC forward current (36 V)
mA
500
Forward voltage (6 V, 1100 mA, 85 °C)
V
Forward voltage (6 V, 1100 mA, 25 °C)
V
Forward voltage (9 V, 735 mA, 85 °C)
V
Forward voltage (9 V, 735 mA, 25 °C)
V
Forward voltage (36 V, 185 mA, 85 °C)
V
Forward voltage (36 V, 185 mA, 25 °C)
V
5.6
7
8.4
10.5
33.6
42
Temperature coefficient of voltage (6 V)
mV/°C
-3
Temperature coefficient of voltage (9 V)
mV/°C
-4
Temperature coefficient of voltage (36 V)
mV/°C
-16
Reverse voltage (6 V)
V
1
Reverse current (6 V, 9 V, 36 V)
A
0.1
Note:
◊
Thermal resistance measurement was performed per the JEDEC JESD51-14 standard. See the Thermal Resistance Measurement
application note for more details.
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
2
XLAMP ® MT-G2 EASYWHITE ® LED
FLUX CHARACTERISTICS, STANDARD ORDER CODES, BINS, 6-VOLT MT-G2 (1100 mA, Tj = 85 °C)
The following table provides several base order codes for 6-volt XLamp MT-G2 EasyWhite LEDs. For a complete description of the ordercode nomenclature, please reference page 13 of this document.
Color
CCT
Range
5000 K
4000 K
Standard
CRI
EasyWhite
3500 K
3000 K
2700 K
5000 K
80 CRI
EasyWhite
4000 K
3000 K
90 CRI
EasyWhite
2700 K
Minimum Luminous Flux (lm)
@ 1100 mA
2-Step
4-Step
Group
Flux (lm)
@ 85 °C
Flux
(lm) @
25 °C*
N0
750
863
P0
800
920
K0
650
748
M0
700
805
N0
750
863
MTGBEZ-00-0000-0B00N040H
MTGBEZ-00-0000-0B00N040F
K0
650
748
MTGBEZ-00-0000-0B00K035H
MTGBEZ-00-0000-0B00K035F
M0
700
805
N0
750
863
MTGBEZ-00-0000-0B00N035H
MTGBEZ-00-0000-0B00N035F
J0
600
690
MTGBEZ-00-0000-0B00J030H
MTGBEZ-00-0000-0B00J030F
K0
650
748
M0
700
805
MTGBEZ-00-0000-0B00M030H
MTGBEZ-00-0000-0B00M030F
H0
560
644
MTGBEZ-00-0000-0B00H027H
MTGBEZ-00-0000-0B00H027F
J0
600
690
K0
650
748
M0
700
805
N0
750
863
J0
600
690
K0
650
748
M0
700
805
F0
480
552
G0
520
598
E0
440
506
F0
480
552
Chromaticity
Region
50H
Order Code
MTGBEZ-00-0000-0B00N050H
MTGBEZ-00-0000-0B00P050H
Chromaticity
Region
50F
MTGBEZ-00-0000-0B00K040H
40H
35H
30H
27H
MTGBEZ-00-0000-0B00M040H
MTGBEZ-00-0000-0B00M035H
MTGBEZ-00-0000-0B00K030H
MTGBEZ-00-0000-0B00J027H
MTGBEZ-00-0000-0B0HM050H
MTGBEZ-00-0000-0B0HN050H
40f
35F
30F
27F
MTGBEZ-00-0000-0B0HK040H
50F
27H
MTGBEZ-00-0000-0B0UF030H
MTGBEZ-00-0000-0B0UG030H
MTGBEZ-00-0000-0B0UE027H
MTGBEZ-00-0000-0B0UF027H
MTGBEZ-00-0000-0B00M040F
MTGBEZ-00-0000-0B00M035F
MTGBEZ-00-0000-0B00K030F
MTGBEZ-00-0000-0B00J027F
MTGBEZ-00-0000-0B0HM050F
MTGBEZ-00-0000-0B0HN050F
MTGBEZ-00-0000-0B0HJ040F
40F
MTGBEZ-00-0000-0B0HM040H
30H
MTGBEZ-00-0000-0B00P050F
MTGBEZ-00-0000-0B00K027F
MTGBEZ-00-0000-0B0HJ040H
40H
MTGBEZ-00-0000-0B00N050F
MTGBEZ-00-0000-0B00K040F
MTGBEZ-00-0000-0B00K027H
50H
Order Code
MTGBEZ-00-0000-0B0HK040F
MTGBEZ-00-0000-0B0HM040F
30F
27F
MTGBEZ-00-0000-0B0UF030F
MTGBEZ-00-0000-0B0UG030F
MTGBEZ-00-0000-0B0UE027F
MTGBEZ-00-0000-0B0UF027F
Notes:
•
•
•
•
•
*
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and ±2 on CRI measurements.
See the Measurements section (page 15).
XLamp MT-G2 LED order codes specify only a minimum flux bin and not a maximum. Cree may ship reels in flux bins higher than the minimum
specified by the order code without advance notice. Shipments will always adhere to the chromaticity bin restrictions specified by the order code.
Minimum CRI for standard EasyWhite color temperatures 27F, 27H, 30F, 30H, 35F, 35H is 80.
Minimum CRI for standard EasyWhite color temperatures, 40F, 40H, 50F, 50H is 70.
Typical CRI for standard EasyWhite color temperatures 40F, 40H, 50F, 50H is 75.
Flux values @ 25 °C are calculated and for reference only.
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
3
XLAMP ® MT-G2 EASYWHITE ® LED
FLUX CHARACTERISTICS, STANDARD ORDER CODES, BINS, 9-VOLT MT-G2 (735 mA, Tj = 85 °C)
The following table provides several base order codes for 9-volt XLamp MT-G2 EasyWhite LEDs. For a complete description of the ordercode nomenclature, please reference page 13 of this document.
Color
CCT
Range
5000 K
4000 K
Standard
CRI
EasyWhite
3500 K
3000 K
2700 K
5000 K
80 CRI
EasyWhite
4000 K
3000 K
90 CRI
EasyWhite
2700 K
Minimum Luminous Flux (lm)
@ 735 mA
2-Step
4-Step
Group
Flux (lm)
@ 85 °C
Flux
(lm) @
25 °C*
N0
750
863
P0
800
920
K0
650
748
M0
700
805
N0
750
863
MTGBEZ-00-0000-0C00N040H
MTGBEZ-00-0000-0C00N040F
K0
650
748
MTGBEZ-00-0000-0C00K035H
MTGBEZ-00-0000-0C00K035F
M0
700
805
N0
750
863
MTGBEZ-00-0000-0C00N035H
MTGBEZ-00-0000-0C00N035F
J0
600
690
MTGBEZ-00-0000-0C00J030H
MTGBEZ-00-0000-0C00J030F
K0
650
748
M0
700
805
MTGBEZ-00-0000-0C00M030H
MTGBEZ-00-0000-0C00M030F
H0
560
644
MTGBEZ-00-0000-0C00H027H
MTGBEZ-00-0000-0C00H027F
J0
600
690
K0
650
748
M0
700
805
N0
750
863
J0
600
690
K0
650
748
M0
700
805
F0
480
552
G0
520
598
E0
440
506
F0
480
552
Chromaticity
Region
50H
Order Code
MTGBEZ-00-0000-0C00N050H
MTGBEZ-00-0000-0C00P050H
Chromaticity
Region
50F
MTGBEZ-00-0000-0C00K040H
40H
35H
30H
27H
MTGBEZ-00-0000-0C00M040H
MTGBEZ-00-0000-0C00M035H
MTGBEZ-00-0000-0C00K030H
MTGBEZ-00-0000-0C00J027H
MTGBEZ-00-0000-0C0HM050H
MTGBEZ-00-0000-0C0HN050H
40F
35F
30F
27F
MTGBEZ-00-0000-0C0HK040H
50F
27H
MTGBEZ-00-0000-0C0UF030H
MTGBEZ-00-0000-0C0UG030H
MTGBEZ-00-0000-0C0UE027H
MTGBEZ-00-0000-0C0UF027H
MTGBEZ-00-0000-0C00M040F
MTGBEZ-00-0000-0C00M035F
MTGBEZ-00-0000-0C00K030F
MTGBEZ-00-0000-0C00J027F
MTGBEZ-00-0000-0C0HM050F
MTGBEZ-00-0000-0C0HN050F
MTGBEZ-00-0000-0C0HJ040F
40F
MTGBEZ-00-0000-0C0HM040H
30H
MTGBEZ-00-0000-0C00P050F
MTGBEZ-00-0000-0C00K027F
MTGBEZ-00-0000-0C0HJ040H
40H
MTGBEZ-00-0000-0C00N050F
MTGBEZ-00-0000-0C00K040F
MTGBEZ-00-0000-0C00K027H
50H
Order Code
MTGBEZ-00-0000-0C0HK040F
MTGBEZ-00-0000-0C0HM040F
30F
27F
MTGBEZ-00-0000-0C0UF030F
MTGBEZ-00-0000-0C0UG030F
MTGBEZ-00-0000-0C0UE027F
MTGBEZ-00-0000-0C0UF027F
Notes:
•
•
•
•
•
*
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and ±2 on CRI measurements.
See the Measurements section (page 15).
XLamp MT-G2 LED order codes specify only a minimum flux bin and not a maximum. Cree may ship reels in flux bins higher than the minimum
specified by the order code without advance notice. Shipments will always adhere to the chromaticity bin restrictions specified by the order code.
Minimum CRI for standard EasyWhite color temperatures 27F, 27H, 30F, 30H, 35F, 35H is 80.
Minimum CRI for standard EasyWhite color temperatures, 40F, 40H, 50F, 50H is 70.
Typical CRI for standard EasyWhite color temperatures 40F, 40H, 50F, 50H is 75.
Flux values @ 25 °C are calculated and for reference only.
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
4
XLAMP ® MT-G2 EASYWHITE ® LED
FLUX CHARACTERISTICS, STANDARD ORDER CODES, BINS, 36-VOLT MT-G2 (185 mA, Tj = 85 °C)
The following table provides several base order codes for 36-volt XLamp MT-G2 EasyWhite LEDs. For a complete description of the ordercode nomenclature, please reference page 13 of this document.
Color
CCT
Range
5000 K
4000 K
Standard
CRI
EasyWhite
3500 K
3000 K
2700 K
5000 K
80 CRI
EasyWhite
4000 K
3000 K
90 CRI
EasyWhite
2700 K
Minimum Luminous Flux (lm)
@ 185 mA
2-Step
4-Step
Group
Flux (lm)
@ 85 °C
Flux
(lm) @
25 °C*
N0
750
863
P0
800
920
K0
650
748
M0
700
805
N0
750
863
MTGBEZ-00-0000-0N00N040H
MTGBEZ-00-0000-0N00N040F
K0
650
748
MTGBEZ-00-0000-0N00K035H
MTGBEZ-00-0000-0N00K035F
M0
700
805
N0
750
863
MTGBEZ-00-0000-0N00N035H
MTGBEZ-00-0000-0N00N035F
J0
600
690
MTGBEZ-00-0000-0N00J030H
MTGBEZ-00-0000-0N00J030F
K0
650
748
M0
700
805
MTGBEZ-00-0000-0N00M030H
MTGBEZ-00-0000-0N00M030F
H0
560
644
MTGBEZ-00-0000-0N00H027H
MTGBEZ-00-0000-0N00H027F
J0
600
690
K0
650
748
M0
700
805
N0
750
863
J0
600
690
K0
650
748
M0
700
805
F0
480
552
G0
520
598
E0
440
506
F0
480
552
Chromaticity
Region
50H
Order Code
MTGBEZ-00-0000-0N00N050H
MTGBEZ-00-0000-0N00P050H
Chromaticity
Region
50F
MTGBEZ-00-0000-0N00K040H
40H
35H
30H
27H
MTGBEZ-00-0000-0N00M040H
MTGBEZ-00-0000-0N00M035H
MTGBEZ-00-0000-0N00K030H
MTGBEZ-00-0000-0N00J027H
MTGBEZ-00-0000-0N0HM050H
MTGBEZ-00-0000-0N0HN050H
40F
35F
30F
27F
MTGBEZ-00-0000-0N0HK040H
50F
27H
MTGBEZ-00-0000-0N0UF030H
MTGBEZ-00-0000-0N0UG030H
MTGBEZ-00-0000-0N0UE027H
MTGBEZ-00-0000-0N0UF027H
MTGBEZ-00-0000-0N00M040F
MTGBEZ-00-0000-0N00M035F
MTGBEZ-00-0000-0N00K030F
MTGBEZ-00-0000-0N00J027F
MTGBEZ-00-0000-0N0HM050F
MTGBEZ-00-0000-0N0HN050F
MTGBEZ-00-0000-0N0HJ040F
40F
MTGBEZ-00-0000-0N0HM040H
30H
MTGBEZ-00-0000-0N00P050F
MTGBEZ-00-0000-0N00K027F
MTGBEZ-00-0000-0N0HJ040H
40H
MTGBEZ-00-0000-0N00N050F
MTGBEZ-00-0000-0N00K040F
MTGBEZ-00-0000-0N00K027H
50H
Order Code
MTGBEZ-00-0000-0N0HK040F
MTGBEZ-00-0000-0N0HM040F
30F
27F
MTGBEZ-00-0000-0N0UF030F
MTGBEZ-00-0000-0N0UG030F
MTGBEZ-00-0000-0N0UE027F
MTGBEZ-00-0000-0N0UF027F
Notes:
•
•
•
•
•
*
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and ±2 on CRI measurements.
See the Measurements section (page 15).
XLamp MT-G2 LED order codes specify only a minimum flux bin and not a maximum. Cree may ship reels in flux bins higher than the minimum
specified by the order code without advance notice. Shipments will always adhere to the chromaticity bin restrictions specified by the order code.
Minimum CRI for standard EasyWhite color temperatures 27F, 27H, 30F, 30H, 35F, 35H is 80.
Minimum CRI for standard EasyWhite color temperatures, 40F, 40H, 50F, 50H is 70.
Typical CRI for standard EasyWhite color temperatures 40F, 40H, 50F, 50H is 75.
Flux values @ 25 °C are calculated and for reference only.
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
5
XLAMP ® MT-G2 EASYWHITE ® LED
Relative Spectral Power Distribution White
RELATIVE SPECTRAL
POWER
DISTRIBUTION
(6 V,
1100 mA;
735
mA;
185 mA; TJ = 85 °C)
The following
graph represents
typical spectral
output
of each die9 V,
of the
MT-G
Gen36 V,
II
Cool white to be added
The following graph represents typical spectral output of the XLamp MT-G2 EasyWhite LED.
100%
90%
Relative Spectral Power (%)
80%
70%
60%
Neutral White
Warm White
50%
40%
30%
20%
10%
0%
380
430
480
530
580
630
680
730
780
Wavelength (nm)
Relative Flux Output vs. Junction Temperature
The following graph represents typical performance of each LED die in the XLamp MT-G Gen II
RELATIVE LUMINOUS FLUX VS. JUNCTION TEMPERATURE (6 V, 1100 mA; 9 V, 735 mA; 36 V, 185 mA)
The following graph represents typical performance of the XLamp MT-G2 EasyWhite LED.
120%
Relative Luminous Flux
100%
80%
60%
40%
20%
0%
25
50
75
100
125
150
Junction Temperature (ºC)
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
6
XLAMP ® MT-G2 EASYWHITE ® LED
Characteristics
ELECTRICALElectrical
CHARACTERISTICS
(TJ = 85 °C) (Tsp
= 85ºC)
6V
3000
MT-G2 6 V
2500
Current (mA)
2000
1500
1000
500
0
5.1
5.2
5.3
5.4
5.5
5.6
Electrical Characteristics (Tsp = 85ºC)
5.7
5.8
5.9
Forward Voltage V
6.0
9V
2000
MT-G2 9 V
Current (mA)
1600
1200
800
400
0
7.750
7.875
8.000
8.125
8.250
8.375
8.500
8.625
8.750
8.875
9.000
Forward Voltage V
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
7
XLAMP ® MT-G2 EASYWHITE ® LED
Electrical
Characteristics
(Tsp -=CONTINUED
85ºC)
ELECTRICAL
CHARACTERISTICS
(TJ = 85 °C)
36V
500
MT-G2 36 V
450
400
Current (mA)
350
300
250
200
150
100
50
0
31.0
31.5
32.0
32.5
33.0
33.5
34.0
34.5
35.0
35.5
36.0
Forward Voltage V
Relative Intensity vs. Current (Tsp = 85ºC) - 6 V
RELATIVE LUMINOUS FLUX VS. CURRENT (TJ = 85 °C)
250%
Relative Luminous Flux (%)
MT-G2 6 V
200%
150%
100%
50%
0%
0
500
1000
1500
2000
2500
3000
Forward Current, Pulsed (mA)
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
8
XLAMP ® MT-G2 EASYWHITE ® LED
Relative Intensity vs. Current (Tsp = 85ºC) 9 V
RELATIVE LUMINOUS FLUX VS. CURRENT (TJ = 85 °C) - CONTINUED
250%
Relative Luminous Flux (%)
MT-G2 9 V
200%
150%
100%
50%
0%
0
400
800
1200
1600
2000
Forward(Tsp
Current, =
Pulsed
(mA) 36 V
Relative Intensity vs. Current
85ºC)
250%
Relative Luminous Flux (%)
MT-G2 36 V
200%
150%
100%
50%
0%
0
50
100
150
200
250
300
350
400
450
500
Forward Current, Pulsed (mA)
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
9
XLAMP ® MT-G2 EASYWHITE ® LED
Spatial Distribution
MT-G2
TYPICAL SPATIAL DISTRIBUTION
data from: MTG_Gen2 SE800 vs DA2432 DS Comparison.xlsx (post PCN)
The following graph represents typical performance of the XLamp MT-G2 EasyWhite LED.
100%
Relative Luminous Intensity (%)
80%
60%
40%
20%
-90
-60
-30
0%
0
30
60
90
Angle (º)
PERFORMANCE GROUPS – BRIGHTNESS (TJ = 85 °C)
XLamp MT-G2 EasyWhite LEDs are tested for luminosity and placed into one of the following bins.
Group Code
Minimum Luminous Flux
@ Nominal IF
Maximum Luminous Flux
@ Nominal IF
D0
400
440
E0
440
480
F0
480
520
G0
520
560
H0
560
600
J0
600
650
K0
650
700
M0
700
750
N0
750
800
P0
800
860
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
10
XLAMP ® MT-G2 EASYWHITE ® LED
PERFORMANCE GROUPS – CHROMATICITY (TJ = 85 °C)
XLamp MT-G2 EasyWhite LEDs are tested for chromaticity and placed into one of the regions defined by the following bounding coordinates.
EasyWhite Color Temperatures – 2-Step
EasyWhite Color Temperatures – 4-Step
Code
50F
40F
35F
30F
27F
CCT
5000 K
4000 K
3500 K
3000 K
2700 K
x
y
0.3459
0.3429
0.3507
0.3586
0.3434
0.3571
0.3475
0.3604
x
y
0.3407
0.3415
Code
50H
CCT
5000 K
0.3499
0.3654
0.3484
0.3521
0.3469
0.3539
0.3744
0.3685
0.3784
0.3741
0.3782
0.3837
0.3804
0.3818
0.3912
0.3917
0.3867
0.3857
0.3863
0.3758
0.3844
0.3778
0.3981
0.3800
0.4030
0.3857
0.4040
0.3966
0.4061
0.3941
0.4186
0.4037
0.4132
0.3976
0.4116
0.3865
0.4099
0.3890
0.4242
0.3919
0.4291
0.3973
0.4322
0.4096
0.4333
0.4062
0.4449
0.4141
0.4395
0.4084
0.4359
0.3960
0.4351
0.3994
0.4475
0.3994
0.4528
0.4046
0.4573
0.4178
0.4578
0.4138
0.4695
0.4207
0.4638
0.4152
0.4589
0.4021
0.4586
0.4060
40H
35H
30H
27H
4000 K
3500 K
3000 K
2700 K
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
11
XLAMP ® MT-G2 EASYWHITE ® LED
EASYWHITE® COLOR TEMPERATURES PLOTTED ON THE 1931 CIE CURVE (TJ = 85 °C)
0.45
ANSI C78.377 Quadrangle
EasyWhite 4-step
EasyWhite 2-step
0.44
2700 K
3000 K
0.43
3500 K
0.42
4000 K
4500 K
0.41
CCy
0.40
5000 K
0.39
5700 K
0.38
0.37
0.36
0.35
0.34
0.33
0.49
0.48
0.47
0.46
0.45
0.44
0.43
0.42
0.41
0.40
0.39
0.38
0.37
0.36
0.35
0.34
0.33
0.32
0.32
CCx
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
12
XLAMP ® MT-G2 EASYWHITE ® LED
BIN AND ORDER CODE FORMATS
Bin codes and order codes are configured as follows:
Order Code
Bin Code
Series
MTG = MT-G
Series
MTG = MT-G
Internal code
Internal code
CRI Specification
H = 80 min CRI (4000 K & 5000 K)
U = 90 min CRI (2700 K & 3000 K)
0 = Standard CRI
Flux bin
CRI Specification
B = 70 min CRI
H = 80 min CRI
U = 90 min CRI
SSSCCC-BZ-HHHH-HVVRNNNNN
Kit code
Vf class
B0 = 6-V class
C0 = 9-V class
N0 = 36-V class
SSSCCC-BB-WWW-FF-VVRAAAA
Reel size
0 = 500 (standard)
1 = 100 (non-standard)
Color
BEZ = EasyWhite
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
Internal Code
Vf class:
B0 = 6-V class
C0 = 9-V class
N0 = 36-V class
Chromaticity bin
Color
BEZ = EasyWhite
CLD-DS49
REV 6
13
XLAMP ® MT-G2 EASYWHITE ® LED
REFLOW SOLDERING CHARACTERISTICS
In testing, Cree LED has found XLamp MT-G2 EasyWhite LEDs to be compatible with JEDEC J-STD-020C, using the parameters listed below.
As a general guideline, Cree LED recommends that users follow the recommended soldering profile provided by the manufacturer of the
solder paste used, and therefore it is the lamp or luminaire manufacturer’s responsibility to determine applicable soldering requirements.
Note that this general guideline may not apply to all PCB designs and configurations of reflow soldering equipment.
tP
TP
Critical Zone
TL to TP
Temperature
Ramp-up
TL
tL
Tsmax
Tsmin
Ramp-down
ts
Preheat
25
t 25˚C to Peak
Profile Feature
Average Ramp-Up Rate (Tsmax to Tp)
IPC/JEDEC J-STD-020C
Time
Lead-Free Solder
1.2 °C/second
Preheat: Temperature Min (Tsmin)
120 °C
Preheat: Temperature Max (Tsmax)
170 °C
Preheat: Time (tsmin to tsmax)
65-150 seconds
Time Maintained Above: Temperature (TL)
Time Maintained Above: Time (tL)
217 °C
45-90 seconds
Peak/Classification Temperature (Tp)
235 - 245 °C
Time Within 5 °C of Actual Peak Temperature (tp)
20-40 seconds
Ramp-Down Rate
1 - 6 °C/second
Time 25 °C to Peak Temperature
4 minutes max.
Note: All temperatures refer to the topside of the package, measured on the package body surface.
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
14
XLAMP ® MT-G2 EASYWHITE ® LED
NOTES
Measurements
The luminous flux, radiant power, chromaticity, forward voltage and CRI measurements in this document are binning specifications only
and solely represent product measurements as of the date of shipment. These measurements will change over time based on a number
of factors that are not within Cree LED’s control and are not intended or provided as operational specifications for the products. Calculated
values are provided for informational purposes only and are not intended or provided as specifications.
Pre‑Release Qualification Testing
Please read the LED Reliability Overview for details of the qualification process Cree LED applies to ensure long-term reliability for XLamp
LEDs and details of Cree LED’s pre-release qualification testing for XLamp LEDs.
Lumen Maintenance
Cree LED now uses standardized IES LM-80-08 and TM-21-11 methods for collecting long-term data and extrapolating LED lumen
maintenance. For information on the specific LM-80 data sets available for this LED, refer to the public LM-80 results document.
Moisture Sensitivity
Cree LED recommends keeping XLamp LEDs in the provided, resealable moisture-barrier packaging (MBP) until immediately prior to
soldering. Unopened MBPs that contain XLamp LEDs do not need special storage for moisture sensitivity.
Once the MBP is opened, XLamp MT-G2 EasyWhite LEDs may be stored as MSL 1 per JEDEC J-STD-033, meaning they have unlimited floor
life in conditions of ≤ 30 ºC/85% relative humidity (RH). Regardless of storage condition, Cree LED recommends sealing any unsoldered
LEDs in the original MBP.
RoHS Compliance
The levels of RoHS restricted materials in this product are below the maximum concentration values (also referred to as the threshold
limits) permitted for such substances, or are used in an exempted application, in accordance with EU Directive 2011/65/EC (RoHS2), as
implemented January 2, 2013. RoHS Declarations for this product can be obtained from your Cree LED representative or from the Product
Ecology section of the Cree LED website.
REACH Compliance
REACH substances of high concern (SVHCs) information is available for this product. Since the European Chemical Agency (ECHA) has
published notice of their intent to frequently revise the SVHC listing for the foreseeable future, please contact a Cree LED representative
to insure you get the most up-to-date REACH Declaration. REACH banned substance information (REACH Article 67) is also available
upon request.
UL® Recognized Component
This product meets the requirements to be considered a UL Recognized Component with Level 4 enclosure consideration. The LED
package or a portion thereof has been investigated as a fire and electrical enclosure per ANSI/UL 8750.
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
15
XLAMP ® MT-G2 EASYWHITE ® LED
NOTES - CONTINUED
Vision Advisory
WARNING: Do not look at an exposed lamp in operation. Eye injury can result. For more information about LEDs and eye safety, please
refer to the LED Eye Safety application note.
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
16
XLAMP ® MT-G2 EASYWHITE ® LED
MECHANICAL DIMENSIONS
Thermal vias, if present, are not
on these7drawings.
8
7
8 shown
6
6
5
5
4
4
3
3
2
All measurements
are ±.13 mm unless otherwiseSOLDERMASK
indicated.
SOLDERMASK
SOLDERMASK
ANODEANODE
SIDE SIDE
8.90
7.00
7.00
BE PRESENT
MAY BEMAY
PRESENT
0.95
0.95
CATHODE
CATHODE
SIDE SIDE
8.90
CATHODE
SIDE
9.11
9.11
E
E
0.65
ANODE
SIDE
0.65
8.90
8.90
OPTICAL
OPTICAL
F MODELMODEL
ORIGINORIGIN
F
MAY BE PRESENT
4.85 0.25
4.85 0.25
9.11
9.11
R4.10
4
5
3
4
SOLDERMASK
MAY BE PRESENT
4.85 0.254.85 0.25
8.90
8.90
8.907.00
7.00
8.90
7.00
SIDE VIEW
1.23
BOTTO
1.23
F
0.25
0.25
0.58
0.58
1.35
E
7.01
0.50
1.23
7
8
D
6
D
UNLESSUNLESS
OTHERWISE
SPEC
NA
OTHERWI
DIMENSIONS
ARE
IN MILLI
TL
DIMENSIONS
ARE
TOLERANCES:
DR
TOLERANCES:
0.5°0.5
BEND
1°DRAWN
ANGULAR:
MACH
0.5°
BEND
1°
•
ANGULAR:
MACH
••• TWO
ONE
PLACE
DECIMAL
CHECKED
•
ONE
PLACE
0.5
DECIM
PLACE
0.05
DECIMAL
CH
TWO
PLACE
0.05
DECI
• INSIDE
RADII
EQUA
ENG
APPR.
••BEND
INSIDE
BEND
RAD
MATERIAL
ENG
MATERIAL
•• MACHINE/CASTING
RADI
MFG
APPR.
MACHINE/CASTIN
RADII AND
DIA:
MF
•• 0.10
RADII
AND
0.10DIA:
Q.A.
INTERPRET
GEOMETRIC
Q.A
INTERPRET
PROPRIETARY
AND CONFIDENTIAL
TOLERANCING
PER:GEOME
BOTTOM VIEW ALTERNATE BOTTOM VIEW THE
THIRD
ANG
PROPRIETARY
AND CONFIDENTIAL
TOLERANCING
PER
INFORMATION
CONTAINED
INOF
THISMATERIAL
THI
VIEW
BOTTOM VIEW ALTERNATE BOTTOM
THE
INFORMATION
CONTAINED
IN
THIS
DRAWING
IS
THE
SOLE
PROPERTY
MATERIAL
A
DRAWING
INITIATED
DRAWING
IS
THE
SOLE
PROPERTY
CREE LED.
ANY
REPRODUCTION
IN
MATERIAL
A DRAWING
INITIATED
CREE
ANY
REPRODUCTION
INOF MATERIAL
PART
OR
AS
ALED.
WHOLE
WITHOUT
FINISH
PART
OR
AS
A DESCRIPTION
WHOLE
WRITTEN
PERMISSION
OF
CREEWITHOUT
LED
REV
WRITTEN
PERMISSION
OF
CREE LED
IS
PROHIBITED.
FINISH FINISH
REVDESCRIPTION
IS PROHIBITED.
FINISH
©
CreeLED,
Inc.
a APPLICATION
subsidiary
of 2021
SMART
Global
Holdings,
Inc.
©
2021
CreeLED,
Inc.
a APPLICATION
subsidiary
of
SMART
Global
Holdings,
Inc.
5
4
2
2 3 2 3
5
4
6
C
C
0.58
0.58
0.30
0.30
8.90
1.35
1.35
1.23
7
0.25
8
7.01
0.25
RECOMMENDED
STENCILSTENCIL
OPENING
8.90 REF.
RECOMMENDED
OPENING
Alternate Bottom View
8.91
1.35
8.90 REF.
0.25
0.95
0.25
A
1.35
8.90
7.01
1.35
8.90 REF.
0.30
0.95
8.91Bottom View
B
0.95
0.25
B
0.25
RECOMMENDED STENCIL OPENING
RECOMMENDED STENCIL OPENING
FILENAME
01 MT-G2 EasyWhite
0.95
G FILENAME
0001 MT-G2 EasyWhite
PRINT
8.90 REF.
8.90
8.90
6.00
RECOMMENDED
PCB FOOTPRINT
RECOMMENDED
PCB FOOTPRINT
CENTER PAD
0.50
IS ELECTRICALLY
ISOLATED
0.50
0.50
8.91
7.01
B
R4.10
A
8.91
F
CATHODE
SIDE
6.00
R4.10
0.50
1
CENTER PADCENTER PAD
IS ELECTRICALLY
IS ELECTRICALLY
ISOLATED ISOLATED 1.35
0.95
8.90
B
0.50
CENTERCENTER
PAD PAD
IS ELECTRICALLY
IS ELECTRICALLY
ISOLATED
ISOLATED
0.50
7.00
0.65
ANODE
CSIDE
8.90
CATHODE
SIDE
SOLDERMASK
MAY BE PRESENT
1
2
8.90
C
2
3
1.35
5
6
0.50
SIDE VIEW
SIDE
VIEW
Side
View
0.30
6
TOP
VIEW
TOP
VIEW
Top
View
D
8.90
D
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
UNLESS OTHERWISE
SPECIFIED:
NAMEDATE
CreeLED,
Inc. DR
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks
of UL
LLC.
4400
SILICON
DIMENSIONS
ARE
INOTHERWISE
MILLIMETERS
DURHAM,
NC
TLING
DRAWN
27AUG22
TOLERANCES:
UNLESS
SPECIFIED:
NAMEDATE
CreeLED,
A 27703 Inc.
PROPRIETARY AND CONFIDENTIAL
0.5°
BEND
1°CHECKEDARE IN MILLIMETERS
ANGULAR:
MACH
DIMENSIONS
•• TWO
ONE
PLACE
0.5
DECIMAL
TITLE:
TLING
27AUG22
TOLERANCES:
PLACE
0.05
DECIMAL
0.5°
BEND
1°DRAWN
ANGULAR:
MACH
•• INSIDE
BEND
RADII
EQUAL
ENG
APPR.
•• TWO
ONE
PLACE
0.5
DECIMAL
TITLE:
MT-G2
CHECKED
MATERIAL
PLACE
0.05
DECIMAL
MACHINE/CASTING
RADII
0.50APPR.
MFG
APPR.
•• DIA:
INSIDE
BEND
RADII
EQUAL
•• RADII
AND
0.10
ENG
MATERIAL
EASYWHITE
•
MACHINE/CASTING
RADII
0.50
Q.A.
INTERPRET
GEOMETRIC
MFG
APPR.
• RADII
0.10
DIA:
TOLERANCING
PER:AND
THIRD
ANGLE
PROJECTION
4400
SILICON
DR
DURHAM,
NC
A 27703
MT-G2
CLD-DS49
REV 6
17
8.90
8.90
7.00
7.00
0.50
0.50
8.91
8.91
7.01
7.01
1.35
1.35
0.50
0.50
1.35
8.90 REF.
CENTER PAD
IS ELECTRICALLY
ISOLATED
BOTTOMB
BOTTOM VIEW ALTERNATE
0.58
0.30
8.90
1.35
0.30
8.90
8.90
8.90
1.23
1.23
0.25
C
C
CENTER PAD
IS ELECTRICALLY
ISOLATED
SIDE VIEW
SIDE VIEW
0.25
D
R4.10
R4.10
TOP VIEW
TOP VIEW
CATHODE
SIDE
CATHODE
SIDE
0.58
MECHANICAL DIMENSIONS - CONTINUED
D
8.90
E
9.11
9.11
XLAMP ® MT-G2 EASYWHITE ® LED
E
SIDE
SIDE
CATHODE
SIDE
CATHODE
SIDE
8.90
ANODE
SIDE
ANODE
SIDE
B
B
6.00
6.00
0.95
0.95
A
8
8
7
7
6
0.25
RECOMMENDED
STENCIL OPENING
Recommended
Stencil
Opening
RECOMMENDED STENCIL
OPENING
RECOMMENDED
PCBPCB
FOOTPRINT
RECOMMENDED PCB
FOOTPRINT
Recommended
Footprint
A
0.25
6
5
5
UNLESS
OTHERWISE SPECIFIE
NAM
UNLESS OTHERWISE DIMENSIONS
SPECIFIED:
NAMEDATE
ARE
IN MILLIME
DIMENSIONS ARE
IN MILLIMETERS
TLING
2
TOLERANCES:
TLING
27AUG22
TOLERANCES:
0.5°0.5
BEND
1°DRAWN
• ONE
ANGULAR:
MACH
0.5°0.5
BEND
1°DRAWN
ANGULAR:
MACH
•
PLACE
DECIMAL
CHECKED
••• TWO
ONE
PLACE
DECIMAL
TITLE:
CHECKED
TWO PLACE
0.05
DECIMAL
PLACE
0.05
DECIMAL
•• INSIDE
BEND
RADII
EQUAL
ENG APPR.
• INSIDE
BEND
RADII
EQUAL
MATERIAL
ENG APPR.
MT-G2
MATERIAL
•
MACHINE/CASTING
RADII
0
MFG APPR.
MACHINE/CASTING
•RADII
RADII 0.50
AND
0.10DIA:
MFG APPR.
•• RADII
AND
0.10DIA:
Q.A.EASYWHIT
GEOMETRIC
Q.A. INTERPRET
INTERPRET
GEOMETRIC
PROPRIETARY AND
CONFIDENTIAL
TOLERANCING
PER:
PROPRIETARY AND THE
CONFIDENTIAL
THIRD
ANGLE
TOLERANCING
PER:
THIRD
ANGLE PROJECTION
INFORMATION
CONTAINED
IN
THISMATERIAL
THE
INFORMATION
CONTAINED
IN
THIS
MATERIAL
DRAWING
IS
THE
SOLE
PROPERTY
OF
A
DRAWING
INITIATED
DRAWING
IS
THEREPRODUCTION
SOLE
PROPERTY
OFREPRODUCTION
CREE
LED.
ANY
IN
A PART
DRAWING
INITIATED
MATERIAL SIZEDWG. NO.
CREE
ANY
IN
MATERIAL
OR AS
A WHOLE
WITHOUT
FINISH
PART LED.
OR AS
A WHOLE
WITHOUT
WRITTEN
PERMISSION
OF
CREE
LED
FINISH
REV
DESCRIPTION
WRITTEN
PERMISSION
OF
CREE
LED
ISDESCRIPTION
PROHIBITED.
890001
C
FINISH
REV
IS PROHIBITED.
©
2021
CreeLED,FINISH
Inc. a APPLICATION
subsidiary
© 2021
CreeLED,
a APPLICATION
subsidiary
of
SMART
Inc.
of
SMART
Global Inc.
Holdings,
Inc. Global Holdings,
SCALE: 10:1
WEIGHT
4 2 3
2 3
4
1 2
2
1
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
18
XLAMP ® MT-G2 EASYWHITE ® LED
TAPE AND REEL
All Cree LED carrier tapes conform to EIA-481D, Automated Component Handling Systems Standard.
All dimensions in mm
All dimensions are ±.13 mm unless otherwise indicated.
Po
T
E
Do
Bo
R
P2
W
A
Anode side
A
F
P1
B
D1
"H"
Ko
B-B SECTION
Bo (on a place in the
bottom of the corner
radii)
Ao (on a place in the
bottom of the corner
radii)
R
"I"
Ao
Item
Dim.
Ao
ITEM
9.40
Dim.
Bo
Ao
9.40
9.40
DETAIL"H"
DETAIL"I"
A-A SECTION
Ko
Bo Po
KoP1
P2
Po
5.25
9.40 4.00
12.00
5.25
2.00
4.00
T
P1
E
0.36 12.00 1.75
ITEM
F
Do
D1
W
R
Dim.
7.50
1.50
1.50
16.00
5deg
P2
F
2.00 7.50
TDo
1.50
0.36
D1E
1.50
1.75
W
R
16.00
5°
NOTICE
1) All Cree LED carrier tapes conform to EIA-481D, Automated Component handling Systems Standard
2) Measurement tolerances unless indicated otherwise: .xx = ±.15 mm
2402-M019 MTGB
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
19
XLAMP ® MT-G2 EASYWHITE ® LED
TAPE AND REEL - CONTINUED
Feed Direction
END
START
Trailer
Loaded Pockets
Leader
Min. 160 mm empty pockets
sealed with tape
1000 Lamps
Min. 400 mm empty pockets
with min. 100 mm sealed
Feed Direction
Cover Tape
Pocket Tape
13 mm
13”
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
20
XLAMP ® MT-G2 EASYWHITE ® LED
PACKAGING
© 2012-2023 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo, the Cree LED logo, XLamp® and
EasyWhite® are registered trademarks of Cree LED. UL® and the UL logo are registered trademarks of UL LLC.
CLD-DS49
REV 6
21
