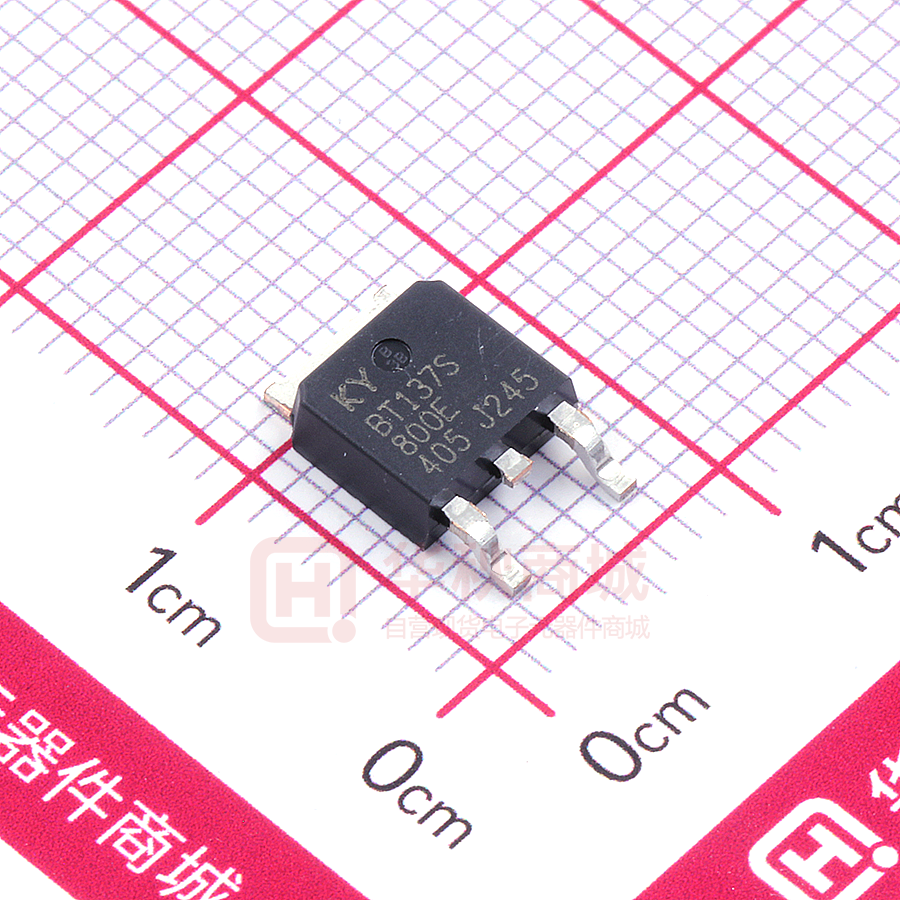

BT137S-800E

BT137 Series 8A TRIACs 4 Quadrants TRIACs ShenZhenHanKingyuan Electronic CO.,Ltd TRIACs BT137 Series 4 Quadrants ShenZhenHanKingyuan Electronic CO.,Ltd 01. 2 1 1 2 3 3 TO-220C TO-252 2 1 1 2 3 3 TO-263 TO-220F Insulated 1 2 1 3 2 TO-251 3 TO-262 FEATURES IT(RMS): 8A VGT: 1.5V VDRM VRRM:800V APPLICATIONS Washing machine,vacuums, massager,solid state relay，AC Motor speed regulation and so on. www.scr-ky.com PAGE.01/07 TRIACs ShenZhenHanKingyuan Electronic CO.,Ltd Absolute Maximum Ratings (Tj=25°C unless otherwise specifed) Symbol Parameter Conditions Ratings Unit BT137-600 600 V BT137-800 800 V Tc=110°C 8 A 80/84 A Tp=10ms 30 A²s Tj=125°C 1 W Tj=125°C 4 A ～40~125 °C ～40~150 °C VDRM Repetitive Peak Off-State Voltage VRRM IT(RMS) R.M.S On-State Current ITSM I²t Surge On-State Current tp=16.7ms/ tp=10ms I²t for fusing PG(AV) Average Gate Power Dissipation IGM Tj Peak Gate Current Operating Junction Temperature TSTG Storage Temperature Electrical Characteristics Symbol Parameter 02. BT137 Series 4 Quadrants (Tj=25°C unless otherwise specifed) Test Conditions Value D E F G Unit Tj=25°C ≤5 uA Tj=125°C ≤1 mA Tj=25°C ≤5 uA Tj=125°C ≤1 mA Forward "on" voltage IT=12A tp=380us ≤1.55 V VGT Gate trigger voltage VD=12V ,RL=30Ω ≤1.3 V di/dt Critical-rate of rise of commutation current. ≥50 A /us ≥10 A /us IGT Gate trigger current IDRM Repetitive Peak Off-State Current IRRM Repetitive Peak Reverse Current VTM IH I,II,II VD=12V IGT==0.1A I IV I,II,III IV Holding current VGD Gate non-trigger voltage ALL dv/dt Critical-rate of rise of commutation voltage www.scr-ky.com VD=12V RL=30Ω IT=0.2A VD=VDRM TJ=125°C,RL=3.3KΩ TJ=125°C VD=2/3VDRM Gate open circuit ≤5 ≤10 ≤25 ≤50 mA ≤10 ≤25 ≤70 ≤100 mA ≤10 ≤25 ≤30 ≤60 mA ≥0.2 ≥5 ≥10 V ≥50 ≥200 V/us PAGE.02/07 03. TRIACs BT137 Series 4 Quadrants ShenZhenHanKingyuan Electronic CO.,Ltd FIG1 FIG2 RMS on-state current versus case temperature Maximum power dissipation versus RMS on-state current 15 12 α=180° 10 10 TO-220C/ TO-251/TO-252 TO-263/TO-262 8 TO-220F(Ins) 6 5 4 2 0 0 2 4 IT(RMS) (A) 6 8 10 Tc (℃) 0 0 FIG3 25 50 75 100 125 FIG4 On-state characteristics (maximum values) Surge peak on-state current versus number of cycles ITM (A) ITSM (A) 70 70 t=20ms One cycle 60 Tj=Tjmax 50 40 10 30 20 Tj=25℃ 10 0 1 10 Number of cycles 100 1000 1 0 FIG5 1 2 VTM (V) 3 4 5 FIG6 Non-repetitive surge peak on-state current for a sinusoidal pulse with width tp
