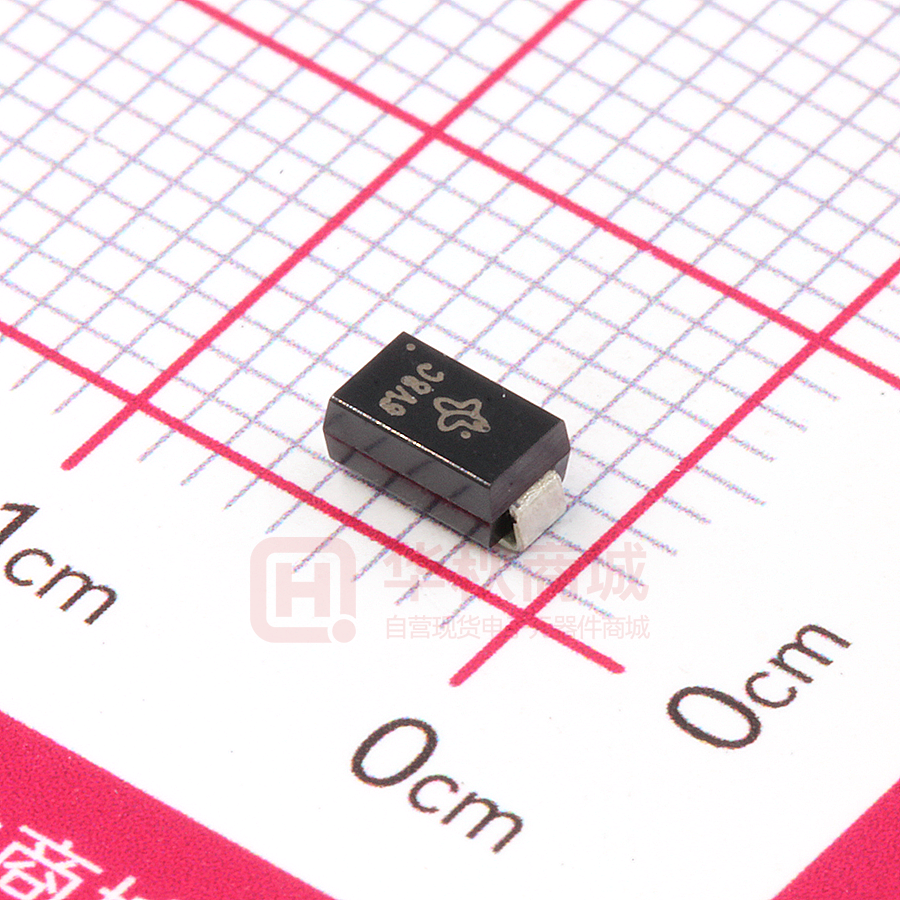

SMAJ6.8CA

UMW R UMW SMAJ5.0A(CA) THRU SMAJ188A(CA) 5.0V-188V 400W FEATURES • Low profile package • Ideal for automated placement • Glass passivated chip junction • Available in uni-directional and bi-directional • 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % (300 W above 78 V) • Excellent clamping capability • Very fast response time • Low incremental surge resistance • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C • AEC-Q101 qualified MECHANICAL DATA Case: DO-214AC (SMA) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS compliant, commercial grade Base P/NHE3 - RoHS compliant, AEC-Q101 qualified Terminals: Matte tin plated leads, solderable J-STD-002 and JESD 22-B102 M3 suffix meets JESD 201 class 1A whisker test per Polarity: For uni-directional types the band denotes cathode end, no marking on bi-directional types MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER Peak pulse power dissipation with a 10/1000 μs waveform Peak pulse current with a waveform (1)(2) (fig. 1) (1) Peak forward surge current 8.3 ms single half sine-wave uni-directional only Operating junction and storage temperature range (2) SYMBOL VALUE UNIT PPPM 400 W IPPM See next table A IFSM 40 A TJ, TSTG - 55 to + 150 °C Notes (1) Non-repetitive current pulse, per fig. 3 and derated above T = 25 °C per fig. 2. Rating is 300 W above 78 V A (2) Mounted on 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pads to each terminal www.umw-ic.com 1 友台半导体有限公司 UMW R UMW SMAJ5.0A(CA) THRU SMAJ188A(CA) 5.0V-188V 400W ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) DEVICE TYPE SMAJ5.0A(CA) SMAJ6.0A(CA) SMAJ6.5A(CA) SMAJ6.8A(CA) SMAJ7.0A(CA) SMAJ7.5A(CA) SMAJ8.0A(CA) SMAJ8.5A(CA) SMAJ9.0A(CA) SMAJ10A(CA) SMAJ11A(CA) SMAJ12A(CA) SMAJ13A(CA) SMAJ14A(CA) SMAJ15A(CA) SMAJ16A(CA) SMAJ17A(CA) SMAJ18A(CA) SMAJ20A(CA) SMAJ22A(CA) SMAJ24A(CA) SMAJ26A(CA) SMAJ28A(CA) SMAJ30A(CA) SMAJ33A(CA) SMAJ36A(CA) SMAJ40A(CA) SMAJ43A(CA) SMAJ45A(CA) SMAJ48A(CA) SMAJ51A(CA) SMAJ54A(CA) SMAJ58A(CA) SMAJ60A(CA) SMAJ64A(CA) SMAJ70A(CA) SMAJ75A(CA) SMAJ78A(CA) SMAJ85A(CA) SMAJ90A(CA) SMAJ100A(CA) SMAJ110A(CA) SMAJ120A(CA) SMAJ130A(CA) SMAJ150A(CA) SMAJ160A(CA) SMAJ170A(CA) SMAJ188A(CA) DEVICE MARKING CODE BREAKDOWN VOLTAGE VBR AT IT (1) (V) UNI BI MIN. MAX. AE AG AK 8A AM AP AR AT AV AX AZ BE BG BK BM BP BR BT BV BX BZ CE CG CK CM CP CR CT CV CX CZ RE RG RK RM RP RR RT RV RX RZ SE VG VK VM SP SR SS WE WG WK 8C WM WP WR WT WV WX WZ XE XG XK XM XP XR XT XV XX XZ YE YG YK YM YP YR YT YV YX YZ ZE ZG ZK ZM ZP ZR ZT ZV ZX ZZ VE VG VK VM VP VR VS 6.40 6.67 7.22 6.45 7.78 8.33 8.89 9.44 10.0 11.1 12.2 13.3 14.4 15.6 16.7 17.8 18.9 20.0 22.2 24.4 26.7 28.9 31.1 33.3 36.7 40.0 44.4 47.8 50.0 53.3 56.7 60.0 64.4 66.7 71.1 77.8 83.3 86.7 94.4 100 111 122 133 144 167 178 189 209 7.07 7.37 7.98 7.14 8.60 9.21 9.83 10.4 11.1 12.3 13.5 14.7 15.9 17.2 18.5 19.7 20.9 22.1 24.5 26.9 29.5 31.9 34.4 36.8 40.6 44.2 49.1 52.8 55.3 58.9 62.7 66.3 71.2 73.7 78.6 86.0 92.1 95.8 104 111 123 135 147 159 185 197 209 231 TEST CURRENT IT (mA) STAND-OFF VOLTAGE VWM (V) MAXIMUM REVERSE LEAKAGE AT VWM ID (μA) (3) 10 10 10 10 10 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 5.0 6.0 6.5 5.80 7.0 7.5 8.0 8.5 9.0 10 11 12 13 14 15 16 17 18 20 22 24 26 28 30 33 36 40 43 45 48 51 54 58 60 64 70 75 78 85 90 100 110 120 130 150 160 170 188 800 800 500 1000 200 100 50 10 5.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 MAXIMUM MAXIMUM PEAK PULSE CLAMPING SURGE VOLTAGE AT CURRENT IPPM VC (V) IPPM (A) (2) 43.5 38.8 35.7 38.1 33.3 31.0 29.4 27.8 26.0 23.5 22.0 20.1 18.6 17.2 16.4 15.4 14.5 13.7 12.3 11.3 10.3 9.5 8.8 8.3 7.5 6.9 6.2 5.8 5.5 5.2 4.9 4.6 4.3 4.1 3.9 3.5 3.3 3.2 2.2 2.1 1.9 1.7 1.6 1.4 1.2 1.2 1.09 0.91 9.2 10.3 11.2 10.5 12.0 12.9 13.6 14.4 15.4 17.0 18.2 19.9 21.5 23.2 24.4 26.0 27.6 29.2 32.4 35.5 38.9 42.1 45.4 48.4 53.3 58.1 64.5 69.4 72.7 77.4 82.4 87.1 93.6 96.8 103 113 121 126 137 146 162 177 193 209 243 259 275 328 Notes (1) Pulse test: t  50 ms p (2) Surge current waveform per fig. 3 and derate per fig. 2 (3) For bi-directional types having V WM of 10 V and less, the ID limit is doubled (4) All terms and symbols are consistent with ANSI/IEEE C62.35 (5) For the bi-directional SMAJ5.0CA, the maximum V BR is 7.25 V (6) V = 3.5 V at I = 25 A (uni-directional only) F F www.umw-ic.com 2 友台半导体有限公司 UMW R UMW SMAJ5.0A(CA) THRU SMAJ188A(CA) 5.0V-188V 400W RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted) 100 150 10 SMAJ5.0 thru SMAJ78 1 0.1 0.1 tr = 10 μs TJ = 25 °C Pulse Width (td) is Defined as the Point Where the Peak Current Decays to 50 % of IPPM Peak Value IPPM 100 Half Value - IPP IPPM 2 50 10/1000 μs Waveform as Defined by R.E.A. td 0 1 10 100 1000 10 000 0 1.0 3.0 2.0 td - Pulse Width (μs) t - Time (ms) Fig. 1 - Peak Pulse Power Rating Curve Fig. 3 - Pulse Waveform 4.0 10 000 100 CJ - Junction Capacitance (pF) Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage, % IPPM - Peak Pulse Current, % IRSM PPPM - Peak Pulse Power (kW) Non-Repetitive Pulse Waveform Shown in Fig. 3 TA = 25 °C 75 50 25 Measured at Stand-off Voltage VWM TJ = 25 °C f = 1.0 MHz Vsig = 50 mVp-p 1000 Uni-Directional 100 0 Bi-Directional 10 0 25 50 75 100 125 150 175 1 200 10 100 200 TJ - Initial Temperature (°C) VWM - Reverse Stand-Off Voltage (V) Fig. 2 - Pulse Power or Current vs. Initial Junction Temperature Fig. 4 - Typical Junction Capacitance 200 Peak Forward Surge Current (A) Transient Thermal Impedance (°C/W) 1000 100 10 1 0.001 TJ = TJ Max. 8.3 ms Single Half Sine-Wave 100 50 10 0.01 0.1 1.0 10 100 1000 1 10 100 tp - Pulse Duration (s) Number of Cycles at 60 Hz Fig. 5 - Typical Transient Thermal Impedance Fig. 6 - Maximum Non-Repetitive Forward Surge Current Uni-Directional Only www.umw-ic.com 3 友台半导体有限公司 UMW R UMW SMAJ5.0A(CA) THRU SMAJ188A(CA) 5.0V-188V 400W ORDERING INFORMATION Order Code Package Baseqty Deliverymode UMW SMAJxxA SMA 1800 Tape and reel UMW SMAJxxCA SMA 1800 Tape and reel www.umw-ic.com 4 友台半导体有限公司
