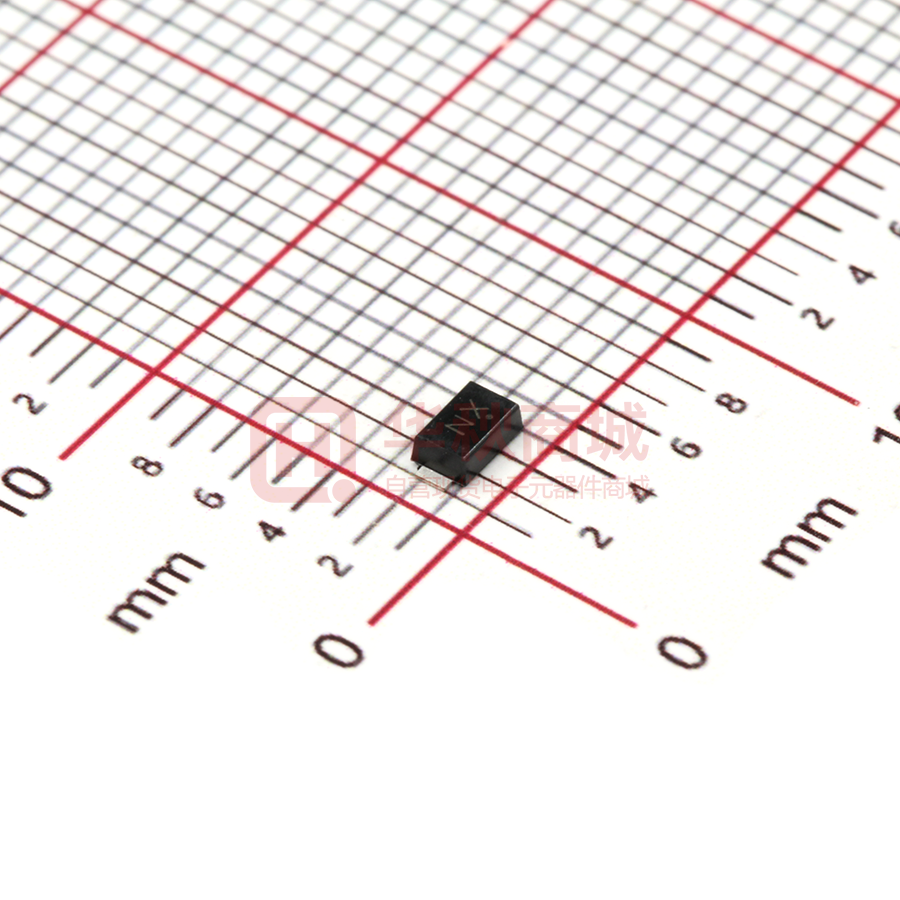

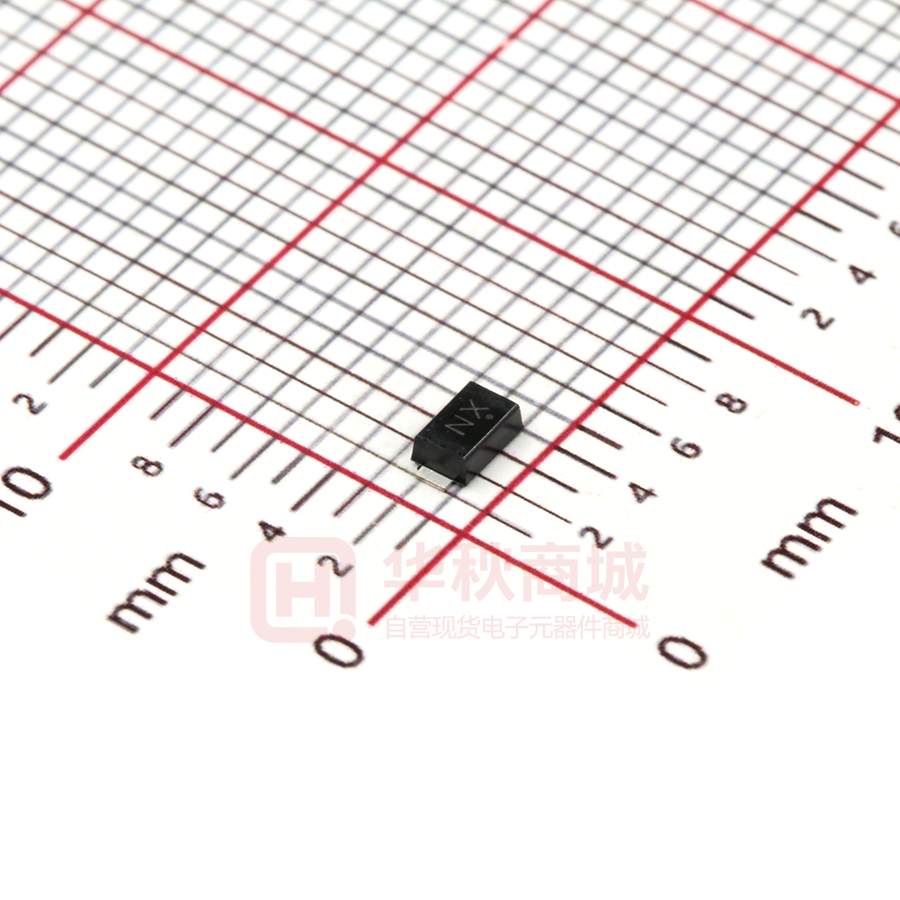

SMF10CA

SMF5.0A-MS - SMF170CA-MS Product specification SMF5.0A- SMF170CA VOLTAGE RANGE: 8 .0 V Features POWER: 200Wa tts Mechanical Data  For surface mounted applications  Low profile package  Low incremental surge resistance, excellent  clamping capability  200W peak pulse power capability with a10/1000 μs wave from,repetition rate (dutycycle):0.01%  Case: JEDEC SOD- 123FL, molded plastic over passivated chip Polarity: Color band denotes positiveend( cathode )  except for bidirectional  Mounting position: Any  Weight: 0.006 ounces, 0.02 gram  High temperature soldering guaranteed: 260 ℃/10 seconds, at terminals Reference News PACKAGE OUTLINE PIN CONFIGURATION SOD-123FL Unipolar SOD-123FL Bipolar Maximum Ratings TA = 25℃ unless otherwise specified Symbol Characteristic Value Unit Maximum PPK Dissipation ( PW - 1 0 / 1 0 0 0 μ s) P PK 200 W Maximum PPK Dissipation @ Ta = 2 5 ℃ ( PW - 8 / 1 0 μ s) ( Note2 ) P PK 100 0 W PD 38 5 DC Power Dissipation @ Ta= 2 5 ℃ ( Note 3 ) Derate above 2 5 ℃ W 4.0 mW/ ℃ Thermal Resistance, Junction to Ambient ( Note3 ) RӨ JA 32 5 ℃ /W Thermal Resistance, Junction to Lead ( Note 3 ) RӨ JL 26 ℃ /W TJ , TSTG -55 to + 15 0 ℃ Operating Junction and Storage Temperature Range Notes : ( 1 ) Non−repetitive current pulse at Ta = 25°C, per waveform of Fig. 2. ( 2 ) Non− repetitive current pulse at Ta = 2 5 ° C, per waveform of Fig. 5 . ( 3 ) Mounted with recommended minimum pad size , DC board FR4 . Copyright© Msksemi Incorporated www.msksemi.com SMF5.0A- SMF170CA R everse Marking TYPE (Bi) (Uni) (Bi) SMF5.0A SMF6.0A SMF6.5A SMF5.0CA SMF6.0CA SMF6.5CA SMF7.0A SMF7.5A SMF8.0A SMF8.5A SMF9.0A SMF10A SMF11A SMF12A SMF13A SMF14A SMF15A SMF7.0CA SMF7.5CA SMF8.0CA SMF8.5CA SMF9.0CA SMF10CA SMF11CA SMF12CA SMF13CA SMF14CA SMF15CA KE KG KK KM KP KR KT KV KX KZ LE LG LK LM FE FG FK FM FP FR FT FV SMF16A SMF17A SMF18A SMF20A SMF22A SMF24A SMF26A SMF28A SMF30A SMF33A SMF36A SMF40A SMF43A SMF45A SMF48A SMF51A SMF54A SMF58A SMF60A SMF64A SMF16CA SMF17CA SMF18CA SMF20CA SMF22CA SMF24CA SMF26CA SMF28CA SMF30CA SMF33CA SMF36CA SMF40CA SMF43CA SMF45CA SMF48CA SMF51CA SMF54CA SMF58CA SMF60CA SMF64CA SMF70A SMF75A SMF78A SMF85A SMF90A SMF100A SMF110A SMF120A SMF130A SMF150A SMF160A SMF170A SMF70CA SMF75CA SMF78CA SMF85CA SMF90CA SMF100CA SMF110CA SMF120CA SMF130CA SMF150CA SMF160CA SMF170CA (Uni) LP LR LT LV LX LZ ME MG MK MM MP MR MT MV MX MZ NE NG NK NM NP NR NT NV NX NZ PE PG PK PM PP PR Copyright© Msksemi Incorporated FX FZ HE HG HK HM HP HR HT HV HX HZ JE JG JK JM JP JR JT JV JX JZ XE XG XK XM XP XR XT XB XX XZ TE TG TK TM TP TR Stand- Off Voltage VRWM ( V) Breakdow Br eakd o w n Voltage n Voltage Min. @IT M ax i mu m Test Current Clamping V oltage Max. @ IT VBR MAX( V) Reverse Leakage @ VRWM Peak @ IPP IT (mA) IR(uA) VC(V) 5.0 6.0 6.5 6.40 6.67 7.22 7.00 7.37 7.98 10 10 10 400 400 250 9.2 10.3 11.2 21.7 19.4 17.9 7.0 7.5 8.0 8.5 9.0 10 11 12 13 14 15 7.78 8.33 8.89 9.44 10.0 11.1 12.2 13.3 14.4 15.6 16.7 8.60 9.21 9.83 10.4 11.1 12.3 13.5 14.7 15.9 17.2 18.5 10 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 100 50 25 10 5.0 2.5 2.5 2.5 1.0 1.0 1.0 12.0 12.9 13.6 14.4 15.4 17.0 18.2 19.9 21.5 23.2 24.4 16.7 15.5 14.7 13.9 13.0 11.8 11.0 10. 1 9.3 8.6 8.2 16 17 18 20 22 24 26 28 30 33 36 40 43 45 48 51 54 58 60 64 70 75 78 85 90 100 110 120 130 150 160 170 17.8 18.9 20.0 22.2 24.4 26.7 28.9 31. 1 33.3 36.7 40.0 44.4 47.8 50.0 53.3 56.7 60.0 64.4 66.7 71. 1 19.7 20.9 22. 1 24.5 26.9 29.5 31.9 34.4 36.8 40.6 44.2 49. 1 52.8 55.3 58.9 62.7 66.3 71.2 73.7 78.6 86.0 92. 1 95.8 104 111 123 135 147 159 185 197 209 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 26.0 27.6 29.2 32.4 35.5 38.9 42.1 45.4 48.4 53.3 58.1 64.5 69.4 72.7 77.4 82.4 87.1 93.6 96.8 103 113 121 126 137 146 162 177 193 209 243 259 275 7.7 7.2 6.8 6.2 5.6 5.1 4..8 4.4 4.1 3.8 3.4 3.1 2.9 2.8 2.6 2.4 2.3 2.1 1.8 1.7 VBR MIN( 77.8 83.3 86.7 94.4 100 111 122 133 144 167 178 189 V) IPP (A) 1.5 1.4 1.4 1.3 1.2 1.1 1.0 0.9 0.8 0.7 0.7 0.6 www.msksemi.com SMF5.0A- SMF170CA Fig.2 Forward Current Derating Curve 10 Non-Repetive Pulse.Wavefom Shown in Figure.3 T A=25°C 1.0 0.1 0.01 0.1 1 10 100 1000 10000 PEAK PULSE POWER(PPP)OR CURRENT(Ipp) DERATINGIN PERCENTAGE% P PPM ,PEAK PULSE FORWARD ,kW Fig.1 Peak Pulse Power Rating Curve 100 80 60 40 20 0 25 I ppm ,Peak Pulse Current (%) Peak Value Pulse Width (td) is Defined as the Point where the Peak. Current Decayst to 50% of Ipp I ppm 80 Half Value-I pp /2 60 10/1000usec Waveform as Defined bye R.E.A. 40 20 0 0 1.0 2.0 T,TIME,ms Copyright© Msksemi Incorporated 3.0 4.0 I FSM ,PEAK FORWARD SURGE CURRENT, AMPERES T A =25°C 100 100 125 150 175 Fig.4 Maximum Non-Repetitive Peak Forward Surge Current Fig.3 Pulse Waveform t f =10usec 75 T A ,AMBIENT TEMPERATURE,°C td,PULSE WIDTH ,us 120 50 30 25 20 15 10 05 T J =T J max 8.3ms Single Half Sinepwave JEDEC Method 0 1 10 100 Number of Cycles at 60Hz www.msksemi.com SMF5.0A- SMF170CA 1.8± 0.3 0.95 ±0.25 PACKAGEMECHANICALDATA 1.15±0.25 0.05-0.30 2.75 ±0.25 0.6±0.3 3.7 ±0.30 Dimensions in millimeters Suggested Pad Layout 2.85 Note: 1.4 1.Controlling dimension:in millimeters. 2.General tolerance:±0.05mm. 3.The pad layout is for reference purposes only. 1.2 REELSPECIFICATION P/N SMF5.0A - SMF170CA Copyright© Msksemi Incorporated PKG QTY SOD- 123FL 3000 www.msksemi.com SMF5.0A- SMF170CA Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not handle applications that require extremely high levels of reliability, such as life-support have specifications that can systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. Copyright© Msksemi Incorporated www.msksemi.com
