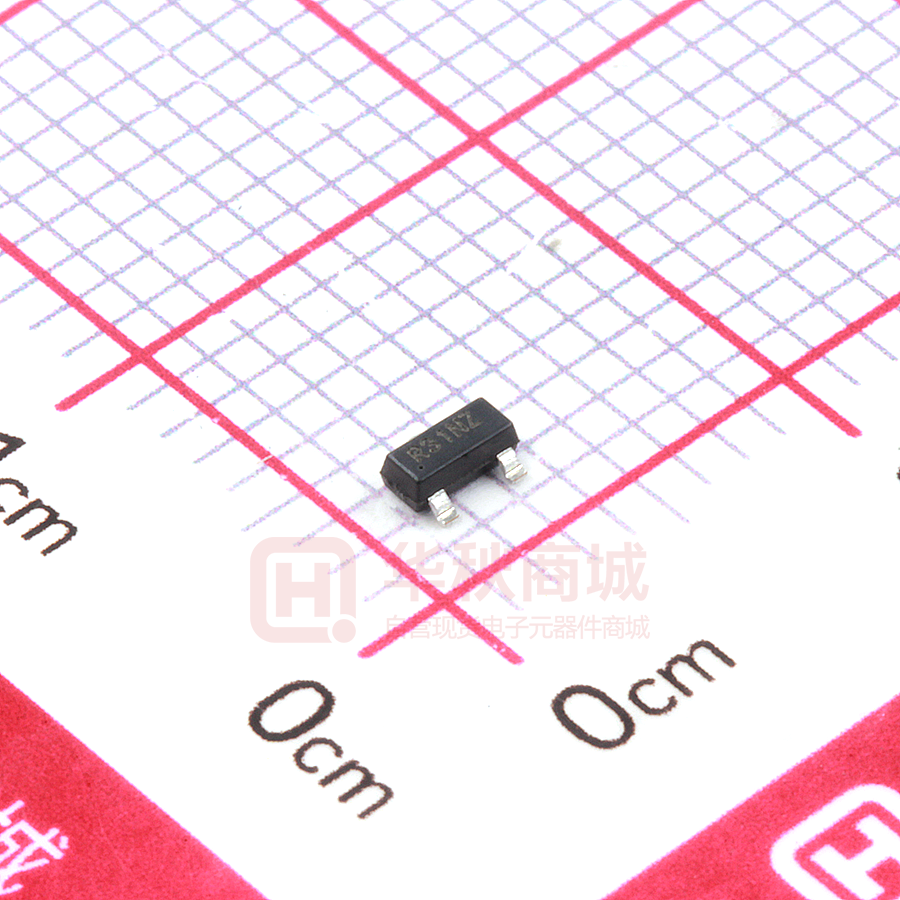

TPR431B-S3TR

TPR431, TPR432 Precision Programmable Reference Features Description  Reference Voltage Tolerance at 25°C The TPR431 and TPR432 are adjustable shunt voltage references with guaranteed temperature stability over the operating temperature range. The device temperature range is extended from −40 °C up to +125 °C. The output voltage can be set to any value between 2.5 and 36 V with two external resistors. The TPR431 operates with a wide current range from 1 to 80 mA with a typical dynamic impedance of 0.2 Ω. − 0.5% (B Grade) − 1% (A Grade)  Operation from –40°C to 125°C  0.2-Ω Typical Output Impedance  Sink Current Capability: 1 mA to 80 mA  Adjustable Output Voltage: VREF to 36V Applications  Power  Led Lighting  Current Sensing  Instrumentation  Industry Pin Configuration CATHODE 1 REF 2 TPR431 TPR432 3-Pin SOT23 3-Pin SOT23 3 REF 1 CATHODE 2 3 ANODE ANODE Functional Block Diagram CATHODE REF VREF ANODE www.3peakic.com.cn 1 / 10 Rev.A.1 TPR431, TPR432 Precision Programmable Reference Product Family Table Order Number Grade Voltage Tolerance Package TPR431B-S3TR B 0.5% SOT23G-3 TPR431A-S3TR A 1% SOT23G-3 TPR432B-S3TR B 0.5% SOT23G-3 TPR432A-S3TR A 1% SOT23G-3 www.3peakic.com.cn 2 / 10 Rev.A.1 TPR431, TPR432 Precision Programmable Reference Table of Contents Features .............................................................................................................................................................. 1 Applications ....................................................................................................................................................... 1 Description ......................................................................................................................................................... 1 Pin Configuration ............................................................................................................................................... 1 Functional Block Diagram ................................................................................................................................ 1 Product Family Table ......................................................................................................................................... 2 Revision History ................................................................................................................................................ 4 Specifications .................................................................................................................................................... 5 Absolute Maximum Ratings .......................................................................................................................... 5 ESD, Electrostatic Discharge Protection ...................................................................................................... 5 Recommended Operating Conditions .......................................................................................................... 5 Thermal Information ..................................................................................................................................... 5 Electrical Characteristics .............................................................................................................................. 6 Typical Performance Characteristics ............................................................................................................ 7 Tape and Reel Information ................................................................................................................................ 8 Package Outline Dimensions ........................................................................................................................... 9 SOT23G-3 .................................................................................................................................................... 9 Order Information ............................................................................................................................................ 10 www.3peakic.com.cn 3 / 10 Rev.A.1 TPR431, TPR432 Precision Programmable Reference Revision History Data Revision 2021-06-12 Rev A.0 2021-11-01 Rev.A.1 www.3peakic.com.cn Notes Initial Version. 1. Add New Product TPR432. 2. Add Tape and Reel Information. 4 / 10 Rev.A.1 TPR431, TPR432 Precision Programmable Reference Specifications Absolute Maximum Ratings Parameter Min Cathode Voltage Continuous Cathode Current −100 Reference Input Current Max Unit 37 V 150 mA 10 mA TJ Maximum Junction Temperature −40 150 °C TA Operating Temperature Range −40 125 °C Storage Temperature Range −65 150 °C 260 °C TSTG TL Lead Temperature (Soldering 10 sec) (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. ESD, Electrostatic Discharge Protection Symbol HBM CDM Parameter Condition Human Body Model ESD Charged Device Model ESD Minimum Level Unit ANSI/ESDA/JEDEC JS-001(1) 2000 V JS-002(2) 1000 V ANSI/ESDA/JEDEC (1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. (2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Recommended Operating Conditions Parameter Min Max Unit VKA Cathode Voltage VREF 36 V IKA Cathode Current 1 80 mA Thermal Information Package Type θJA θJC Unit SOT23G-3 400 120 °C/W www.3peakic.com.cn 5 / 10 Rev.A.1 TPR431, TPR432 Precision Programmable Reference Electrical Characteristics All test conditions: TA = +25°C, unless otherwise noted. Symbol VREF VDEV Parameter Conditions Reference voltage Reference input voltage deviation over temperature range Min Typ Max Unit VKA = VREF, IKA = 10 mA, A grade, 1% Initial Accuracy 2.470 2.495 2.520 V VKA = VREF, IKA = 10 mA, B grade, 0.5% Initial Accuracy 2.483 2.495 2.507 V VKA = VREF, IKA = 10 mA, TA = −40 to 85°C 5 15 mV VKA = VREF, IKA = 10 mA, TA = −40 to 125°C 11 30 mV Ratio of the change in reference voltage to the change in cathode voltage IKA = 10 mA, VKA = 10 V to VREF −1.5 0.3 1.5 mV/V IKA = 10 mA, VKA = 36 V to 10 V −1 0.1 1 mV/V IREF Reference input current IKA = 10 mA, R1 = 10 K, R2 Open 1 4 μA ΔIREF IREF deviation over temperature range IKA = 10 mA, R1 = 10 K, R2 Open, TA = −40 to 125°C 0.1 1 μA IKA(MIN) Minimum cathode current for regulation VKA = VREF 0.4 1 mA IKA(OFF) Off-state current VKA = 36 V, VREF = 0 V 0.2 μA |ZKA| Dynamic output impedance VKA = VREF, f
