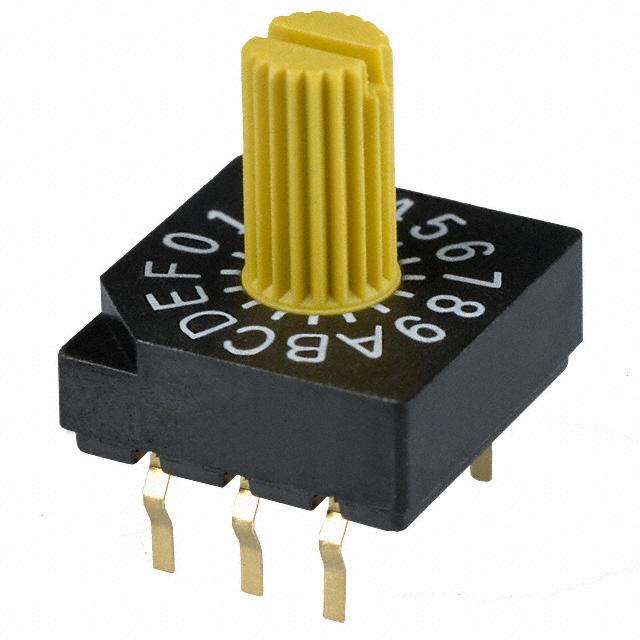

SD-1110

ROTARY CODED SWITCHES RoHS compliant SD-1000/2000 INTERNAL STRUCTURE SD-1000 / 2000 series ① ④ ③ ② ⑥ ⑦ ■ FEATURES ● RoHS compliant ● Fine click with metallic spring ● Low profile of 3.9 mm makes perfect for high density board mounting applications ● Gold plated contact provides excellent reliability ● Cross and minus slot are available ● Terminal pin arrangement 3-3 ● Resin material is UL Recognized 94V-0 ⑤ Part name Material ① Housing Polyphenylenesulfide ② Metallic Stainless (SUS 301) ③ “O” ring Silicone rubber ④ Insert rotor ⑤ Base ⑥ Contact ⑦ Terminal pin Rotor : Polyamide Pattern : Copper alloy, Gold-plated Polyphenylenesulfide Copper alloy, Gold-plated ■ PART NUMBER DESIGNATION S D - 1 0 1 0 T B Series name Shape of terminal No. of positions B：Gull wing (Top setting type only) Blank : Through hole pin (Snap-in terminal pin) 1：16 positions 2：10 positions Shape of rotor Form of packaging 0：Without knob (Minus slot) 1：With knob (with extended shaft) 2：Without knob (Cross slot) T：Taping (Gull wing type only) W：Tray packaging Blank：Plastic bag Code format Setting position 1：Real code (Rotor color Yellow) 3：Complementary code (Rotor color Red) 0：Top setting 1：Side setting ※ Please refer to the LIST OF PART NUMBERS when placing orders.　 SD-1000/2000 ROTARY CODED SWITCHES ■ LIST OF PART NUMBERS ● Binary coded decimal Shape of rotor Without knob (Minus slot) Top setting (Through hole pin) With knob Without knob (Cross slot) Without knob (Minus slot) Side setting (Through hole pin) With knob Without knob (Cross slot) Without knob (Minus slot) Top setting (Gull wing) Without knob (Cross slot) Form of packaging Plastic bag Tray packaging Plastic bag Tray packaging Plastic bag Tray packaging Plastic bag Tray packaging Plastic bag Tray packaging Plastic bag Tray packaging Plastic bag Tray packaging Taping Plastic bag Tray packaging Taping Real code SD-2010 SD-2010W SD-2110 SD-2110W SD-2210 SD-2210W SD-2011 SD-2011W SD-2111 SD-2111W SD-2211 SD-2211W SD-2010B SD-2010WB SD-2010TB SD-2210B SD-2210WB SD-2210TB Complementary code SD-2030 SD-2030W SD-2130 SD-2130W SD-2230 SD-2230W SD-2031 SD-2031W SD-2131 SD-2131W SD-2231 SD-2231W SD-2030B SD-2030WB SD-2030TB SD-2230B SD-2230WB SD-2230TB Packaging quantity 25 pcs./pack 50 pcs./tray 25 pcs./pack 50 pcs./tray 25 pcs./pack 50 pcs./tray 25 pcs./pack 50 pcs./tray 25 pcs./pack 50 pcs./tray 25 pcs./pack 50 pcs./tray 25 pcs./pack 50 pcs./tray 500 pcs./reel 25 pcs./pack 50 pcs./tray 500 pcs./reel ● Binary coded hexadecimal Shape of rotor Without knob (Minus slot) Top setting (Through hole pin) With knob Without knob (Cross slot) Without knob (Minus slot) Side setting (Through hole pin) With knob Without knob (Cross slot) Without knob (Minus slot) Top setting (Gull wing) Without knob (Cross slot) Form of packaging Plastic bag Tray packaging Plastic bag Tray packaging Plastic bag Tray packaging Plastic bag Tray packaging Plastic bag Tray packaging Plastic bag Tray packaging Plastic bag Tray packaging Taping Plastic bag Tray packaging Taping ※ Verify the above part numbers when placing orders. ※ Taping and tray version can be supplied only in reel or tray units. Real code SD-1010 SD-1010W SD-1110 SD-1110W SD-1210 SD-1210W SD-1011 SD-1011W SD-1111 SD-1111W SD-1211 SD-1211W SD-1010B SD-1010WB SD-1010TB SD-1210B SD-1210WB SD-1210TB Complementary code SD-1030 SD-1030W SD-1130 SD-1130W SD-1230 SD-1230W SD-1031 SD-1031W SD-1131 SD-1131W SD-1231 SD-1231W SD-1030B SD-1030WB SD-1030TB SD-1230B SD-1230WB SD-1230TB Packaging quantity 25 pcs./pack 50 pcs./tray 25 pcs./pack 50 pcs./tray 25 pcs./pack 50 pcs./tray 25 pcs./pack 50 pcs./tray 25 pcs./pack 50 pcs./tray 25 pcs./pack 50 pcs./tray 25 pcs./pack 50 pcs./tray 500 pcs./reel 25 pcs./pack 50 pcs./tray 500 pcs./reel SD-1000/2000 ROTARY CODED SWITCHES ■ STANDARD SPECIFICATIONS BCD (Real code, complementary code) BCH (Real code, complementary code) Circuit type Operating temp. range − 40 ～ 85 °C Storage temp. range Without knob Top setting 0.65 g With knob Top setting 0.76 g Without knob Side setting 0.95 g With knob Side setting 1.05 g Net weight ■ ENVIRONMENTAL CHARACTERISTICS (Amplitude) 1.5 mm or (Acceleration) 98 m/s2, 10-500-10 Hz, 3 directions for 2 h each Vibration 490 m/s2, 11 ms 6 directions for 3 times each Shock Contact rating Non-switching Switching Minimum Contact resistance Non-washable Sealing ■ ELECTRICAL CHARACTERISTICS Humidity Resistance load DC50V 100mA 40 °C, Relative humidity 90 ~ 95 %, 240 h Load life 20000 steps DC5 V, 100 mA High temp. exposure 85 °C, 96 h Low temp. exposure −40 °C, 96 h Insulation resistance Dielectric strength No. of positions Adjustment torque Stepping angle Temperature 100 50 16 (SD-1000), 10 (SD-2000) 4 ~ 25 mN·m {41 ~ 255 gf·cm} 22.5° (SD-1000), 36° (SD-2000) Stop strength (With knob only) 10 N {1.02 kgf}, 10 s 245 ± 3 °C, 2 ~ 3 s Gull wing Through hole pin Reflow : Peak temperature 255 °C (Please refer to the profile below.) Flow : 260 ± 3 °C as the temperature in a pot of molten solder, immer­sion from head of terminal to backside of board 5 ~ 6 s, two times maximum Manual soldering： 380 ± 10 °C, 3 ~ 4 s (℃) 250 150 AC250 V, 60 s 10 N {1.02 kgf} minimum Soldering heat 200 1000 MΩ (DC100 V) minimum Terminal strength (Through hole pin only) −40 (0.5 h) ~ 85 °C (0.5 h), 5 cycles Reflow profile for soldering heat evaluation〉 100 mΩ maximum ■ MECHANICAL CHARACTERISTICS Solderability Thermal shock DC50 V 100 mA DC5 V 100 mA DC20 mV 1 μA Peak : 250 0 ℃ +5 Over 230℃ 180℃ 150℃ Pre Heating Zone 90 ± 30 s 5 N {0.51 kgf} 10 s Substrate bending (Gull wing only) Width 90 mm, bend 3 mm, 5 s, 1 time Pull-off strength (Gull wing only) 5 N {0.51 kgf} 10 s { } : Reference only 30 ± 10 s Heating time Shear (Gull wing only) Soldering Zone リフロー回数：２回 Reflow : two times maximum SD-1000/2000 ROTARY CODED SWITCHES ■ OUTLINE DIMENSIONS Unless otherwise specified, tolerance: ± 0.3 (Unit: mm) ● SD-1010 (Real code) ● SD-1030 (Complementary code) ● SD-2010 (Real code) ● SD-2030 (Complementary code) 0.6 W × 3.2 L × 1.2 D 0.6 W × 3.2 L × 1.2 D 3.9 10 10 3.3±0.5 3.9 3.3±0.5 ② Ⓒ ⑧ ② Ⓒ ⑧ BCD 6 – 0.6 ± 0.1 t = 0.15 2.54 Production date code 7.62 10 7.62 01 EF 2 10 89 67 A 345 ④ Ⓒ ① Production date code 2.54 ● SD-1210 (Real code) ● SD-1230 (Complementary code) 3.9 ④ Ⓒ ① 2.54 ● SD-2210 (Real code) ● SD-2230 (Complementary code) 0.6 W × 3.2 L × 1.5 D 0.6 W × 3.2 L × 1.5 D 10 6 – 0.6 ± 0.1 t = 0.15 2.54 3.9 10 3.3±0.5 3.3±0.5 ② Ⓒ ⑧ ② Ⓒ ⑧ BCD 6 – 0.6 ± 0.1 t = 0.15 2.54 Production date code 7.62 10 7.62 01 EF 2 10 89 67 A 345 ④ Ⓒ ① 2.54 ● SD-1110 (Real code) ● SD-1130 (Complementary code) 3.9 3.3±0.5 10 6.5 3.9 3.3±0.5 ② Ⓒ ⑧ 7.62 φ3.9 901 10 7.62 φ3.9 BCD Production date code 6 – 0.6 ± 0.1 t = 0.15 2.54 78 01 EF 2 ② Ⓒ ⑧ 23 456 89 67 A 10 2.54 0.7 W × 1 D 6.5 345 ④ Ⓒ ① ● SD-2110 (Real code) ● SD-2130 (Complementary code) 0.7 W × 1 D 10 6 – 0.6 ± 0.1 t = 0.15 2.54 Production date code ④ Ⓒ ① 2.54 Production date code 6 – 0.6 ± 0.1 t = 0.15 2.54 ④ Ⓒ ① 2.54 SD-1000/2000 ROTARY CODED SWITCHES ■ OUTLINE DIMENSIONS Unless otherwise specified, tolerance: ± 0.3 (Unit: mm) ● SD-1011 (Real code) ● SD-1031 (Complementary code) ● SD-2011 (Real code) ● SD-2031 (Complementary code) 0.6 W × 3.2 L × 1.2 D 10 6.8 0.6 W × 3.2 L × 1.2 D 6.8 10 Production date code Production date code 10 01 EF 2 10 89 67 A 345 3.3±0.5 3.3±0.5 BCD ① Ⓒ ④ 2.54 ② Ⓒ ⑧ 3.3 2.54 6 – 0.6 ± 0.1 t = 0.15 2.54 ● SD-1211 (Real code) ● SD-1231 (Complementary code) ① Ⓒ ④ 2.54 6.8 6 – 0.6 ± 0.1 t = 0.15 2.54 ● SD-2211 (Real code) ● SD-2231 (Complementary code) 0.6 W × 3.2 L × 1.5 D 10 ② Ⓒ ⑧ 3.3 2.54 0.6 W × 3.2 L × 1.5 D 6.8 10 Production date code Production date code 10 01 EF 2 10 89 67 A 345 3.3±0.5 ② Ⓒ ⑧ 3.3 2.54 6 – 0.6 ± 0.1 t = 0.15 2.54 ● SD-1111 (Real code) ● SD-1131 (Complementary code) ① Ⓒ ④ 2.54 901 10 ② Ⓒ ⑧ 3.3 2.54 6 – 0.6 ± 0.1 t = 0.15 3.3±0.5 BCD 2.54 6.5 6.8 Production date code 23 φ3.9 01 EF 2 Production date code ① Ⓒ ④ 2.54 10 78 10 6.8 456 89 67 A 3.3±0.5 0.7 W × 1 D 6.5 345 6 – 0.6 ± 0.1 t = 0.15 2.54 ● SD-2111 (Real code) ● SD-2131 (Complementary code) 0.7 W × 1 D 10 ② Ⓒ ⑧ 3.3 2.54 φ3.9 3.3±0.5 BCD ① Ⓒ ④ 2.54 ② Ⓒ ⑧ ① Ⓒ ④ 2.54 2.54 3.3 2.54 6 – 0.6 ± 0.1 t = 0.15 SD-1000/2000 ROTARY CODED SWITCHES ■ OUTLINE DIMENSIONS Unless otherwise specified, tolerance: ± 0.3 (Unit: mm) ● SD-1010B (Real code) ● SD-1030B (Complementary code) ● SD-2010B (Real code) ● SD-2030B (Complementary code) ⑧ Ⓒ ② 4 10 1 4 ⑧ Ⓒ ② 1 0.6 W × 3.2 L × 1.2 D 0.6 W × 3.2 L × 1.2 D 10 13 10 13 01 EF 2 10 89 67 A 345 BCD Production date code 2.54 6 – 0.6 ± 0.1 t = 0.15 ● SD-1210B (Real code) ● SD-1230B (Complementary code) 2.54 Production date code ● SD-2210B (Real code) ● SD-2230B (Complementary code) 0.6 W × 3.2 L × 1.5 D 0.6 W × 3.2 L × 1.5 D ⑧ Ⓒ ② 4 10 1 4 10 6 – 0.6 ± 0.1 t = 0.15 ⑧ Ⓒ ② 1 2.54 1 ① Ⓒ ④ 1 ① Ⓒ ④ 2.54 13 10 13 01 EF 2 2.54 ① Ⓒ ④ 1 ① Ⓒ ④ 2.54 Production date code 6 – 0.6 ± 0.1 t = 0.15 2.54 2.54 1 BCD 10 89 67 A 345 Production date code 6 – 0.6 ± 0.1 t = 0.15 SD-1000/2000 ROTARY CODED SWITCHES ■ CODE FORMAT SD-1000 series (16 positions) SD-2000 series (10 positions) 0 1 2 3 4 5 6 7 8 9 A B C D E F No. of positions Position Real code Code Complementary code 8 4 2 1 8 4 2 1 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● …Contact closed ■ TERMINAL CONNECTION / P.C.B. THROUGH HOLE DIMENSIONS Top setting Terminal pin layout (Bottom view) Real code Real Real code code 8 C 88 2 CC 22 Side setting Operating face Operating face of Operating of Operating face complementary Operating face facecode of ofOperating real code face of complementary of real real code code complementary code code Complementary code Complementary Complementary code code 1 C 11 4 CC 44 8 C 88 2 CC 22 1 C 11 4 CC 44 1 C 4 11 CC 44 8 C 2 88 CC 22 2.54 ± 0.1 6 – φ 0.8 hole 2.54 2.54 ±± 0.1 0.1 66 –– φφ 0.8 0.8 hole hole 2.54 ± 0.1 2.54 ±± 0.1 0.1 2.54 P.C.B. dimensions (Bottom view) 2.54 ± 0.1 2.54 ±± 0.1 0.1 2.54 2.54 ± 0.1 6 – φ 0.8 hole 2.54 2.54 ±± 0.1 0.1 66 –– φφ 0.8 0.8 hole hole 1 C 4 11 CC 44 8 C 2 88 CC 22 SD-1000/2000 case SD-1000/2000 SD-1000/2000 case case SD-1000/2000 case SD-1000/2000 SD-1000/2000 case case ■ RECOMMENDED P.C.B. PAD OUTLINE DIMENSIONS 1.75 2.54 6–1 2.54 1.75 10.5 (14) (Unit: mm) SD-1000/2000 ROTARY CODED SWITCHES ■ PACKAGING SPECIFICATIONS ● Taping version is packaged in 500 pcs. per reel. Orders will be accepted for units of 500 pcs., i.e., 500, 1000, 1500 pcs., etc. ● Taping version is boxed with one reel (500 pcs.). Maximum number of consecutive missing pieces=2 Leader length and reel dimension are shown in the dia-grams below: ● Embossed tape dimensions ● Reel dimensions (Unit: mm) (In accordance with EIAJ ET-7200A) 25.4±1 2±0.5 End Head 40 mm min. Direction of feed φ13±0.2 φ21±0.8 20 pitches min. Leader 400 mm min. Part No. label φ80±1 Empty Filled φ330±2 Empty 29.4±1 (Unit: mm) +0.1 0 16±0.1 4±0.1 2±0.1 0.4±0.1 11.5±0.1 24 φ1.5 1.75±0.1 (In accordance with EIAJ RC-1009B) 4.8 Direction of feed ● Tray version is packaged in 50 pcs. per tray. Orders will be accepted for units of 50 pcs., i. e., 50, 100, 150 pcs. etc. ● Tray version is boxed with 10 trays. ● The smallest unit of bulk pack in a plastic bag is 10 pcs. per pack. Orders will be accepted for unit of minimum 10 pcs., i.e., 10, 20, 30 pcs. , etc. ● Boxing of bulk in a plastic bag is performed with 25 pcs. (standard 50 pcs.) per box.
