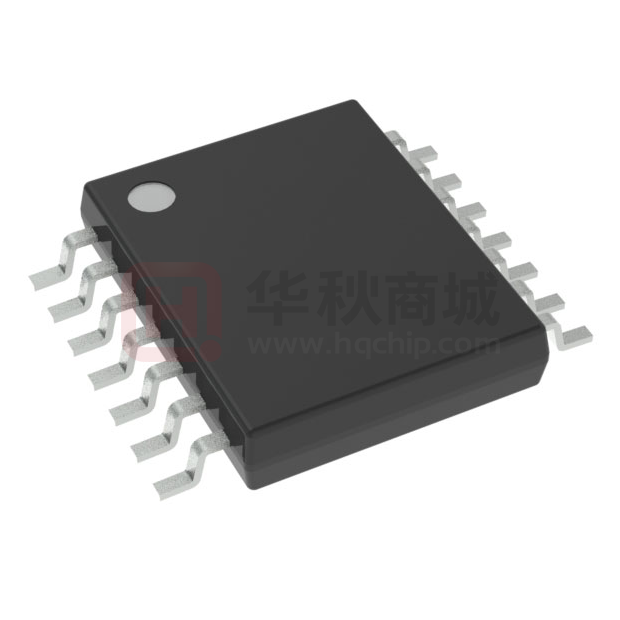

LM339A-TR

LM331A, LM393A, LM339A 36 V Low Power Comparators Features Description  Wide Single-supply Voltage Range or Dual Supplies: +2.5 V to +36 V or ±1.25 V to ±18 V  Very Low Supply Current (150 μA/ch)  Low Input Bias Current: 1 nA maximum  Low Offset Voltage: ±6.0 mV maximum  Input Common-mode Voltage Range Includes Ground  Internal Differential Input Voltage Range Equal to The Supply Voltage  Low Output Saturation  −40°C to 125°C Operation Range  ESD Rating: HBM 4 kV, CDM 2 kV The devices in this series consist of single/ dual/ quad independent single or dual supply voltage comparators on a single monolithic substrate. The common mode input voltage range includes ground even when operated from a single supply, and the low power supply current drain makes these comparators suitable for battery operation. These types were designed to directly interface with TTL and CMOS, Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships. All devices are specified for the temperature range of –40°C to 125°C. Applications  High-speed Line or Digital Line Receivers  High Speed Sampling Circuits  Peak and Zero-crossing Detectors  Threshold Detectors/Discriminators  Sensing at Ground or Supply Line Typical Application Circuit VDD Ro R1 Vo R2 www.3peak.com RD 1 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators Table of Contents Features ....................................................................................................................................................... 1 Applications ................................................................................................................................................. 1 Description ................................................................................................................................................... 1 Typical Application Circuit .......................................................................................................................... 1 Revision History .......................................................................................................................................... 3 Pin Configuration ......................................................................................................................................... 4 Specifications .............................................................................................................................................. 5 Absolute Maximum Ratings (1) ................................................................................................................. 5 ESD, Electrostatic Discharge Protection .................................................................................................. 5 Thermal Information ................................................................................................................................ 5 Electrical Characteristics ......................................................................................................................... 6 Typical Performance Characteristics ....................................................................................................... 7 Application and Implementation ................................................................................................................. 8 Application Information............................................................................................................................ 8 Typical Application .................................................................................................................................. 9 Tape and Reel Information ........................................................................................................................ 10 Package Outline Dimensions ..................................................................................................................... 11 SOT23-5 ................................................................................................................................................ 11 SOP8.................................................................................................................................................... 12 TSSOP8 ............................................................................................................................................... 13 DFN2X2-8 ............................................................................................................................................ 14 SOP14.................................................................................................................................................. 15 TSSOP14 ............................................................................................................................................. 16 Order Information ...................................................................................................................................... 17 www.3peak.com 2 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators Revision History Date Revision 2022-05-05 Rev.A.0 Notes Update new document format. Update package outline dimensions with 3PEAK new POD format, no change on the product. Combine LM331A, LM393A, LM339A to one datasheet. Updated IOS, IB, IDIFF spec: IB : add max limit value 1nA at 25 °C, add max limit value 10nA at −40°C to 125°C IOS : add max limit value 1nA at 25 °C, add max limit value 10nA at −40°C to 125°C IOS : add typical value 50nA at 25 °C 2023-05-29 Rev.A.1 The following updates are all about the new datasheet formats or typo, the actual product remains unchanged. Updated symbol of Figure 3 in Typical Performance Characteristics. Updated address of web site. Updated tape and reel information. Updated DFN2X2-8 package outline dimension. www.3peak.com 3 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators Pin Configuration LM393A, DFN Package The themal pad of DFN package is recommended to be left float or connected to -Vs www.3peak.com 4 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators Specifications Absolute Maximum Ratings (1) Parameter Min + Max Unit 42 V V − 0.3 V + 0.3 V −20 +20 mA −20 +20 mA − Supply Voltage: V − V − Input Voltage Input Current: +IN, –IN (2) Output Current: OUT + Output Short-Circuit Duration (3) Infinite Current at Supply Pins −60 +60 mA 150 °C TJ Maximum Junction Temperature TA Operating Temperature Range −40 125 °C Storage Temperature Range −65 150 °C 260 °C TSTG TL Lead Temperature (Soldering 10 sec) (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. (2) The inputs are protected by ESD protection diodes to each power supply. If the input extends more than 500 mV beyond the power supply, the input current should be limited to less than 10 mA. (3) A heat sink may be required to keep the junction temperature below the absolute maximum. This depends on the power supply voltage and how many amplifiers are shorted. Thermal resistance varies with the amount of PC board metal connected to the package. The specified values are for short traces connected to the leads. ESD, Electrostatic Discharge Protection Symbol HBM CDM Parameter Condition Human Body Model ESD Minimum Level Unit (1) 4 kV (2) 2 kV ANSI/ESDA/JEDEC JS-001 Charged Device Model ESD ANSI/ESDA/JEDEC JS-002 (1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. (2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Thermal Information Package Type θJA θJC Unit SOT23-5 250 81 °C/W SOP8 158 43 °C/W TSSOP8 191 44 °C/W DFN2X2-8 100 60 °C/W SOP14 97 47 °C/W TSSOP14 108 43 °C/W www.3peak.com 5 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators Electrical Characteristics All test condition is VCC = 5 V, RPU = 10 kΩ, CL = 15 pF, TA = 25°C, unless otherwise noted. Symbol Parameter Conditions Min Max Unit 36 V ±0.6 +6 mV 0.1 1 nA 1 10 nA 0.1 1 nA VDM = 0 V, VCM = 0 V, TA = −40°C to 125°C 1 10 nA 50 VCC Supply Voltage TA = −40°C to 125°C 2.5 VOS Input Offset Voltage VCC = 5 V to 30 V, VCM = 0V, VO = 1.4 V, TA = −40°C to 125°C −6 VDM = 0 V, VCM = 0 V IB Input Bias Current (1) VDM = 0 V, VCM = 0 V, TA = −40°C to 125°C VDM = 0 V, VCM = 0 V (1) IOS Input Offset Current IDiff Input Differential Current VCC = 36 V, VDM = 36 V CIN Input Capacitance TA = 25°C VCM Common-mode Input Voltage Range AVD Large-signal Differentialvoltage Amplification Differential VCC = 15 V, VO = 1.4 V to 11.4 V, RL ≥ 15 kΩ to VCC nA 2.5 Common Mode TA = −40°C to 125°C Typ pF 5 0 VCC − 1.5 V 0 VCC − 2 V 50 VOH = 5 V, VID = 1 V 400 25 V/mV 200 nA 7 μA 400 mV 500 mV IOH High-level Output Current VOL Low-Level Output Voltage IOL = 4 mA, VID = −1 V, TA = −40°C to 125°C IOL Low-Level Output Current VOL = 1.5 V, VID = −1 V IQ Quiescent Current per Comparator VCC = 5 V 150 300 μA VCC = 36 V 150 300 μA VCC = 36 V, VOH = 36 V, VID = 1 V, TA = −40°C to 125°C IOL = 4 mA, VID = −1 V tRT Response Time RL connected to 5 V through 5.1 kΩ, CL = 15 pF 250 10 mA 100-mV input step with 5-mV overdrive 2 TTL-level input step 0.5 μs (1) Provided by bench test and design simulation www.3peak.com 6 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators Typical Performance Characteristics All test conditions: VS = 5 V, VCM = 0 V, RL = Open, unless otherwise noted. 6 210 5 180 4 150 3 Vout(V) Supply Current(uA) 240 120 90 1 -40°C 60 25°C 30 2 Vov=5mV Vov=20mV Vov=100mV 0 125°C -1 0 3 8 13 18 23 0 28 1 2 3 4 5 Time (us) Supply Voltage (V) Figure 1. Supply Current vs. Supply Voltage (Dual Channel) Figure 2. Response Time for Various Input Overdrives: Positive Transition 6 6 5 5 Vov=5mV 4 Vov=20mV Vov=100mV Vdrop(V) 3 Vout(V) 4 2 3 2 1 T=-40°C T=25°C T=125°C 1 0 -1 0 0 1 2 3 4 5 0 Time (us) 20 30 40 Isink (mA) Figure 3. Response Time for Various Input Overdrives: Negative Transition www.3peak.com 10 Figure 4 Negative Output Swing vs. Sink Current 7 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators Application and Implementation NOTE Information in the following applications sections is not part of the 3PEAK’s component specification and 3PEAK does not warrant its accuracy or completeness. 3PEAK’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. Application Information Power Supply Layout and Bypass The LM331A/393A/339A family’s power supply pin should have a local bypass capacitor (i.e., 0.01 μF to 0.1 μF) within 2mm for good high frequency performance. It can also use a bulk capacitor (i.e., 1 μF or larger) within 100mm to provide large, slow currents. This bulk capacitor can be shared with other analog parts. Good ground layout improves performance by decreasing the amount of stray capacitance and noise at the comparator’s inputs and outputs. To decrease stray capacitance, minimize PCB lengths and resistor leads, and place external components as close to the comparator’ pins as possible. Inputs The electrostatic discharge (ESD) protection input structure of two back-to-back diodes and 1kΩ series resistors are used to limit the differential input voltage applied to the precision input of the comparator by clamping input voltages that exceed supply voltages, as shown in Figure 5. Large voltage exceeding the supply voltage should be avoided to prevent damage to the input stage. 1K Ω +In 1K Ω Core -In Chip Figure 5 Equivalent Input Structure Operation Outside of the Common Input Voltage Range The following is a list of input voltage situation and their outcomes: 1. When both IN- and IN+ are both within the common-mode range: 1) If IN- is higher than IN+ and the offset voltage, the output is low and the output MOSFET is sinking Current. 2) If IN- is lower than IN+ and the offset voltage, the output is high impedance. 2. When IN- is higher than common-mode and IN+ is within common-mode, the output is low and the output MOSFET is sinking current. 3. When IN+ is higher than common-mode and IN- is within common-mode, the output is high impedance. 4. When IN- and IN+ are both higher than common-mode, the output is in uncertain state. www.3peak.com 8 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators Typical Application IR Receiver The device is an ideal candidate to be used as an infrared receiver shown in Figure 6. The infrared photo diode creates a current relative to the amount of infrared light present. The current creates a voltage across RD. When this voltage level cross the voltage applied by the voltage divider to the inverting input, the output transitions. Optional Ro provides additional hysteresis for noise immunity. VDD Ro R1 Vo R2 RD Figure 6. IR Receiver www.3peak.com 9 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators Tape and Reel Information Order Number Package D1 (mm) W1 (mm) A0 (mm) B0 (mm) K0 (mm) P0 (mm) W0 (mm) Pin1 Quadrant LM331A-S5TR SOT23-5 179.0 13.1 3.3 3.25 1.4 4.0 8.0 Q3 LM331AU-S5TR SOT23-5 179.0 13.1 3.3 3.25 1.4 4.0 8.0 Q3 LM331AU2-S5TR SOT23-5 179.0 13.1 3.3 3.25 1.4 4.0 8.0 Q3 LM393A-SR SOP8 330.0 17.6 6.5 5.4 2.0 8.0 12.0 Q1 LM393A-DFGR DFN2X2-8 180.0 12.0 2.2 2.2 1.0 4.0 8.0 Q2 LM393A-TSR TSSOP8 330.0 17.6 6.8 3.3 1.8 8.0 12.0 Q1 LM339A-SR SOP14 330.0 22.0 6.5 9.2 2.0 8.0 16.0 Q1 LM339A-TR TSSOP14 330.0 17.6 6.8 5.5 1.6 8.0 12.0 Q1 www.3peak.com 10 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators Package Outline Dimensions SOT23-5 www.3peak.com 11 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators SOP8 www.3peak.com 12 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators TSSOP8 www.3peak.com 13 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators DFN2X2-8 www.3peak.com 14 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators SOP14 www.3peak.com 15 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators TSSOP14 www.3peak.com 16 / 17 Rev.A.1 LM331A, LM393A, LM339A 36 V Low Power Comparators Order Information Order Number Operating Temperature Range Package Marking Information MSL Transport Media, Quantity Eco Plan LM331A-S5TR −40 to 125°C SOT23-5 31A 3 Tape and Reel, 3000 Green LM331AU-S5TR −40 to 125°C SOT23-5 CA4 3 Tape and Reel, 3000 Green LM331AU2-S5TR −40 to 125°C SOT23-5 31V 3 Tape and Reel, 3000 Green LM393A-SR −40 to 125°C SOP8 393A 3 Tape and Reel, 4000 Green LM393A-DFGR −40 to 125°C DFN2X2-8 93A 3 Tape and Reel, 3000 Green LM393A-TSR −40 to 125°C TSSOP8 393A 3 Tape and Reel, 3000 Green LM339A-SR −40 to 125°C SOP14 LM339 3 Tape and Reel, 2500 Green LM339A-TR −40 to 125°C TSSOP14 LM339 3 Tape and Reel, 3000 Green Green: 3PEAK defines "Green" to mean RoHS compatible and free of halogen substances. 3PEAK and the 3PEAK logo are registered trademarks of 3PEAK INCORPORATED. All other trademarks are the property of their respective owners. 17 / 17
