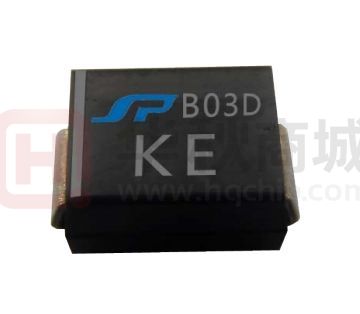

SMBJ6.0CA

SPSEMI SMBJ(600W) Series     Surface Mount Transient Voltage Suppressor Stand-Off Voltage - 5.0 to 440 Volts 600 Watt Peak Pulse Power Features For surface mounted applications in order to optimize board space Low profile package Built-in strain relief Glass passivated junction Low inductance Excellent clamping capability Repetition Rate (duty cycle):0.01% Fast response time: typically less than 1.0ps from 0 Volts to V(BR) for unidirectional types Typical IR less than 1µA above 10V High Temperature solderting: 260°C/10 seconds at terminals Plastic package has Underwriters Laboratory Flammability 94V-O Pb-free plated AEC-Q101 Mechanical Data Case: JEDEC DO-214AA. Molded plastic over glass passivated junction Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Color band denoted positive end (cathode) except Bidirectional Standard Packaging: 12mm tape (EIA STD RS-481) Devices For Bipolar Application For Bidirectional use C or CA Suffix for types SMBJ5.0 thru types SMBJ170 (e.g. SMBJ5.0C , SMBJ170CA) Electrical characteristics apply in both directions Maximum Ratings And Characteristics Ratings at 25 ℃ ambient temperature unless otherwise specified. RATING Peak Pulse Power Dissipation on 10/1000µs waveform SYMBOL VALUE P PPM 600 (Note 1,2 ,FIG.1) Peak Pulse Current of on 10/1000µs waveform (Note 1,FIG.3) Peak Forward Surge Current,8.3ms Single Half Sine-Wave Superimposed on Rated Load,(JEDEC Method) (Note2,3) Operating junction and Storage Temperature Range I PPM I FSM T J , T STG SEE UNITS Watts Amps TABLE 1 100 Amps - 55 to ℃ +150 Notes : 1.Non-repetitive current pulse , per Fig. 3 and derated above TA = 25 ℃ per Fig. 2 . 2.Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal 3.8.3ms single half sine-wave , or equivalent square wave, Duty cycle = 4 pulses per minutes maximum. REV . 2021 . 02 . 01 www.spsemi.cn Page 1 of 5 SPSEMI SMBJ(600W) Series     Dimensions (DO-214AA) DO-214AA(SMB J-Bend) Cathode Band 0.086 ( 2.20 ) 0.071 ( 1.80 ) 0.012 ( 0.305 ) 0.006 ( 0.152 ) 0.108(2.75) 0.083(2.10) 0.155(3.94) 0.130(3.30) 0.060 ( 1.52 ) 0.030 ( 0.76 ) 0.193(4.90) 0.160(4.05) 0.012(0.3)MAX. 0.223 ( 5.65 ) 0.200 ( 5.08 ) Dimensions in inches and(millimeters) Electrical Characteristics TABLE1 “ * ”Stand for commonly used models SMBJ Part Number UNI-Polar BI-Polar Maximum Clamping Peak Pulse Current Voltage @Ipp Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @I T Breakdown Voltage @IT Test Current UNI BI V RWM (V) V BR (V)Min. V BR (V)Max. IT(mA) Vc(V) Ipp(A) I R ( A) Reverse Leakage @V RWM * SMBJ5.0A * SMBJ5.0CA KE AE 5.0 6.40 7.00 10 9.2 65.3 500 SMBJ6.0A * SMBJ6.0CA KG AG 6.0 6.67 7.37 10 10.3 58.3 500 SMBJ6.5A * SMBJ6.5CA KK AK 6.5 7.22 7.98 10 11.2 53.6 300 SMBJ7.0A SMBJ7.0CA KM AM 7.0 7.78 8.60 10 12.0 50.0 200 SMBJ7.5A SMBJ7.5CA KP AP 7.5 8.33 9.21 1 12.9 46.6 100 SMBJ8.0A * SMBJ8.0CA KR AR 8.0 8.89 9.83 1 13.6 44.2 50 SMBJ8.5A SMBJ8.5CA KT AT 8.5 9.44 10.40 1 14.4 41.7 20 SMBJ9.0A SMBJ9.0CA KV AV 9.0 10.00 11.10 1 15.4 39.0 10 SMBJ10A * SMBJ10CA KX AX 10.0 11.10 12.30 1 17.0 35.3 5 SMBJ11A SMBJ11CA KZ AZ 11.0 12.20 13.50 1 18.2 33.0 1 SMBJ12A * SMBJ12CA LE BE 12.0 13.30 14.70 1 19.9 30.2 1 SMBJ13A SMBJ13CA LG BG 13.0 14.40 15.90 1 21.5 28.0 1 SMBJ14A SMBJ14CA LK BK 14.0 15.60 17.20 1 23.2 25.9 1 * SMBJ15A SMBJ15CA LM BM 15.0 16.70 18.50 1 24.4 24.6 1 SMBJ16A SMBJ16CA LP BP 16.0 17.80 19.70 1 26.0 23.1 1 SMBJ17A SMBJ17CA LR BR 17.0 18.90 20.90 1 27.6 21.8 1 SMBJ18A SMBJ18CA LT BT 18.0 20.00 22.10 1 29.2 20.6 1 SMBJ20A * SMBJ20CA LV BV 20.0 22.20 24.50 1 32.4 18.6 1 SMBJ22A SMBJ22CA LX BX 22.0 24.40 26.90 1 35.5 16.9 1 SMBJ24A * SMBJ24CA LZ BZ 24.0 26.70 29.50 1 38.9 15.5 1 * SMBJ26A SMBJ26CA ME CE 26.0 28.90 31.90 1 42.1 14.3 1 SMBJ28A SMBJ28CA MG CG 28.0 31.10 34.40 1 45.4 13.3 1 Notes : 1.For bidirectional type having V RWM of 10 volts and less, the I R limit is double 2. For parts with A , the V BR is ± 5% REV . 2021 . 02 . 01 www.spsemi.cn Page 2 of 5 SPSEMI SMBJ(600W) Series     Electrical Characteristics TABLE1 “ * ”Stand for commonly used models SMBJ Part Number Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @I T Breakdown Voltage @IT Test Current Maximum Clamping Peak Pulse Current Voltage @Ipp Reverse Leakage @V RWM UNI-Polar BI-Polar UNI BI V RWM (V) V BR (V)Min. V BR (V)Max. IT(mA) Vc(V) Ipp(A) I R ( A) SMBJ30A SMBJ30CA MK CK 30.0 33.30 36.80 1 48.4 12.4 1 SMBJ33A SMBJ33CA MM CM 33.0 36.70 40.60 1 53.3 11.3 1 SMBJ36A * SMBJ36CA MP CP 36.0 40.00 44.20 1 58.1 10.4 1 * SMBJ40A SMBJ40CA MR CR 40.0 44.40 49.10 1 64.5 9.3 1 SMBJ43A SMBJ43CA MT CT 43.0 47.80 52.80 1 69.4 8.7 1 SMBJ45A SMBJ45CA MV CV 45.0 50.00 55.30 1 72.7 8.3 1 SMBJ48A SMBJ48CA MX CX 48.0 53.30 58.90 1 77.4 7.8 1 SMBJ51A * SMBJ51CA MZ CZ 51.0 56.70 62.70 1 82.4 7.3 1 SMBJ54A SMBJ54CA NE DE 54.0 60.00 66.30 1 87.1 6.9 1 SMBJ58A SMBJ58CA NG DG 58.0 64.40 71.20 1 93.6 6.5 1 SMBJ60A SMBJ60CA NK DK 60.0 66.70 73.70 1 96.8 6.2 1 SMBJ64A SMBJ64CA NM DM 64.0 71.10 78.60 1 103.0 5.9 1 SMBJ70A SMBJ70CA NP DP 70.0 77.80 86.00 1 113.0 5.3 1 SMBJ75A SMBJ75CA NR DR 75.0 83.30 92.10 1 121.0 5.0 1 SMBJ78A SMBJ78CA NT DT 78.0 86.70 95.80 1 126.0 4.8 1 SMBJ85A SMBJ85CA NV DV 85.0 94.40 104.00 1 137.0 4.4 1 SMBJ90A SMBJ90CA NX DX 90.0 100.00 111.00 1 146.0 4.1 1 SMBJ100A SMBJ100CA NZ DZ 100.0 111.00 123.00 1 162.0 3.7 1 SMBJ110A SMBJ110CA PE EE 110.0 122.00 135.00 1 177.0 3.4 1 * SMBJ120A SMBJ120CA PG EG 120.0 133.00 147.00 1 193.0 3.1 1 SMBJ130A SMBJ130CA PK EK 130.0 144.00 159.00 1 209.0 2.9 1 * SMBJ150A SMBJ150CA PM EM 150.0 167.00 185.00 1 243.0 2.5 1 SMBJ160A SMBJ160CA PP EP 160.0 178.00 197.00 1 259.0 2.3 1 * SMBJ170A SMBJ170CA PR ER 170.0 189.00 209.00 1 275.0 2.2 1 SMBJ180A SMBJ180CA PT ET 180.0 201.00 222.00 1 292.0 2.1 1 SMBJ200A SMBJ200CA PV EV 200.0 224.00 247.00 1 324.0 1.9 1 SMBJ220A SMBJ220CA PX EX 220.0 246.00 272.00 1 356.0 1.7 1 SMBJ250A SMBJ250CA PZ EZ 250.0 279.00 309.00 1 405.0 1.5 1 SMBJ300A SMBJ300CA QE FE 300.0 335.00 371.00 1 486.0 1.3 1 SMBJ350A SMBJ350CA QG FG 350.0 391.00 432.00 1 567.0 1.1 1 SMBJ400A *SMBJ400CA QK FK 400.0 447.00 494.00 1 648.0 0.9 1 SMBJ440A SMBJ440CA QM FM 440.0 492.00 543.00 1 713.0 0.9 1 Notes : 1.For bidirectional type having V RWM of 10 volts and less, the I R limit is double 2. For parts with A , the V BR is ± 5% REV . 2021 . 02 . 01 www.spsemi.cn Page 3 of 5 SPSEMI SMBJ(600W) Series     Characteristic Curves (TA=25 ℃ unless otherwise noted) Fig.1 Peak Pulse Power Rating Non-repetitive pulse waveform shown in Fig.3 TA = 25°C 10 1 0.1 0.1μs 10μs 100μs 1.0ms 1.0μs td - Pulse Width (sec.) 10ms Peak Pulse Power(P PP ) or Current(I PPM ) Derating in Percentage,% P PPM -Peak Pulse Power (kW) 100 Fig.2 Pulse Derating Cruve Fig.3 Pulse Waveform tr=10uS Peak Value I PPM 100 50 I PPM 2 10/1000μsec . Waveform as defined by R.E.A td 00 1.0 2.0 t-Time(mS) 3.0 25 50 75 100 125 150 175 200 T A -Ambient Temperature(℃) V R ,Measured at Stand-Off Voltage,V WM 100 Uni-Directional Bi-Directional 10 1 TJ=25℃ f=1.0MH Z Vsig=50mVp-p 100 200 10 V WM -Reverse Stand-off Voltage(V) Fig.6 Maximum Non-Repetitive Peak Forward Surge Current Uni-Directional Only 200 Peak Forward Surge Current(A) Transient Thermal Impedance(C/W) 0 0 1000 100 10 1.0 REV . 2021 . 02 . 01 25 Measured at Zero Bias 4.0 Fig.5 Typ.Transient Thermal Impedance 0.1 1 10 100 0.001 0.01 0.1 tp-Pulse Duration(sec) 50 6000 T J =25℃ Pulse width(td) is defined ad the Point where the Peak Current Decays to 50% of I PPM Half Value 75 Fig.4 Typical Junction Capacitance C J -Junction Capacitance(pF) I PPM -Peak Pulse Current(%) 150 100 1000 www.spsemi.cn 8.3mS single half sine-wave (JEDEC Method) Unidirectional Only 100 10 1 10 Number of Cycles at 60H Z 100 Page 4 of 5 SPSEMI SMBJ(600W) Series     Recommended Soldering Conditions Recommended Conditions Pb-Free assembly (see Fig.1) +150℃ -Temperature Max(T s(max) ) +200℃ -Time(Min to Max)(t s ) 60-180secs Critical Zone T L to T P Ramp-up TL Average ramp up rate (Liquidus Temp(T L ) to peak) 3℃/sec.Max. T s(max) to T L -Ramp-up Rate 3℃/sec.Max. Re”ow tP TP -Temperature Min(T s(min) ) -Temperature(T L )(Liquidus) +217℃ -Temperature(t L ) 60-150secs Peak Temp(T P ) +260(+0/-5)℃ Time within 5℃ of actual Peak Temp(t P ) Ramp-down Rate 30 secs.Max. Time 25℃ to Peak Temp(T P ) 8 min.Max. Do not exceed +260℃ tL Temperature Re”ow Condition Pre Heat Reflow Soldering T s (max) Ramp-down Preheat T s (min) ts 25 time to peak temperature (t 25℃ to peak) 6℃/sec.Max. Time Marking Code Cathode Band **** **** AE KE Logo Serial number Serial number Logo Marking Code Marking Code Tape And Reel Specification Symbol Ea Per Reel REEL DIA (mm) Industry Standard SMBJ*** 500/3000 178/330 EIA RS-481 0.157 (4.0) 0.47 (12.0) 0.314 (8.0) 13.0(330) 0.49 (12.0) REV . 2021 . 02 . 01 www.spsemi.cn Page 5 of 5
