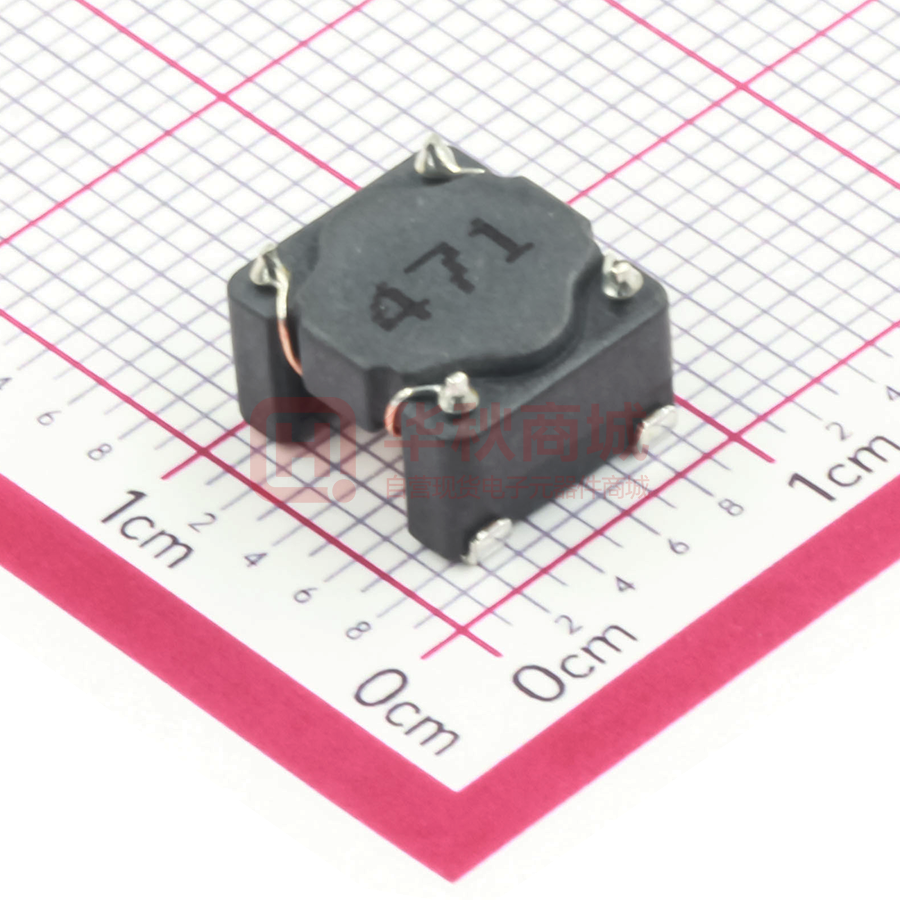

Wire Wound Common Mode Choke
-YLCM1006C Series
■ Features
● SMD construction,and low profile.
● High Impedance and Excelletn Frequency Characteristic.
● Self Electromagnetic Shielding.
● Low Magnetic Flux Leakage.
■ Applications
● LED Light,TV game,Monitor,etc.
● EMI common-mode noise.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance Value
⑷ :Taping
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C Max
D
E
F
YLCM1006C
10.0±0.5
8.7±0.5
6.5
6.22±0.1
7.62±0.1
1.4 Ref
深圳市益嘉源电子有限公司
http://www.yjycoin.com
-1-
Wire Wound Common Mode Choke
-YLCM1006C Series
■ Circuit Diagram
■ YLCM1006C Series
Part Number
Inductance
L1=L2(uH)
@100KHz/0.1V
DC
Resistance
(mΩ)Max.
Rated
Current
(A)Max.
Hi-Pot
(Vac)
3mA/1S
Impedance
(Ω)Min.
Freq.
Range
(MHz)
YLCM1006C-471T
470±40%
65
1.60
1000
900
2~40
1. Rated Current:Temp.rise 40℃ Typ
2. Operating Temperature:-20℃ up to +125℃
3.Storage Temperature:-20℃ up to +40℃,75% RH max.
■ Materlal List
NO.
ITEM
DESCRIPTION
1
CORE
FERRITE
2
CASE
DAP-WH9100
3
WIRE
P180 Grd1
4
SOLDER
Sn99.3:Cu0.7
5
ADHESIVE
XNR-3614
6
INK
WHITE
深圳市益嘉源电子有限公司
http://www.yjycoin.com
-2-
Wire Wound Common Mode Choke
-YLCM1006C Series
■ Reliability Testing
Operating Temperature
- 20 to + 125 ℃ ( Contain Heating coil )
Appearance Inspection
No external defects by visual inspection
Terminal Strength
After soldering , between copper plaet and
terminals of coils , push in two directions of X , Y
with standing 10N(1.02kg) for10+/-2 sec.
Terminal should not peel off. ( Refer to figure at right )
Heat endurance of reflow
Refer to figure
soldering
Insulating resistance
Over 100 MΩ at 100V D.C . between wire and core .
Dielectric Strength
Apply at 0.5KV 3mA for 1 minute between wire and core .
Temperature characteristics
Inductance coefficient ( 0~2,000 ) × 10 / ℃( - 20 ~ + 125 ℃ )
Humidity characteristics
Inductance deviation within ± 10% , after 96 hours in 90~95%
relative humidity at 40 ± 2 ℃ and 1 hours drying under normal condition .
A test is made under the above mentioned condition , and it is kept for 2 hours in the normal
■ Recommended soldering temp.Graph
IR Reflow profile
Temperature and humidity. After that,no mechanical and electrical defect should be found.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
-3-
Wire Wound Common Mode Choke
-YLCM1006C Series
■ Taping Dimensions(Unit:mm)
TYPE
W
A
B
D
P
K
T
MPQ
YLCM1006C
24.0±0.3
10.6±0.3
11. 5±0.1
11.5±0.1
16±0.1
5.0±0.1
0.40±0.05
800
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
A
B
C
D
YLCM1006C
330±2.0
24.4±1.5
30.4MAX
23.9 Min
13.0±0.50
21.0±0.80
深圳市益嘉源电子有限公司
http://www.yjycoin.com
-4-
Wire Wound Common Mode Choke
-YLCM1006C Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
-5-
